Тонколона за окачване 5" Tannoy AMS 5ICT-WH LZ

Тонколона за окачване 5" Tannoy AMS 5ICT-WH LZ

Features:

• Full range surface-mount loudspeaker for indoor and outdoor installation applications
• 50 Watts continuous, 200 Watts peak power
• 5" ICT (Inductive Coupling Technology) point source driver for extended frequency range and reliability
• 90°C controlled conical dispersion for optimum coverage and forward gain
• High durability design for constant heavy usage in demanding applications
• Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
• Low insertion loss 30 W line transformer with easily accessible tapping switch
• Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 AMS series loudspeakers per channel
• All components weather resistant to IP65 for outdoor use
• High temperature resistant ABS enclosure rated at 120°C
• Semi matt black paint finish fits unobtrusively in any environment
• Yoke bracket included for ease of installation
• Optional VARIBALL multi-angle bracket with secure clamp mechanism for accurate audience coverage
• Weatherproof cable gland cover to protect Phoenix connectors and tap selector switch

Specification:

Performance

• Frequency Response (-3 dB) (1): 90 Hz - 22 kHz
• Frequency Range (-10 dB) (1): 80 Hz - 30 kHz
• System Sensitivity (1 W @ 1 m) (2): 88 dB (1 W = 4 V for 16 Ohms)
• Nominal Coverage Angle: 90 degrees conical

Power Handling

• Average: 50 W
• Programme: 100 W
• Peak: 200 W

Recommended Amplifier Power: 100 W @ 16 Ohms

Nominal Impedance (Lo, Z): 16 Ohms

Rated Maximum SPL

• Average: 105 dB
• Peak: 111 dB

Transformer Taps (via front rotary switch)

• 70 V: 30 W / 15 W / 7.5 W / 3.75 W / OFF & low impedance operation
• 100 V: 30 W / 15 W / 7.5 W / OFF & low impedance operation

TRANSDUCERS

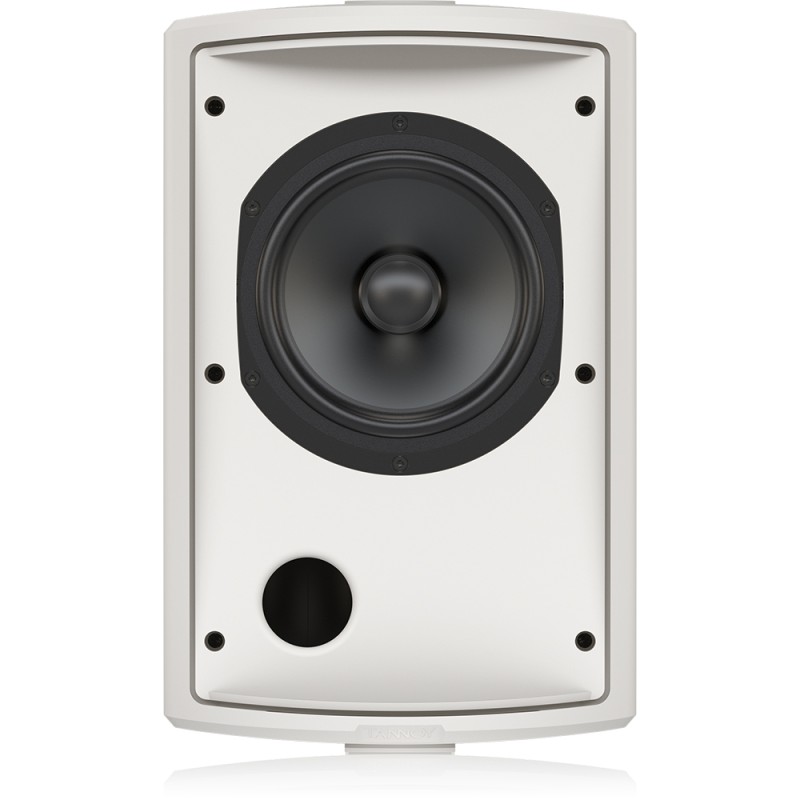

• Low Frequency: 1 x 130 mm (5.00") treated multi fibre pulp cone
• High Frequency: ICT

PHYSICAL

• Enclosure: ABS

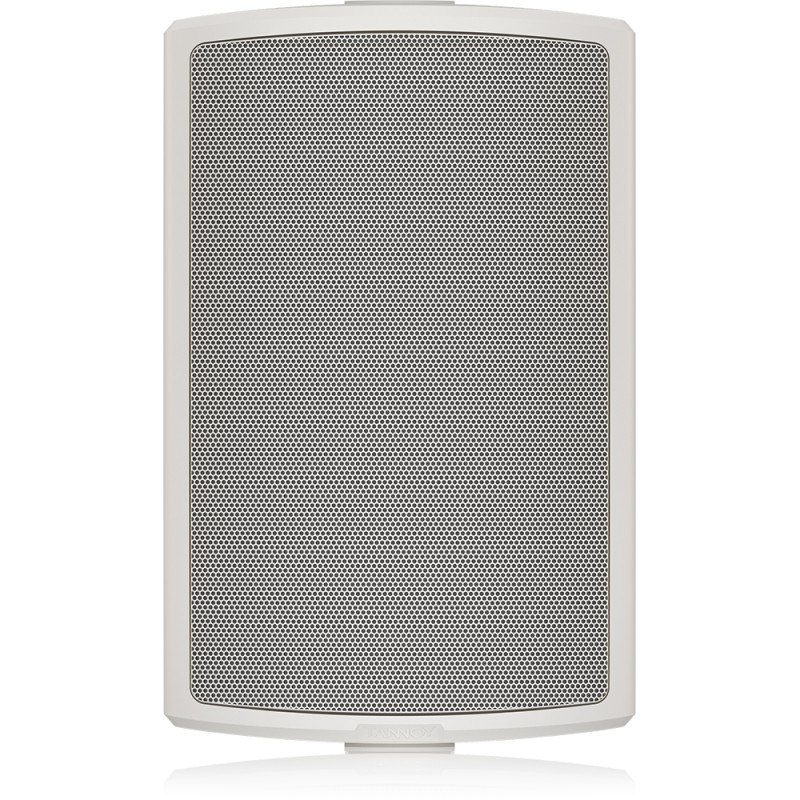

• Grille: Steel, plated and painted
• Connectors: Removable locking connector with screw terminals
• Dimensions (H x W x D): 248.0 x 155.0 x 203.9 mm (9.77 x 6.10 x 8.03")
• Net Weight (ea): 3.25 kg (7.16 lbs)
• Shipping Weight: 3.66 kg (8.07 lbs)

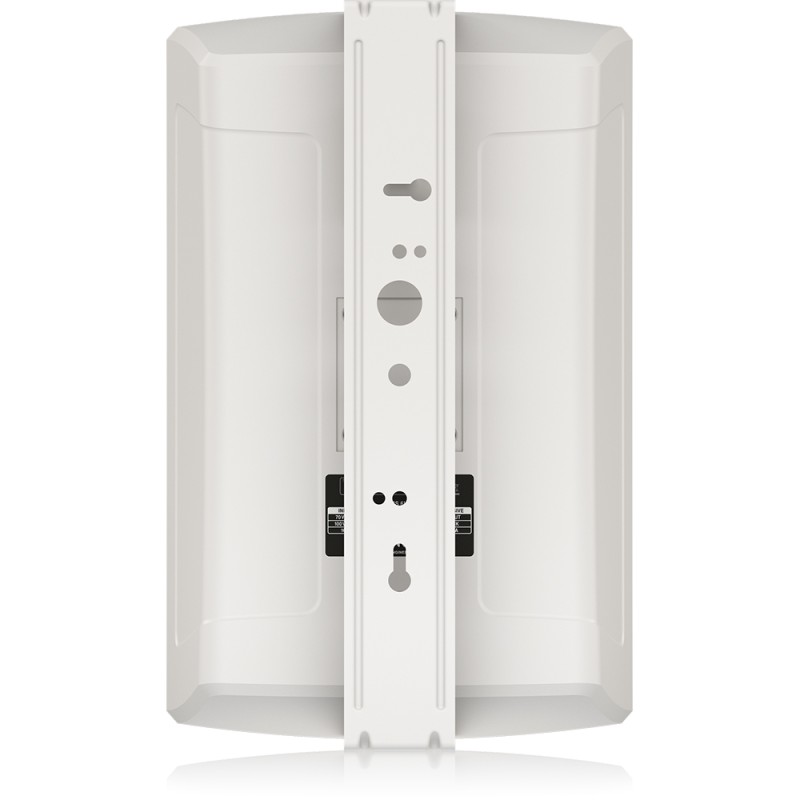

• Included Accessories: Yoke bracket
• Packed Quantity: 2
• Finish
• Transformer setting
• Rotary switch
