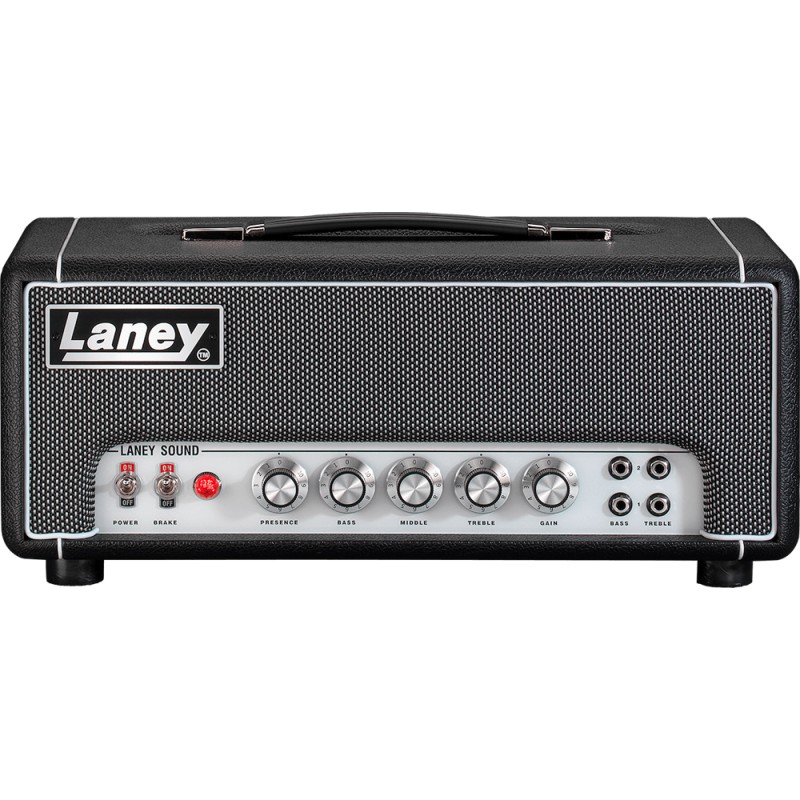

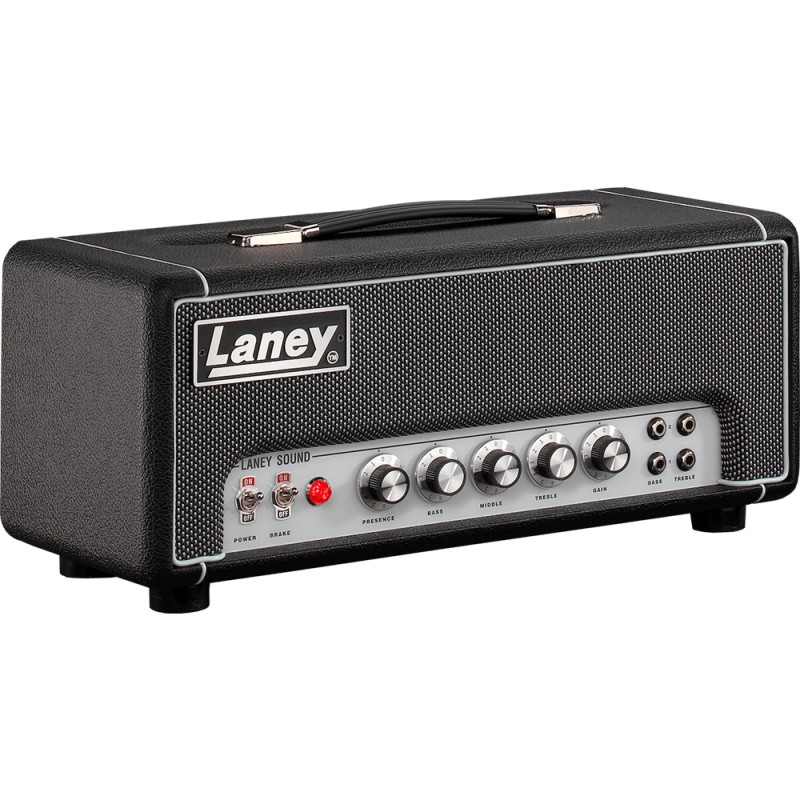

Китарна глава Laney LA-STUDIO

Китарна глава Laney LA-STUDIO

Key Features:

• Low Power Class AB Tube power stage
• Integrated Two Notes Torpedo, Emulated DI out
• Integrated high quality reactive load for silent cabinet free operation.
• Equipped with a brake switch. When engaged, the Brake reduces the output from 3W RMS to 0.1W RMS. Low volume without

Specification:

• Model LA-STUDIO
• Nominal Supply Voltage 100V~, 120V~, 220-240V~ Factory set
• Mains Fuse 100-120V~ = T500mA L 250V, 220-240V~ = T250mA L 250V
• Output Power 3W / 0.1W in Brake Mode
• Power Consumption 40W
• Preamp Tubes 3x ECC83 Large Plate Preamp Tubes
• Output Tube 1x 12BH7 Power Tube
• Inputs CH1, Bass & Treble Input Sockets (Input Impedance 1Mohm, Sensitivity 15mV)
• CH2, Bass & Treble Input Sockets (Input Impedance 140Kohm, Sensitivity 30mV)

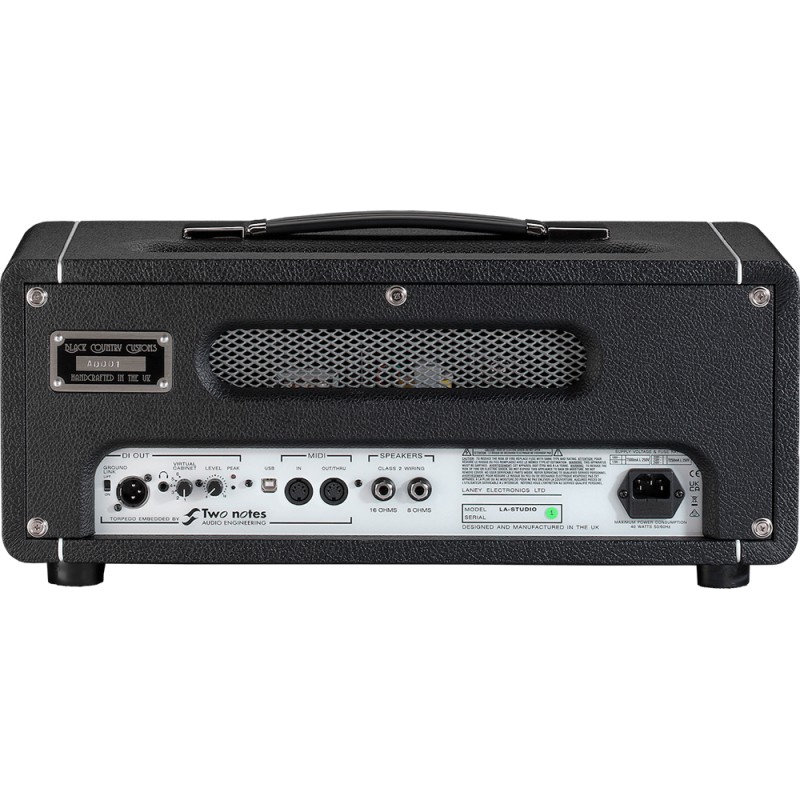

• Midi In 5 pin DIN
• USB Type A, to control Two Notes (Two Notes uses 24 bit, 96kHz AD-DA)
• Outputs 1x8 & 1x16 ohm speaker outputs
• Midi Out/Thru 5 pin DIN
• Phones Out Stereo 3.5mm
• Balanced DI Out, Male XLR (With Two Notes emulation) and Ground Lift switch

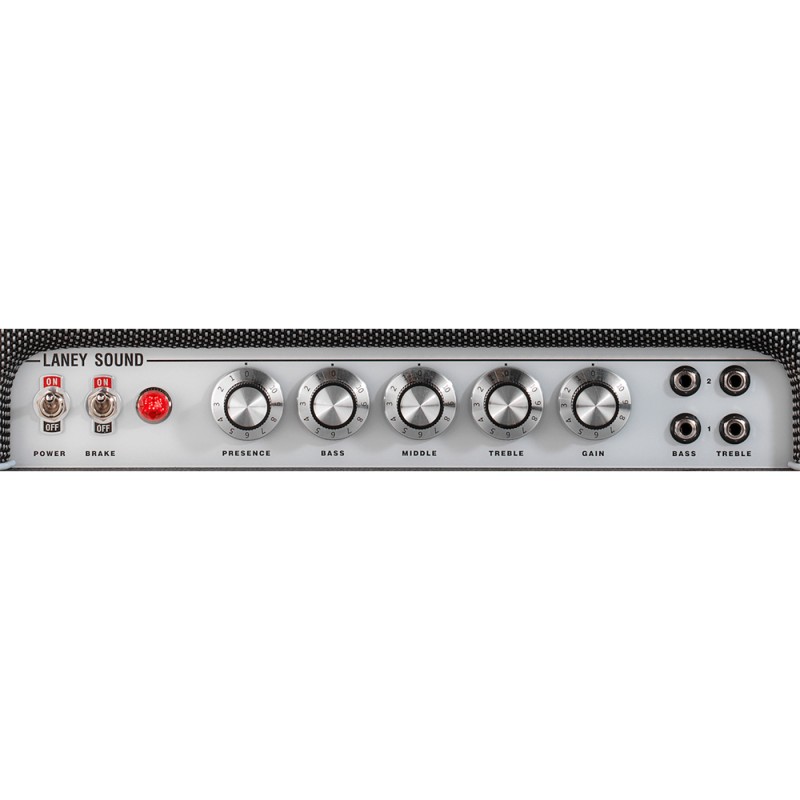

• Controls Bass, Middle, Treble, Presence, Gain, Power Switch, Brake Switch
• Virtual cabinet 6W selector switch
• Other Peak led, for Two Notes
• Rugged plywood construction covered in hardwearing black vinyl
• Full internal reactive load for silent operation without a cabinet
• Unit dimensions (HWD) 229 x 520 x 200 mm (9" x 20.5" x 7.9")
• Net Weight 7.8Kg, 17.2 lbs
• Carton dimensions (HWD) 325 x 685 x 290 mm (12.8" x 27" x 11.4"
• Gross Weight 9.8Kg, 21.6 lbs
