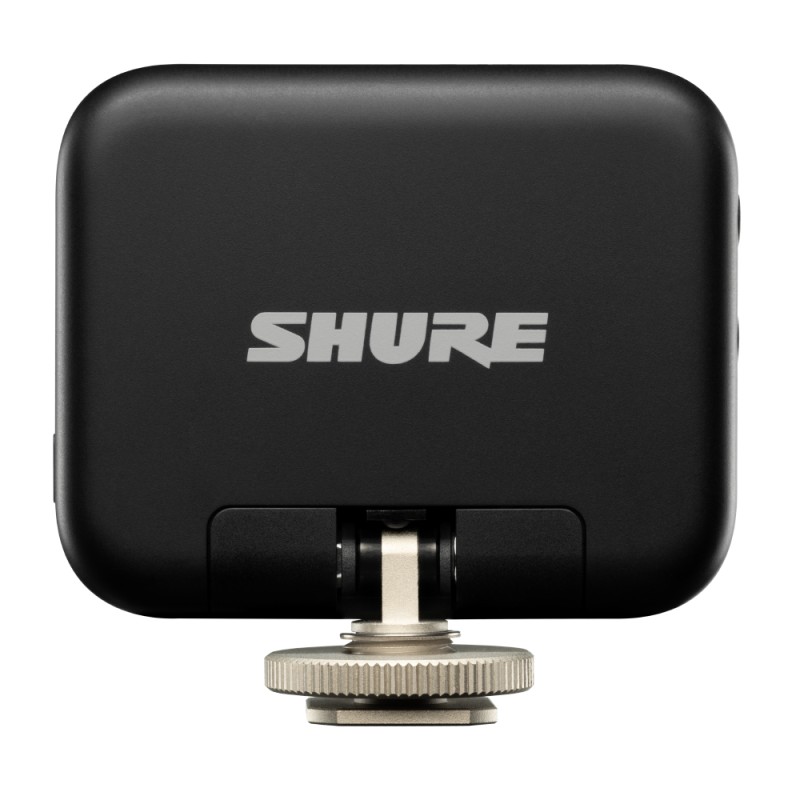

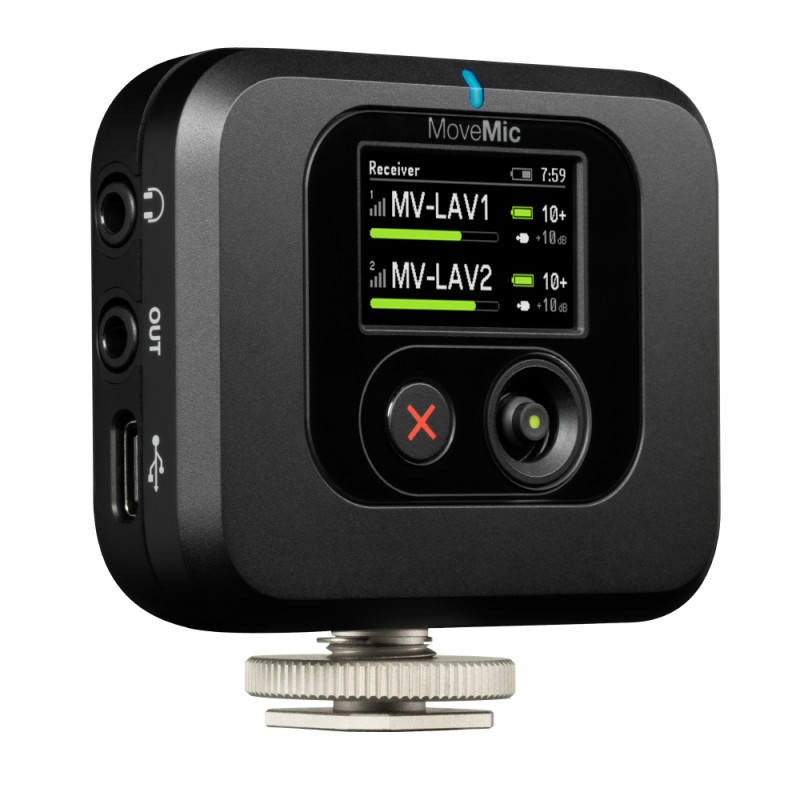

SHURE MV-R-Z6 Plug-in приемник за монтиране на камера

MV-R-Z6 е приемник за монтаж на камера (може да се ползва и с компютър или всяко устройство, на което сте решили да записвате звук).

Директно записвате или предавате на живо.

Можете да съчетаете както с MV-ONE ( безжичен микрофон с 1 брошка), така и с MV-TWO ( безжичен микрофон с две брошки).

SPECIFICATIONS

Frequency Response 50-20kHZ +/-1dB

Dynamic Range (A-Weighted) 100dB

Equivalent Noise (A-Weighted, Camera Out = Line Level) 31 dBSPL

Equivalent Input Noise (A-Weighted, Direct to phone) 26 dBSPL

Max Sound Pressure Level (SPL) 130dBSPL

Sensitivity when used with MV-LAV (Mic Gain = 0dB) -45dBV @94dBSPL (1 Pascal RMS)

Bit Depth 24 Bit

Sampling Rate 48ksps or 44.1ksps (Host dependent)

Gain Adjustment Range 0 - 60 dB

Minimum Load Impedance - HP 16 ohms

Maximum Headphone Output Level 26.4mW @1% THD

Minimum Load Impedance - Camera Out 2k ohms

Maximum Camera Output Level (Mic Setting) -26dBV

Maximum Camera Output Level (Line Setting) -8.3dBV

Latency to 3.5mm (without NR) 15.33 ms (within 1 frame @60fps)

Latency to 3.5mm (with NR) 17.33 ms

Latency to USB: Device Dependent Host Device Dependent

Range Up to 100ft (30m) line of sight

PHYSICAL SPECIFICATIONS (RECEIVER)

Overall Dimensions (with cold shoe

mount fully extended) 65 mm x 67 mm x 19 mm [2.55" x 2.64" x 0.75"]

Weight (w/o windscreen) 81 g [2.86 oz]

Housing Black PC/ABS Thermoplastic

Antenna Sheet metal (tin-plated steel)
