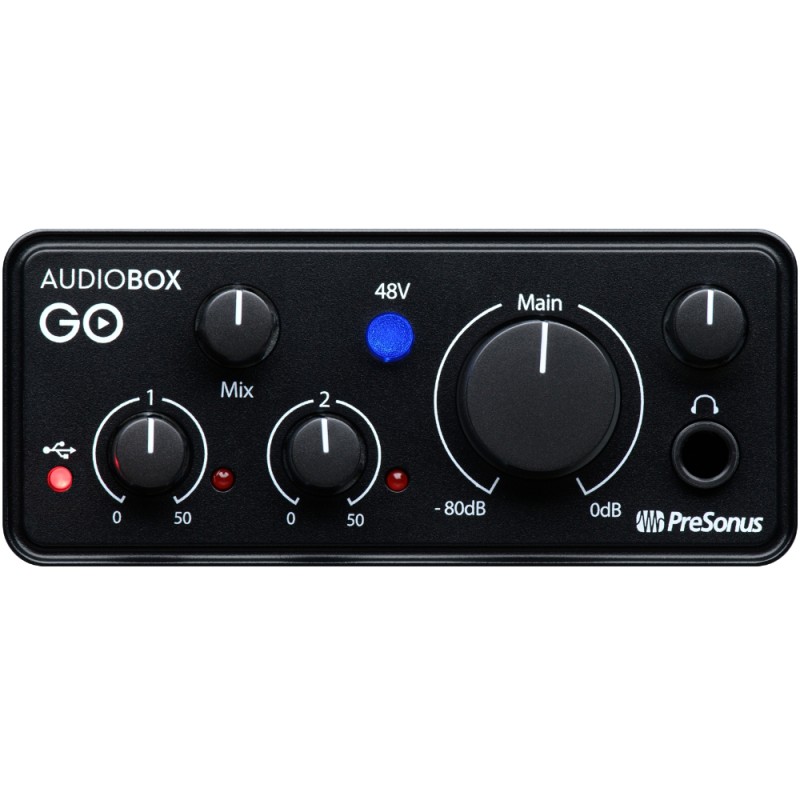

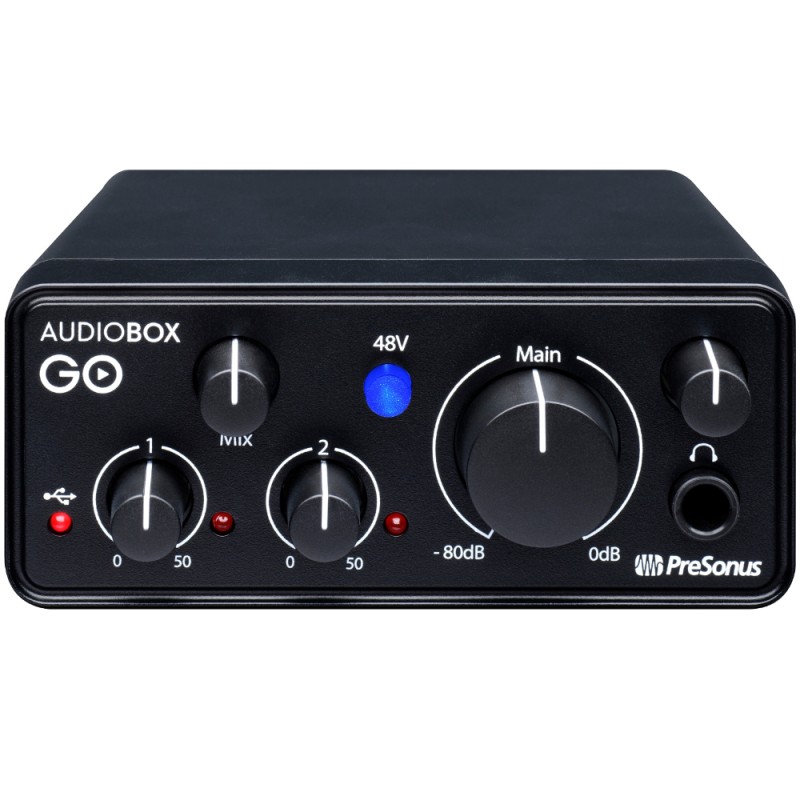

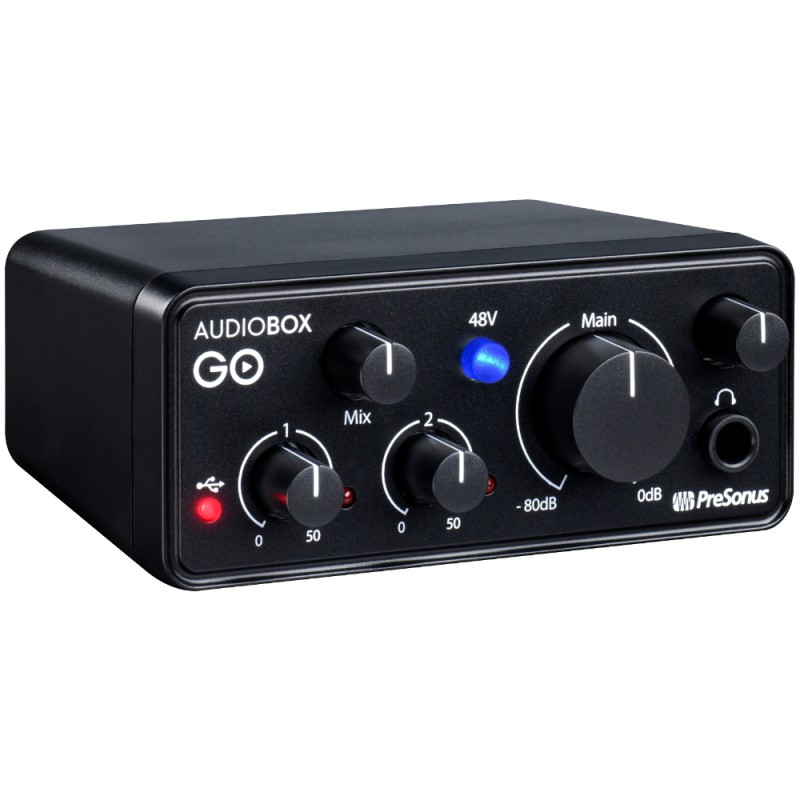

Аудио интерфейс PreSonus AudioBox GO

Аудио интерфейс PreSonus AudioBox GO

• Ultra-affordable, ultra-compact and versatile audio interface for home and mobile recording.
• USB-C®-compatible for use with the latest devices.
• Recording software included: Get started right away with Studio One® Prime DAW recording software and Studio Magic Suite software bundle including music
• tutorials, tons of sound samples and virtual instruments.
• Bus-powered by your connected USB-C® device so no need for an additional power supply - works great with both Apple and Android devices.
• Connect an instrument and a microphone at the same time: One TS instrument input to record guitar or bass and one mic/line combo input to record vocals or a keyboard, drum machine or other line-level instrument.
• One ¼-inch stereo headphone output
• Mix control lets you create a custom blend between inputs and playback for monitoring recordings with zero latency.
• Two balanced TRS ¼-inch main outputs for studio monitors or other speakers.
• Professional audio quality: Studio-grade converters allow for up to 24-bit/96 kHz recording and playback assuring the highest quality possible.
• Professional XMAX-L mic preamp: Your microphone will sound its best thanks to this custom low-noise, high-headroom design with 50 dB of adjustable gain and switchable +48V phantom power for professional XLR condenser mics.

Specifications

Electronics

• Voltage: USB Bus Powered

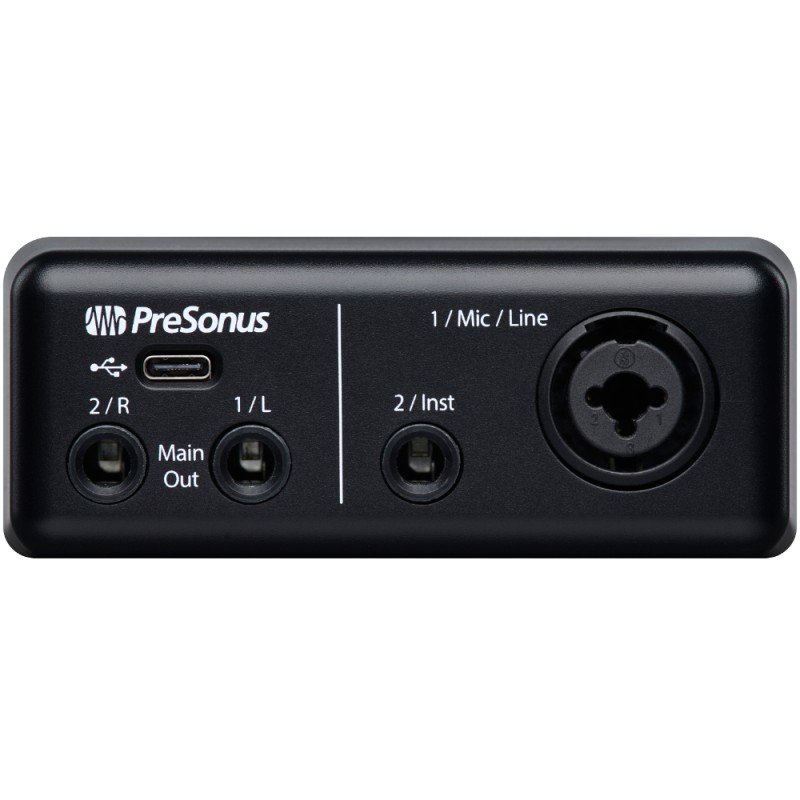

• Inputs: One - XLR Female (via Combo), Balanced, Microphone; One - 1/4" TS Female (via Combo), Unbalanced, Line; One - 1/4" TS Female (Input 2), Unbalanced, Instrument
• Headphone Jack: 1/4” TRS Female, Stereo, Unbalanced
• Line Out: Two - 1/4" Balanced (Left and Right)

Miscellaneous

• Connection Type: USB-C® Bus-Powered

Microphone Preamp

• Total Harmonic Distortion: 0.004% (1 kHz, -1 dBFS, Minimum Gain)
• Gain Control Range: 50 dB (0 dB to +50 dB)
• Microphone Preamp Maximum Input Level: +10 dBu (±0.5 dBu, Minimum Gain)
• Phantom Power: (±2 VDC) +48 VDC
• Frequency Response: 20 Hz - 20 kHz (±0.3 dBu, Unity Gain, Unweighted)
• Microphone Preamp Input Impedance: 1.4 kΩ

Line Inputs

• Line Inputs Maximum Level: +19 dB
• Line Inputs Gain Range: 50 dB,(-20 dB to +30 dB)
• Line Inputs Impedance: 750 KΩ

Main And Line Outputs

• Main And Line Outputs Frequency Response: 20 Hz to 20 kHz, +/-0.2 dB
• Main And Line Outputs Total Harmonic Distortion: < 0.007%
• Main And Line Outputs Output Impedance: 51Ω

Headphone Outputs

• Headphone Outputs Maximum Output: 30 mW/Channel @ 60 Ω
• Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
• Total Harmonic Distortion: < 0.08%

Digital Audio

• Digital Audio Dynamic Range: ADC Dynamic Range (A-Weighted) 90 dB, 48 kHz; DAC Dynamic Range (A-Weighted) 102 dB, 48 kHz
• Digital Audio Bit Depth: 24-bit
• Supported Sample Rates: 44.1, 48, 88.2, 96kHz
