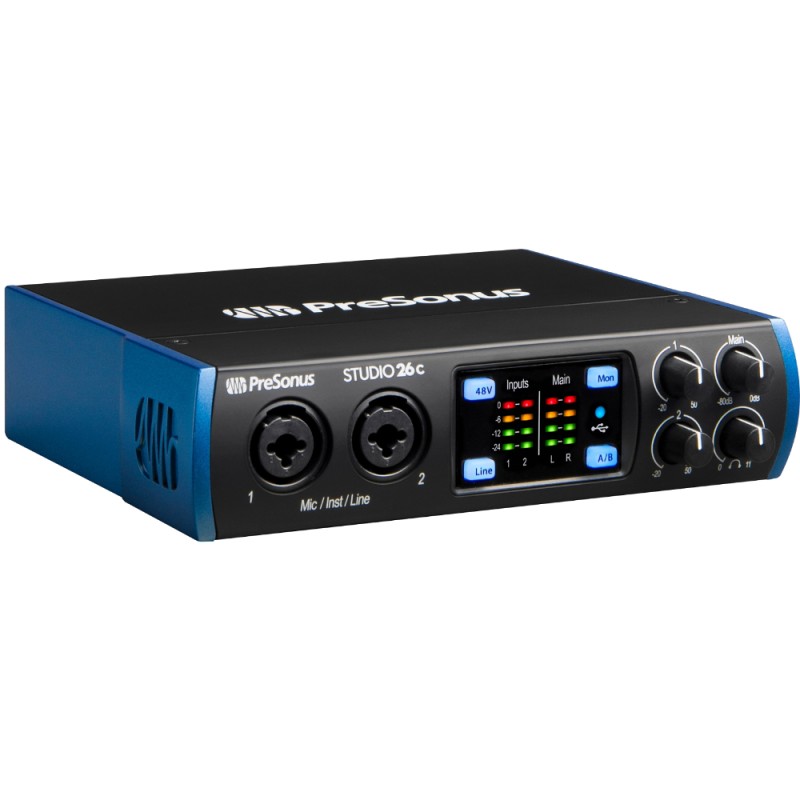

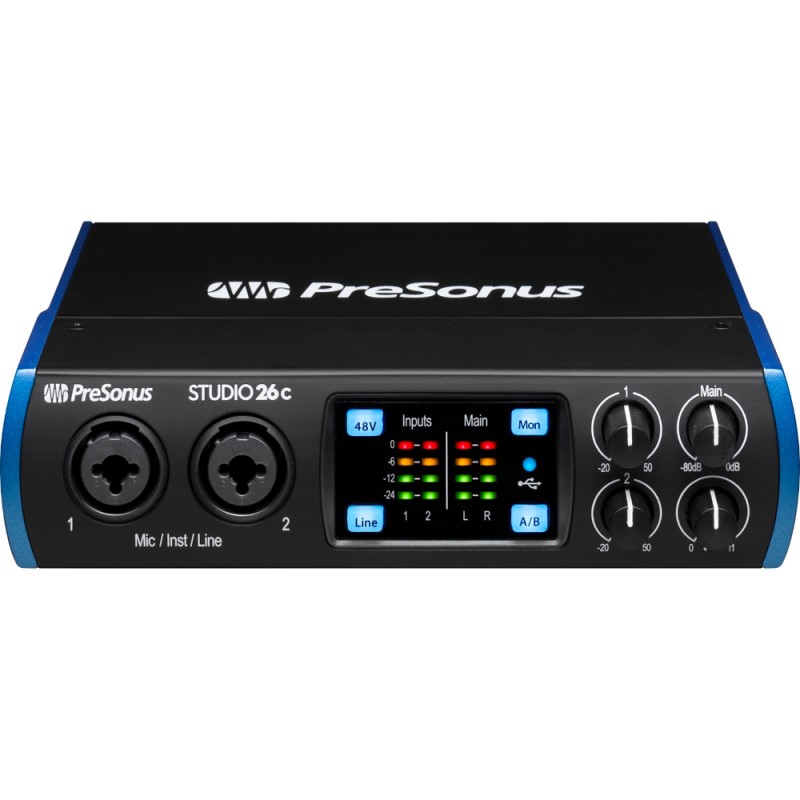

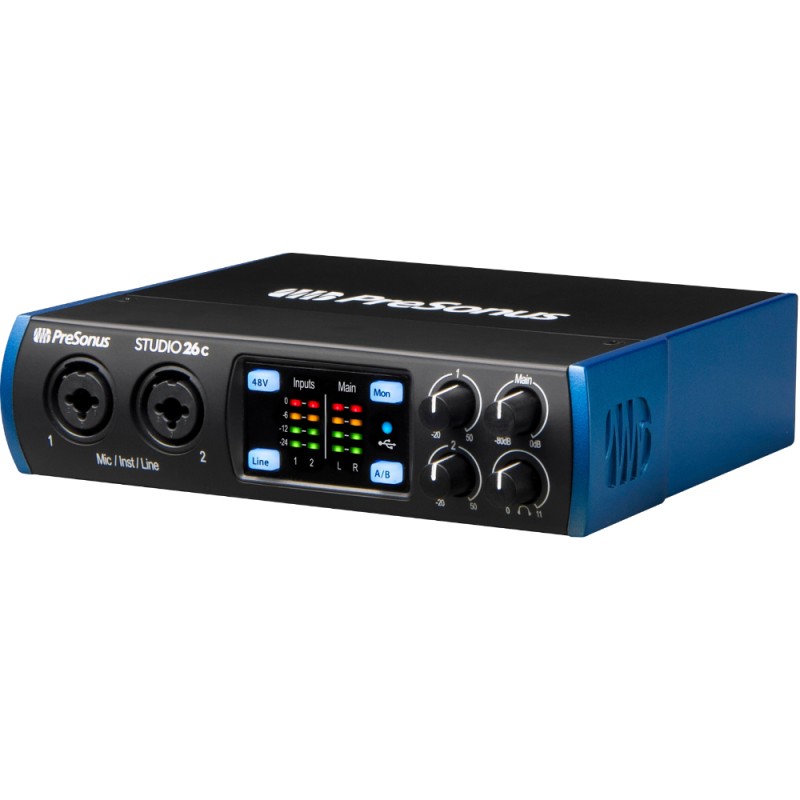

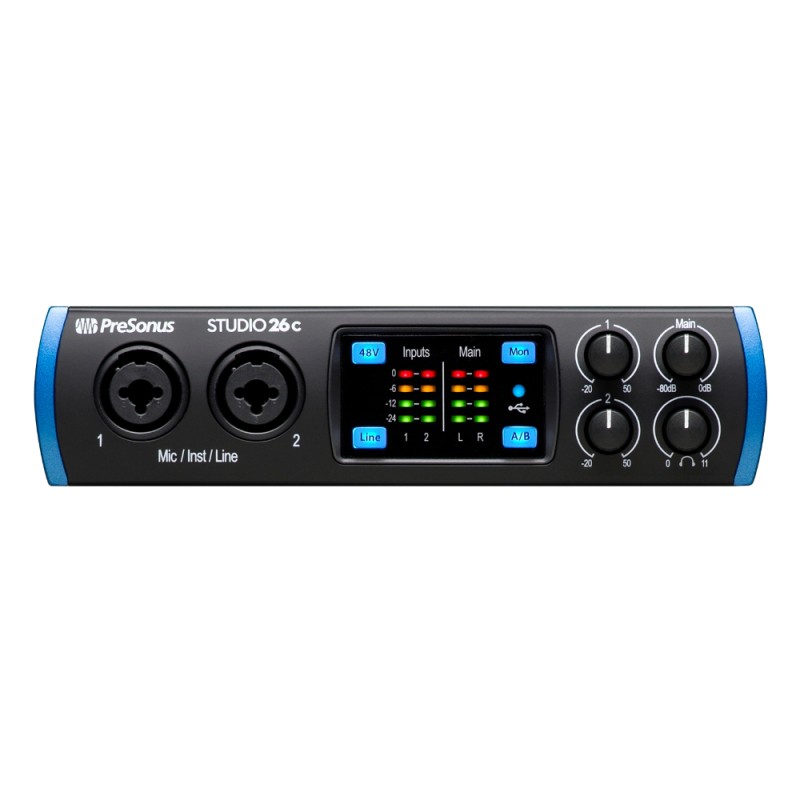

Аудио интерфейс с включен софтуер PreSonus Studio 26c

Аудио интерфейс с включен софтуер PreSonus Studio 26c

• 2 pristine XMAX-L solid-state mic preamps to capture every detail
• 2 high-headroom instrument/line inputs to record guitar, bass, and your favourite synths
• Cue Mix A/B function that toggles between two mixes while monitoring through headphones - perfect for DJs and electronic musicians
• Studio-grade converters for 24-bit/192 kHz recording and playback
• Professional input and output metering to keep an eye on your recording levels
• MIDI I/O for external production tools
• 2 balanced ¼" TRS line outputs for monitor mixing
• 2 balanced ¼" TRS main outputs with front-panel level control
• 4 ladder-style LED level meters (2 input, 2 main output)
• USB-C to USB-C and USB-C to USB-A cables included

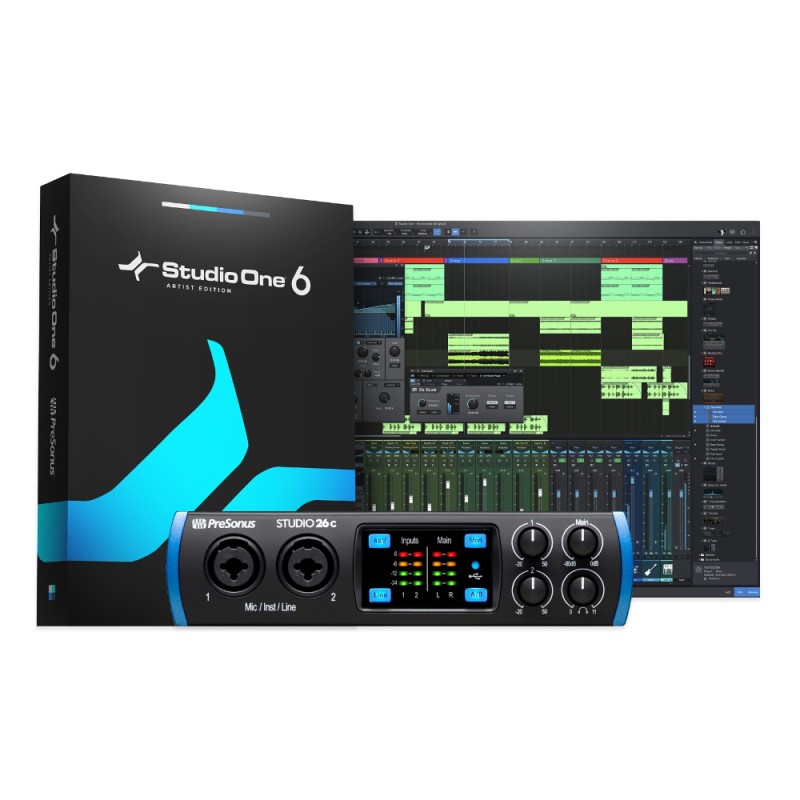

• Studio One® Artist and Studio Magic Plug-in Suite included

Specifications

Electronics

• Voltage: USB Bus Powered

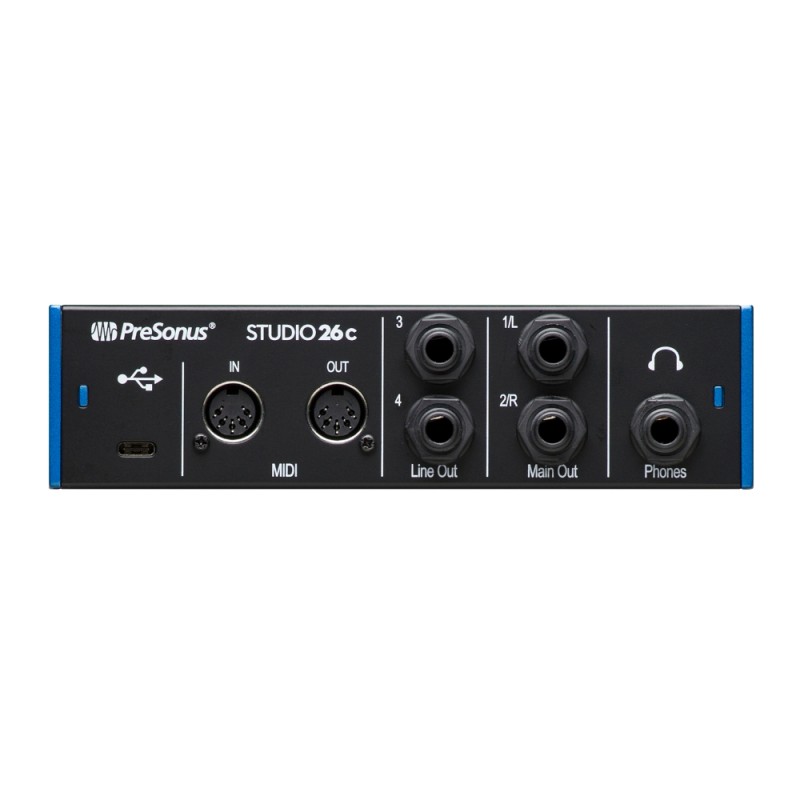

• Inputs: Two - Combo Mic/Instrument/Line Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced (Inst) or TRS Female Balance (Line))
• Headphone Jack: 1/4" TRS Active Stereo
• Line Out: Two - 1/4" Balanced (Left and Right)

Miscellaneous

• Connection Type: USB-C® Bus-Powered
• MIDI I/O: Dual 5-Pin Female DIN

Microphone Preamp

• Total Harmonic Distortion: THD+N 0.004% (1 kHz, -1 dBFS, Unity Gain)
• Gain Control Range: 70 dB
• Microphone Preamp Maximum Input Level: +4.5 dBu (balanced, Minimum Gain)
• Phantom Power: +48 VDC (10 mA total)
• Frequency Response: 20 Hz - 20 kHz (± 0.1 dB, Minimum Gain, 48 kHz)
• Microphone Preamp Input Impedance: 1.6 kΩ
• Dynamic Range: 110 dB (A-Weighted, Minimum Gain)
• Equivalent Input Noise: -125 dBu (Maximum Gain, 150Ω, A-Weighted)

Line Inputs

• Line Inputs Maximum Level: +19.5 dBu (balanced, Minimum Gain)
• Line Inputs Gain Range: 70 dB
• Line Inputs Frequency Response: 20 Hz - 20 kHz (± 0.1 dB, Minimum Gain, 48 kHz)
• Line Inputs Dynamic Range: 110 dB (A-Weighted, Minimum Gain)
• Line Inputs Total Harmonic Distortion: THD+N 0.007% (1 kHz, -1 dBFS, Minimum Gain)
• Line Inputs Impedance: 10 kΩ

Main And Line Outputs

• Main And Line Outputs Maximum Level: +10 dBu (balanced)
• Main And Line Outputs Frequency Response: 20 Hz - 20 kHz (± 0.1dB, Unity Gain, 48 kHz)
• Main And Line Outputs Total Harmonic Distortion: THD+N 0.0015% (1 kHz, -1 dBFS)
• Main And Line Outputs Dynamic Range: 108 dB (A-Weighted) (Line Outs 1 and 2), 104 dB (A-Weighted, 56Ω Load)

Headphone Outputs

• Headphone Outputs Maximum Output: 30 mW / Channel (56Ω Load)
• Frequency Response: 20 Hz to 20 kHz (±0.2 dB, 56Ω Load, 48 kHz)
• Dynamic Range: 104 dB (A-Weighted, 56Ω Load)
• Total Harmonic Distortion: THD+N 0.009% (1 kHz, -1 dBFS, no Load)
• Headphone Outputs Impedance Working Range: 32Ω to 300Ω

Digital Audio

• Digital Audio Dynamic Range: 114 dB
• Digital Audio Bit Depth: 24-bit
• Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, or 192
