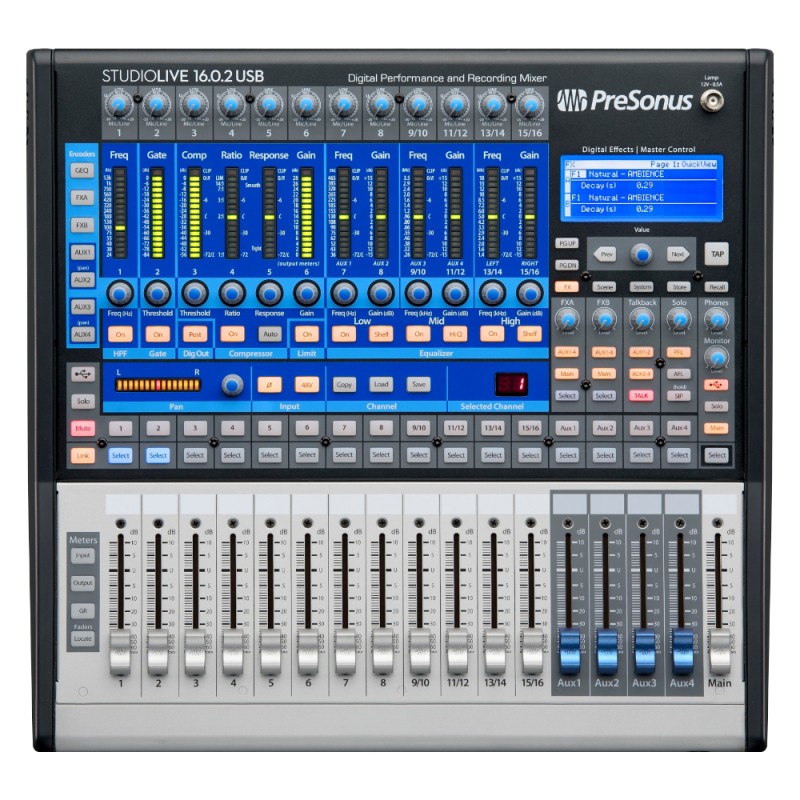

Дигитален миксер PreSonus StudioLive Classic 16.0.2 USB

Дигитален миксер PreSonus StudioLive Classic 16.0.2 USB

• 8 mono and 4 stereo channel inputs with 60 mm faders (12 faders)
• 4 auxiliary buses (pre/post-fader send) and 2 internal FX buses
• On all channels and buses: 3-band semi-parametric EQ, compressor, limiter, downward expander
• Stereo, 31-band graphic EQ on the main bus
• 18-in/16-out USB 2.0 audio interface (24-bit/44.1 kHz and 48 kHz) records all channels and main L/R mix
• MIDI I/O: control main and effects output levels, recall effects presets and Scenes, and serve as a MIDI interface
• Software library includes PreSonus® Studio One® Artist DAW and Capture™ live-recording software for Mac® and Windows® and UC Surface mixer-control software for Mac, Windows, and iPad®. QMix®-UC touch wireless aux-control software for iPhone®, iPod® touch, and Android™ are also available free.

Specifications

Electronics

• Voltage: 100-120V

Miscellaneous

• Connection Type: IEC

Microphone Preamp

• Total Harmonic Distortion: 0.005%, +4 dBu, 20 Hz-20 kHz, Unity Gain, Unweighted (1 kHz at Unity Gain)
• Signal To Noise Ratio: -95 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
• Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
• Microphone Preamp Maximum Input Level: +12 dBu (Unity Gain)
• Phantom Power: +48 VDC (± 2 VDC)
• Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
• Microphone Preamp Input Impedance: 1 kΩ (Balanced)
• Equivalent Input Noise: +125 dB Unweighted, +130 dB A-Weighted

Line Inputs

• Line Inputs Maximum Level: +22 dBu (Unity Gain)
• Line Inputs Gain Range: -20 dB to +20 dB (± 1 dB)
• Line Inputs Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
• Line Inputs Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
• Line Inputs Impedance: 10 kΩ

Digital Audio

• Digital Audio Dynamic Range: 115 dB (A-Weighted, 48 kHz)
• Digital Audio Bit Depth: 24
• Supported Sample Rates: 48 kHz, 44.1 kHz
