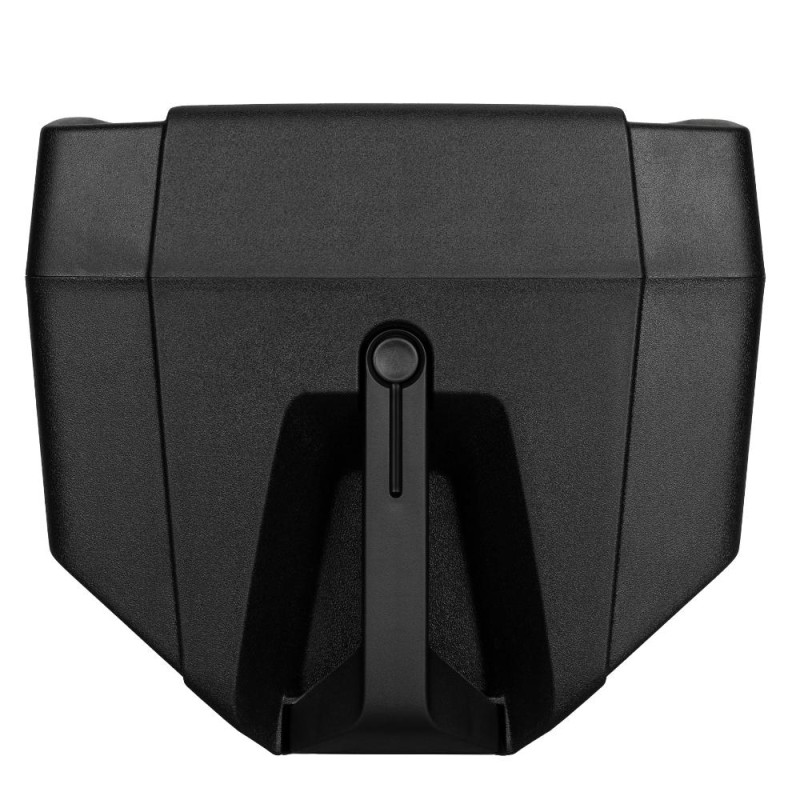

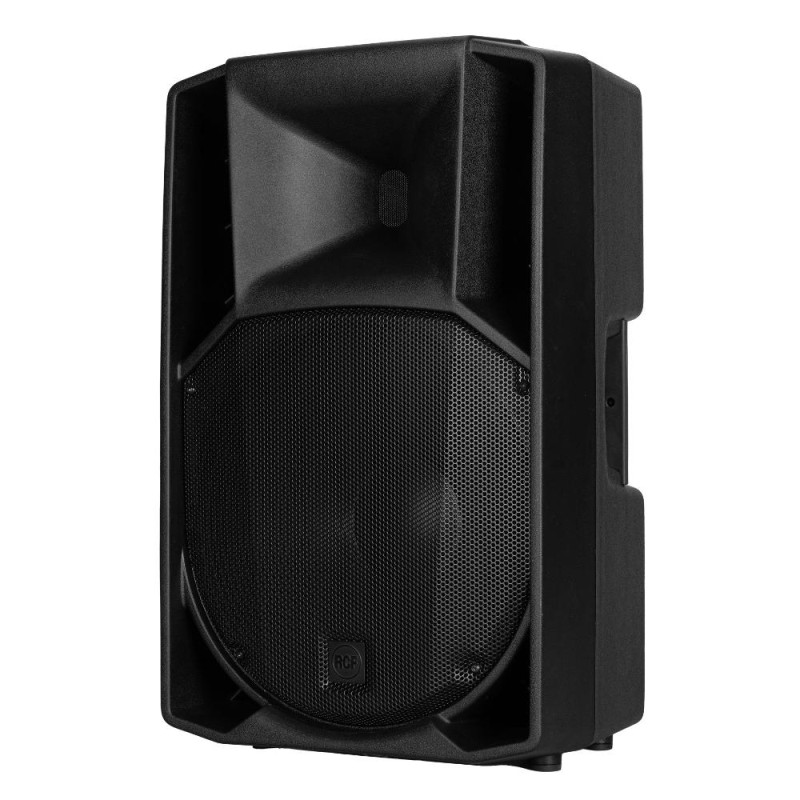

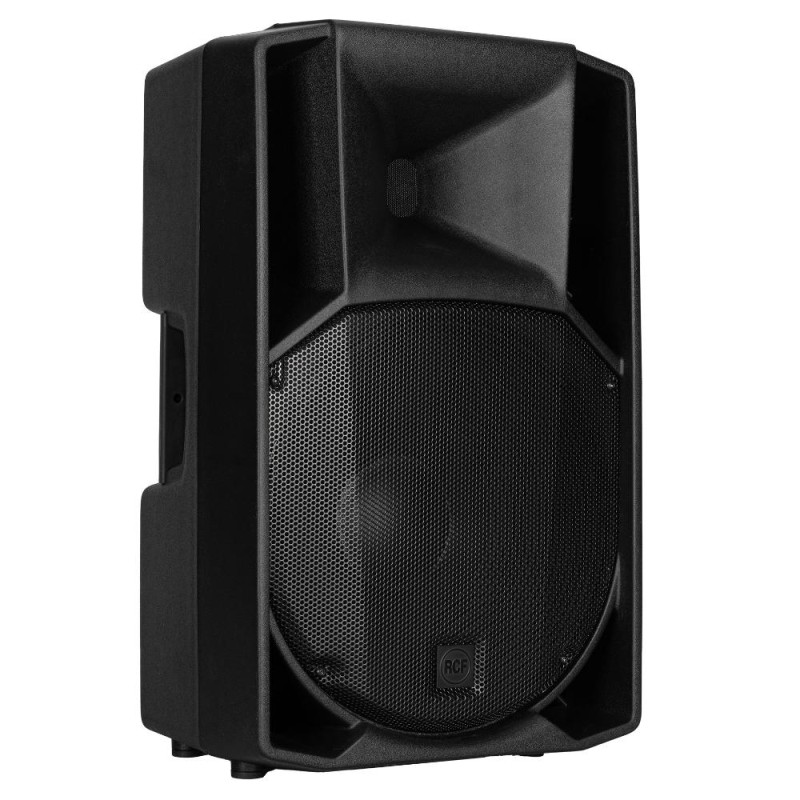

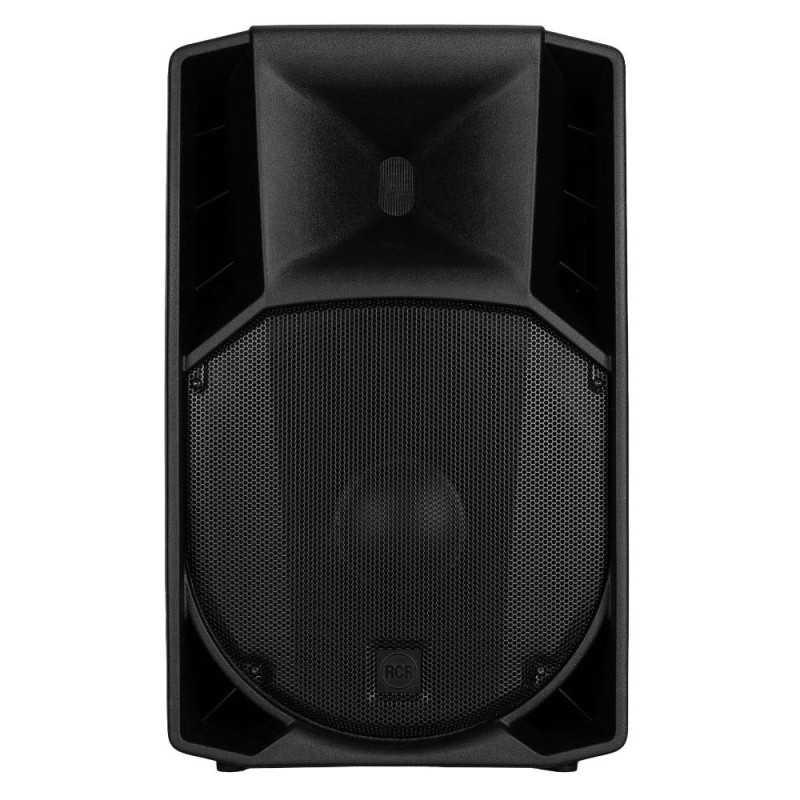

RCF ART 735-A MK5 Активна двулентова тонколона 15"

RCF ART 735-A MK5 Активна двулентова тонколона 15"

• 132 dB Max SPL
• 1400 WATT 2-way peak power
• 90° x 60°, Wide dispersion constant directivity horn
• Innovative DSP Processing
• 3,0" Titanium diaphragm Compression Driver
• 15" Woofer
• FiRPHASE Technology
• XBOOST Low Frequencies Enhancer

Specifications

Acoustical Specifications

• Frequency Response: 45 Hz ÷ 20000 Hz
• Max SPL @ 1m: 132 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°

Transducers

• Compression Driver: 1 x 1.0'' neo, 3.0'' v.c
• Woofer: 15'', 3.0'' v.c

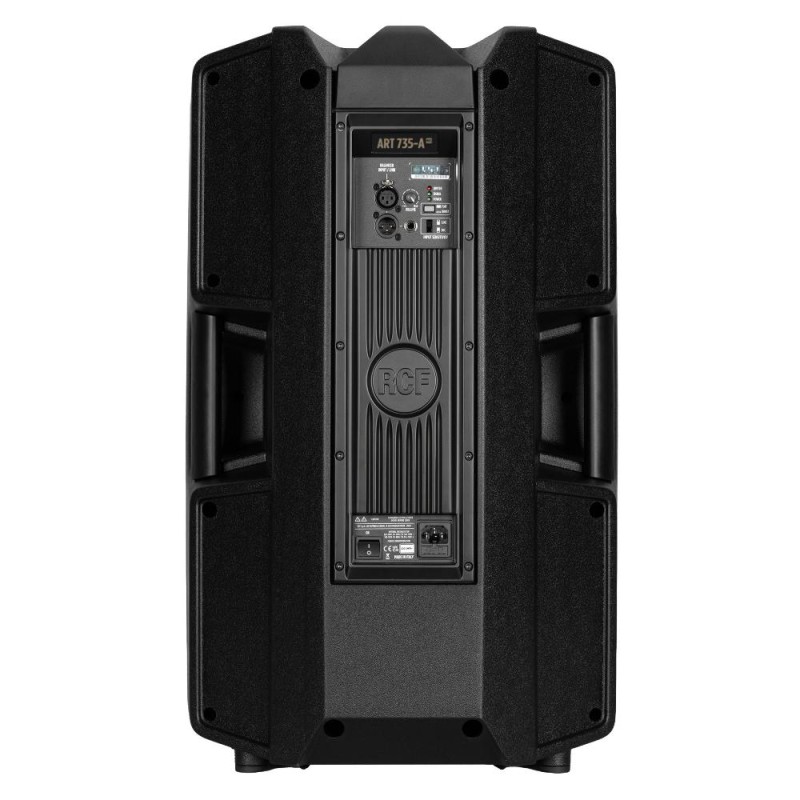

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

Processor Section

• Crossover Frequencies: 800
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, MIC/Line

Power Section

• Total Power: 1400 W Peak
• High frequencies: 400 W Peak
• Low frequencies: 1000 W Peak
• Cooling: Convection
• Connections: VDE

Standard Compliance

• Safety agency: CE compliant

Physical Specifications

• Hardware: 2 x M10

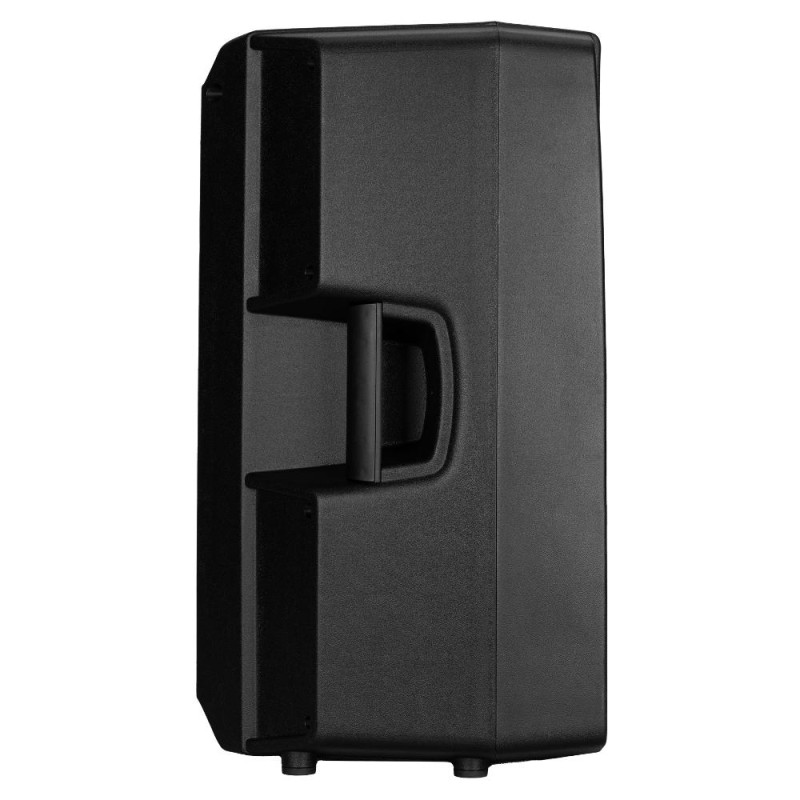

• Handles: 1 on top, 1 each side

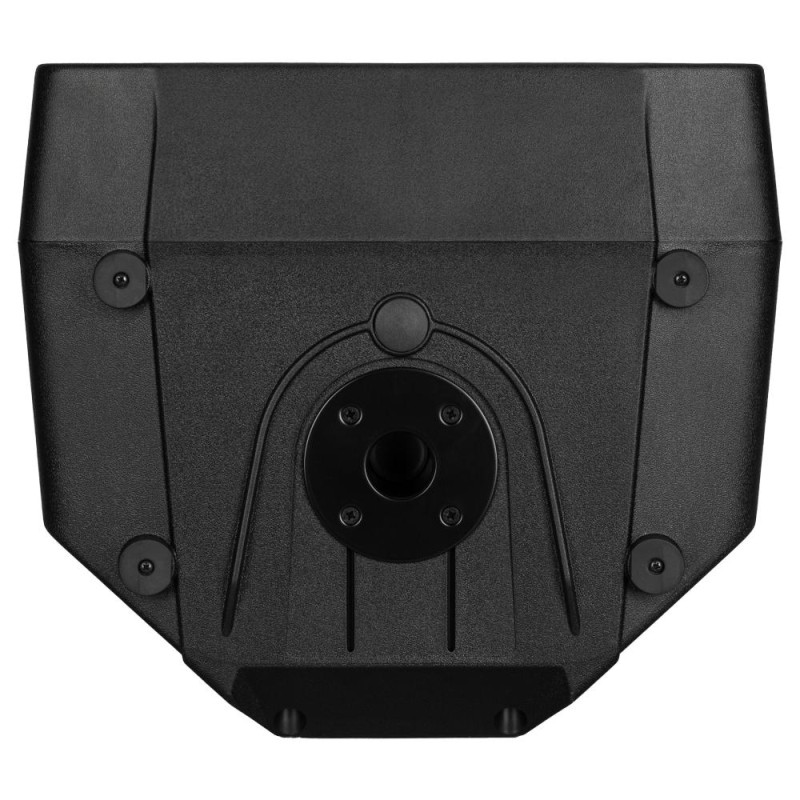

• Pole mount/Cap: Yes
• Colour: Black

Size

• Height: 708 mm / 27.87 inches
• Width: 437 mm / 17.2 inches
• Depth: 389 mm / 15.31 inches
• Weight: 21.4 kg / 47.18 lbs

Shipping Information

• Package Height: 750 mm / 29.53 inches
• Package Width: 500 mm / 19.69 inches
• Package Depth: 440 mm / 17.32 inches
• Package Weight: 24.4 kg / 53.79 lbs
