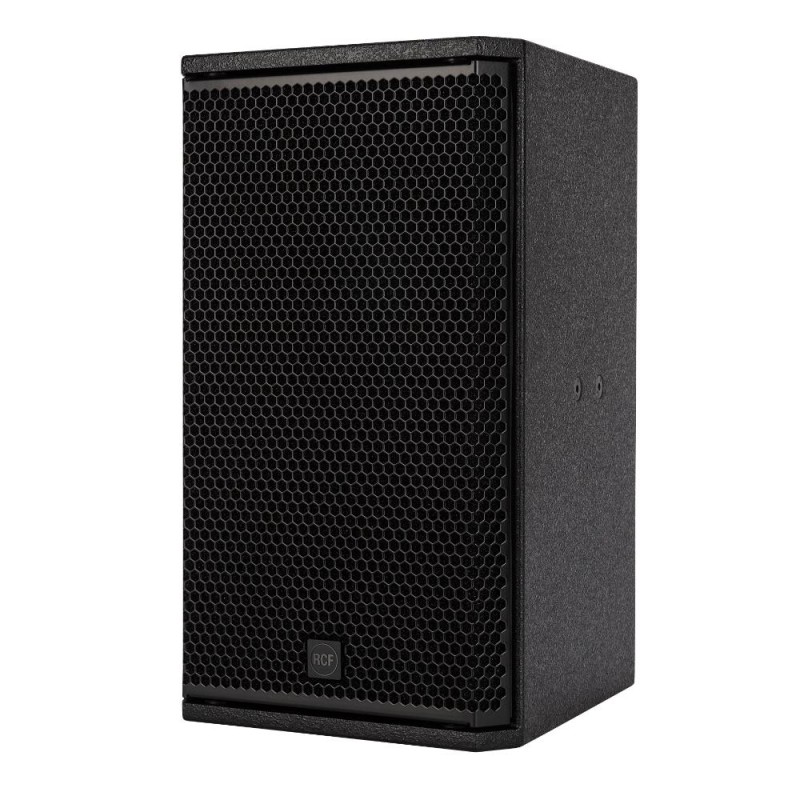

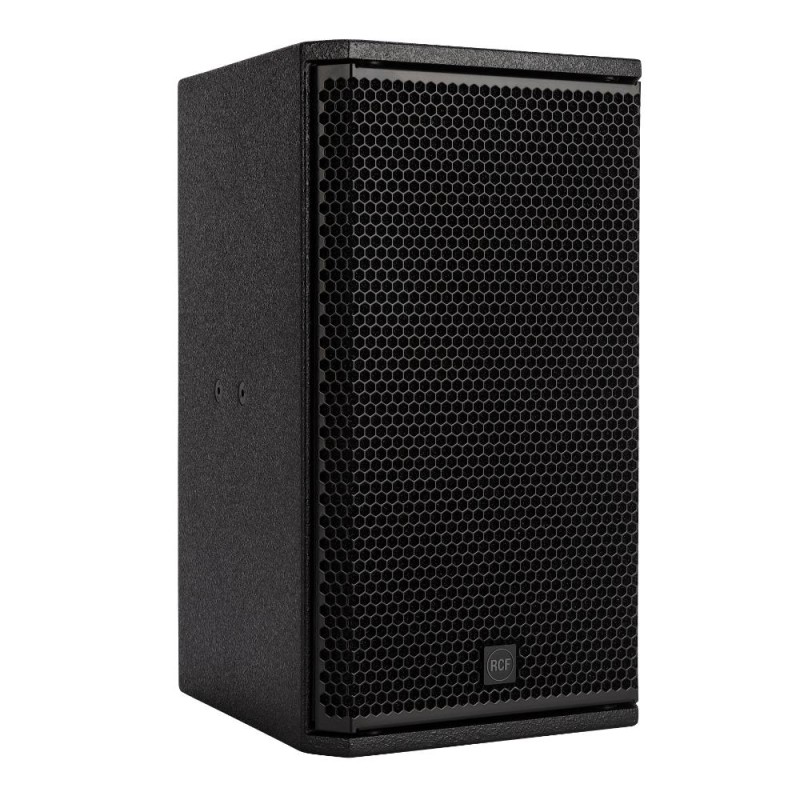

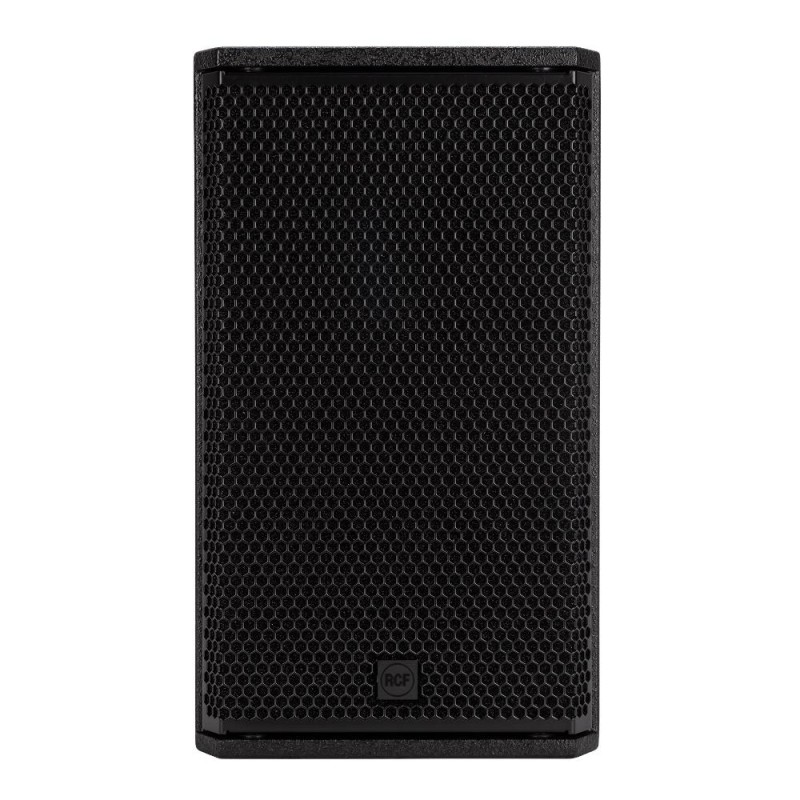

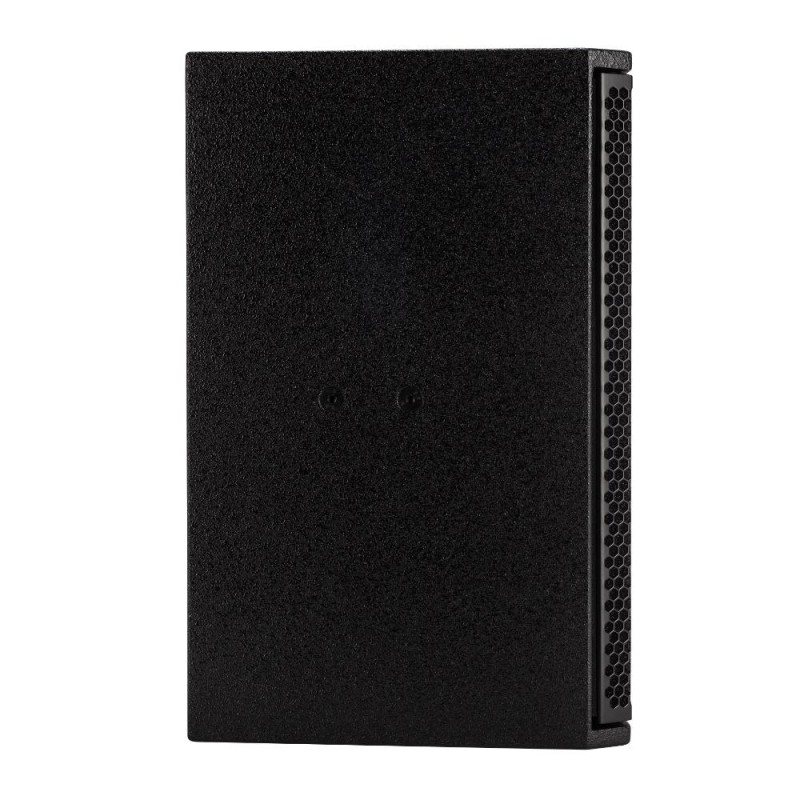

RCF COMPACT M 08 Пасивна тонколона

RCF COMPACT M 08 Пасивна тонколона

Features:

• 200W RMS power handling
• 124 dB max SPL
• 60 ÷ 20000 Hz frequency range
• 90° x 70° constant directivity coverage angle, rotatable horn

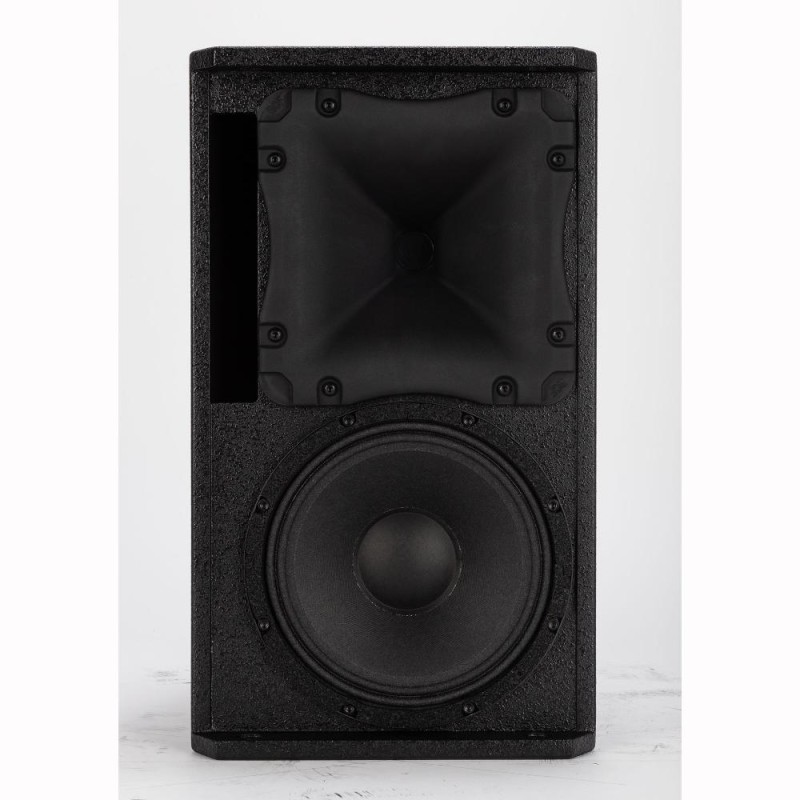

• 1 x 8" high power woofer
• 1 x 1.4" voice coil compression driver
• High quality plywood cabinet
• Steel front grille with clothing

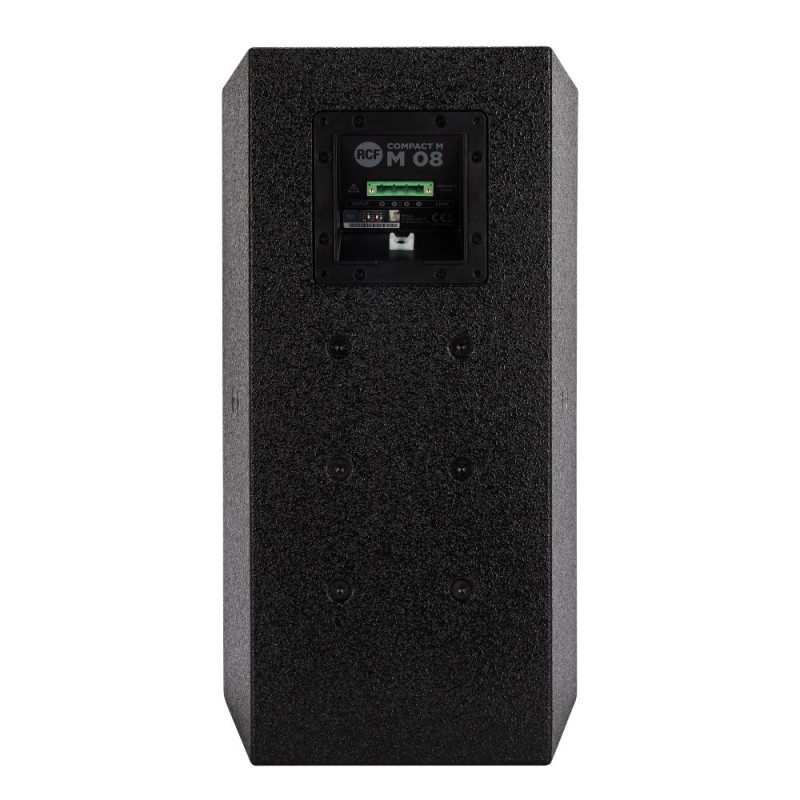

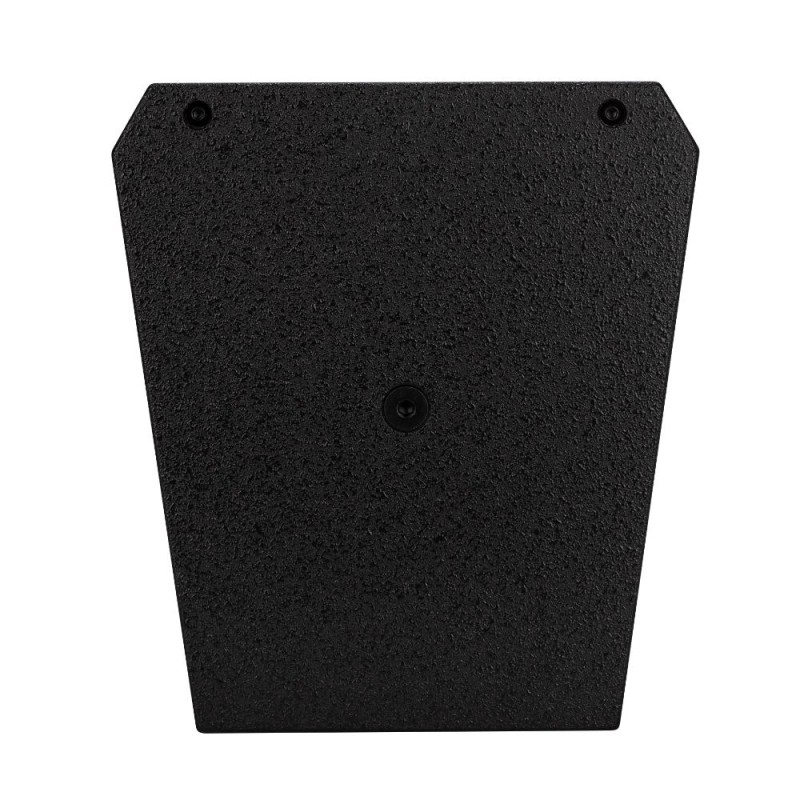

• Installation points available on rear, top and bottom panels

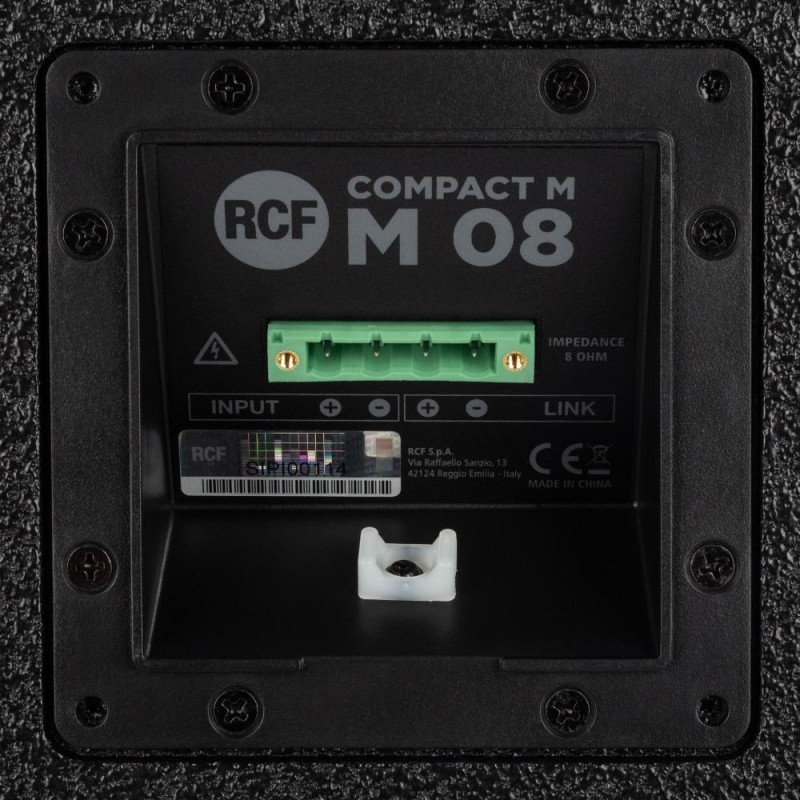

• 4 pole EUROBLOCK connector (audio input and parallel link output)

Specifications:

Acoustical Specifications

• Frequency Response (-10dB):: 60 Hz ÷ 20000 Hz
• Max SPL @ 1m: 124 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 70°
• Directivity index Q: 9
• System Sensitivity: 95 dB

Power Section

• Amplification: Full Range
• Nominal Impedance: 8 ohm
• Power Handling: 200 W
• Peak Power Handling: 800 W PEAK
• Protections: Dynamic active mosfet
• Crossover Frequencies: 1800 Hz
• Recommended Amplifiers: XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504

Transducers

• Compression Driver: 1 x 1.0'', 1.4'' v.c
• Woofer: 1 x 8'', 1.7'' v.c

Input/Output Section

• Input connectors: Euroblock
• Output connectors: Euroblock

Standart Copmpliance

• Safety agency: CE compliant

Physical Specifications

• Cabinet/Case Material: Plywood
• Hardware: 6 x M6, 4 x M8, 2 x M10
• Grille: Steel with clothing
• Color: Black - RAL 9005, White - RAL 9003

Size

• Height: 442 mm / 17.4 inches
• Width: 257 mm / 10.12 inches
• Depth: 284 mm / 11.18 inches
• Weight: 10.5 kg / 23.15 lbs

Shipping Information

• Package Height: 477 mm / 18.78 inches
• Package Width: 322 mm / 12.68 inches
• Package Depth: 295 mm / 11.61 inches
• Package Weight: 12.4 kg / 27.34 lbs
