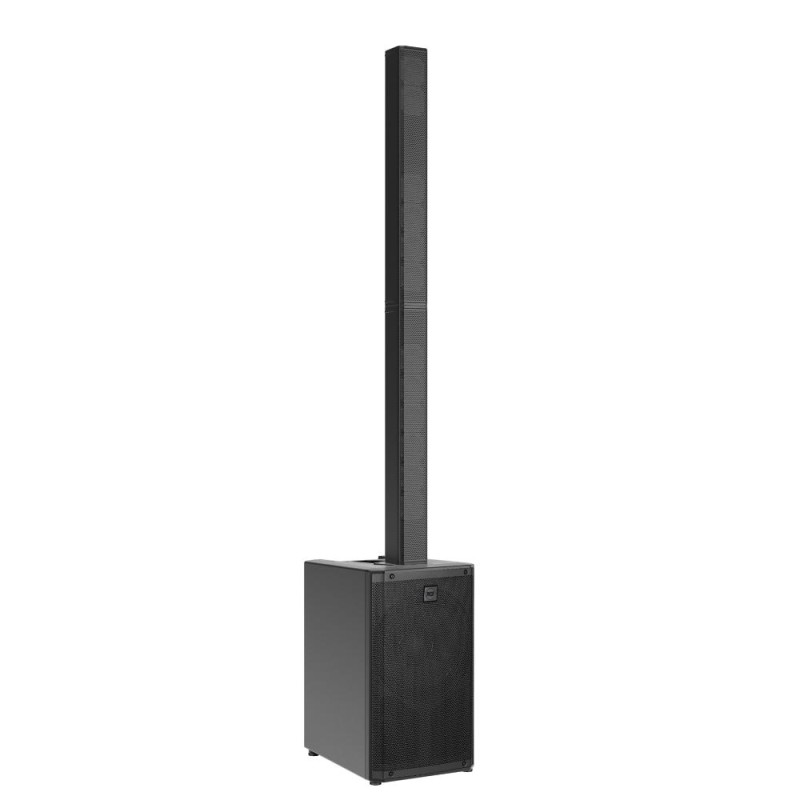

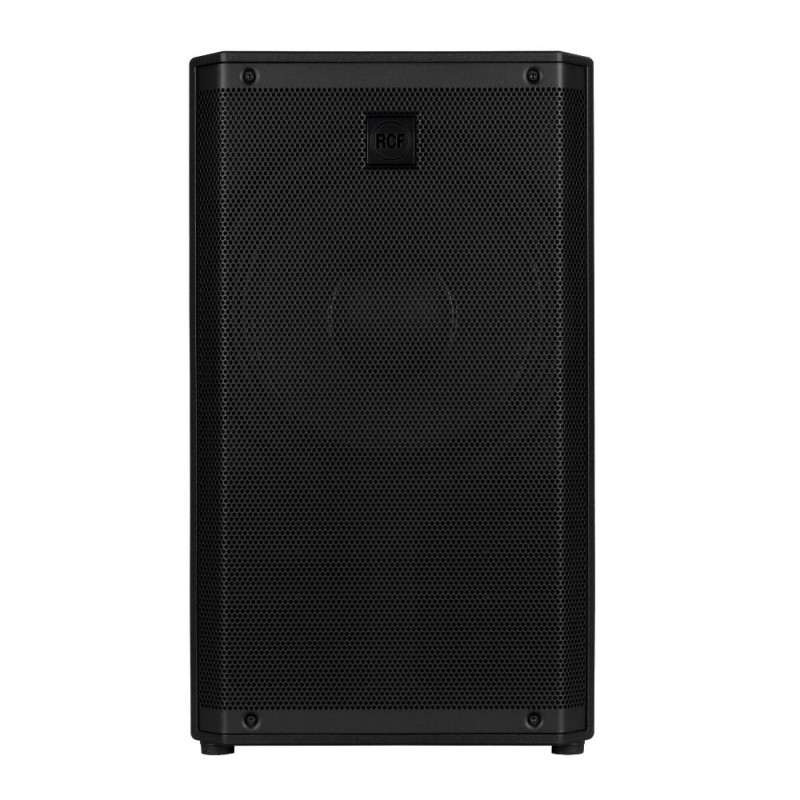

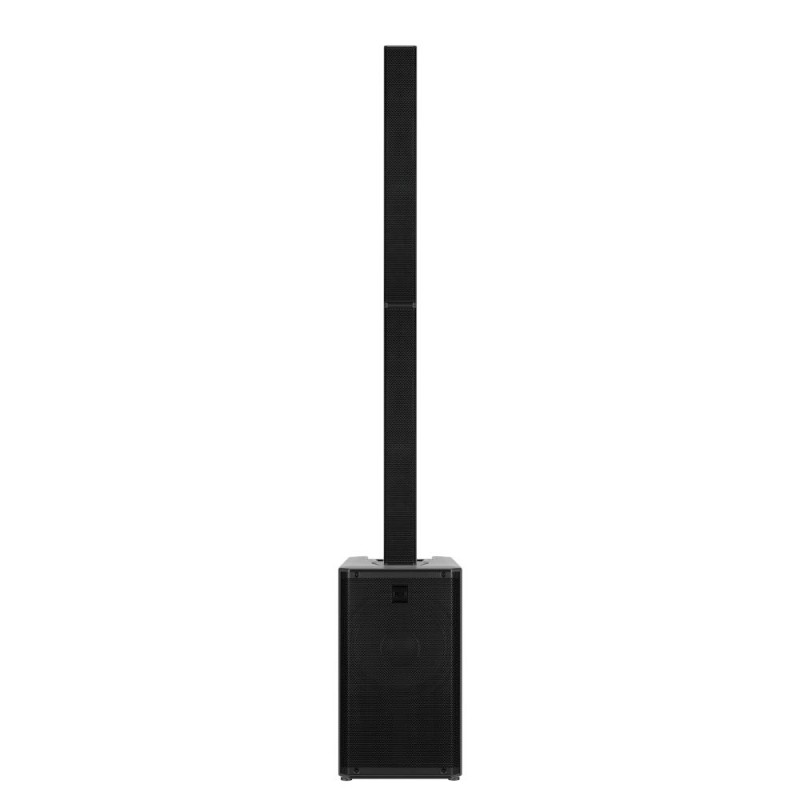

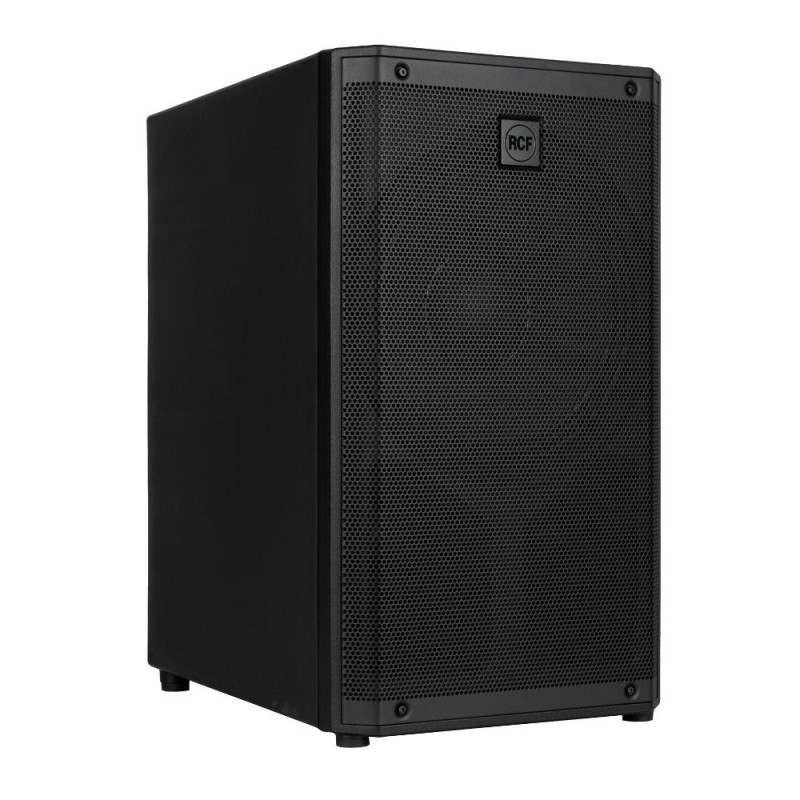

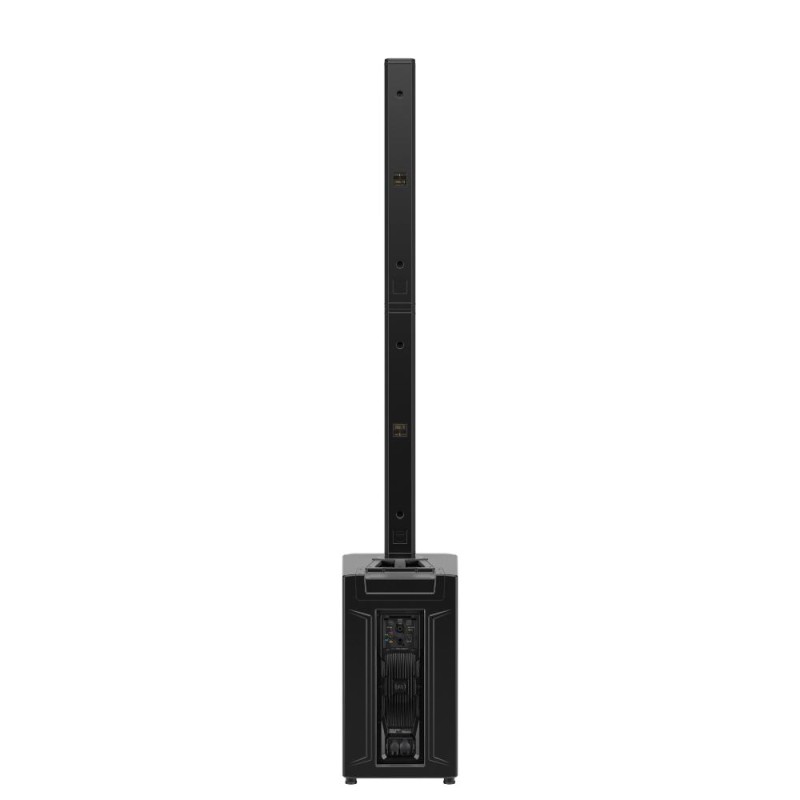

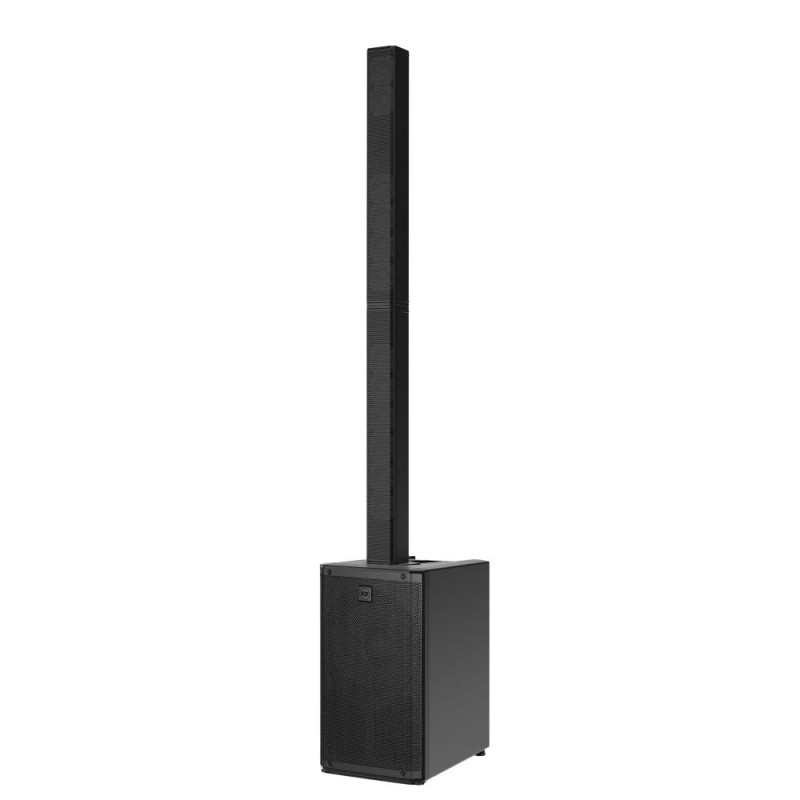

RCF EVOX J11 Активна трилентова система

RCF EVOX J11 Активна трилентова система

• 132 dB Max SPL
• 3500 W Class-D Amplifier - Built-In DSP
• 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
• 12 × 3” Full-Range Neo Transducers

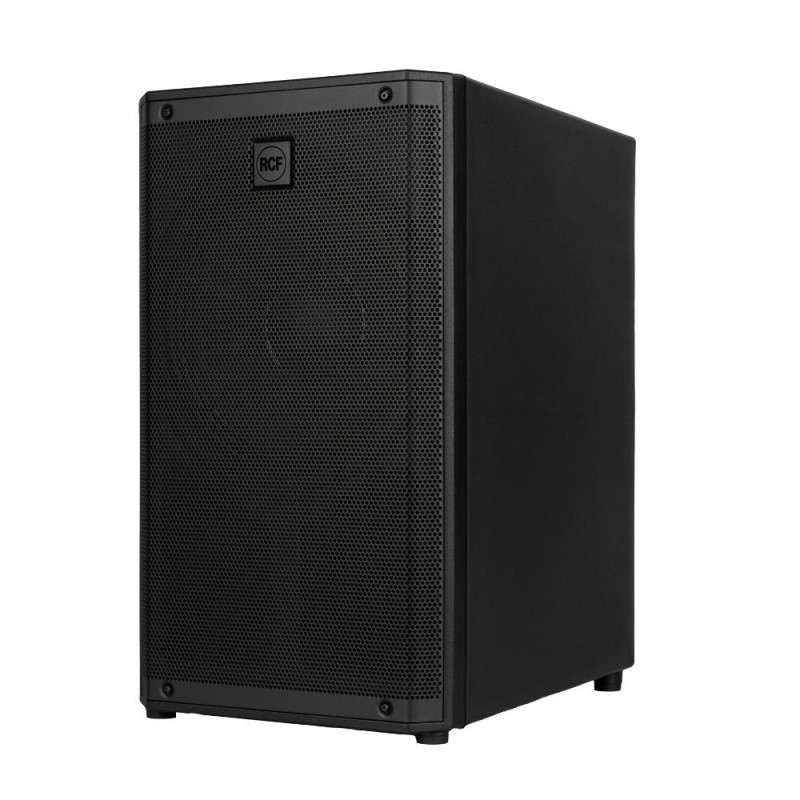

• 12” High-Power Woofer
• Enhanced Coverage And Clarity
• Composite Cabinet
• Sleek, Road-Ready Design

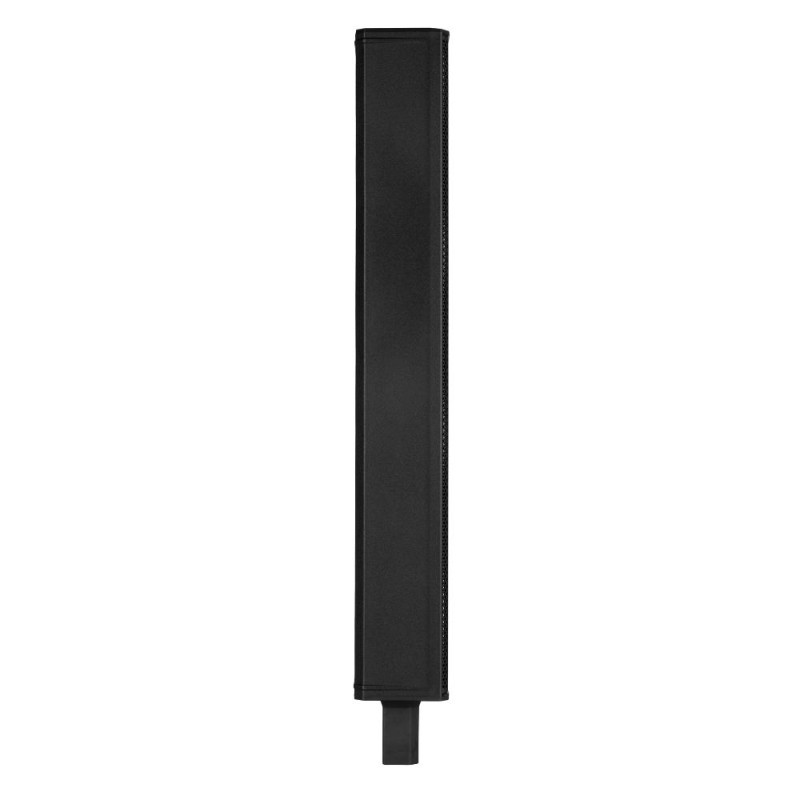

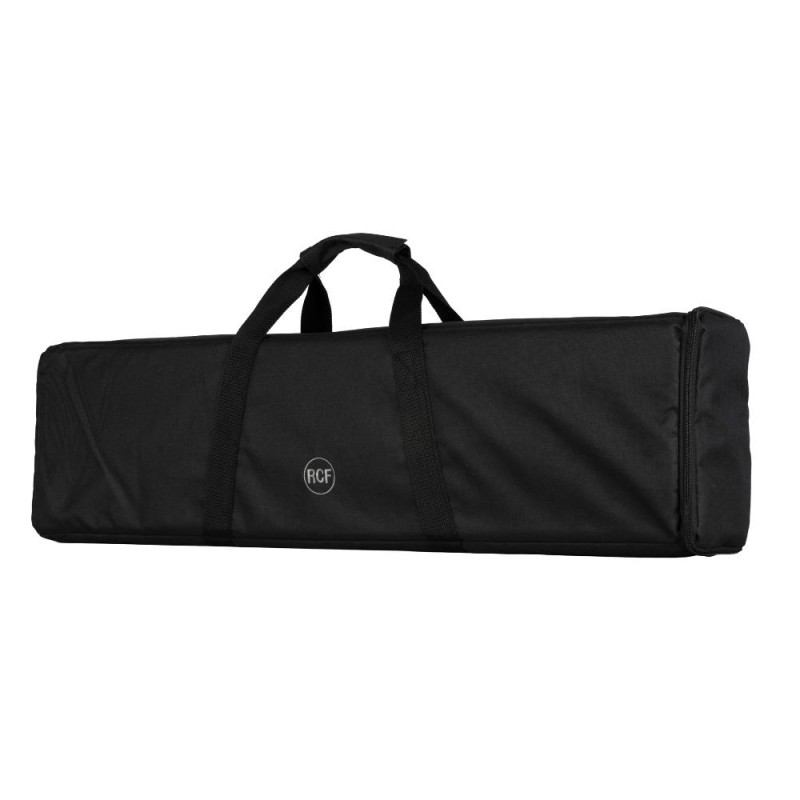

• Top Speaker Padded Carrying Bag Included

Specifications

Acoustical specifications

• Frequency Response: 37 Hz ÷ 20000 Hz
• Max SPL @ 1m: 132 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 40°

Transducers

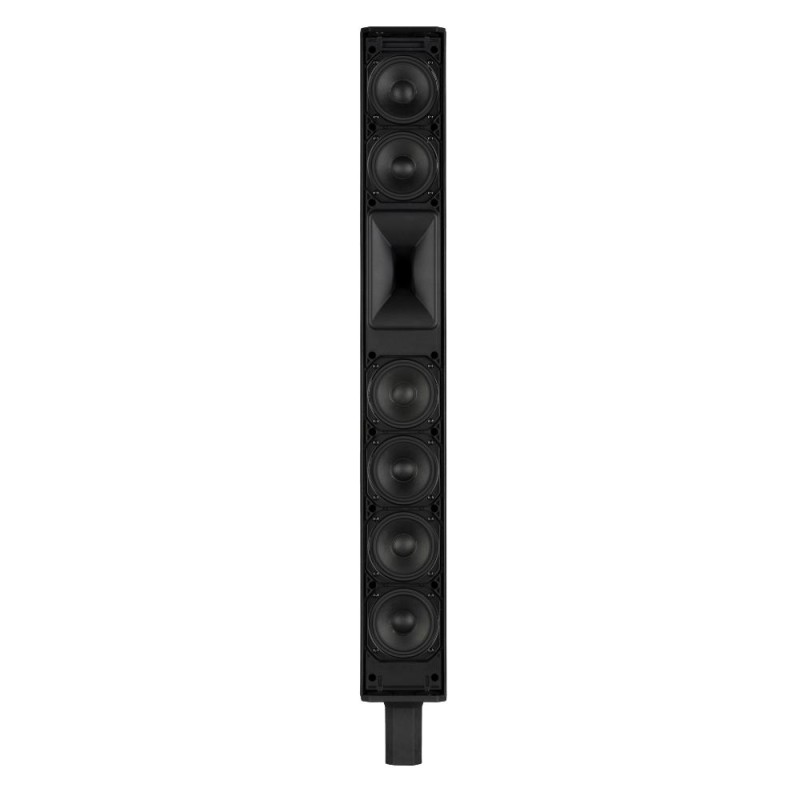

• Compression Driver: 1 x 0.75'' neo, 1.75'' v.c

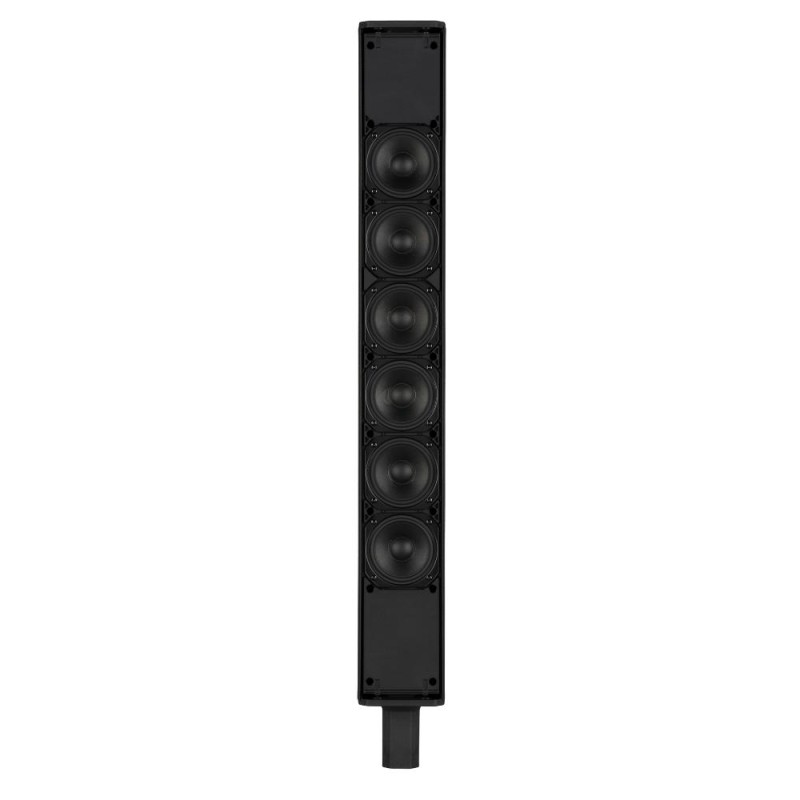

• Fullrange: 12 x 3.0'' neo, 1.0'' v.c

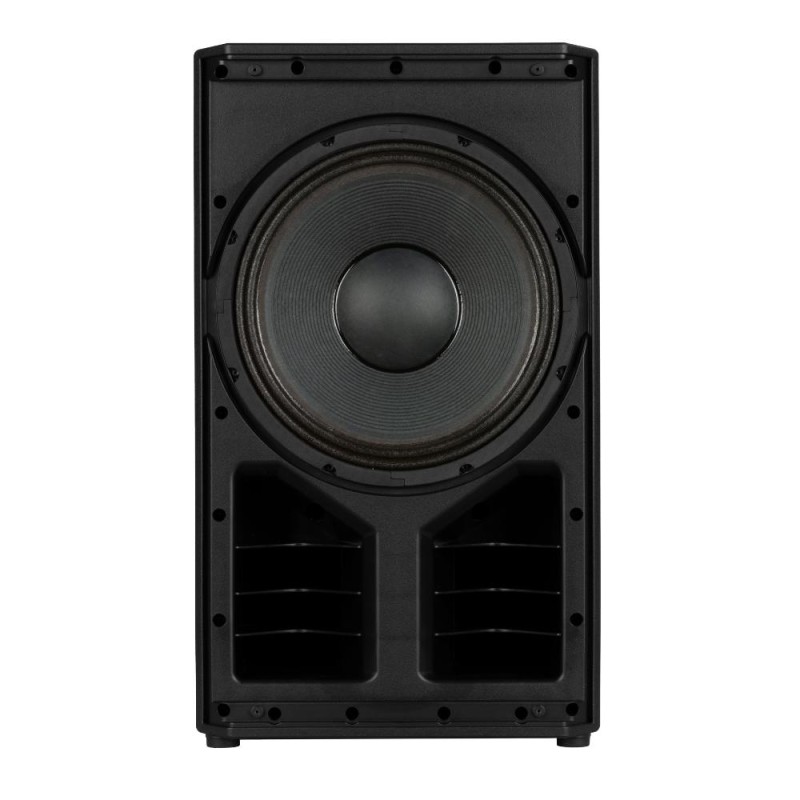

• Woofer: 1 x 12'', 2.5'' v.c

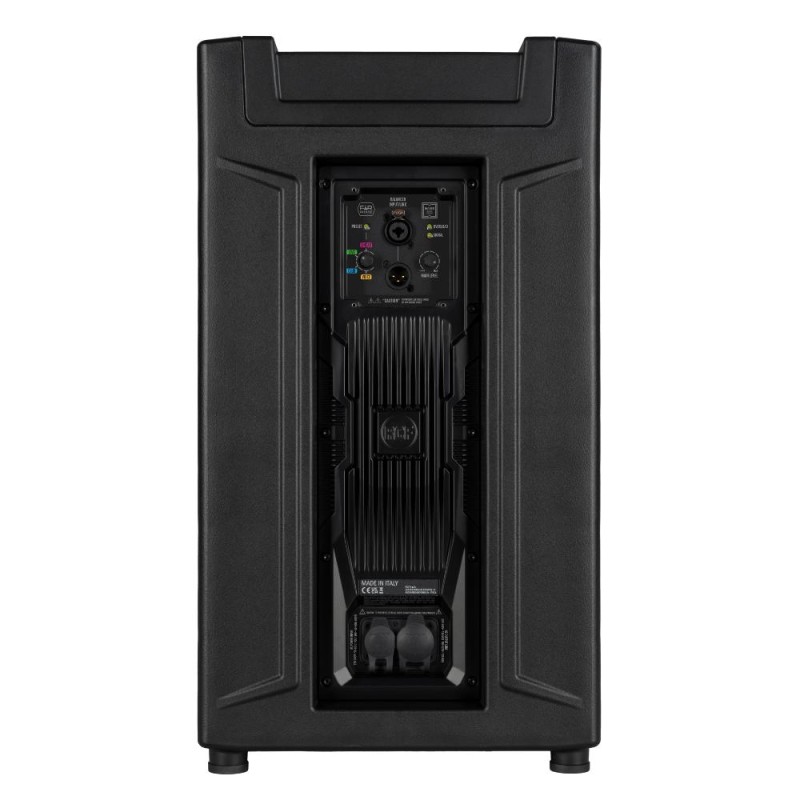

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor section

• Crossover Frequencies: 160 Hz/1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE

Power section

• Total Power: 3500 W Peak
• High frequencies: 1500 W Peak
• Low frequencies: 2000 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

Standard compliance

• Safety agency: CE compliant

Physical specifications

• Cabinet/Case Material: PP Composite
• Handles: 1 Top

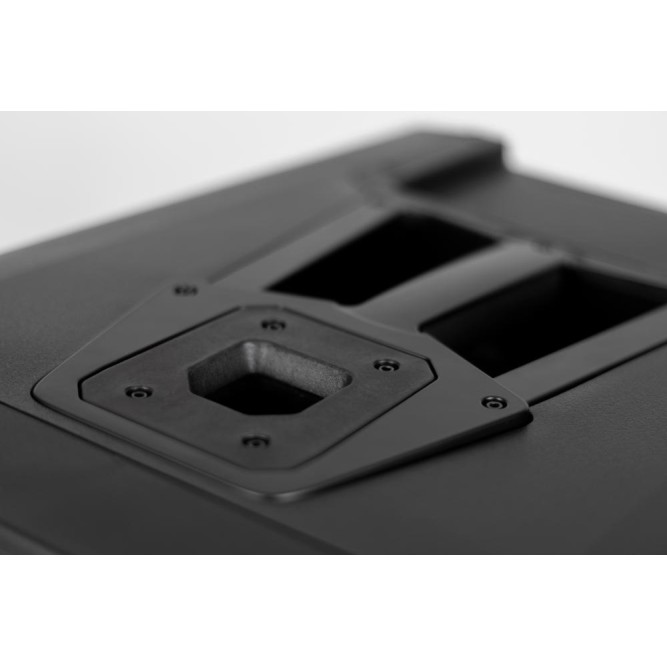

• Pole mount/Cap: Quick-fit socket
• Grille: Steel
• Color: Black, White - RAL 9003

Size

• Height: 2080 mm / 81.89 inches
• Width: 350 mm / 13.78 inches
• Depth: 463 mm / 18.23 inches
• Weight: 29 kg / 63.93 lbs

Shipping information

• Package Height: 676 mm / 26.61 inches
• Package Width: 451 mm / 17.76 inches
• Package Depth: 581 mm / 22.87 inches
• Package Weight: 35 kg / 77.16 lbs
