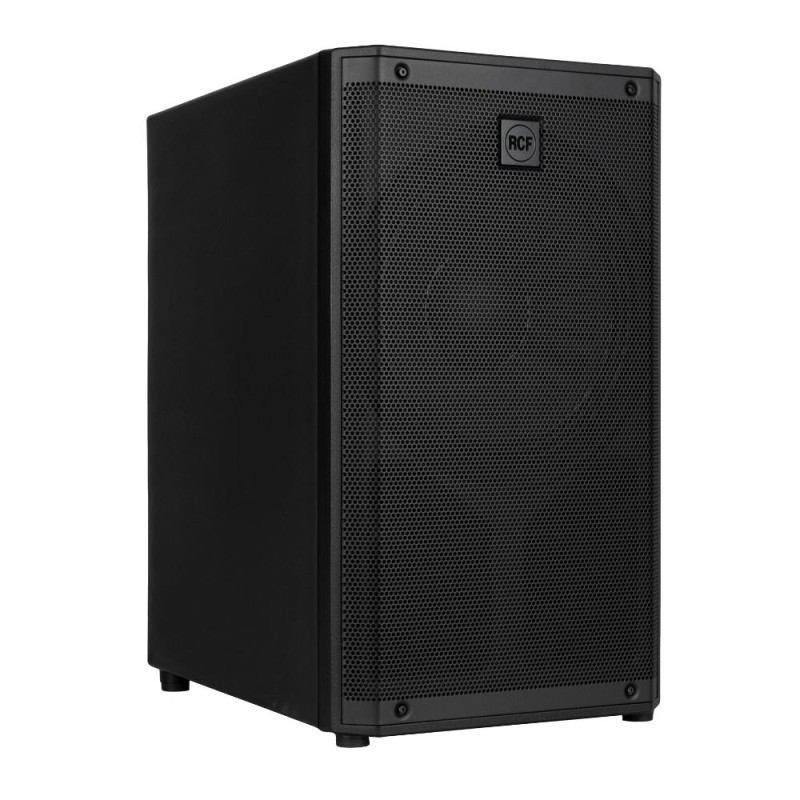

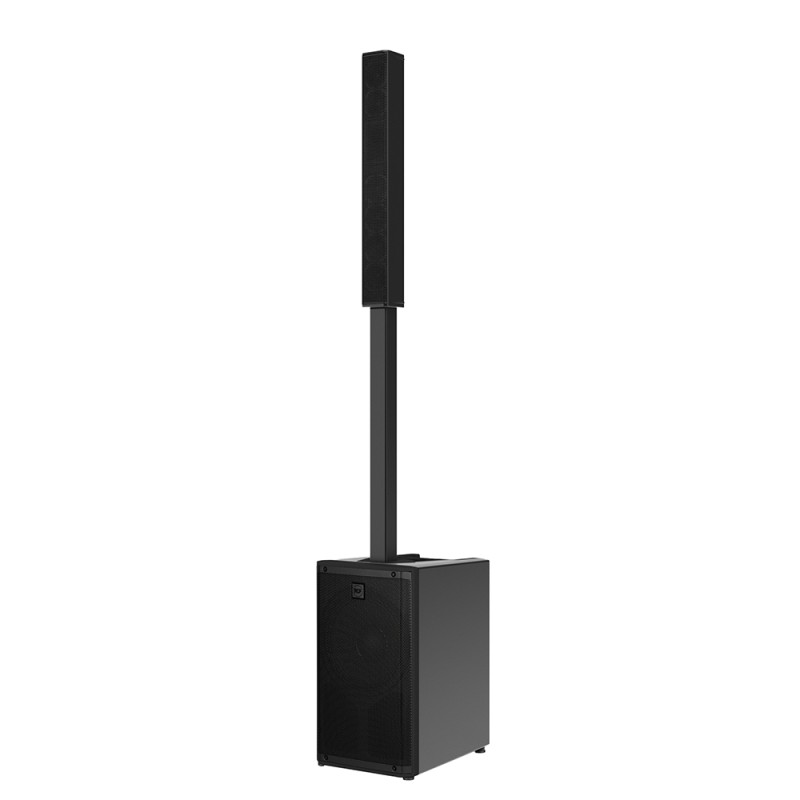

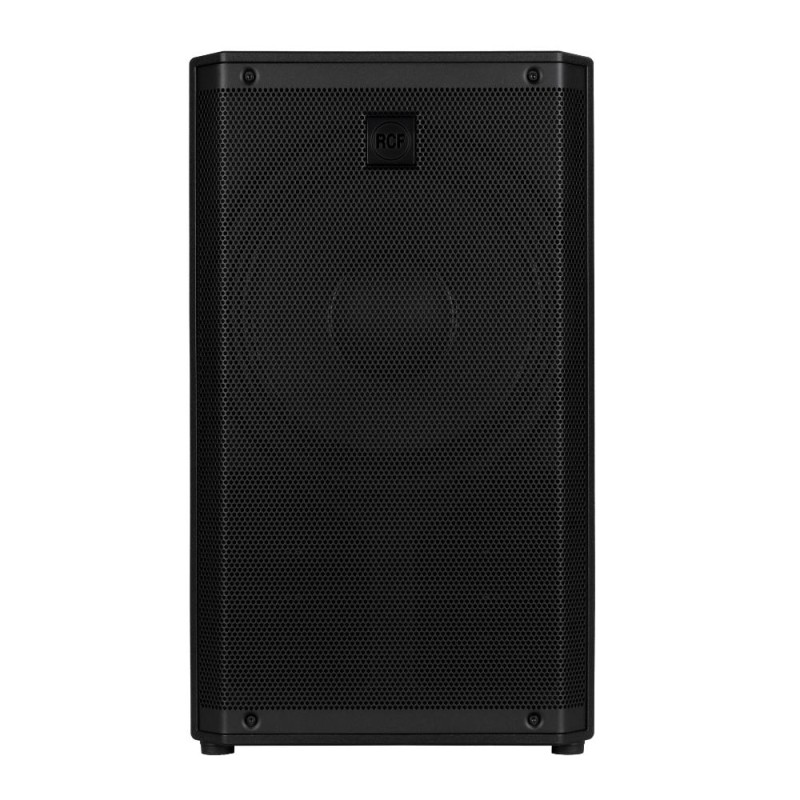

RCF EVOX J9 Активна трилентова система

RCF EVOX J9 Активна трилентова система

• 130 dB Max SPL
• 2100 W Class-D Amplifier - Built-In DSP

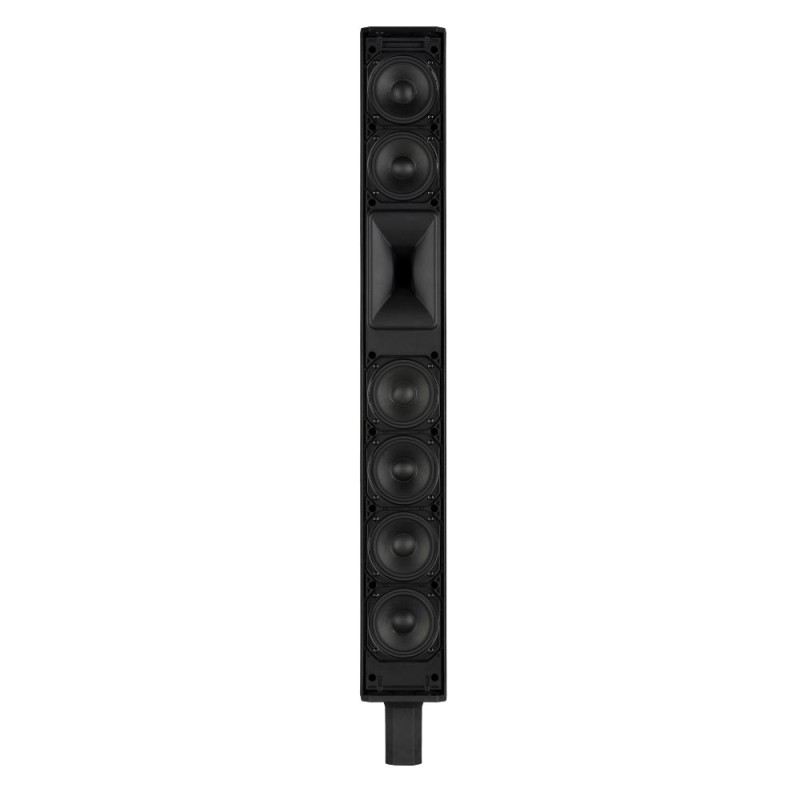

• 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide

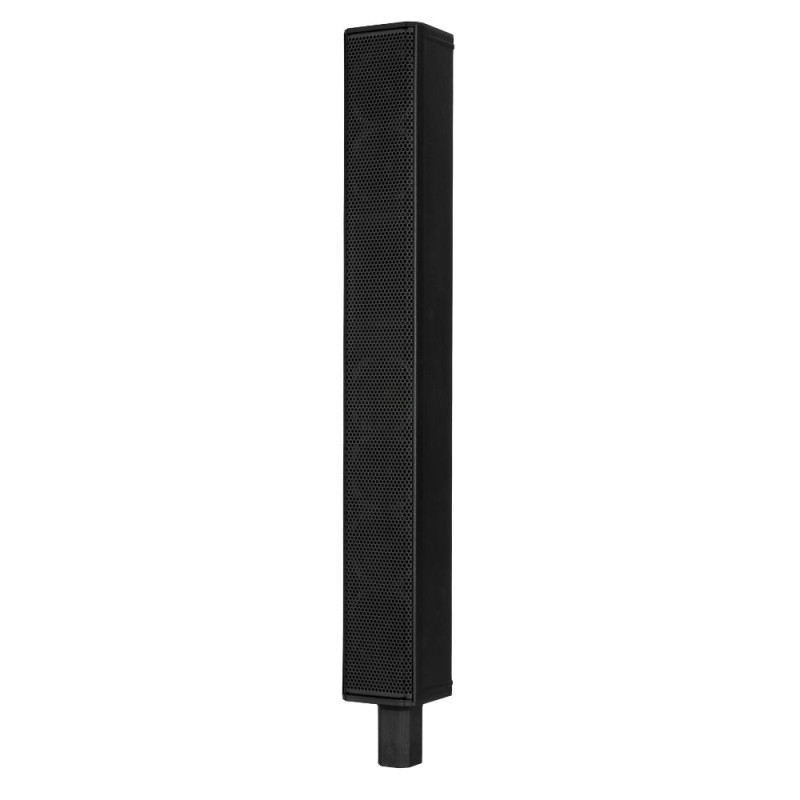

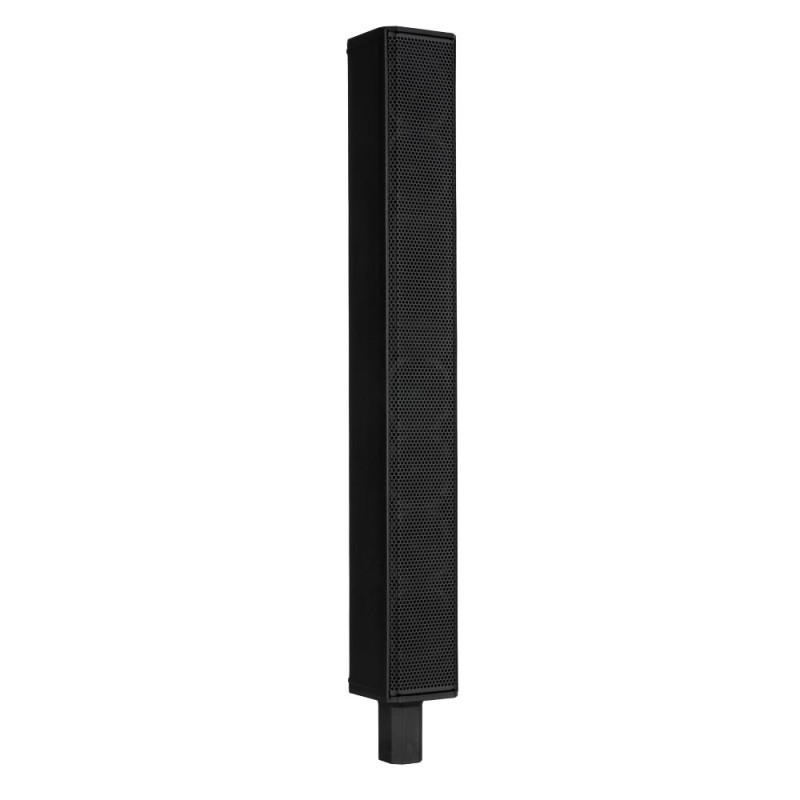

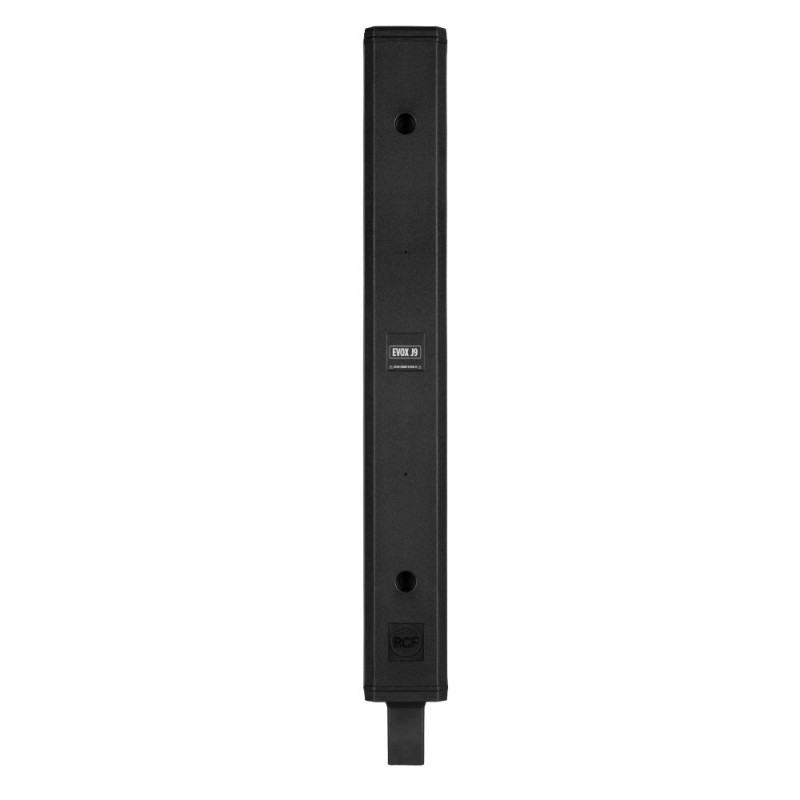

• 6 × 3” Full-Range Neo Transducers

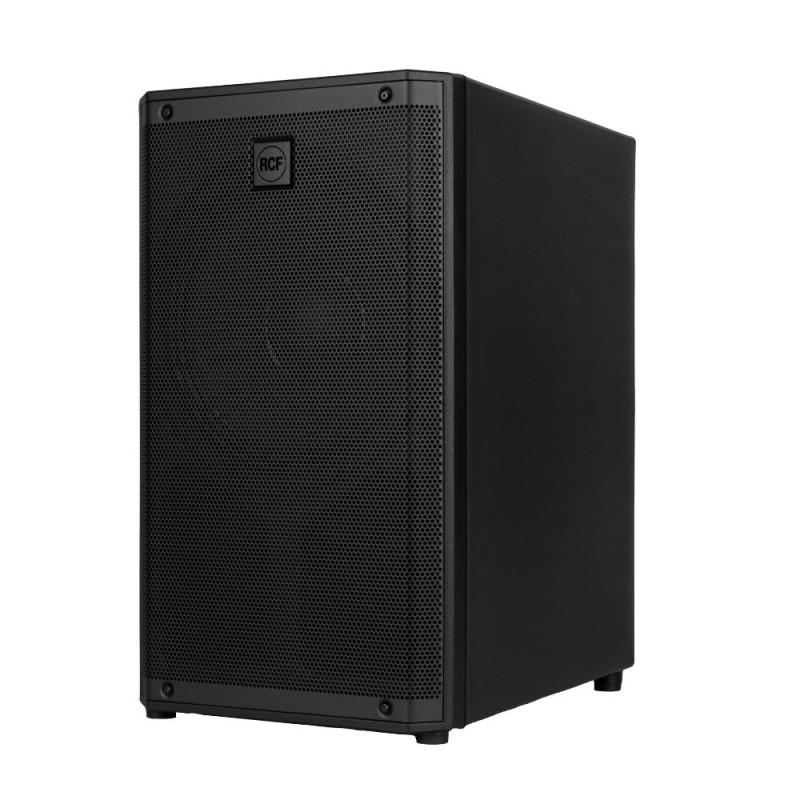

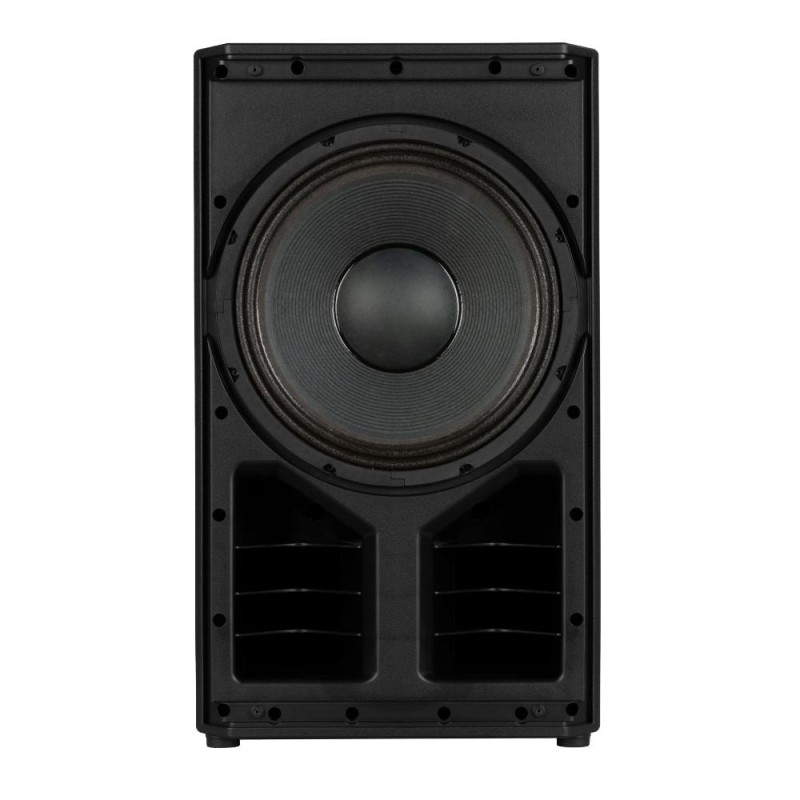

• 12” High-Power Woofer
• Enhanced Coverage And Clarity

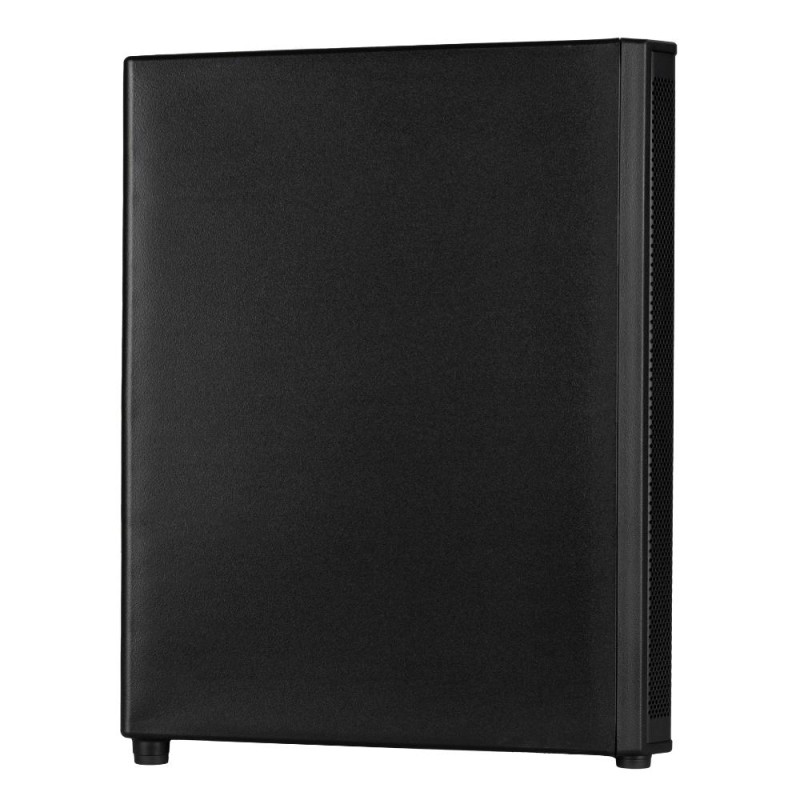

• Composite Cabinet With Aluminum Stand Mount
• Sleek, Road-Ready Design

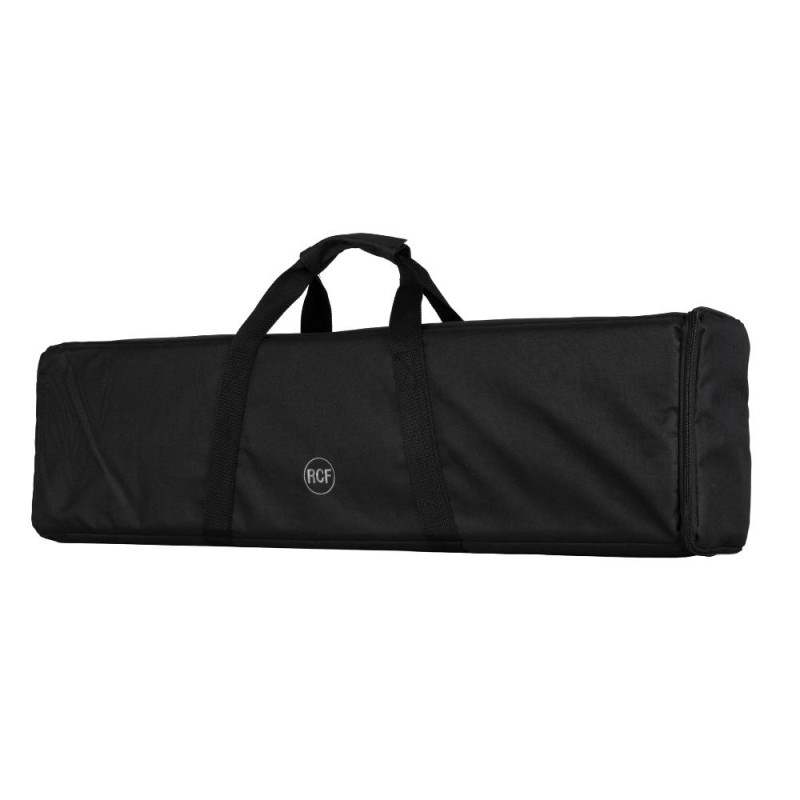

• Top Speaker Padded Carrying Bag Included

Specifications

Acoustical specifications

• Frequency Response: 40 Hz ÷ 20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 40°

Transducers

• Compression Driver: 1 x 0.75'' neo, 1.75'' v.c
• Fullrange: 6 x 3.0'' neo, 1.0'' v.c
• Woofer: 1 x 12'', 2.5'' v.c

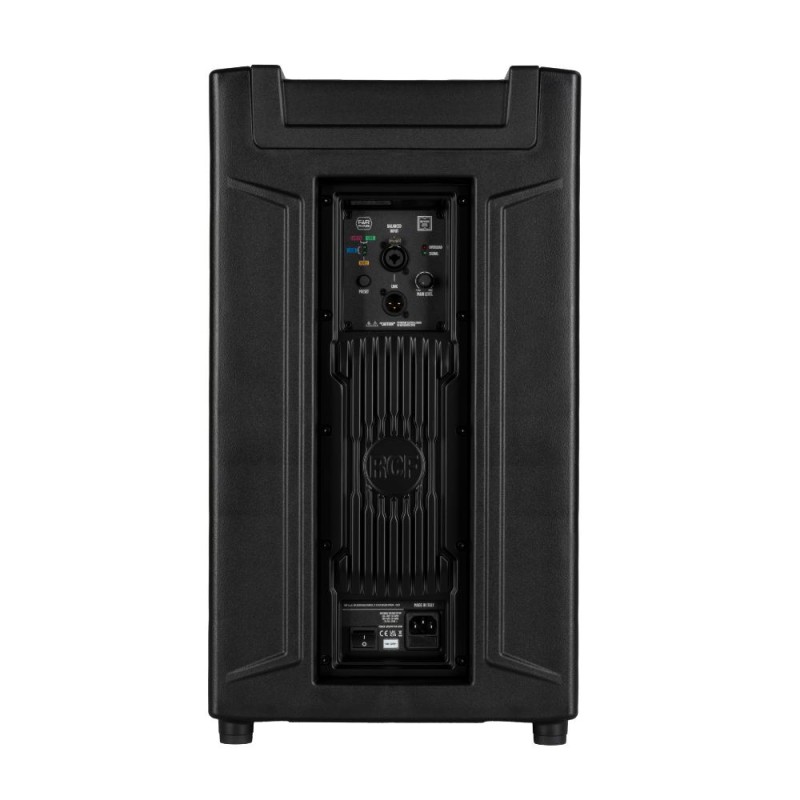

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor section

• Crossover Frequencies: 200 Hz/1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE

Power section

• Total Power: 2100 W Peak, 1050 W RMS
• High frequencies: 700 W Peak, 350 W RMS
• Low frequencies: 1400 W Peak, 700 W RMS
• Cooling: Convection
• Connections: VDE

Standard compliance

• Safety agency: CE compliant

Physical specifications

• Cabinet/Case Material: PP Composite
• Handles: 1 Top
• Pole mount/Cap: Quick-fit socket
• Grille: Steel
• Color: Black, White - RAL 9003

Size

• Height: 2080.1 mm / 81.89 inches
• Width: 350 mm / 13.78 inches
• Depth: 462.6 mm / 18.21 inches
• Weight: 28.3 kg / 62.39 lbs

Shipping information

• Package Height: 680 mm / 26.77 inches
• Package Width: 490 mm / 19.29 inches
• Package Depth: 460 mm / 18.11 inches
• Package Weight: 32 kg / 70.55 lbs
