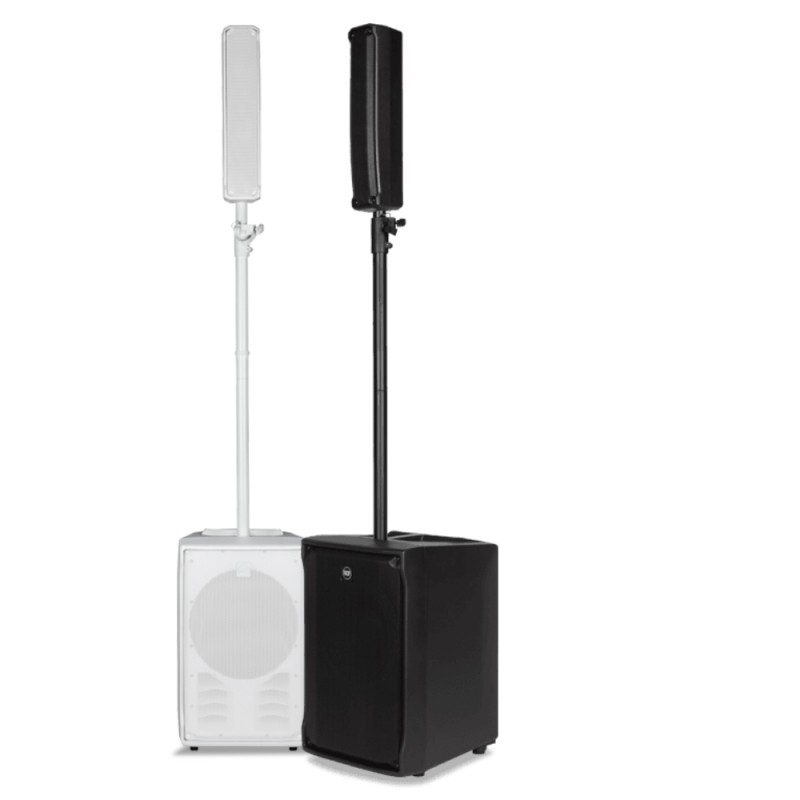

RCF EVOX JMIX8 Активна двулетнова озвучителна система с вграден миксер, бяла

RCF EVOX JMIX8 Активна двулетнова озвучителна система с вграден миксер, бяла

• RMS Power: 700 W
• Peak Power: 1400 W
• 128 dB Max SPL

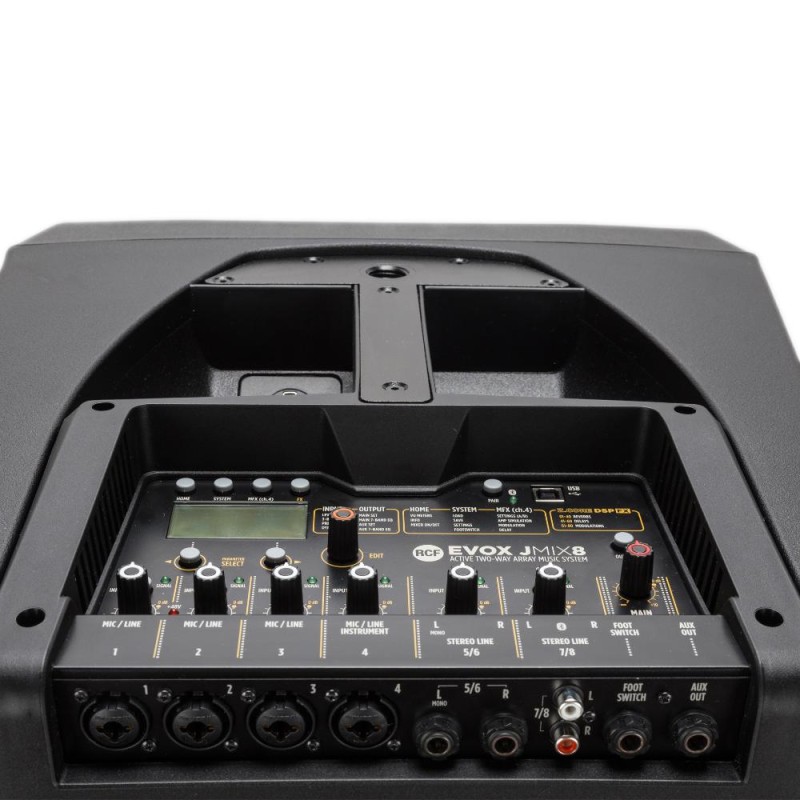

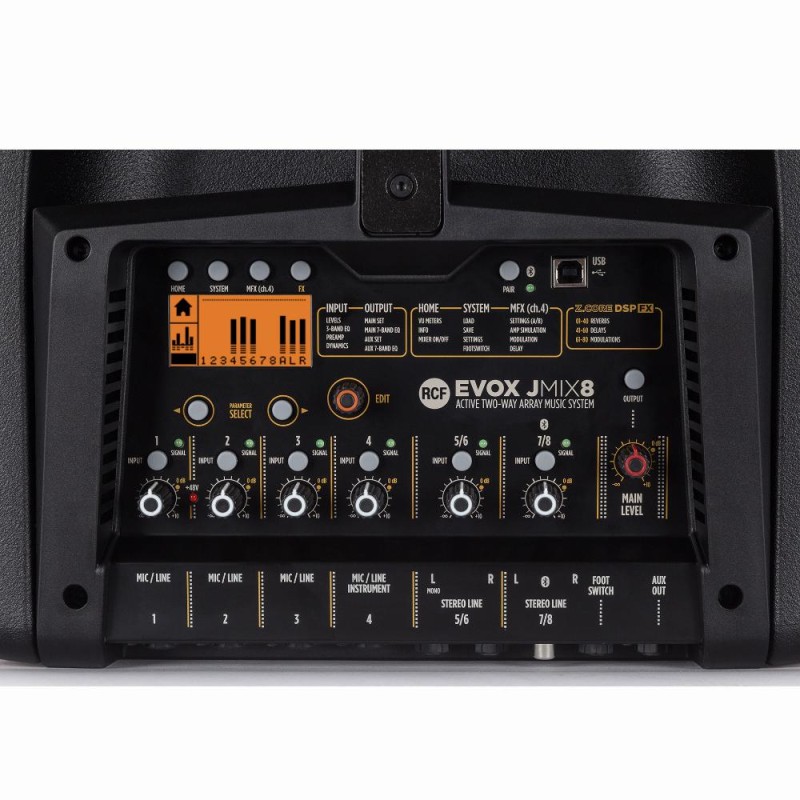

• 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
• DSP Processing with FiRPHASE

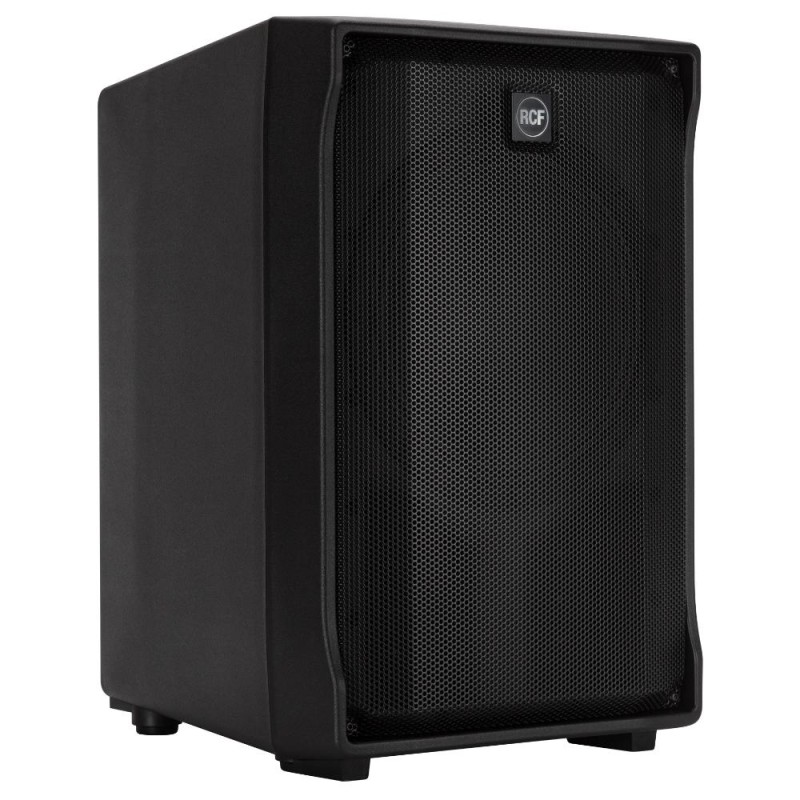

• 12" woofer, high power 2.5" voice coil

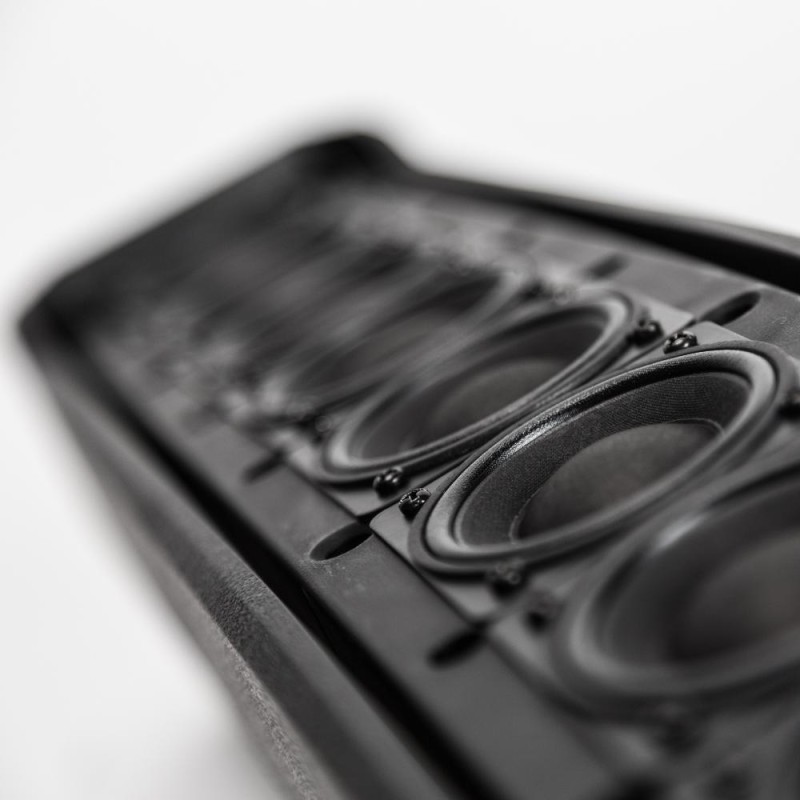

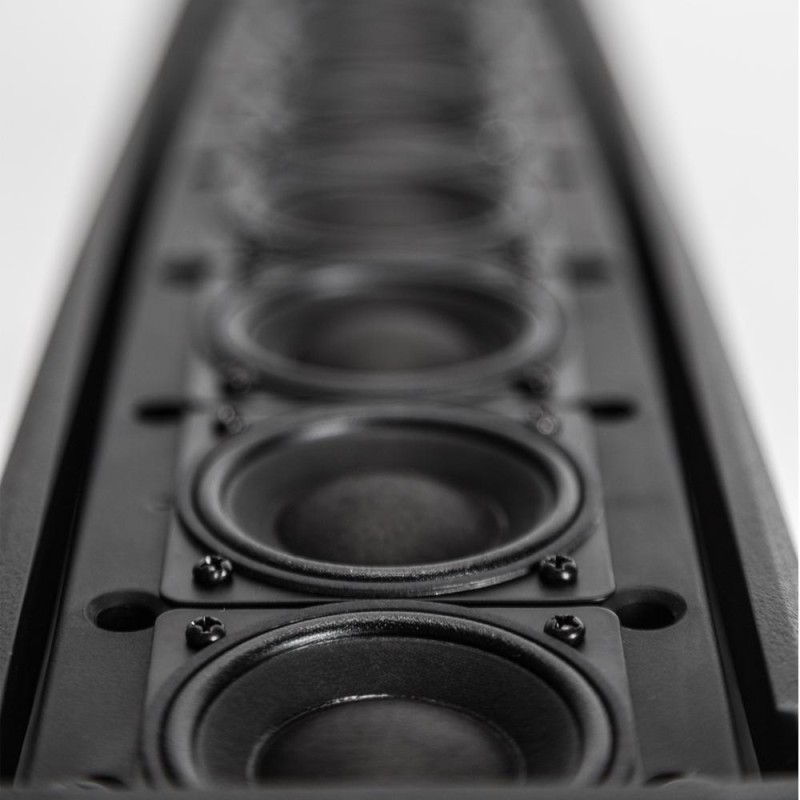

• 8 x 2" ultra compact fullrange 1.0" voice coil
• 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
• 24,4/53.8 kg/lbs

Specifications

Acoustical Specifications

• Frequency Response: 40 Hz ÷ 20000 Hz
• Max SPL @ 1m: 128 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 30°

Transducers

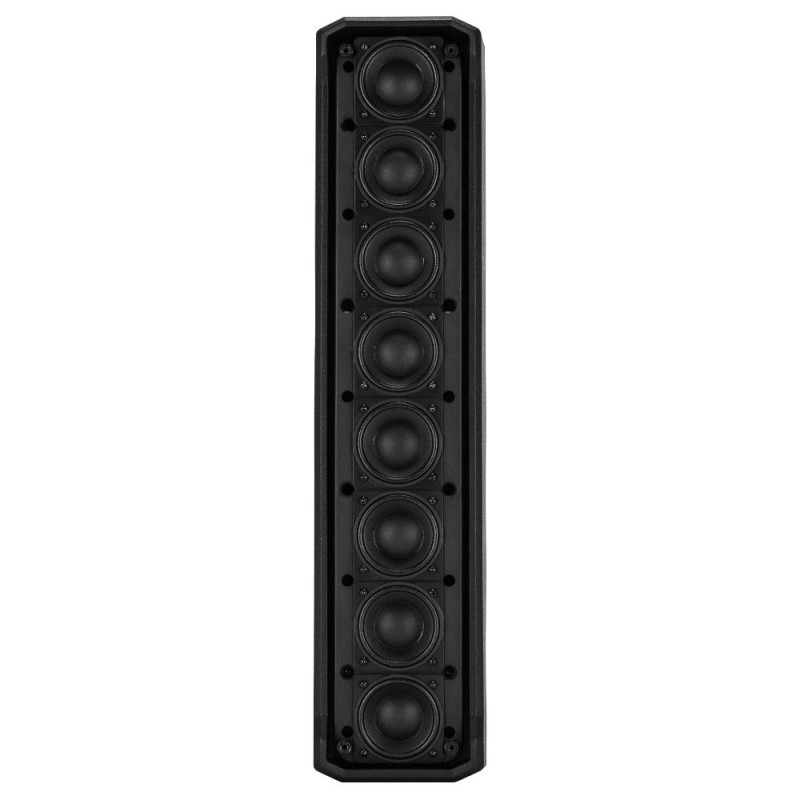

• Fullrange: 8 x 2.0'', 1.0'' v.c

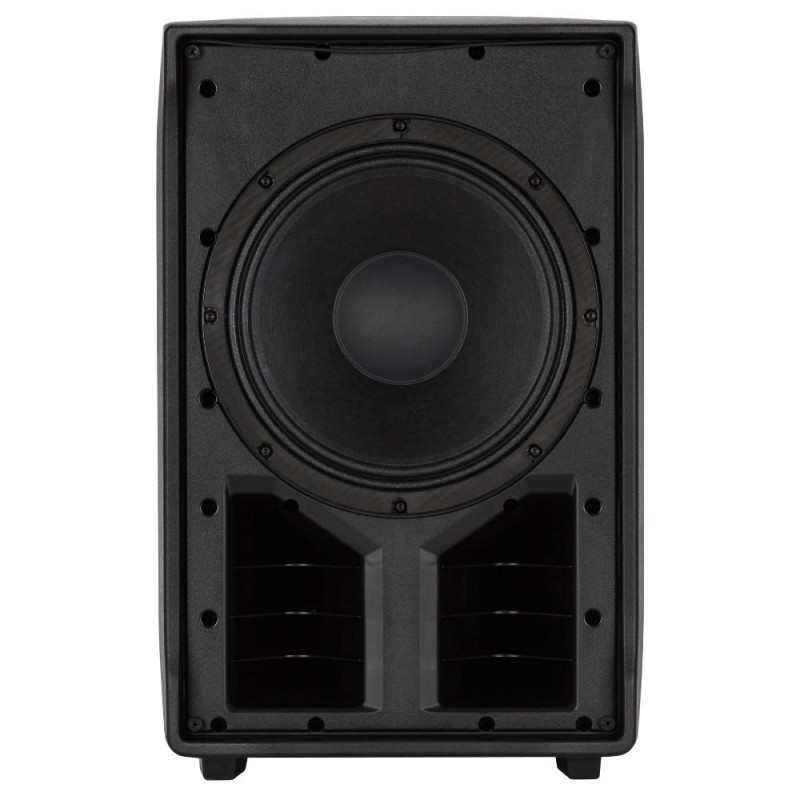

• Woofer: 12'', 2.5'' v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover Frequencies: 220 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

Power Section

• Total Power: 1400 W Peak, 700 W RMS
• High frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: VDE

Electronic Specifications

• Frequency Response: 20 Hz ÷ 20 Hz
• THD+N, 20dB gain, 0dBu out: 0.004% A-Weighted

Processing

• Processing Channels: 8
• Signal Processing: 32 Bit Floating Point
• A/D-D/A conversion: 24 Bit @ 48.0 kHz
• Dynamic range: 108

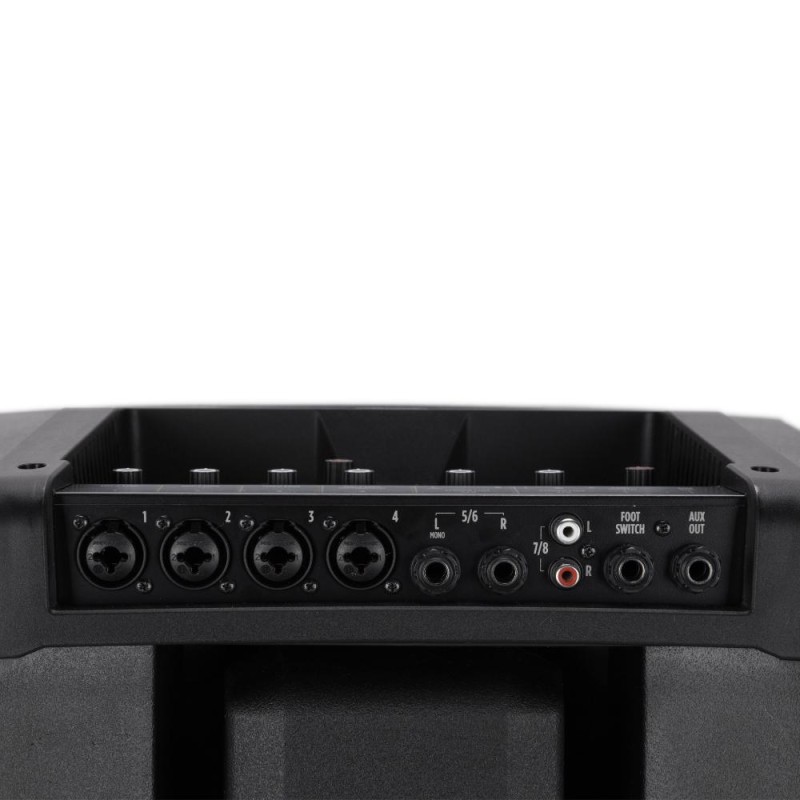

Inputs

• Mic: 4
• Remote Controlled Storable Gain: Yes
• Gain Range: 0 dB ÷ 45 dB
• Input Noise Level: -114 dBu A-Weighted
• Mic Inputs Impedance: 3 kohm
• Low Cut: 20 Hz ÷ 1000 Hz
• Phantom Power +48V: Yes
• Mono Line: 4
• Gain Selection: 0 dB ÷ 45 dB
• Line Input Impedance: 11 kohm
• HI-Z Line Inputs: 1
• HI-Z Line Inputs Impedance (Mohm): 1 Mohm
• A/D Dynamic range: 108 dB
• Stereo Line: 2
• Gain Selection: 0 dB ÷ 45 dB
• Stereo Line Input Impedance (kOhm): 11 kohm

Outputs

• AUX Send: 1
• AUX Output: 1

Outputs Specifications

• Main Out Impedance: 150 ohm
• Main Out Level: 19 dBu
• Aux Out Impedance (ohm): 150 ohm
• Aux Out Level: 19 dBu
• D/A Dynamic Range: 108 dB

Compressors

• RCF Compressors: 4 mono (6 preset)

EQ

• Input Channels EQ: 1 Semi Parametric / 2 Shelving
• Description: 3 Band EQ: High and Low band shelving, Mid-Band with sweepable frequency Graphic; 7 Band EQ on Main Mix and AUX send

Auxiliary Sends

• AUX: 1 PRE/POST
• FX POST: 1

Internal Effects

• Send Effects: 1
• MultiFX Insert Effects: 1

Mastering Processors

• Main OUT processors: 1

USB Audio

• Play trk: 2

Other Features

• Footswitch: Yes


Electrical Specifications

• Power supply: Internal

Physical Specifications

• Cabinet/Case Material: PP Composite
• Handles: 1 Top
• Grille: Steel
• Colour: White

Size

• Height: 623 mm / 24.53 inches
• Width: 400 mm / 15.75 inches
• Depth: 460 mm / 18.11 inches
• Weight: 22.2 kg / 48.94 lbs

Shipping Information

• Package Height: 676 mm / 26.61 inches
• Package Width: 451 mm / 17.76 inches
• Package Depth: 581 mm / 22.87 inches
• Package Weight: 29 kg / 63.93 lbs
