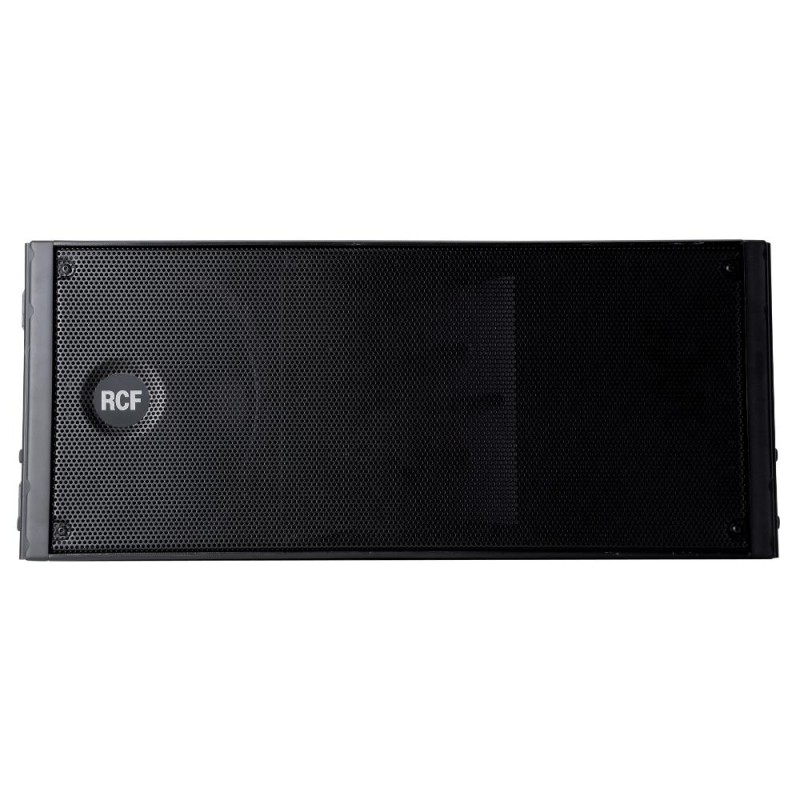

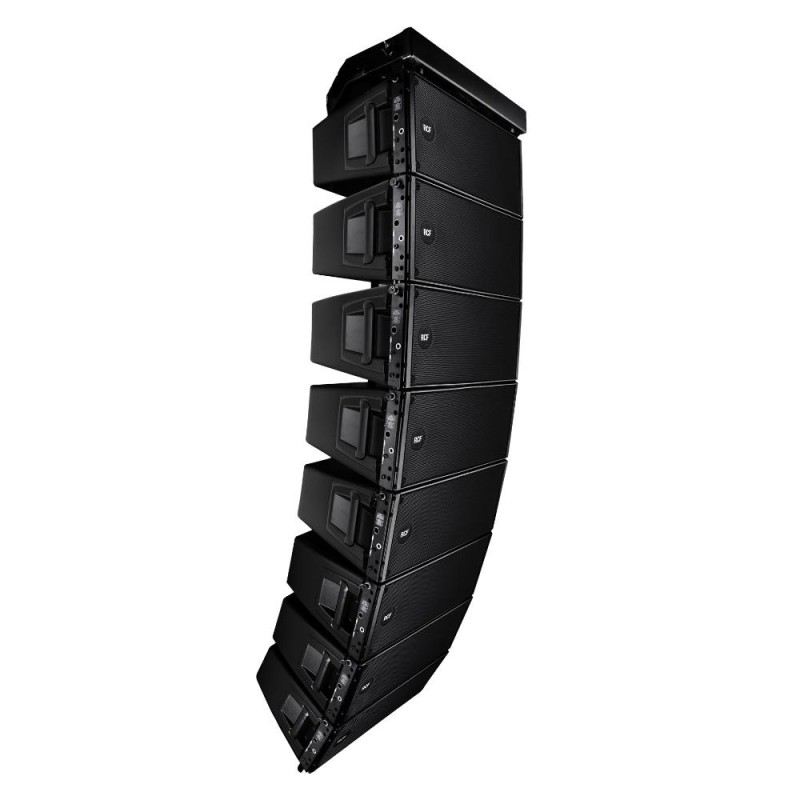

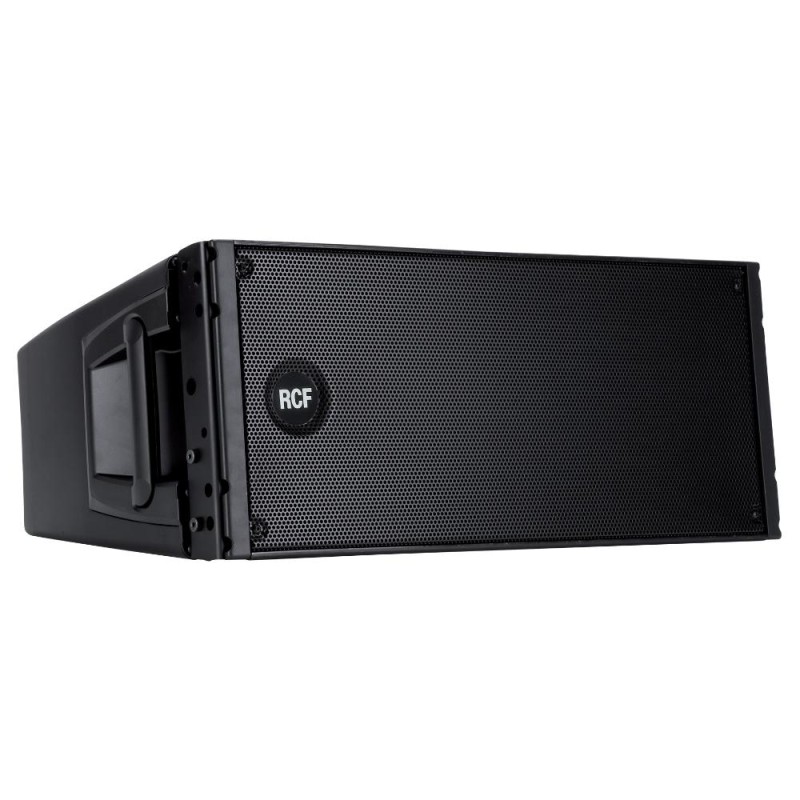

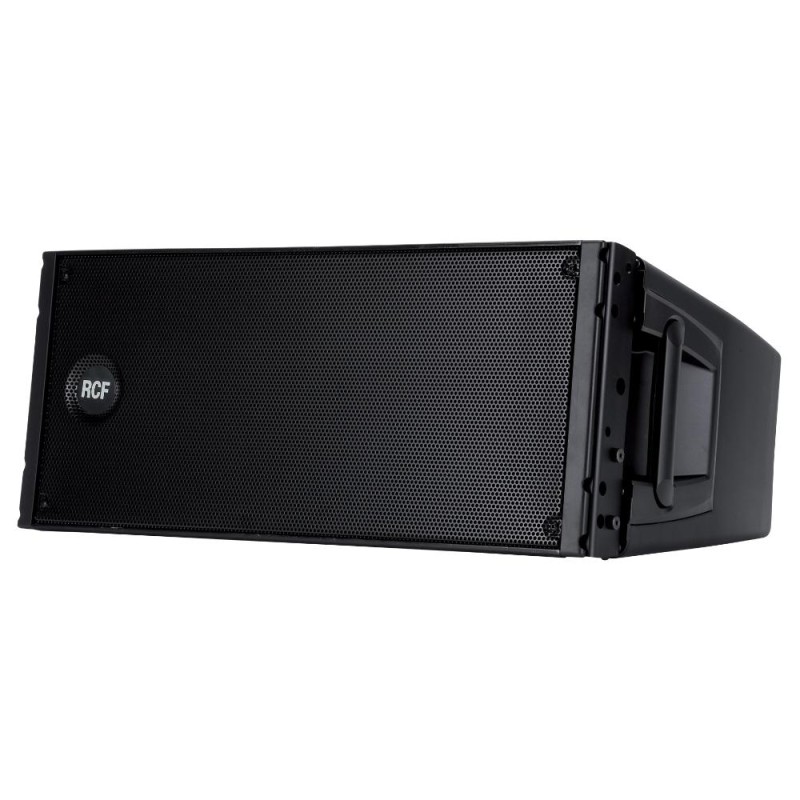

HDL 20-A Активна модулна тонколона за Line Array система

RCF HDL 20-A Активна модулна тонколона за Line Array система

HDL 20-A Активна модулна двулентова тонколона за Line Array система - 2 x 10" + 2" - 700W RMS

• 1400 Watt Пикова мощност / 700 Watt RMS
• 135 dB max SPL
• 55 Hz - 20 kHz честотна характеристика
• 2 x 10" Горовители
• 1 x 3" Драйвър
• DSP-controlled Input section with selectable presets
• Tour grade safe and solid variable mechanics
• Composite PP enclosure structurally wooden reinforced

Specifications

Acoustical Specifications

• Frequency Response: 55 Hz ÷ 20000 Hz
• Max SPL @ 1m: 135 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 15°

Transducers

• Compression Driver: 1 x 2.0'', 3.0'' v.c

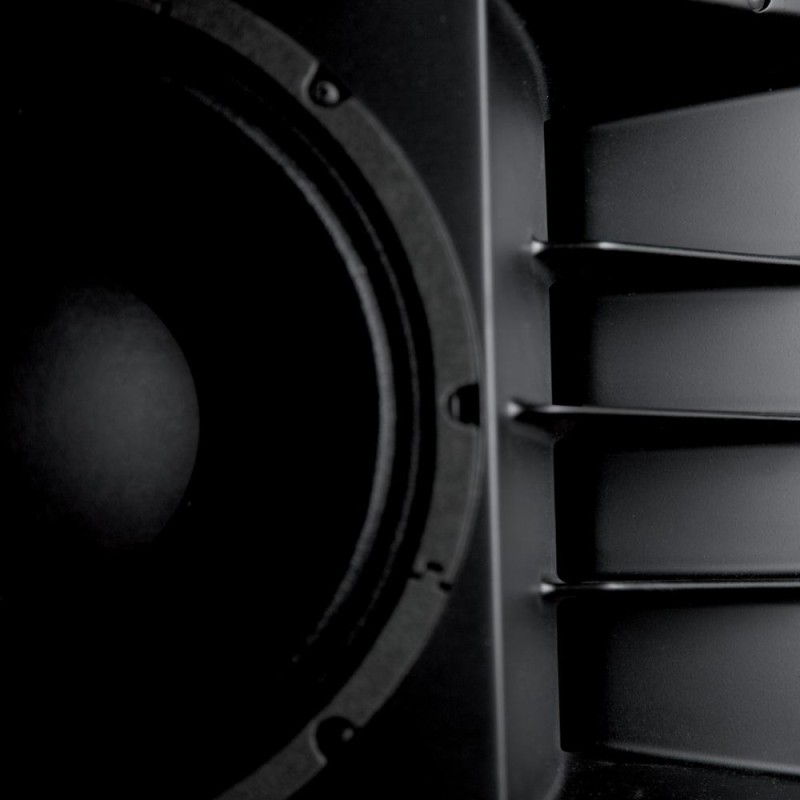

• Woofer: 2 x 10'', 2.5'' v.c

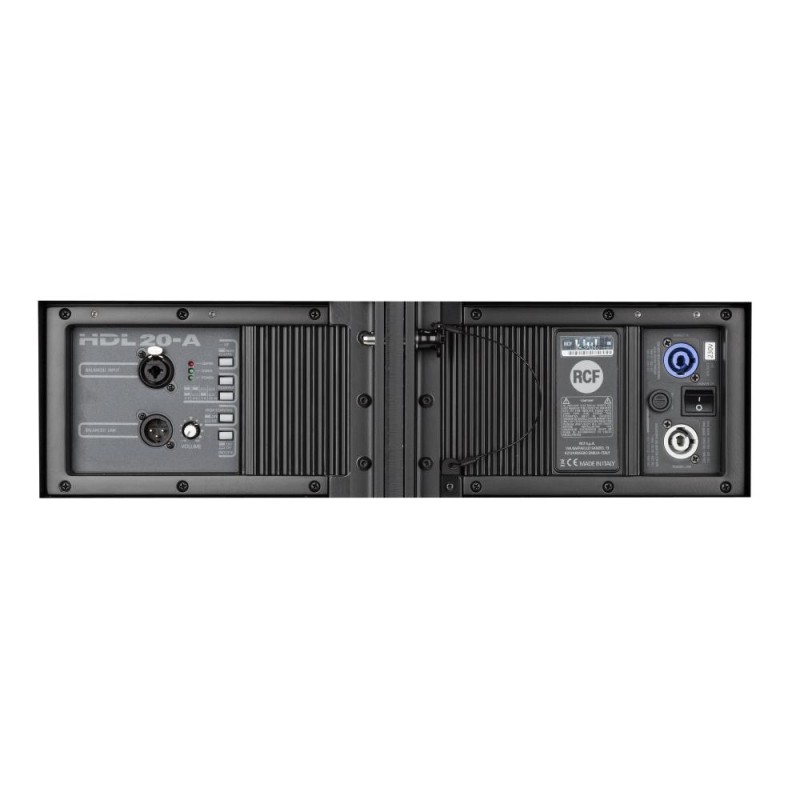

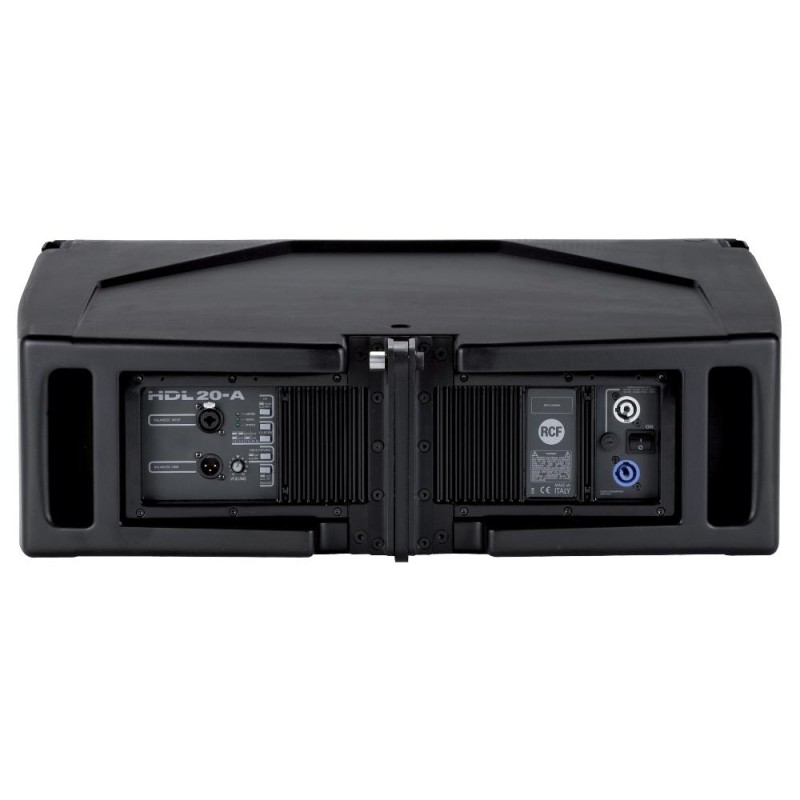

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover Frequencies: 800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Cluster, HF, High curving, Indoor

Power Section

• Total Power: 1400 W Peak, 700 W RMS
• High frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Standard Compliance

• Safety agency: CE compliant

Physical Specifications

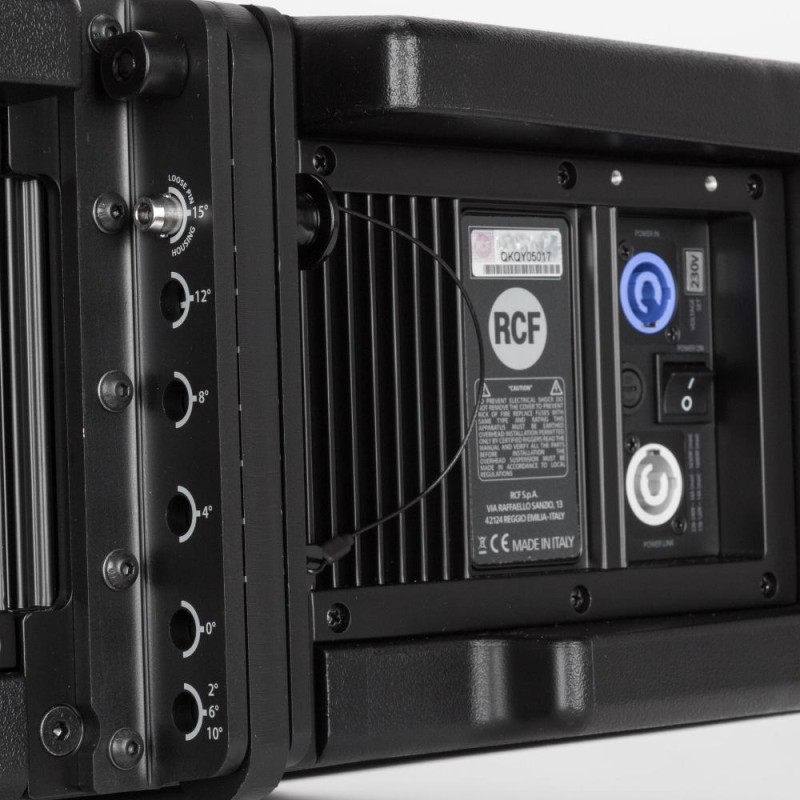

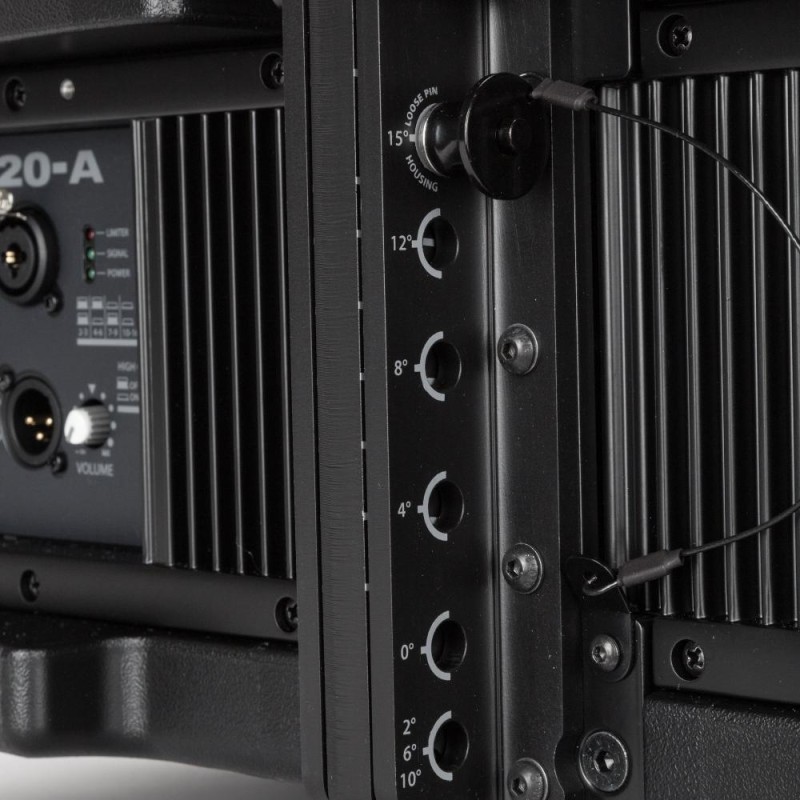

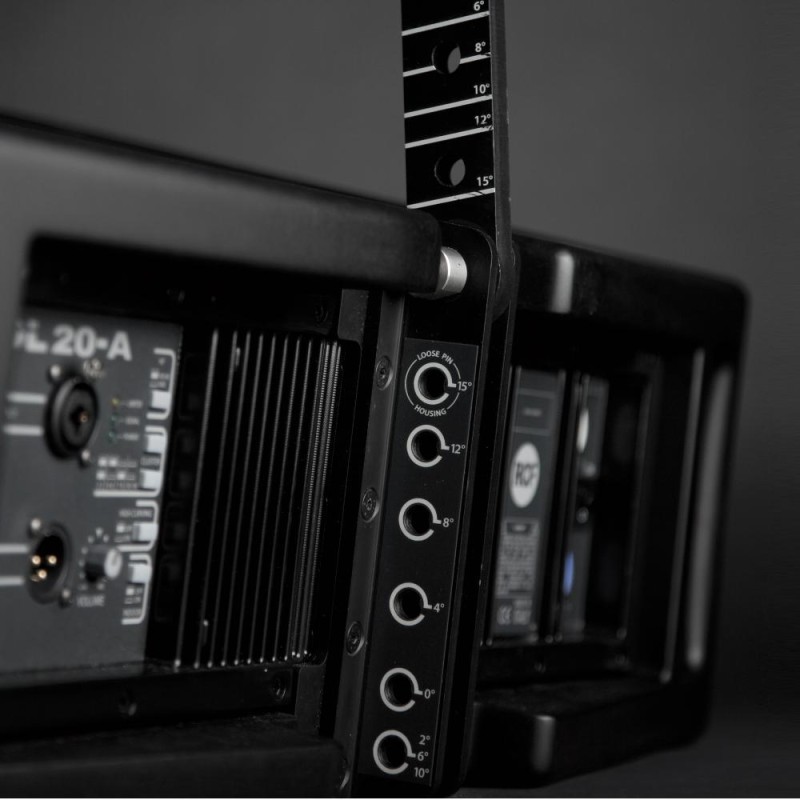

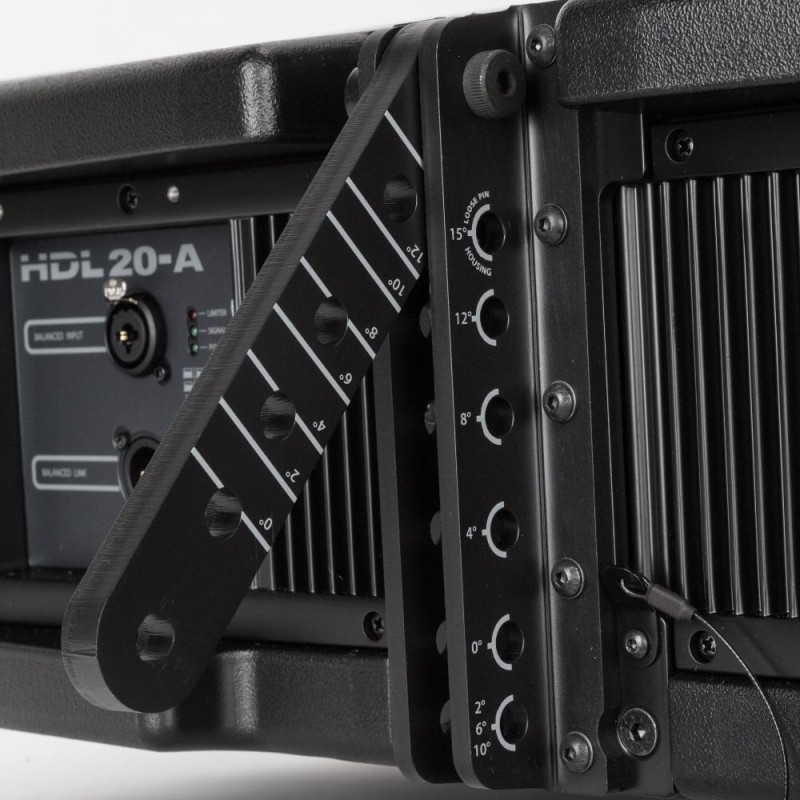

• Hardware: Rigging flyware

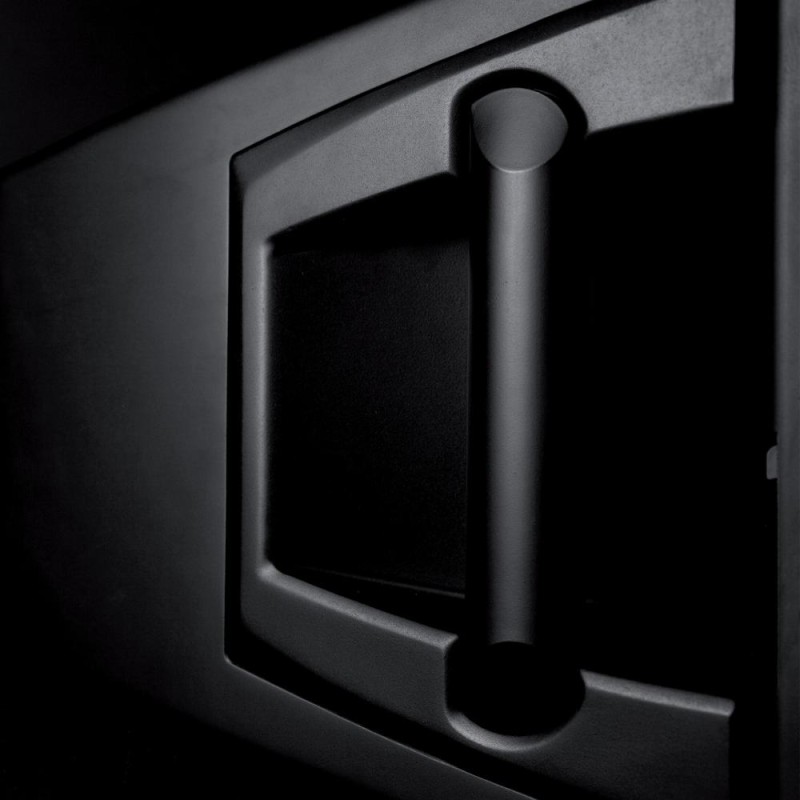

• Handles: 2 side, 2 back
• Colour: Black

Size

• Height: 294 mm / 11.57 inches
• Width: 705 mm / 27.76 inches
• Depth: 445 mm / 17.52 inches
• Weight: 30.2 kg / 66.58 lbs

Shipping Information

• Package Height: 375 mm / 14.76 inches
• Package Width: 800 mm / 31.5 inches
• Package Depth: 500 mm / 19.69 inches
• Package Weight: 33.2 kg / 73.19 lbs
