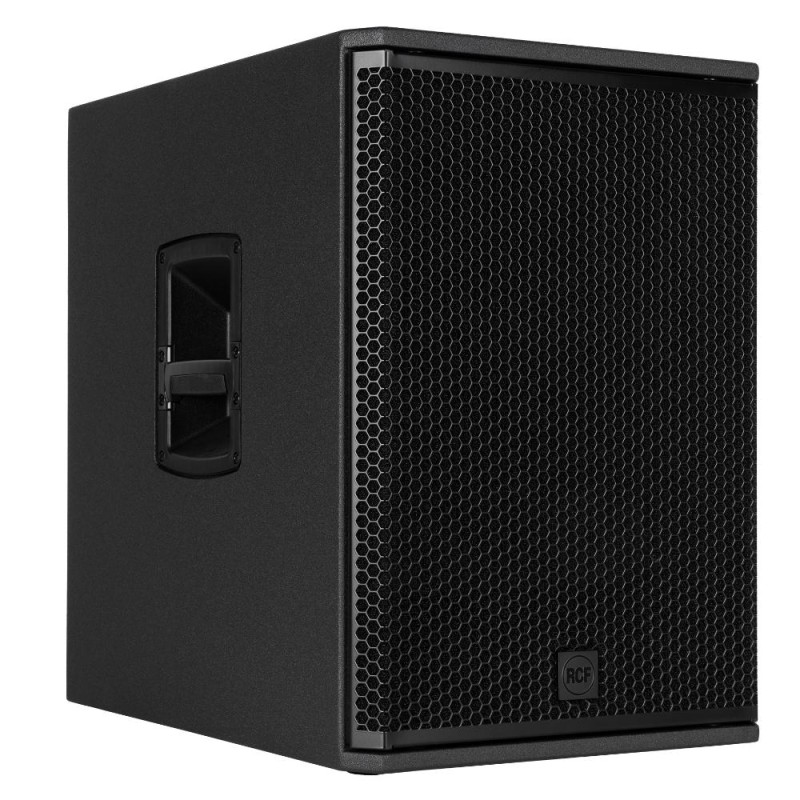

RCF SUB 15-AS Активна басова тонколона

RCF SUB 15-AS Активна басова тонколона

Features:

• 2200Watt
• 133 dB max SPL
• 35Hz - 400Hz frequency response
• 15" Woofer, 3.0" voice coil
• Birch tour grade cabinet with polyurea coating
• Mono/Stereo XLR/TRS combo In + Link, Stereo XLR Xover Out
• Volume, polarity, and lowpass frequency selection

Specification:

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 35 Hz ÷ 400 Hz
• Max SPL @ 1m: 133 dB

TRANSDUCERS

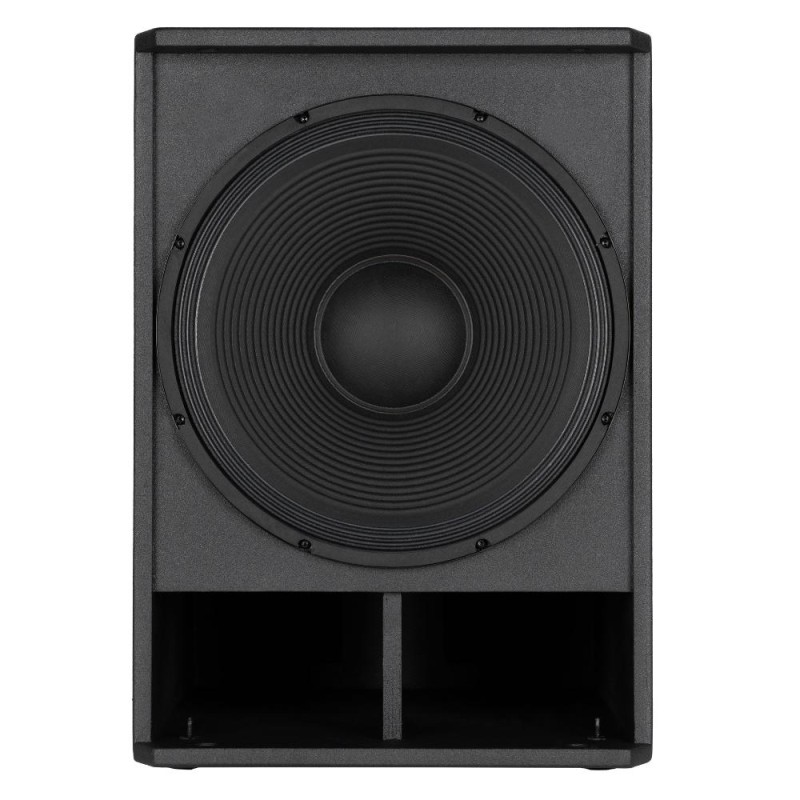

• Woofer: 1 x 15'', 3.0'' v.c

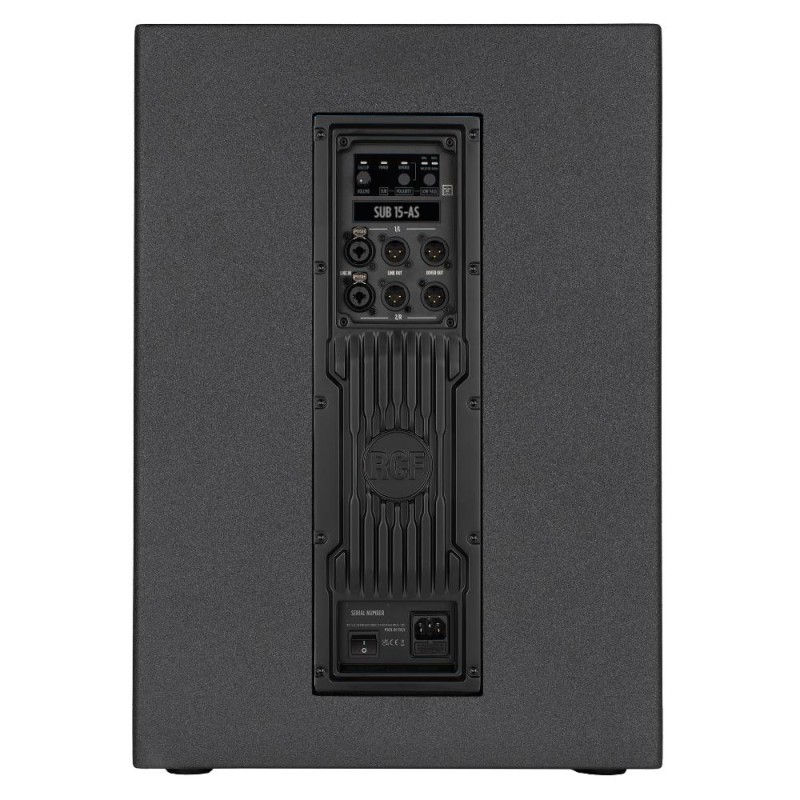

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Protections: Thermal
• Limiter: Soft Limiter
• Controls: Volume, Polarity, Low pass filter frequency

POWER SECTION

• Total Power: 2200 W Peak, 1100 W RMS
• Cooling: Convection
• Connections: VDE

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Baltic birch plywood

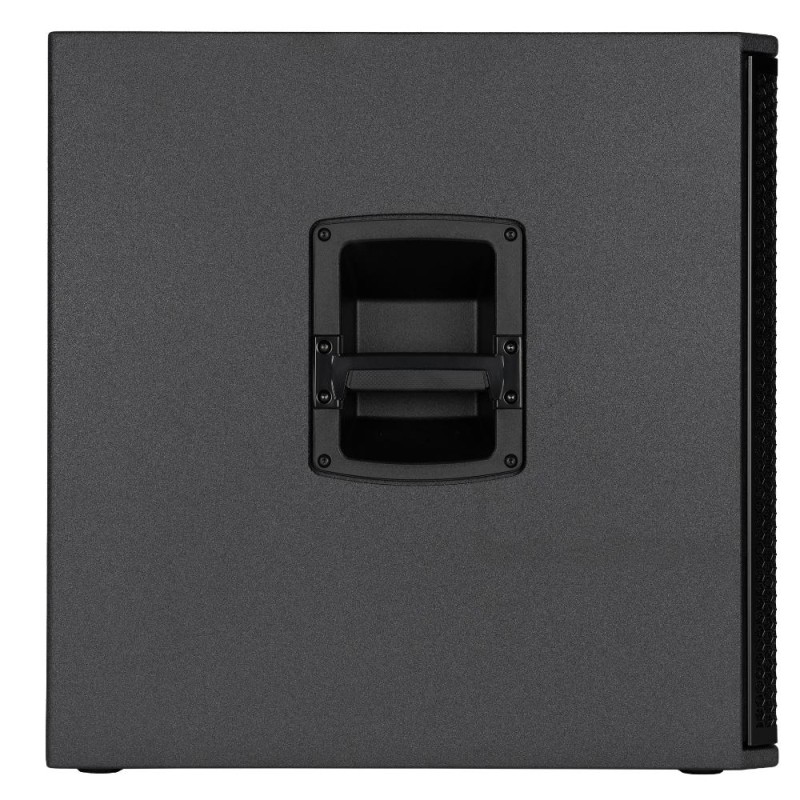

• Handles: 1 each side

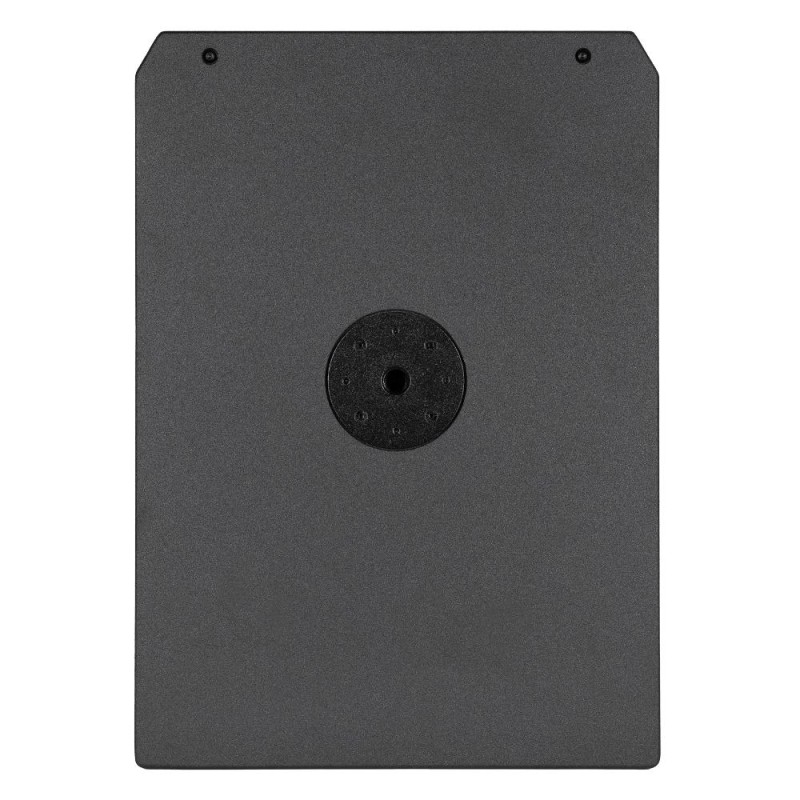

• Pole mount/Cap: M20 thread

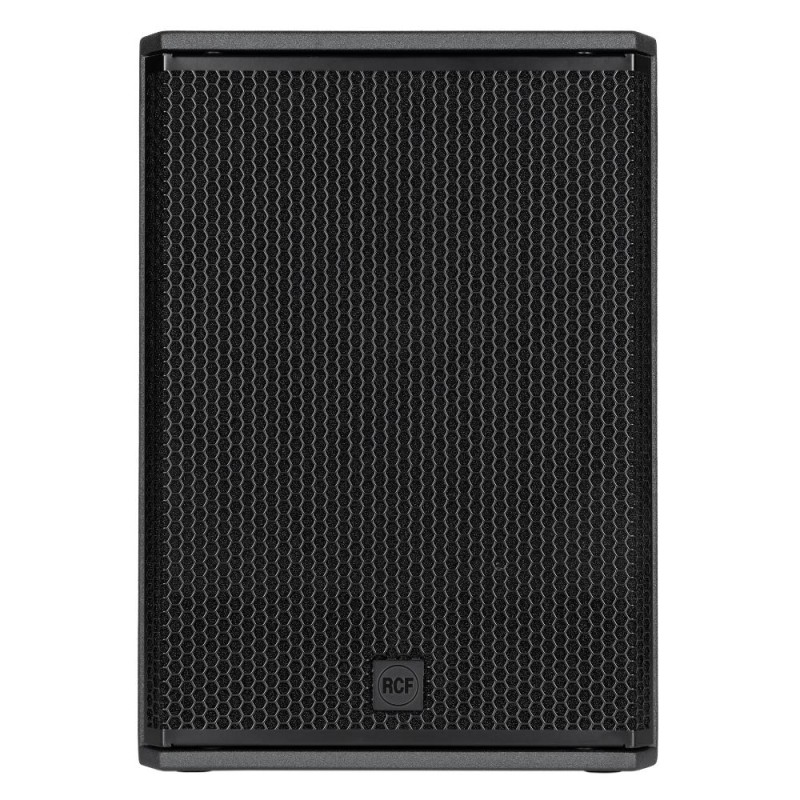

• Grille: Steel with clothing
• Color: Black

SIZE

• Height: 590 mm / 23.23 inches
• Width: 420 mm / 16.54 inches
• Depth: 590 mm / 23.23 inches
• Weight: 30 kg / 66.14 lbs

SHIPPING INFORMATION

• Package Height: 648 mm / 25.51 inches
• Package Width: 638 mm / 25.12 inches
• Package Depth: 478 mm / 18.82 inches
• Package Weight: 34.9 kg / 76.94 lbs
