RCF SUB 702-AS MK3 Активна басова тонколона 12"

RCF SUB 702-AS MK3 Активна басова тонколона 12"

• 1400 Watt Class-D Amplifier
• 12” Woofer, bass reflex housing
• Stereo Crossover
• Switchable Crossover Frequencies
• Polarity-reverse switch
• Electronic equalization, soft limiter and protection
• Stereo XLR input, Stereo XLR signal output
• Bass Motion Control excursion management

Specifications

Acoustical Specifications

• Frequency Response: 40 Hz ÷ 120 Hz
• Max SPL @ 1m: 129 dB

Transducers

• Woofer: 12'', 2.5'' v.c

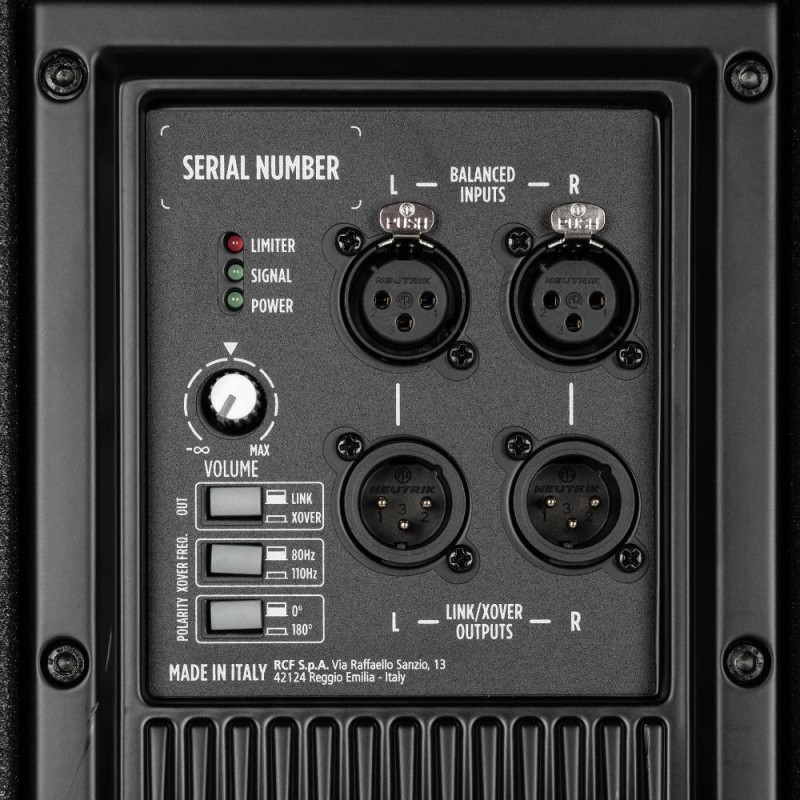

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor Section

• Hi-Pass Frequencies: 110 Hz
• Low-Pass Frequencies: 80 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, EQ, Phase, Xover

Power Section

• Total Power: 1400 W Peak, 700 W RMS
• Low frequencies: 1400 W Peak, 700 W RMS
• Cooling: Convection
• Connections: VDE

Standard Compliance

• Safety agency: CE compliant

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood

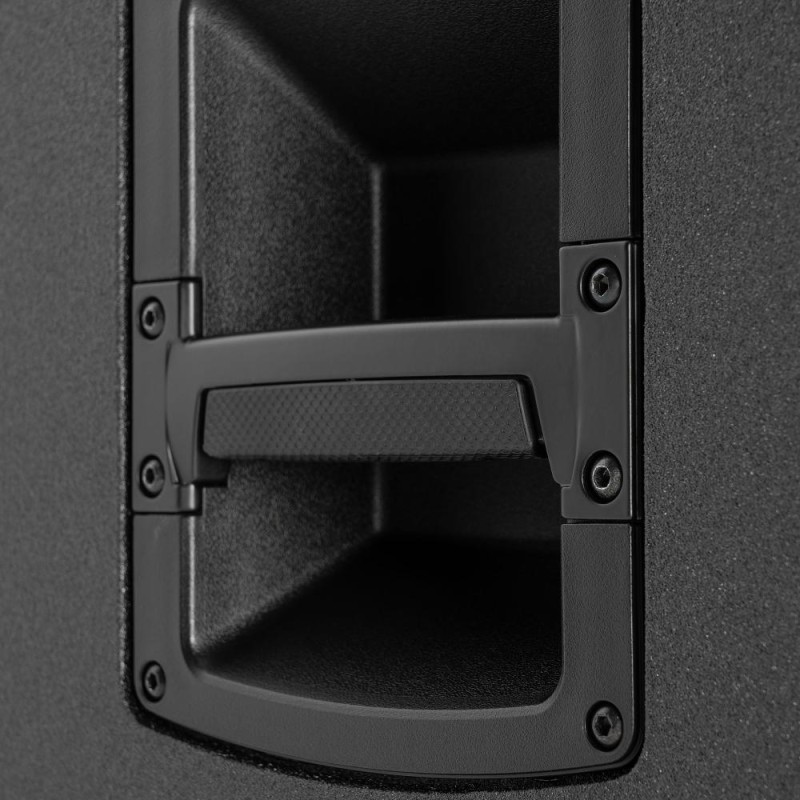

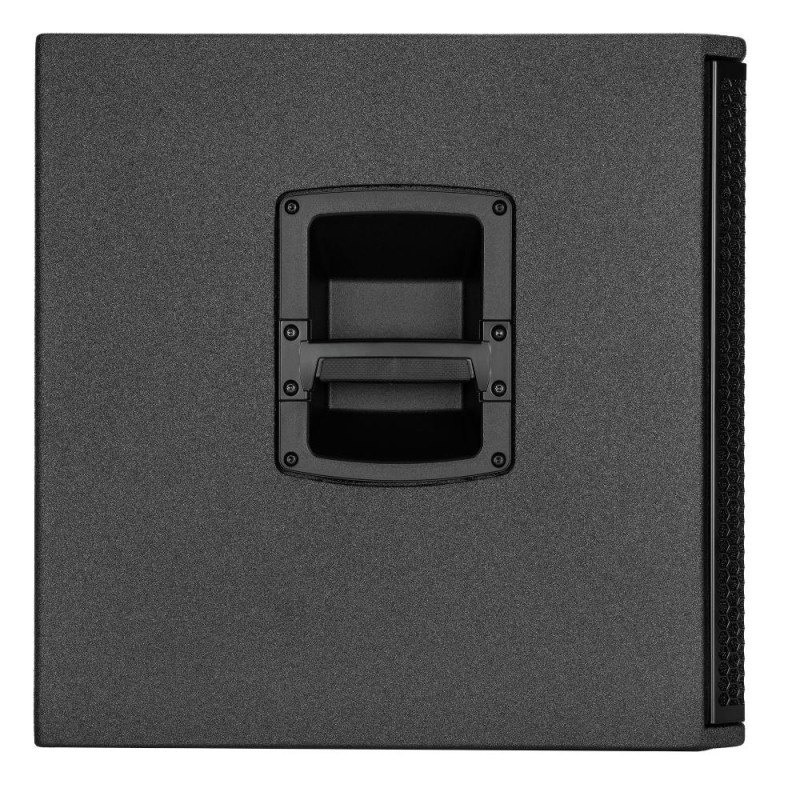

• Handles: One each side

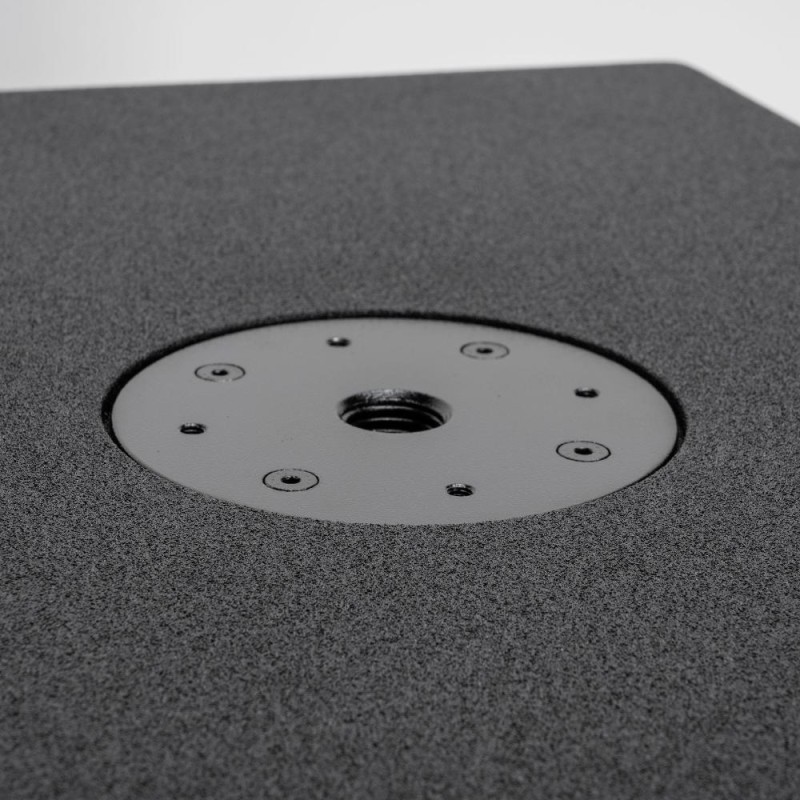

• Pole mount/Cap: Yes
• Grille: Steel with clothing
• Colour: Black

Size

• Height: 523 mm / 20.59 inches
• Width: 360 mm / 14.17 inches
• Depth: 515 mm / 20.28 inches
• Weight: 21 kg / 46.3 lbs

Shipping Information

• Package Height: 565 mm / 22.24 inches
• Package Width: 575 mm / 22.64 inches
• Package Depth: 420 mm / 16.54 inches
• Package Weight: 25 kg / 55.12 lbs
