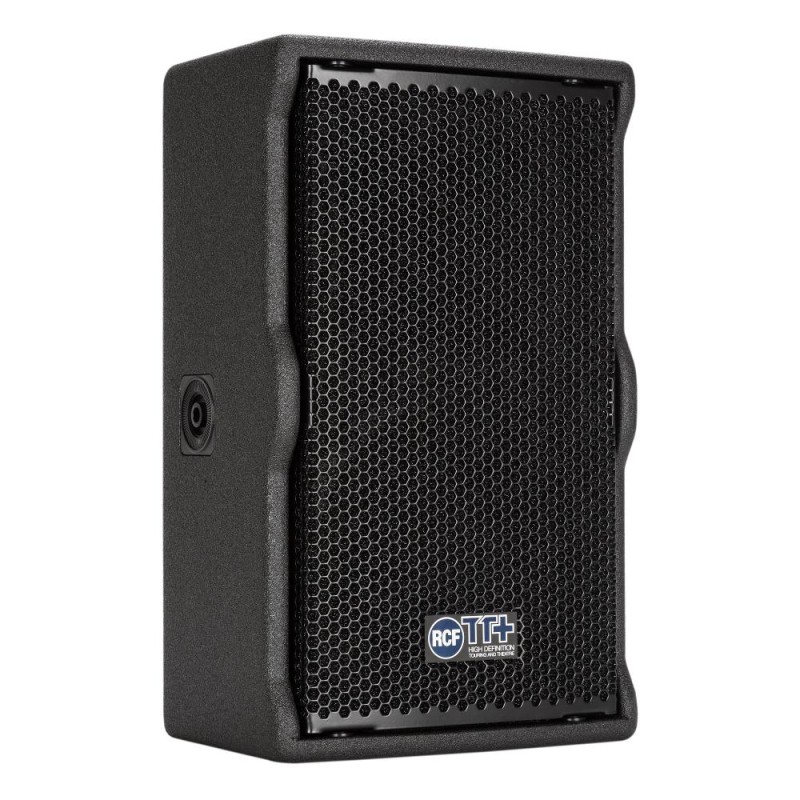

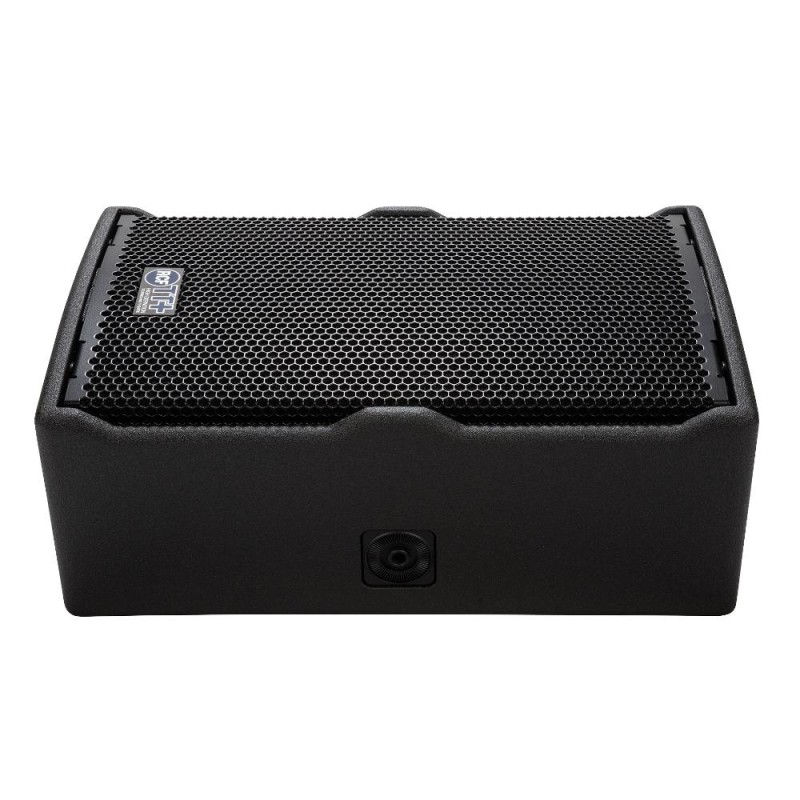

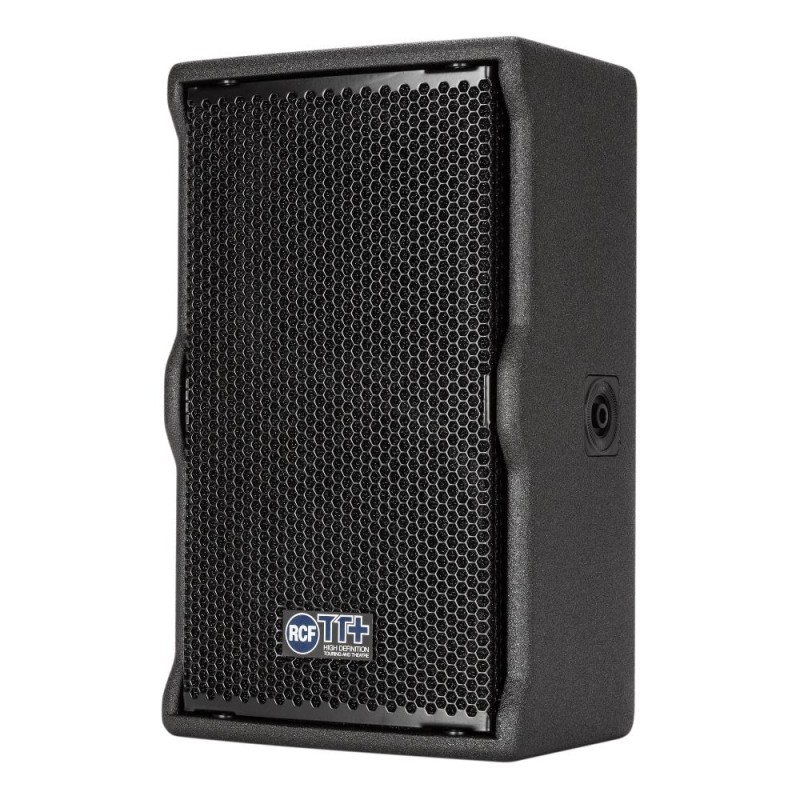

RCF TT 08-A II Активна двулентова тонколона

RCF TT 08-A II Активна двулентова тонколона

• 128 dB SPL Max
• 1000W RMS, two-way Class-D amplifier
• Rotatable 90° x 70° constant directivity horn

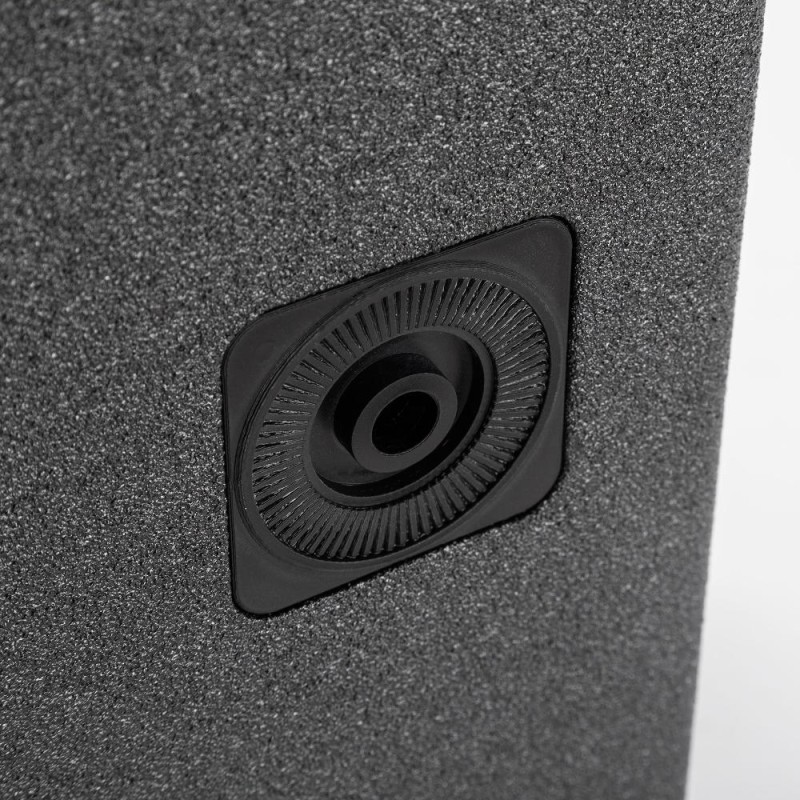

• Quick Fit Bracket Socket
• FiRPHASE
• 8’’ neodymium Woofers, 2.5’’ voice coil
• Horn-loaded 1” neo comp. driver, 1,75’’ voice coil
• RDNet Networked Management
• 60 ÷ 20000 Hz Frequency Range

Specifications

Acoustical specifications

• Frequency Response: 65 Hz ÷ 20000 Hz
• Max SPL @ 1m: 128 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 70°

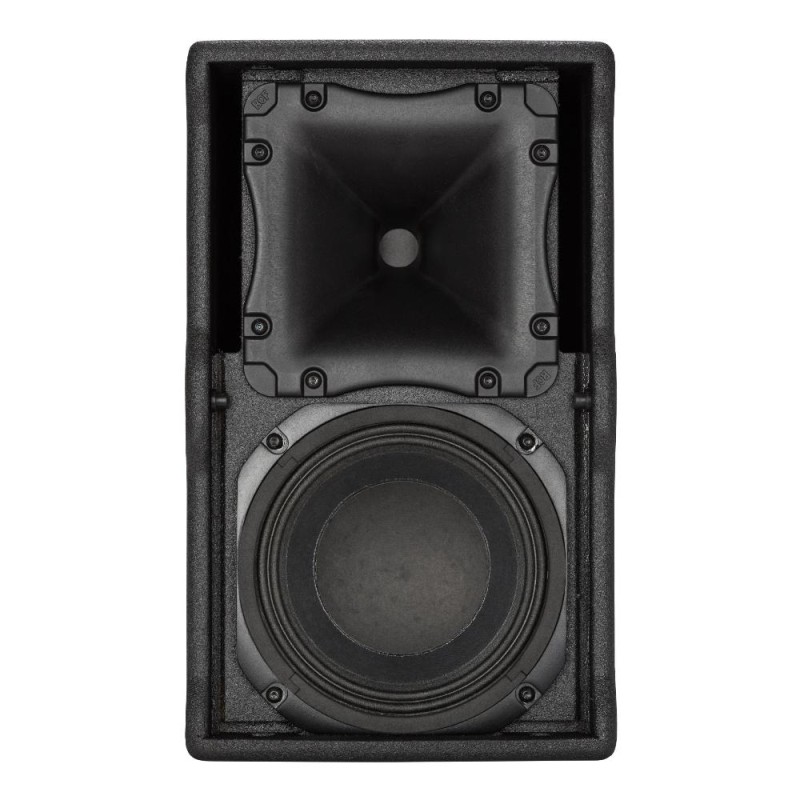

Transducers

• Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
• Woofer: 1 x 8'' neo, 2.5'' v.c

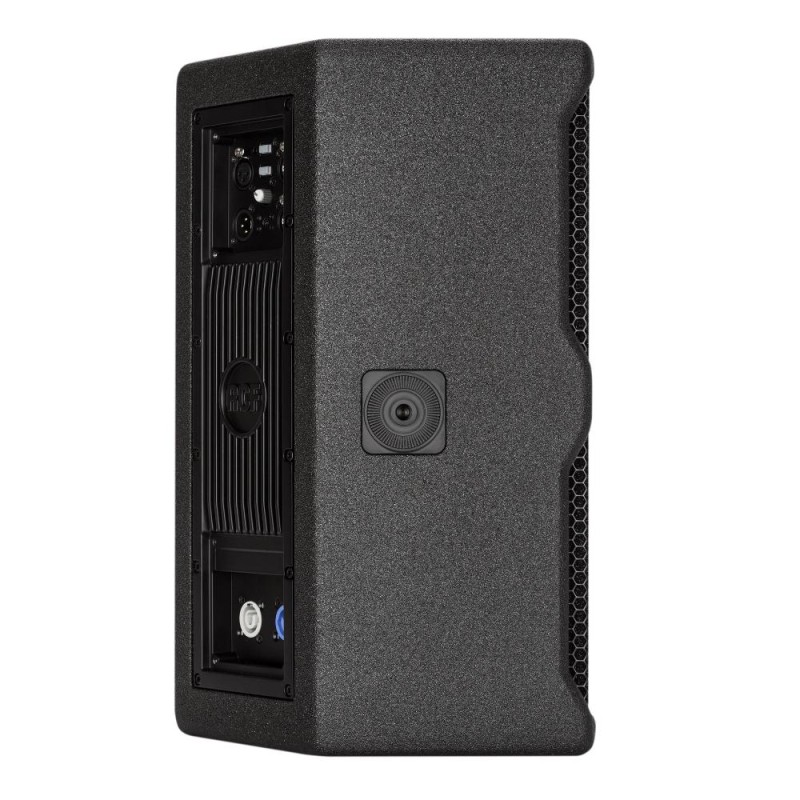

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: -2 dBu/+4 dBu

Processor section

• Crossover Frequencies: 900 HZ
• Protections: Thermal, HF
• Limiter: Fast Limiter
• Controls: Bypass, Linear/High Pass, Volume, RDnet on boar
• RDNet: Yes

Power section

• Total Power: 2000 W Peak, 1000 W RMS
• High frequencies: 600 W Peak, 300 W RMS
• Low frequencies: 1400 W Peak, 700 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Standard compliance

• Safety agency: CE compliant

Physical specifications

• Cabinet/Case Material: Baltic birch plywood

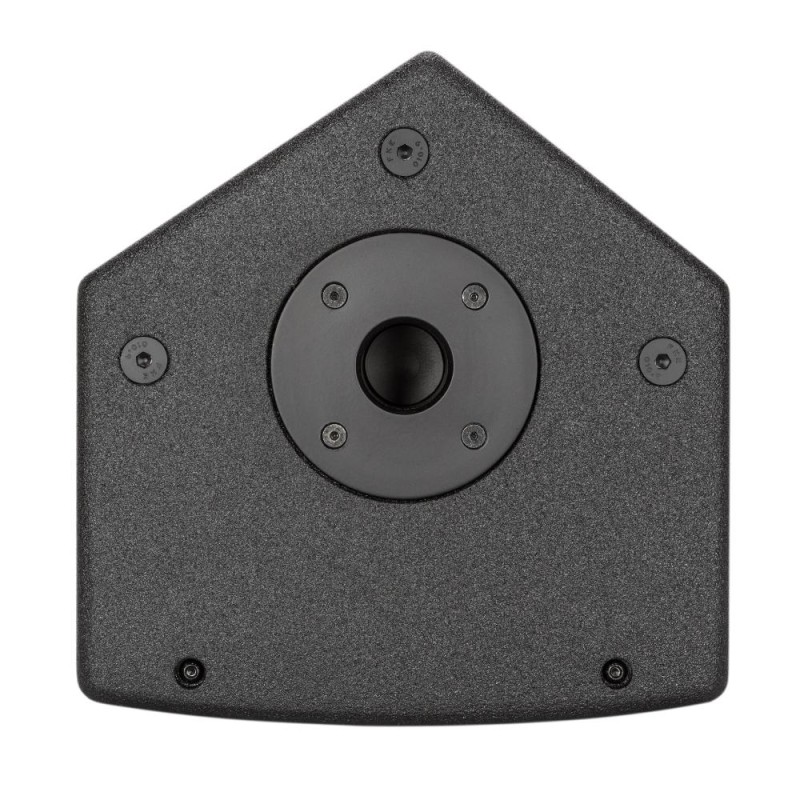

• Hardware: 3X M10 TOP AND BOTTOM, 2X PIN D.10 AND M10 SIDE

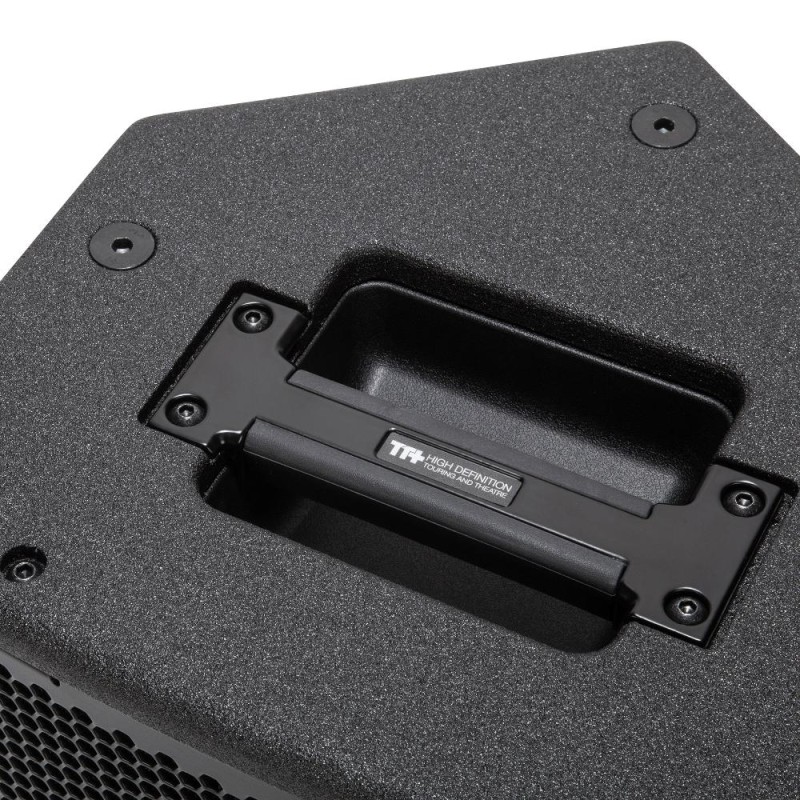

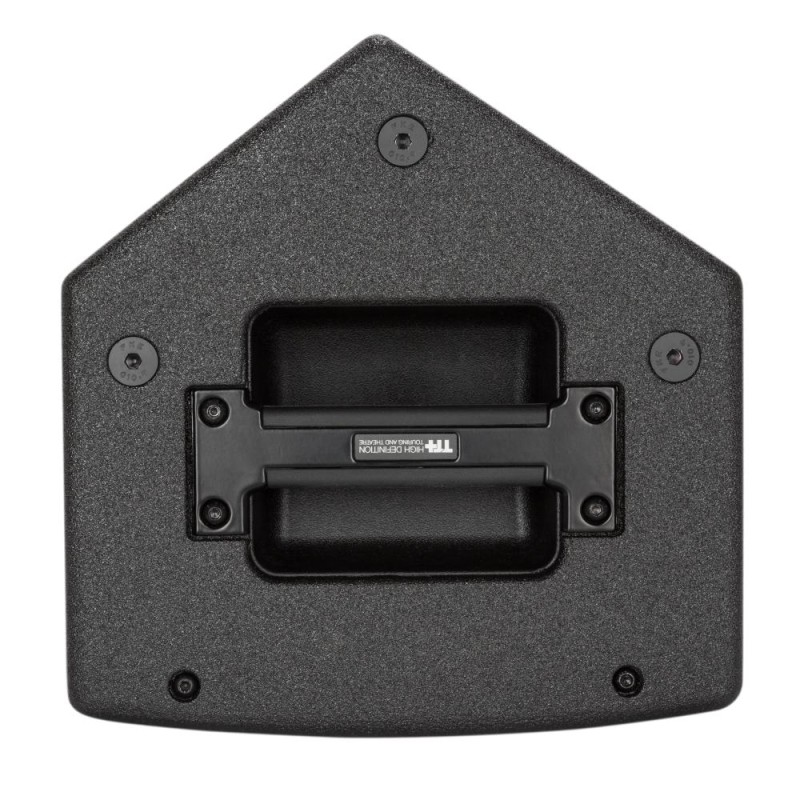

• Handles: 1 TOP

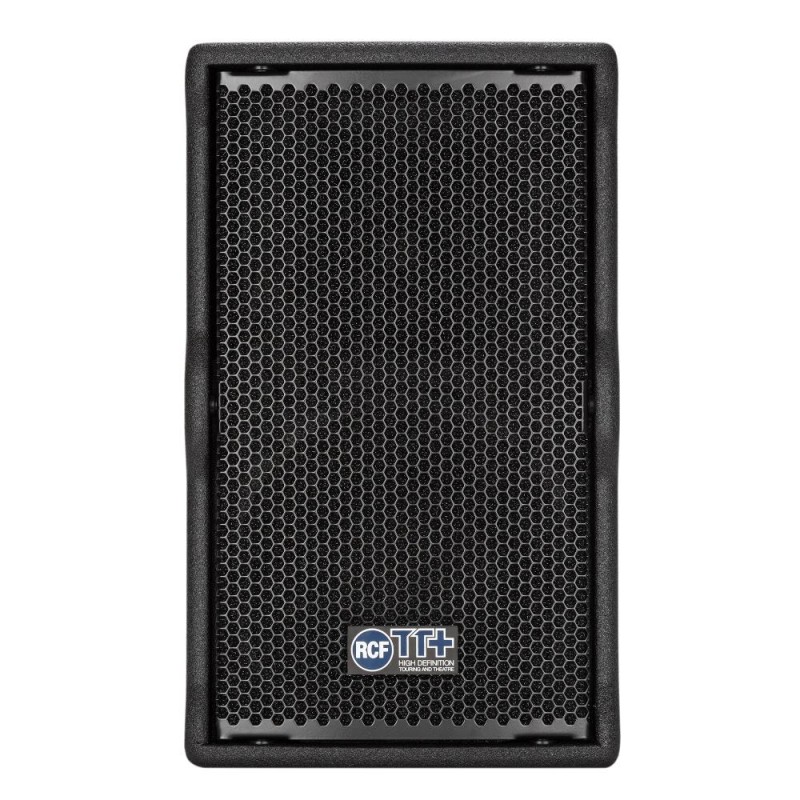

• Grille: Steel
• Colour: Black

Size

• Height: 450 mm / 17.72 inches
• Width: 270 mm / 10.63 inches
• Depth: 278 mm / 10.94 inches
• Weight: 11 kg / 24.25 lbs

Shipping information

• Package Height: 500 mm / 19.69 inches
• Package Width: 330 mm / 12.99 inches
• Package Depth: 320 mm / 12.6 inches
• Package Weight: 12.7 kg / 28 lbs
