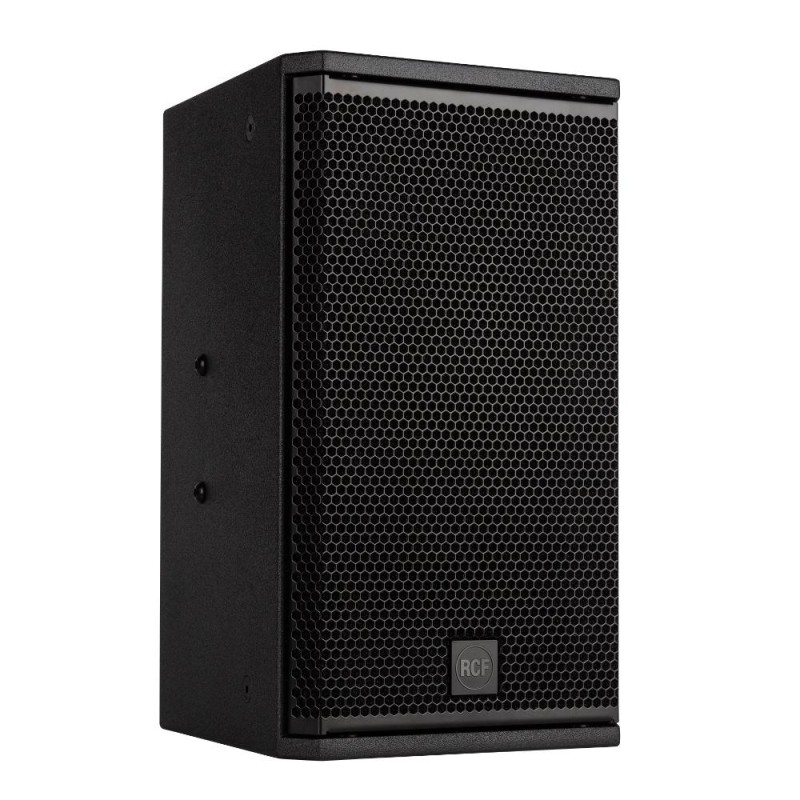

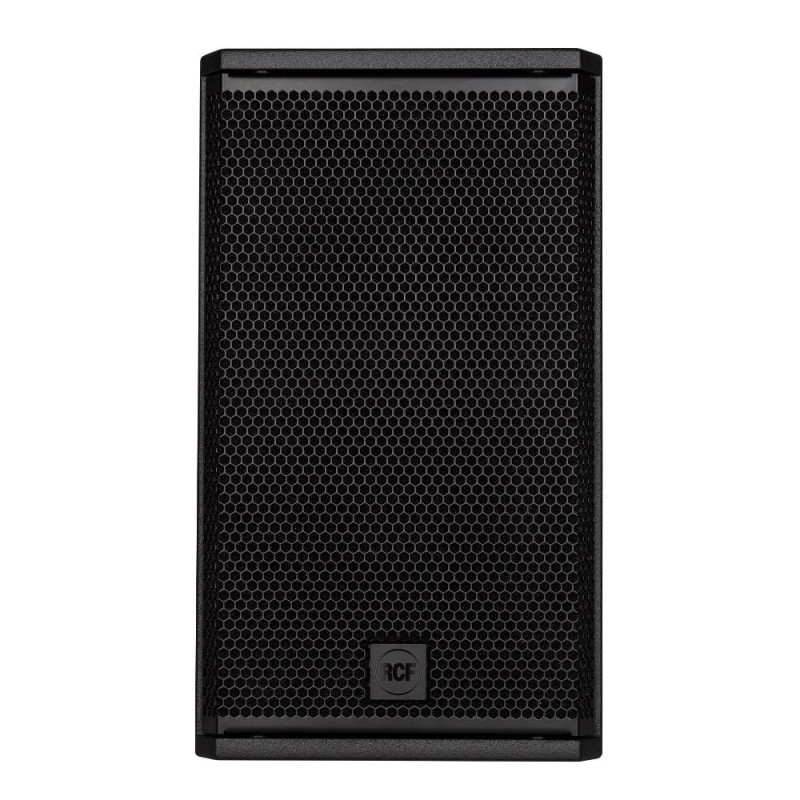

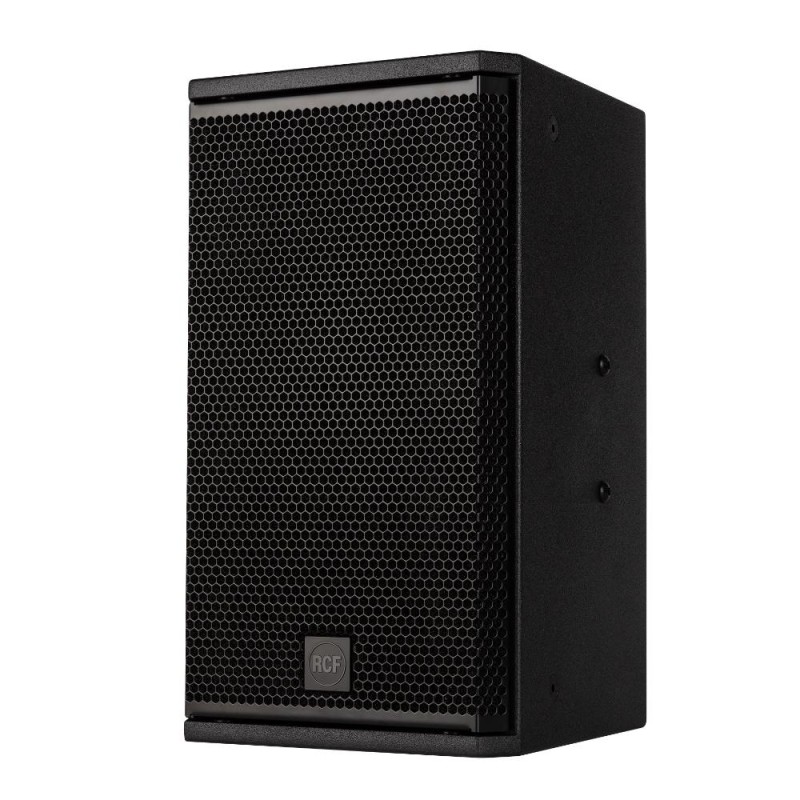

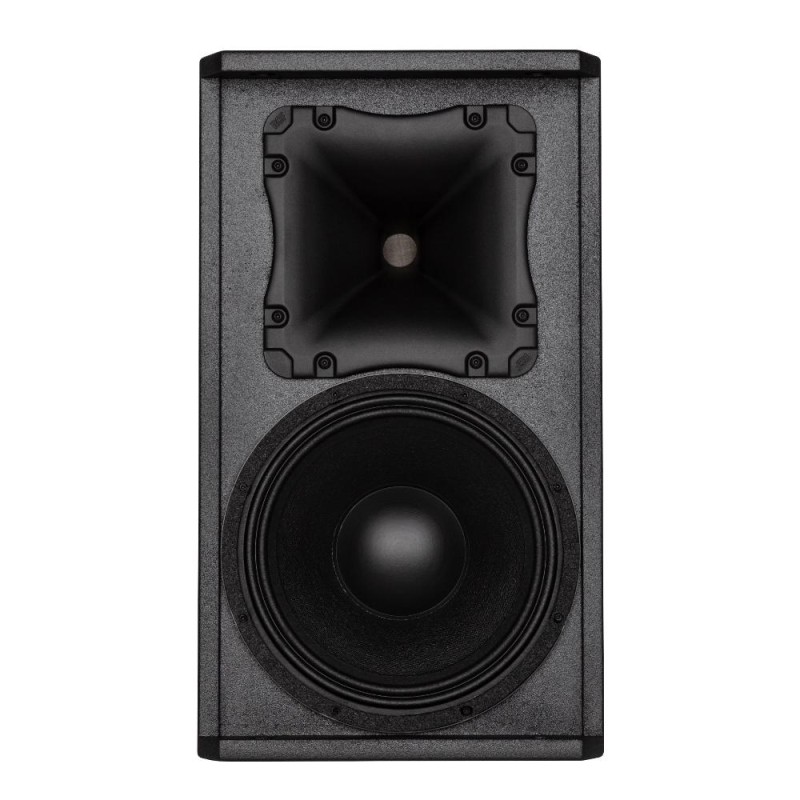

RCF X-MAX 10 Пасивна двулентова тонколона 10"

RCF X-MAX 10 Пасивна двулентова тонколона 10"

• 700 W program power handling
• 128 dB max SPL
• 65 ÷ 20000 Hz frequency range
• 90° x 70° constant directivity coverage angle
• 1 x 10" high-power woofer
• 1 x 1.4" voice coil compression driver
• High-quality plywood cabinet

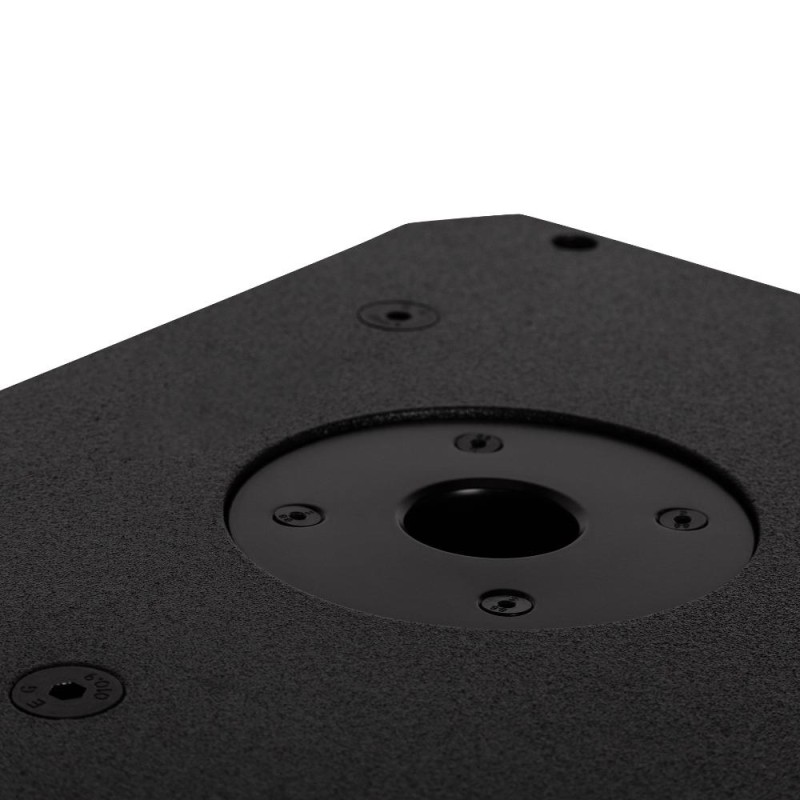

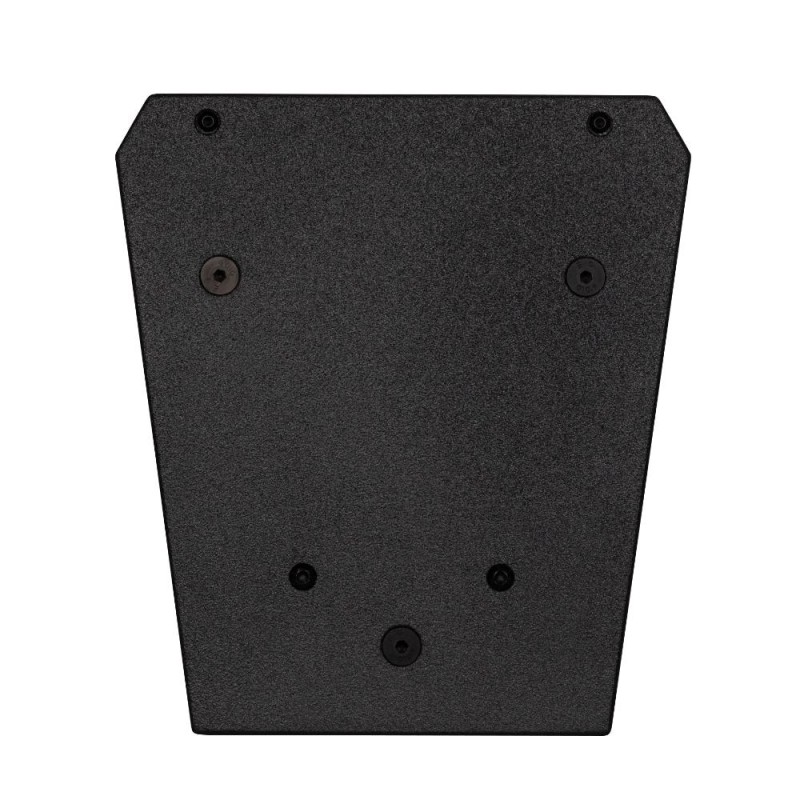

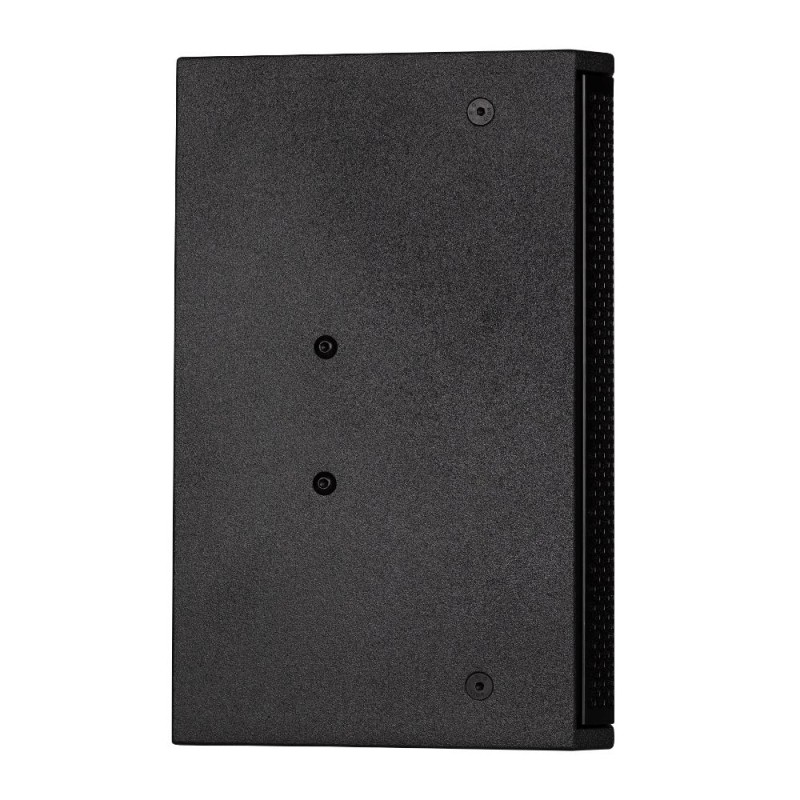

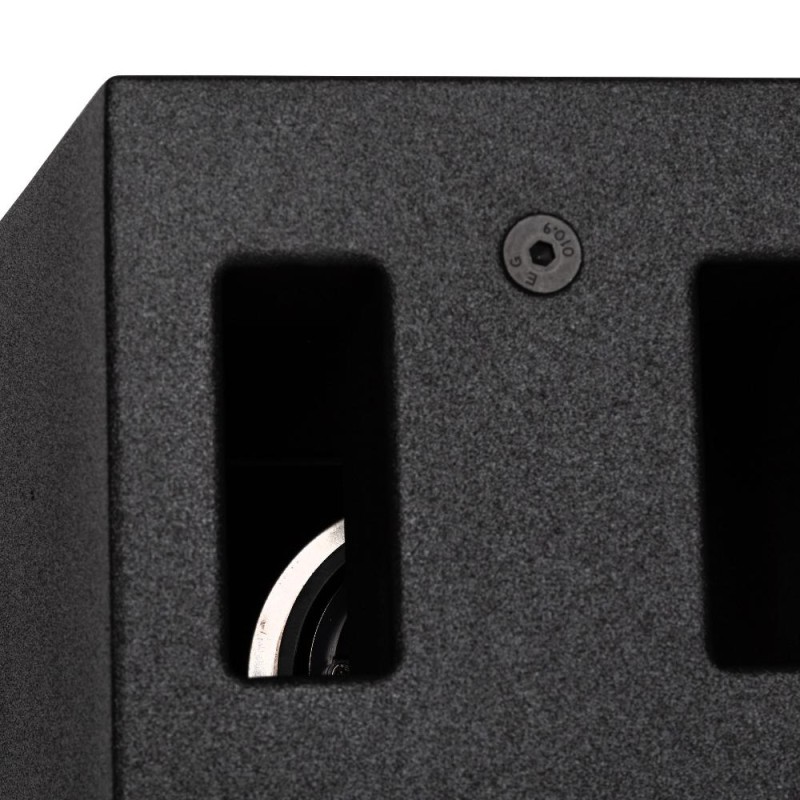

• Installation points available on all panels

Specifications:

Acoustical Specifications

• Frequency Response (-10dB): 65 Hz ÷ 20000 Hz
• Max SPL @ 1m: 128 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 70°
• Directivity index Q: 11
• System Sensitivity: 97 dB

Power Section

• Amplification: Full Range
• Nominal Impedance: 8 ohm
• Power Handling: 350 W
• Peak Power Handling: 1400 W PEAK
• Recommended Amplifier: 700 W
• Protections: Dynamic active mosfet
• Crossover Frequencies: 1800 Hz

Transducers

• Compression Driver: 1 x 1.0'', 1.4'' v.c
• Woofer: 10'', 2.5'' v.c

Input/Output Section

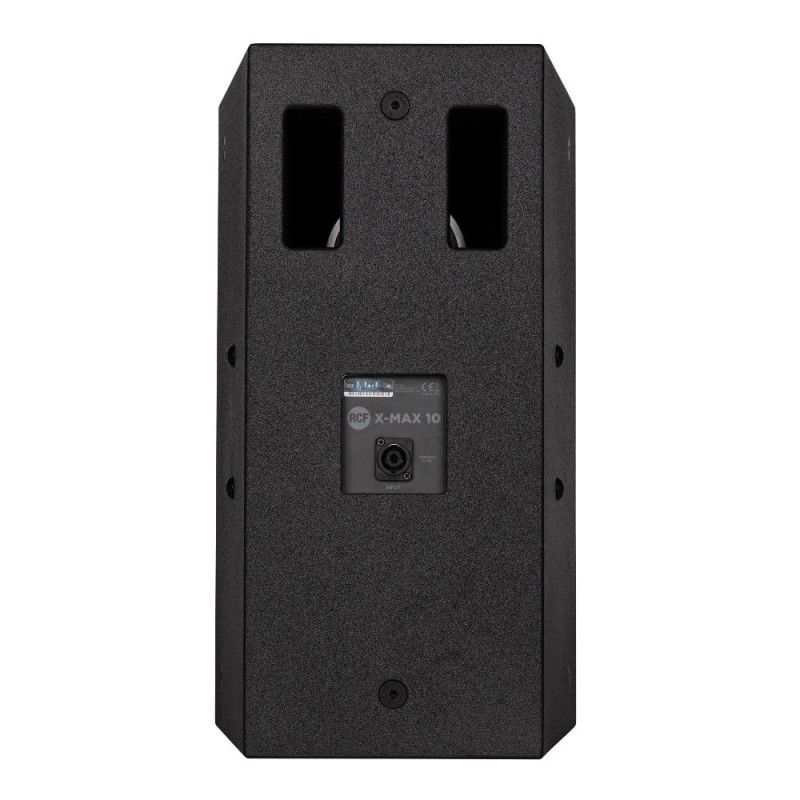

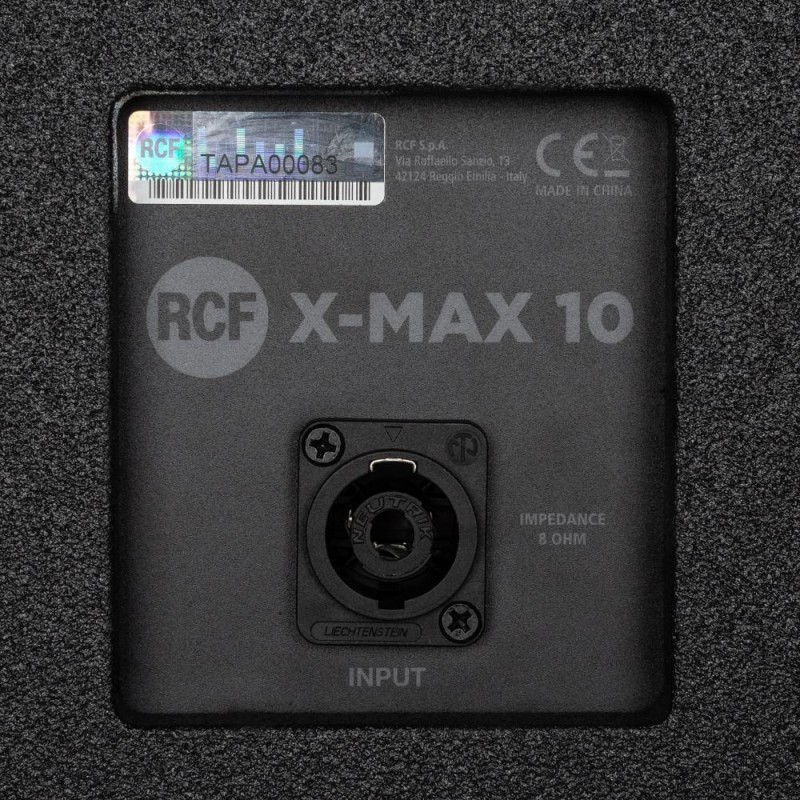

• Input connectors: Speakon

Standard Compliance

• Safety agency: CE compliant

Physical Specifications

• Cabinet/Case Material: Plywood
• Hardware: 2 x M8, 16 x M10
• Grille: Steel with clothing
• Color: Black

Size

• Height: 510 mm / 20.08 inches
• Width: 295 mm / 11.61 inches
• Depth: 325 mm / 12.8 inches
• Weight: 17 kg / 37.48 lbs

Shipping Information

• Package Height: 545 mm / 21.46 inches
• Package Width: 363 mm / 14.29 inches
• Package Depth: 333 mm / 13.11 inches
• Package Weight: 20 kg / 44.09 lbs
