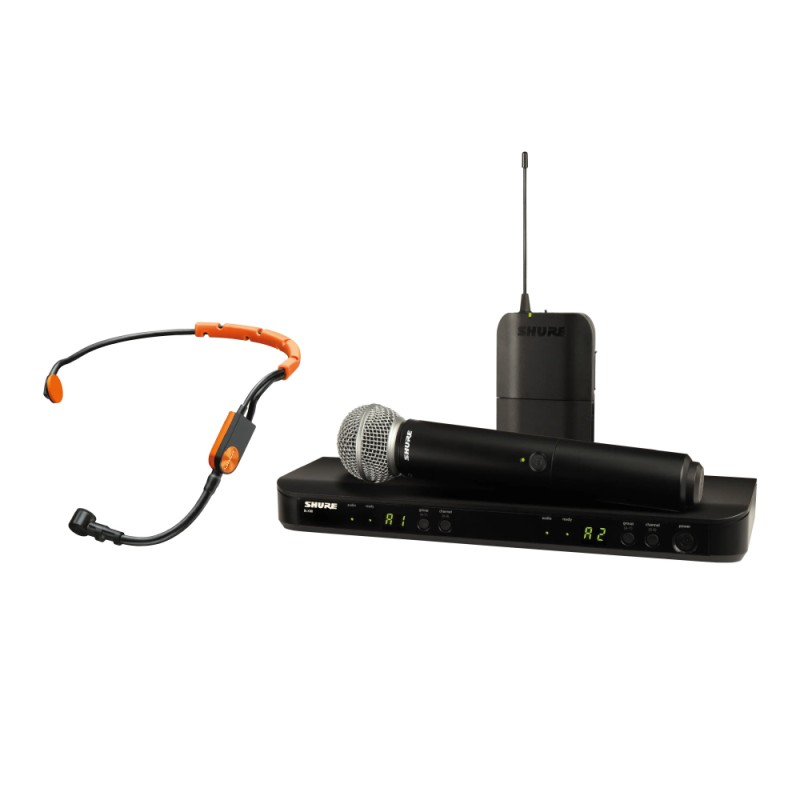

SHURE BLX1288E/SM31-K14 Комбо безжичен микрофон хедсет SM31 + вокален SM58

SHURE BLX1288E/SM31-K14 Комбо безжичен микрофон хедсет SM31 + вокален SM58

Кардиоидният хедсет микрофон SM31FH е предназначен за приложения при които ползвателя е податлив на изпотяване - фитнес инструктаж, аеробика и др. Разполага с отблъскваща влагата конструкция за работа във влажни условия. SM58 е вокален микрофон - лидер в индустрията, пригоден да доставя топла и ясна вокална репродукция. Системата притежава аналогово безжично двойно предаване (двата микрофона могат да бъдат използвани едновременно).

Съдържа:

• BLX2/SM58 Вокален микрофон
• SM31 Хедсет микрофон (за глава)

• BLX88 Двоен приемник
• BLX1 Бодипак предавател
• PS24 Захранване
• WA371 държач за вокален микрофон
• 31B1856 универсален адаптер за държача (3/8" женски към 5/8" мъжки)
• 2 комплекта AA батерии
• Ветробран за хедсет
• Ръководство за потребителя

Specifications:

System

• Working Range: 91 m (300 ft) Line of Sight
• Note: Actual range depends on RF signal absorption, reflection and interference.
• Audio Frequency Response: 50 to 15,000 Hz
• Note: Dependent on microphone type
• Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone, 0.5%, typical
• Dynamic Range: 100 dB, A-weighted, typical
• Operating Temperature: -18°C (0°F) to 57°C (135°F)
• Note: Battery characteristics may limit this range.
• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

SM31

• Type: Electret Condenser
• Frequency Response: 45 Hz to 20,000 Hz
• Polar Pattern: Unidirectional (Cardioid)
• Output Impedance @ 1 kHz - 600 Ω
• Audio Output Level: -50.0 dBV/Pa
• Signal-To-Noise Ratio @ 1 kHz - 66 dB
• Maximum SPL 1000 Ω load, 1  kHz@ 3%THD - 145.0 dB
• Dynamic Range @ 1 kHz, 1000 Ω load - 117.0 dB
• Equivalent Output Noise: typical, A-Weighted - 28 dB
• Power Requirements: +5 V DC (nominal), 10 V maximum (DC bias)
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
• Cable: 1.1 m (45 in.)
• Connector: TA4F
• Net Weight: 60 g (2.11 oz.)

SM58

• Microphone Type: Dynamic
• Polar Pattern: Cardioid
• Frequency Response: 50Hz-15kHz
• Max SPL: 94dB SPL
• Output Impedance: 150 ohms
• Sensitivity: -54.5 dBV/Pa (1.88 mV)

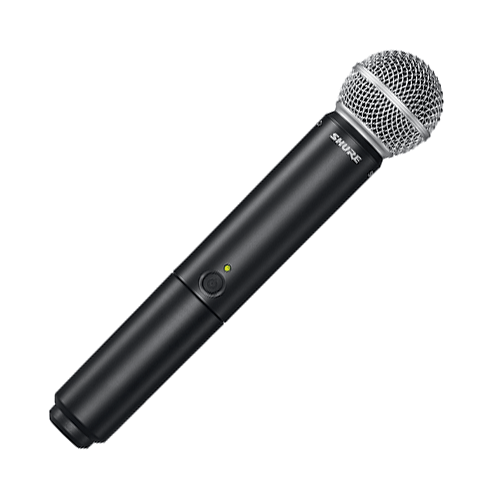

BLX2

• Audio Input Level
• 0dB -20 dBV maximum
• -10dB -10 dBV maximum
• Gain Adjustment Range: 10 dB
• RF Transmitter Output: 10 mW, typical varies by region
• Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
• Weight: 7.7 oz. (218 g) without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14 hours (alkaline)

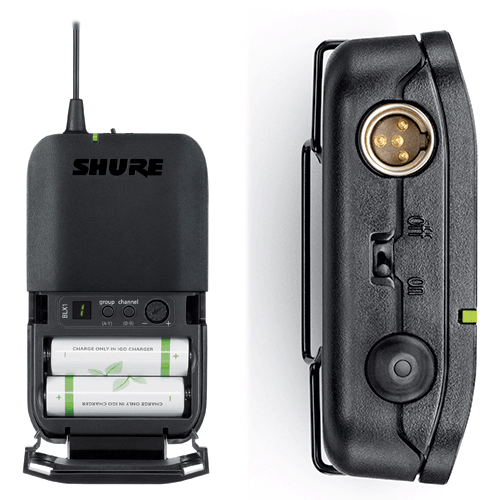

BLX1

• Audio Input Level
• max: -16 dBV maximum
• min: (0 dB) +10 dBV maximum
• Gain Adjustment Range: 26 dB
• Input Impedance: 1 MΩ
• RF Transmitter Output: 10 mW, typical, varies by region
• Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
• Weight: 2.6  oz. (75 g), without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14  hours (alkaline)

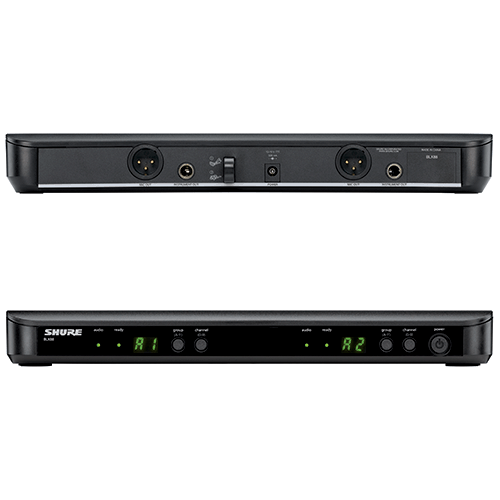

BLX88

• Output Impedance
• XLR connector: 200 Ω
• 6.35 mm (1/4") connector: 50 Ω
• Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone
• XLR connector: –27 dBV (into 100 kΩ load)
• 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
• RF Sensitivity: -105 dBm for 12 dB SINAD, typical
• Image Rejection: >50  dB, typical
• Dimensions: 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
• Weight: 15.1 oz. (429  g)
• Housing: Molded ABS
• Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by an external power supply (tip positive)
