SHURE GLXD14+/SM31-Z4 Безжична микрофонна система headset (за глава)

SHURE GLXD14+/SM31-Z4 Безжична микрофонна система headset (за глава)

GLXD+ е идеалната безжична система за музиканти и водещи. Управлява се автоматично и с пълна надеждност, което ви позволява да се съсредоточите върху работата си. С новата двулентова безжична технология, GLXD+ може да работи както на 2,4, така и на 5,8 GHz, повече от удвоявайки наличната честотна лента, като същевременно интелигентно избягва смущенията за надеждно аудио без прекъсване.

Включената литиево-йонна презареждаема батерия притежава интелигентно презареждане с до 12 часа работа (подобрена от предишното поколение GLXD). Поддържа няколко метода на зареждане, включително бързо зареждане.

Двулентовите предаватели и приемници GLX-D+ не са съвместими с предишните GLX-D или GLX-D Advanced Wireless.

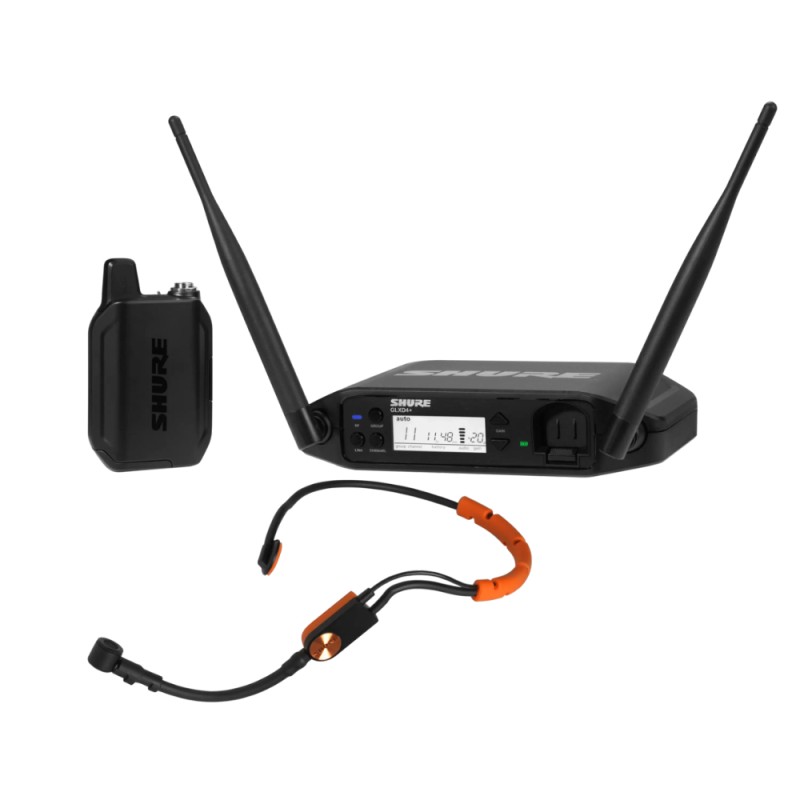

Съдържа:

• 1х Хедсет-микрофон SM31
• 1х GLXD4+ приемник
• 1х GLXD1+ предавател (бодипак)
• 1х  PS43 захранване
• 1х SB904 литиево-йонна акумулаторна батерия
• 1х черен калъф

Specifications:

• Tuning Bandwidth: Z4 - 2400 - 2483.5 MHz and 5725 - 5875 MHz
• Transmit Mode: Shure proprietary digital
• RF Output Power: 10 mW E.I.R.P. maximum
• Ambient Temperature Range
• Charging: 0°C to 40°C
• Operating: 0°C to 45°C
• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low­impedance output) and the tip of the high impedance 1/4-inch output.
• Audio Frequency Response: 20 Hz – 20 kHz
• Dynamic Range: 122 dB, A-weighted
• RF Sensitivity: -88 dBm, typical
• Total Harmonic Distortion: 0.2%, typical
• Battery Life: Up to 11.5 hours
• Channel Count
• Up to 4 typical, 8 optimal
• 2.4 GHz only: Up to 4 typical, 5 optimal

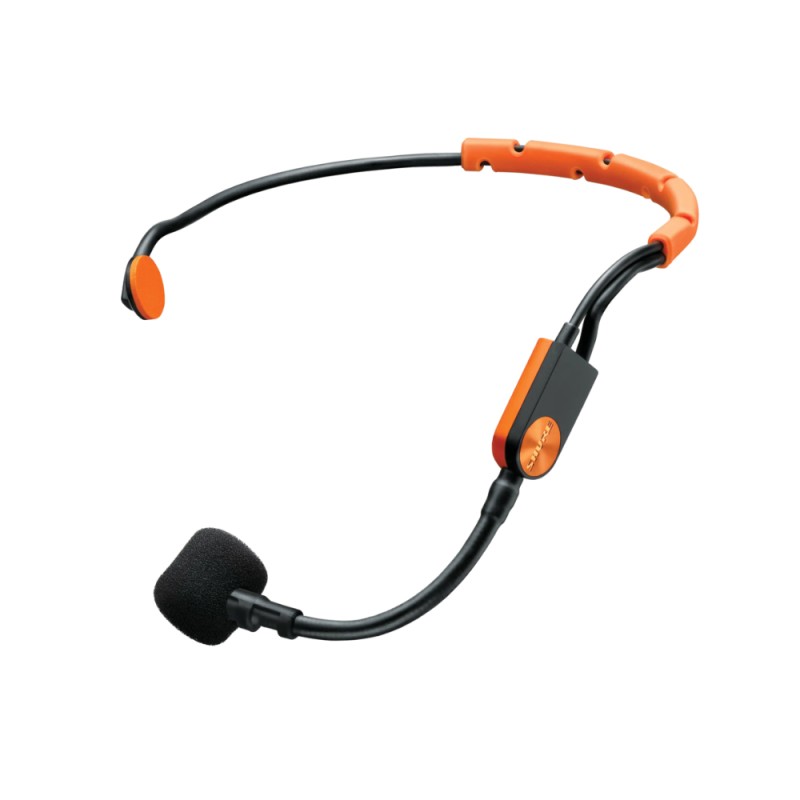

SM31

• Type: Electret Condenser
• Frequency Response: 45 to 20,000 Hz
• Polar Pattern: Unidirectional (Cardioid)
• Output Impedance @ 1 kHz: 600 Ω
• Audio Output Level: -50 dBV/Pa
• Signal-To-Noise Ratio @ 1 kHz: 66 dB
• Maximum SPL 1000 Ω load, @ 3% THD: 145.0 dB
• Dynamic Range @ 1 kHz, 1000 Ω load: 117.0 dB
• Equivalent Output Noise Typical, A-Weighted: 28 dB
• Power Requirements: +5 V DC (nominal), 10 V maximum (DC bias)
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
• Cable: 1.1 m
• Connector: TA4F
• Net Weight: 60 g

GLXD4+

• Power Requirements: 14.5 V – 17 V, 600 mA (efficiency level VI power supply)
• Antenna Type: Dual-band ½ Wave Sleeve Dipole, non-removable
• Dimensions
• Antenna folded: 182.82 x 121.97 x 40.3 mm
• Antenna opened: 182.82 x 121.97 x 185.6 mm
• Weight: 10.9 oz (310 g)
• Housing: PC/ABS
• Spurious Rejection: > 35 dB, typical
• Gain Adjustment Range: -20 to 40 dB, 1 dB increments
• Phantom Power Protection: Yes
• Audio Output
• Configuration
• XLR Output: Impedance balanced
• 6.35 mm (1/4") output : Impedance balanced
• Impedance
• XLR Output: 100 Ω
• 6.35 mm (1/4") output : 100 Ω (50 Ω, Unbalanced)
• Maximum Audio Output Level
• XLR connector: +1 dBV
• 6.35 mm (1/4") connector: +8.5 dBV
• Pin Assignments:
• XLR Output: 1=ground, 2=hot, 3=cold
• 6.35 mm (1/4") connector: Tip=audio, Ring=no audio, Sleeve=ground
• Receiver antenna input:
• Impedance: 50 Ω
• Maximum Input Level: -20 dBm

GLXD1+

• Shure Rechargeable Li-Ion Battery: SB904
• Antenna Type: Dual-band Internal Monopole
• Dimensions: 115 x 66.94 x 28.51 mm, (H x W x D)
• Weight: 153.1 g, without battery
• Housing: Aluminum alloy, ABS plastic
• Input Impedance: 900 kΩ
• Connector: 4-pin male mini connector (TA4M)
• Maximum Input Level: +8.4 dBV (7.5 Vp-p)
• Configuration: Unbalanced
• Pin Assignments
• 1 - Ground (cable shield)
• 2 - +5 V bias
• 3 - Audio
• 4 - Tied through active load to ground (on instrument adapter cable, pin 4 floats)

SB904

• Battery Type: Rechargeable Li-Ion
• Nominal Capacity: 2420 mAh (8.71 Wh)
• Nominal Voltage: 3.6 V
• Dimensions: 72.8 x 20.96 x 20.80 mm, (H x W x D)
• Weight: 53.7 g
• Housing: PC/ABS
• Ambient Temperature Range
• Charging: 0°C (32°F) to 40°C (104°F)
• Operating: -18 °C (0 °F) to 45 °C (113 °F)
