SHURE KSM137 SET Двойка кондензаторни инструментални микрофони с кейс

SHURE KSM137 SET Двойка кондензаторни инструментални микрофони с кейс

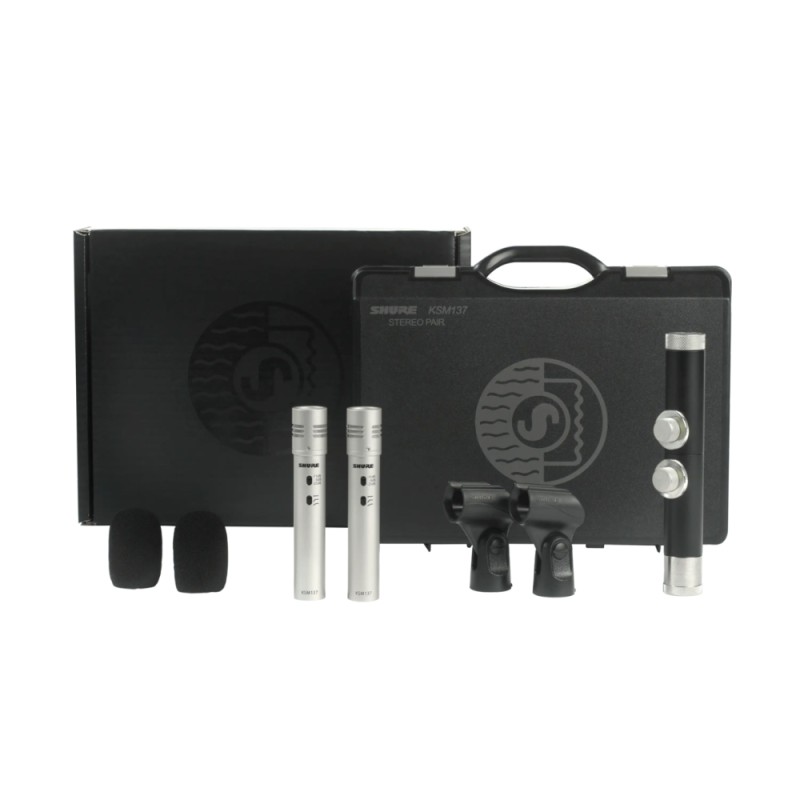

Съдържа:

• 2х KSM137 Кондензаторен кардиоиден инструментален микрофон
• 1х A100C Кейс

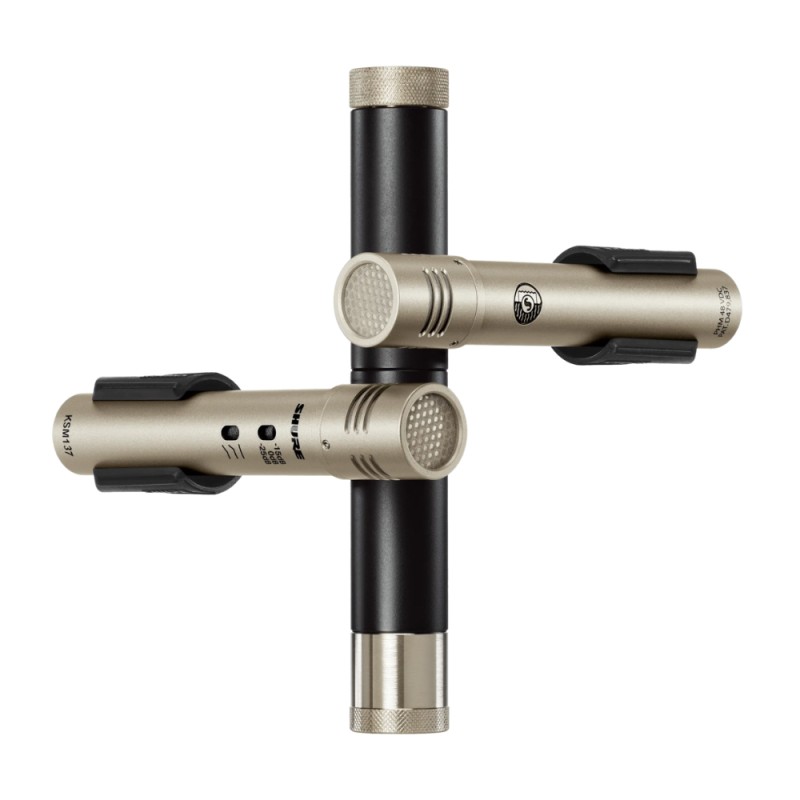

• 1х A27M Стерео микрофонен адаптер (стойка)
• 2х A100WS Ветробран
• 2х A57F Държач за микрофон

Features

• Highly consistent cardioid polar pattern
• Ultra-thin, 2.5 micron, 24 karat gold-layered, low mass Mylar® diaphragm for superior transient response
• Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic and intermodulation distortion
• Premium electronic components, including gold-plated internal and external connectors
• Subsonic filter eliminates low frequency rumble (less than 17 Hz) caused by mechanical vibration
• Switchable 15 dB pad for handling extremely high sound pressure levels (SPLs)
• 3-position switchable pad (0 dB, 15 dB, and 25 dB) for handling extremely high sound pressure levels (SPLs)
• 3-position switchable low-frequency filter reduces background noise and counteracts proximity effect

Performance Characteristics

• Extended frequency response
• Exceptional reproduction of low-frequency sounds
• Can withstand high sound pressure levels (SPL)
• Superior common mode rejection and suppression of radio frequency interference

Common Applications

• Acoustic instruments -- such as piano, guitar, drums, percussion, strings
• Wind instruments -- brass and woodwind
• Low-frequency instruments -- such as double bass, electric bass, kick drum
• Overhead miking -- drums or percussion
• Ensembles -- choral or orchestral
• Room ambience pick-up -- guitar amplifier or drums

The KSM137 is an end-address condenser microphone with a single cardioid polar pattern. Designed for studio use, yet rugged enough for live applications, the KSM137 can withstand extremely high sound pressure levels (SPL). Its low self-noise and extended frequency response make it ideal for recording instruments.

Versatile, durable, and precise, the KSM137 is an outstanding microphone for instruments ranging from percussion to wind, strings to brass, and piano to guitar.

Specifications:

• Cartridge Type: Electret Condenser
• Polar Pattern: Cardioid
• Frequency Response: 20 to 20,000 Hz
• Sensitivity - Open circuit voltage, @ 1 kHz, typical: -37 dBV/Pa (14.1 mV) (1 Pa = 94 dB SPL)
• Maximum SPL (1 kHz @ 1% THD)
• No Pad
• 145 dB
• 139 dB
• 134 dB
• -25 dB Pad
• 170 dB
• 164 dB
• 159 dB
• Signal-to-noise ratio, A-weighted: 80 dB
• Dynamic Range (@ 1 kHz)
• 5000 ohms load: 131 dB
• 2500 ohms load: 125 dB
• 1000 ohms load: 120 dB
• Clipping Level (20 Hz - 20 kHz, 1% THD)
• 5000 ohms load: 15 dBV
• 2500 ohms load: 9 dBV
• 1000 ohms load: 3 dBV
• Self Noise equivalent SPL, A-weighted, typical: 14 dB
• Common Mode Rejection (10 to 100,000 Hz):  ≥50 dB

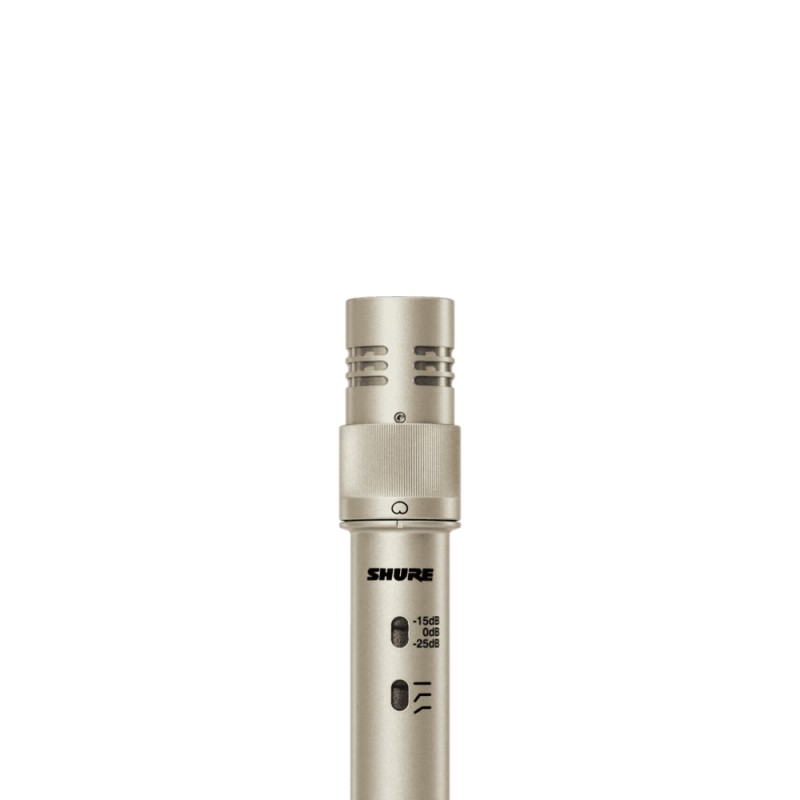

• Switch
• Attenuator: 0, −15, −25 dB
• Low-Frequency Filter: flat; -6 dB/octave below 115 Hz; -18 dB/octave below 80 Hz
• Connector: Three-pin Professional Audio (XLR), male, balanced
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Power Requirements: 11-52 VDC phantom power (IEC-61938), 4.7 mA, maximum
