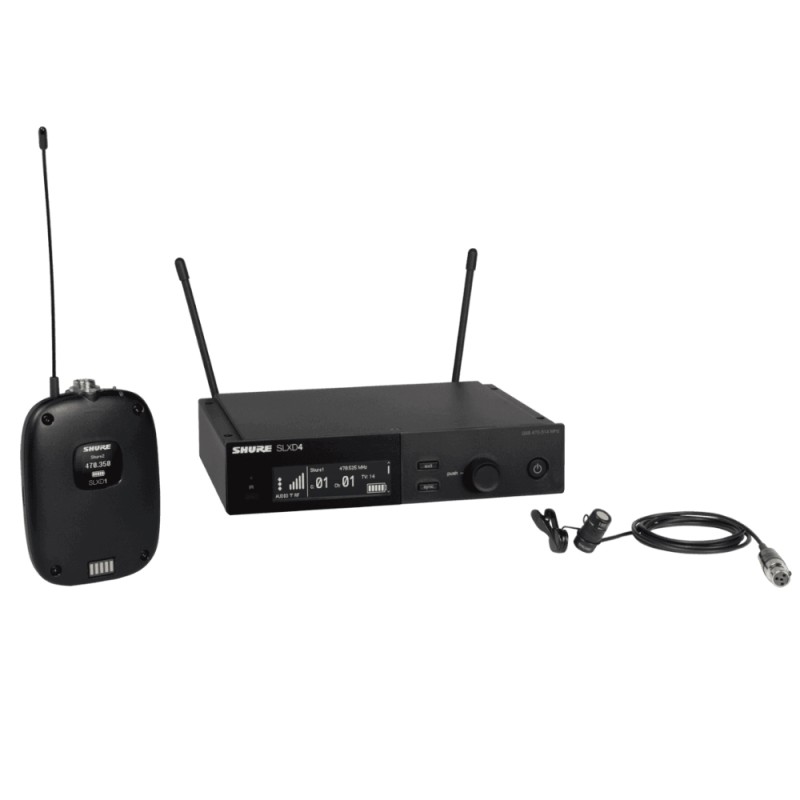

SHURE SLXD14/83 Безжична система с микрофон брошка WL183

SHURE SLXD14/83 Безжична система с микрофон брошка WL183

Безжичната система SHURE SLXD14/83 осигурява прозрачно, 24-битово цифрово аудио и RF стабилност за широк спектър от приложения. Работете с до 32 съвместими системи на 44 MHz честота и с лесна настройка.

Съдържа:

• SLXD4 - ЕДИНИЧЕН приемник
• WL183 - Микрофон-брошка
• SLXD1 - Бодипак трансмитер
• Аксесоари за монтаж в рак
• 2 х батерии АА

По желание и с екологична цел можете да закупите отделно:

- презареждащата се батерия (SHURE SB903)

- зарядно за батерия (SBC10-903-E) (не са в комплекта SLXD14, продават се отделно).

WL183

Specifications

• Type: Condenser (electret bias)
• Frequency Response: 50 to 17,000  Hz
• Output Impedance: 1800  Ω
• Sensitivity: -40.0  dBV/Pa
• Maximum SPL: 125.0  dB SPL
• Self Noise (A-Weighted): 22.5  dB SPL
• Dynamic Range: 102.5  dB
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
• Power Requirements: Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter

SLXD1

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock-solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. TQG connectivity to a variety of microphone options guarantees the right solution for a wide range of applications, from day-long conferences to nighttime performances.

Features

• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
• TQG connectivity offers a variety of microphone options
• Ergonomic, durable plastic construction

Specifications:

• Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
• Dimensions (H × W × D):  98 × 68 × 25.5 mm
• Weight: 89 g
• Housing: PC/ABS

SLXD4

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock-solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conferences to nighttime performances.

Features

• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Compatible with Shure Wireless Workbench® control software
• Remote monitoring and control via ShurePlus™ Channels app
• Rugged metal construction

Specifications

• Dimensions (H × W × D):  42 × 197 × 152 mm
• Weight: 816 g (without antennas)
• Housing: Galvanized Steel
• Power Requirements: 15 VDC @ 600 mA (Supplied by an external power supply, tip positive)
