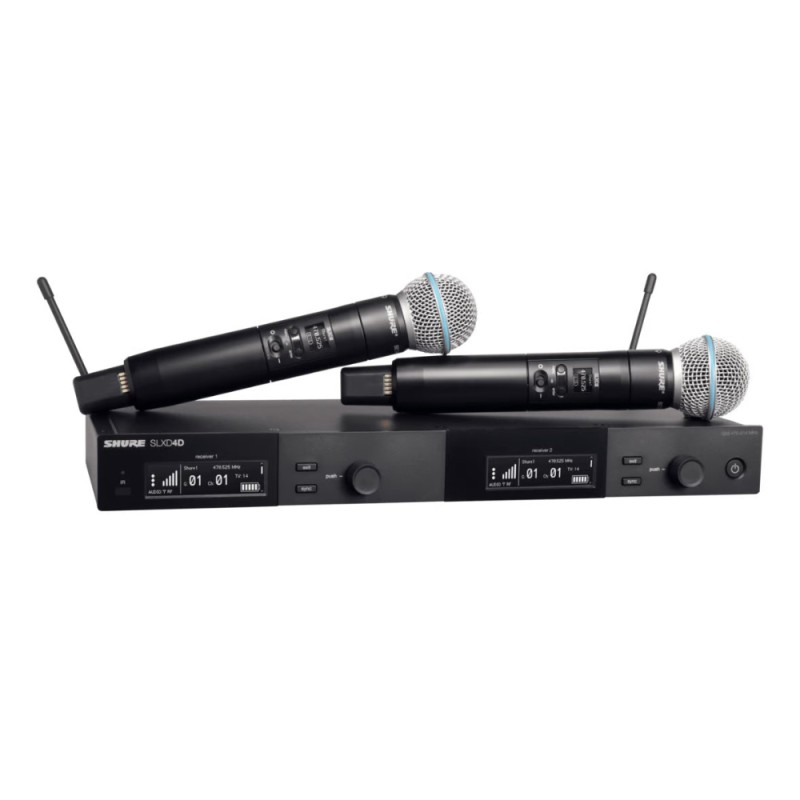

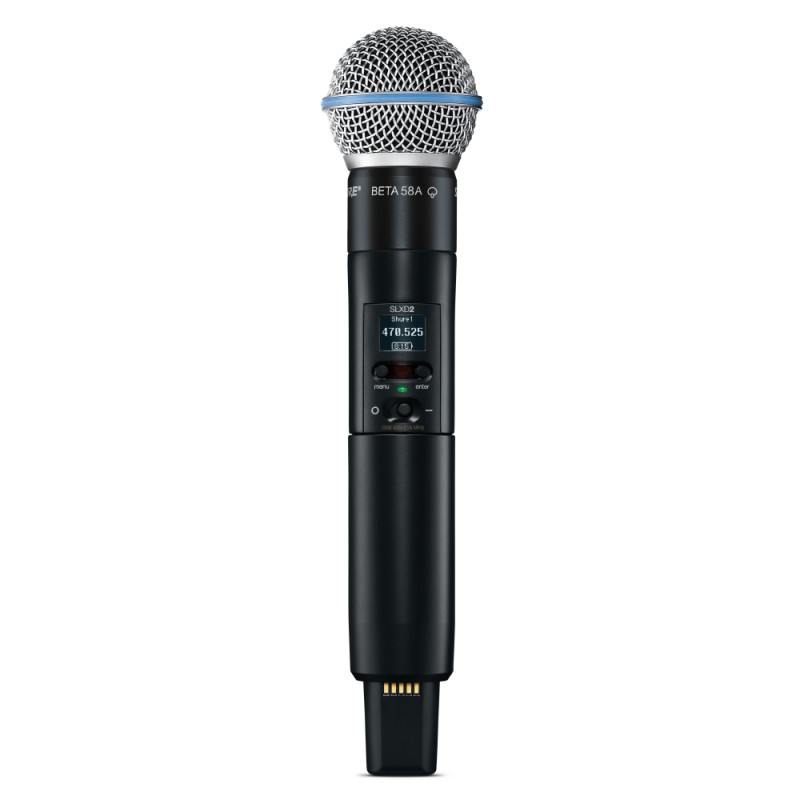

SHURE SLXD24DE/B58-G59 Двойна вокална безжична система с микрофони BETA58

SHURE SLXD24DE/B58-G59 Двойна вокална безжична система с микрофони BETA58

Безжичната система SLXD24DE/B58 с два Beta® 58 суперкардиоидни динамични микрофонни, осигурява прозрачно, 24-битово цифрово аудио и радиочестотна стабилност за широк спектър от приложения. Beta 58A е премиум вокален микрофон, подходящ за професионални изпълнители и беквокали, както на сцена, така и в студио. Работете с до 32 съвместими системи на 44 MHz лента, с лесна настройка и допълнителни аксесоари за презареждане.

Beta 58

• Тип: Динамичен
• Насоченост: Суперкардиоид
• Честотна характеристика: 50 to 16.000 Hz
• До 8 часа работа с 2 АА батерии или презареждаемата батерия Shure SB903

Система

• 24-битов дигитален аудио сигнал
• Автоматично сканиране и намиране на свободна честота
• Лесно свързване на микрофон и приемник, посредством инфраред връзка
• 118 dB динамичен диапазон
• Технология "Digital predictive switching diversity" за избягване на смущения и прекъсвания
• Работа с до 32 системи на една 44 Mhz честотна лента
• Поддържа Shure Wireless Workbench софтуер за отдалечен достъп
• Поддържа ShurePlus™ Channels - мобилна апликация за отдалечен мониторинг и контрол
• Легендарно качество, здравина и надеждност на Shure
• Възможност за работа с презареждаеми батерии, продавани отделно:

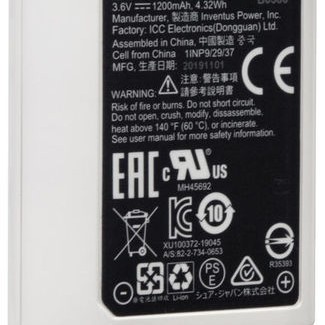

• Батерия - SB903

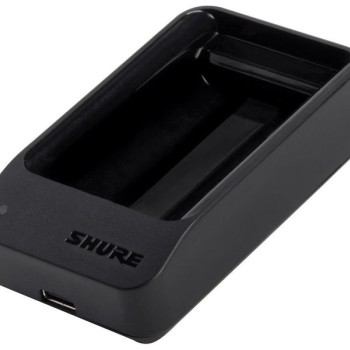

• Зарядно - SBC10-903-E

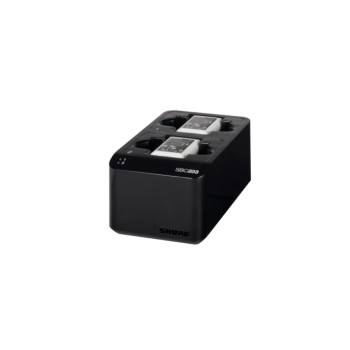

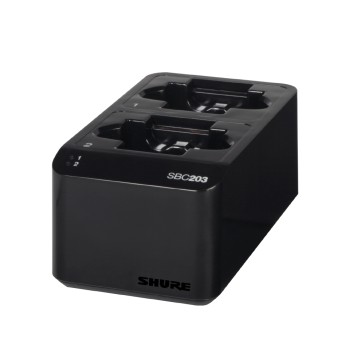

• Зарядна станция - SBC203
• Четотен обхват - G59 (470-514 Mhz)

Съдържа:

• SLXD4D - Двоен приемник
• 2х Beta 58 - Вокален микрофонни
• 2х WA371 Държач за вокален микрофон
• 2x Кожен калъф за вокален микрофон
• 2х Антена за приемник SLXD4D
• 2x Антенен кабел
• 4х АА батерии
• Аксесоари за монтаж в рак

BETA 58

The Shure BETA58®A dynamic microphone is precision-engineered for vocals in professional live sound reinforcement and studio recording applications. A tailored frequency response accentuates the clarity of vocals, and a tight, supercardioid pickup pattern ensures high gain before feedback, maximum sound isolation, and minimum off-axis tone coloration.

The BETA58A is ideal for close-up lead and background vocals, especially in high sound pressure level (SPL) environments. A proven shock mount system, hardened steel-mesh grille, and superior build quality withstand the rigors of daily sound reinforcement.

Features

• Premier live performance microphone with Shure quality, ruggedness, and reliability
• Uniform supercardioid pick-up pattern for maximum gain before feedback and superior rejection of off-axis sound
• Tailored frequency response specifically shaped for vocals, with brightened midrange and bass roll-off to control proximity effect
• Neodymium magnet for greater sensitivity and higher output
• Advanced pneumatic shock mount system that minimizes transmission of mechanical noise and vibration
• Dent-resistant steel mesh grille and enamel-coated die-cast metal construction resist wear and abuse
• Effective built-in pop filter reduces undesirable wind and breath noise

Specifications

• Type: Dynamic (moving coil)
• Frequency Response: 50 to 16,000 Hz
• Polar Pattern: Supercardioid
• Output Impedance: EIA rated at 150  Ω (290  Ω actual)
• Sensitivity at 1kHz, open circuit voltage: -51.5  dBV/Pa (2 .6  mV)[1]
• Polarity: Positive pressure on the diaphragm produces positive voltage on pin 2 with respect to pin 3
• Weight: 0.278 kg (0.62 lbs)
• Connector: Three-pin professional audio (XLR), male, balanced
• Housing: Silver blue enamel-painted die-cast metal with a hardened, matte-finished steel mesh grille

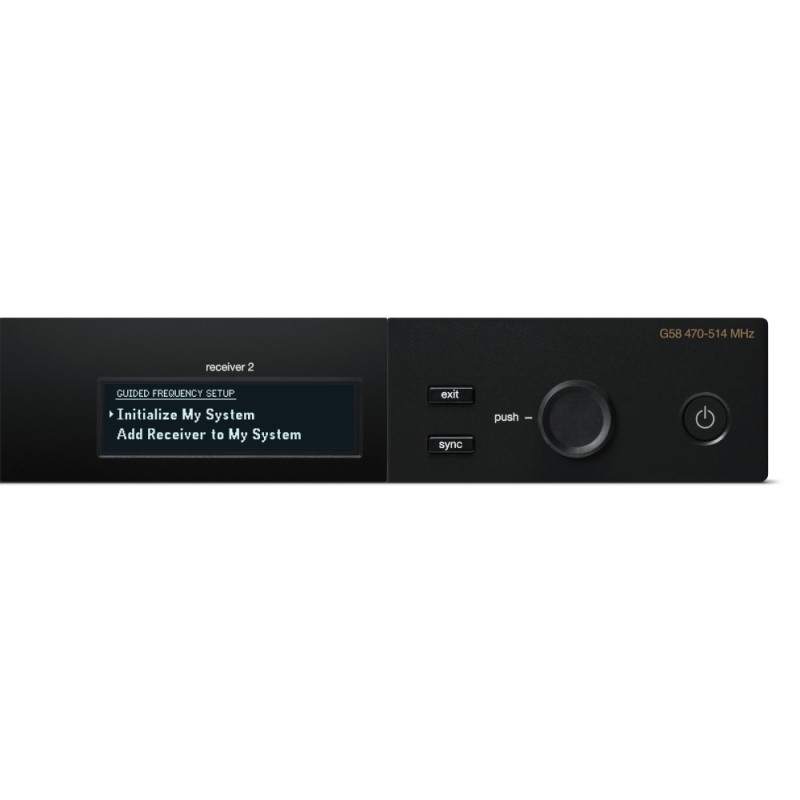

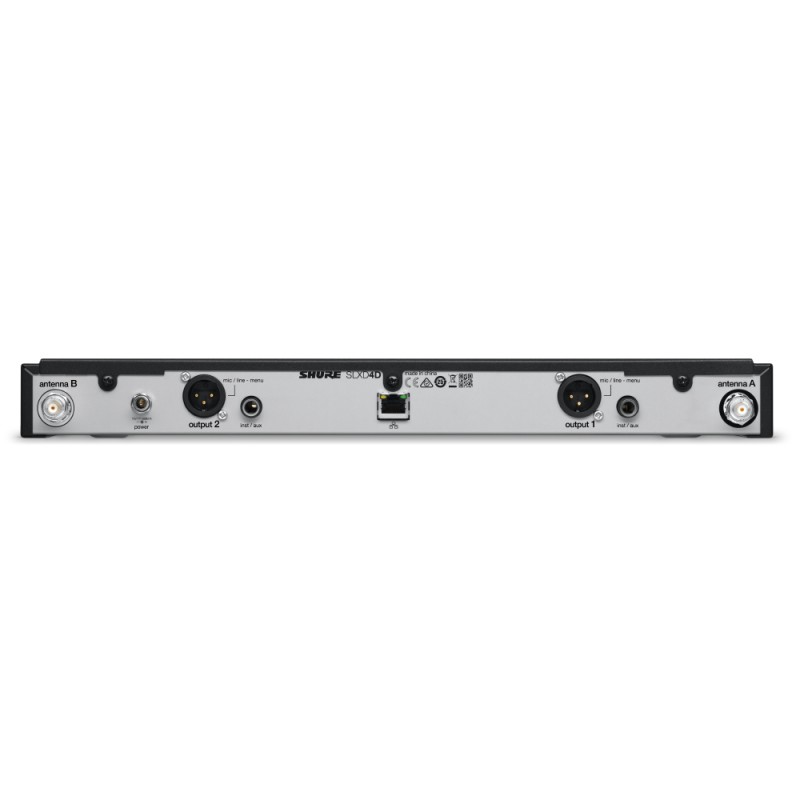

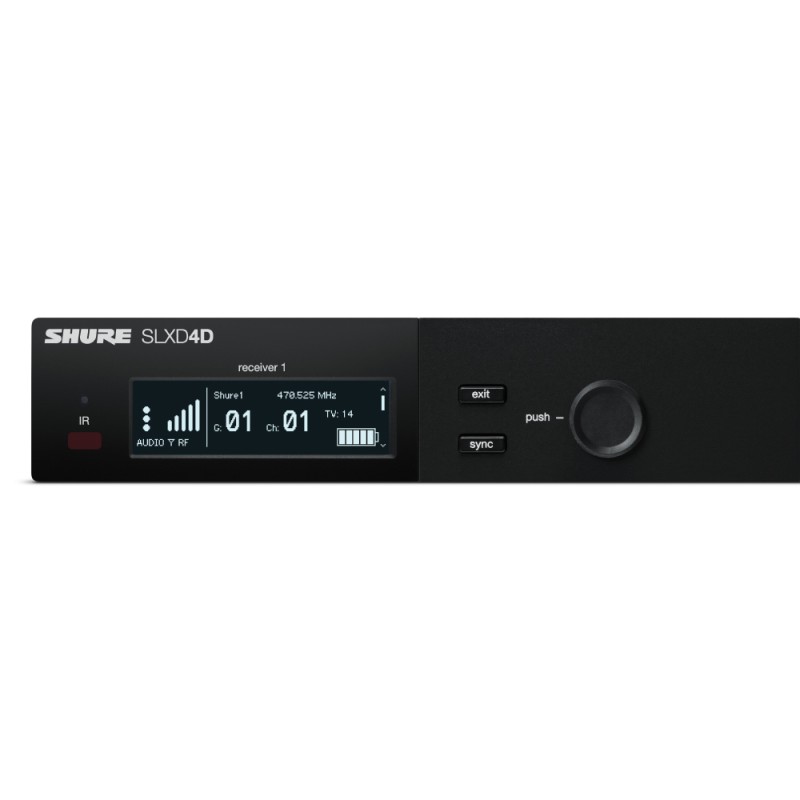

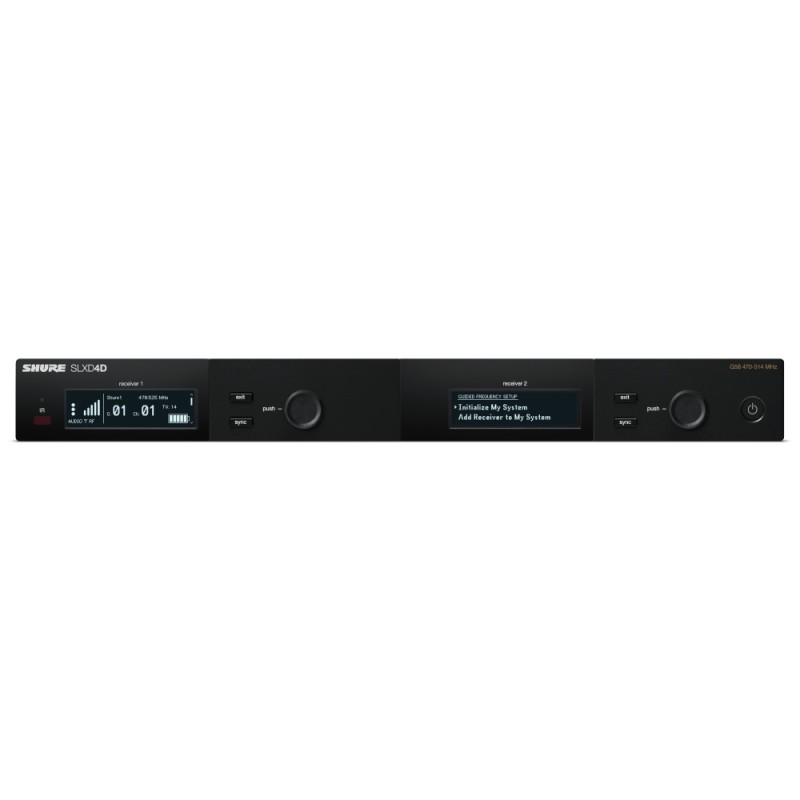

SLXD4D

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock-solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD4D easily syncs wireless transmitters. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conferences to nighttime performances.

Features

• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers overscan and IR sync
• Compatible with Shure Wireless Workbench® control software
• Remote monitoring and control via the ShurePlus™ Channels app
• Rugged metal construction

Specifications

• Dimensions (H × W × D): 42 × 393 × 152 mm
• Weight: 1.451 kg (without antennas)
• Housing: Galvanized Steel
• Power Requirements: 15 VDC @ 600 mA /Supplied by an external power supply (tip positive)/

RF Input

• Spurious Rejection >75 dB Typical
• Connector Type: BNC
• Impedance: 50 Ω

Audio Output

• Gain Adjustment Range: –18 to +42 dB in 1 dB steps

• Configuration
• 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio – ,Sleeve=ground)
• XLR: Balanced (1=ground, 2=audio +, 3=audio –)
• Impedance
• 1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced)
• XLR (line): 400 Ω (200 Ω Unbalanced)
• XLR (mic): 150 Ω
• Full-Scale Output
• 1/4" (6.35 mm): +15 dB differentially (+9 dBV single)
• XLR (LINE setting): +15 dBV
• XLR (MIC setting): –15 dBV
• Mic/Line Switch: 30 dB pad
• Phantom Power Protection
• 1/4" (6.35 mm): Yes
• XLR: Yes

Networking

• Network Interface: Single Port Ethernet 10/100 Mbps
• Network Addressing Capability: DHCP or Manual IP address
• Maximum Cable Length: 100 m (328 ft)
