Seeburg S10 Усилвател 4x2400W, 4ohm

Seeburg S10 Усилвател 4x2400W, 4ohm

Specification:

• Model: S10
• Description: 4-Channel Amplified System Controller
• Total Power Supply Output: 10kW
• Output Power IEC* , all channels driven/single channel (Watt)*, 40 Hz - 5 kHz,12 dB crest factor:
• 8 Ω : 4 x 1200 / 1 x 1300
• 4 Ω: 4 x 2400 / 1 x 2500
• 2,7 Ω: 4 x 2400 / 1 x 3300
• 2 Ω: 4 x 2400 / 1 x 2500
• 100 V: 4 x 2400 / 1 x 2500
• 70 V: 4 x 2400 / 1 x 2500
• Peak Output Voltage: 150 V
• Peak Output Current: 50 A
• Total Harmonic Distortions: < 0,05 %
• SMTPE: < 0,05 %
• Damping Factor (20 - 500 Hz @ 8 Ω): > 500
• Crosstalk  (20 - 1000 Hz): > 70 dB (A)
• Signal to Noise Ratio (20 Hz - 20 kHz): 111 dB (A)
• Max DSP Input Level (balanced): + 20 dBu
• Voltage Gain: 26 . . . 44 dB in 1 dB increments
• Cooling: front to rear airflow, temperature controlled fans

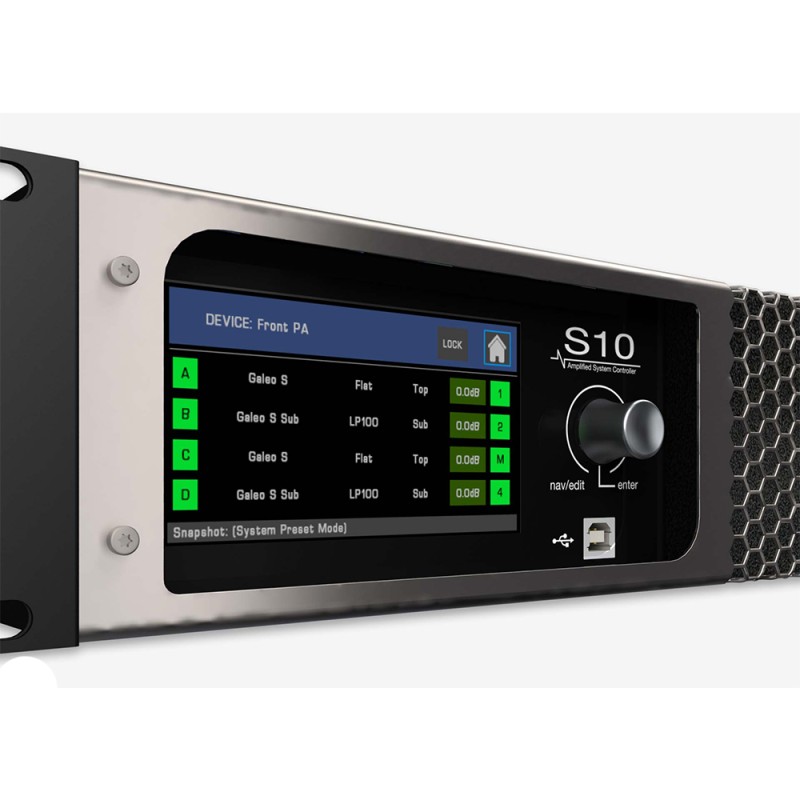

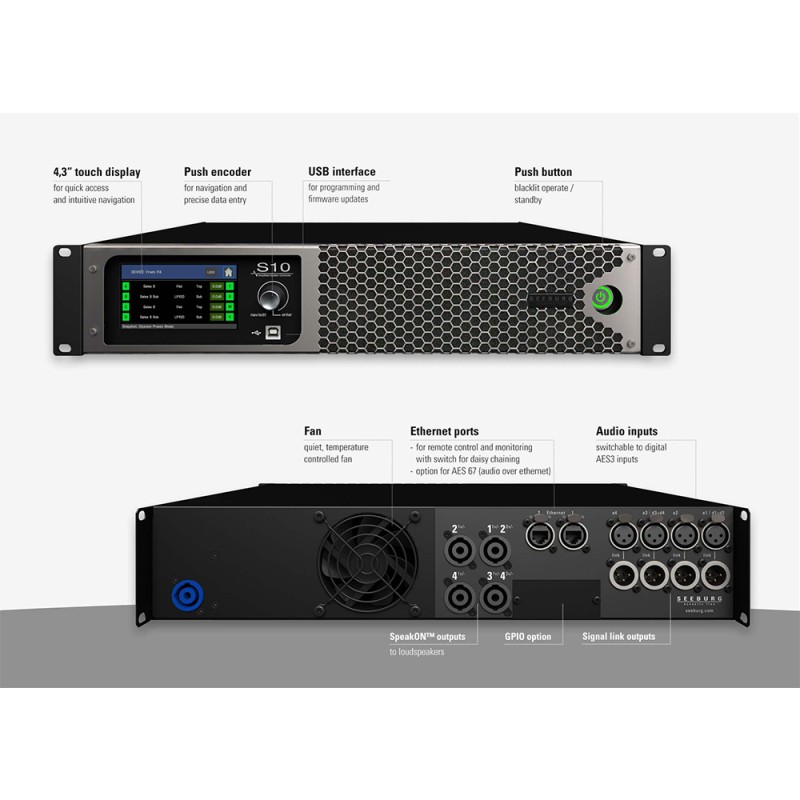

• User Interface: 4.3“ touch display + push-encoder

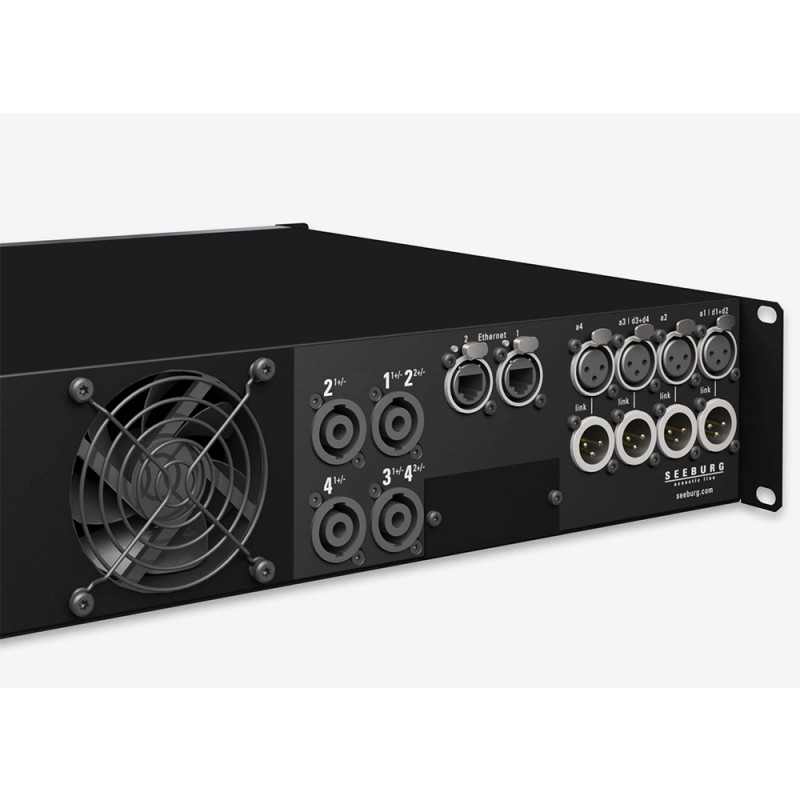

• Inputs: 4 x XLR analogue - 2 x switchable AES 3
• Outputs: 4 x Speakon NL4 1+/-, 2+/-, 4 x XLR loop thru
• Connectivity: 1 x USB-B, 2 x RJ45 w / ethernet switch
• Mains Connector: PowerCON®
• Operating Mains Voltage: 90 - 265 V AC
• Current Draw (@1/8 output power): 7,3 A
• Power Consumption (idle/sleep/standby): < 100 W (S 20: < 140 W) / < 40 W / < 5 W
• Protections: soft start, turn-on / turn-off transients, turn-on mute, over-temp, DC, RF, short circuit, open / mismatched load, overload, clip limiter, mains breaker protection
• Weight: 7 kg
• Size  height x width x depth (mm): 88 (2HU) x 483 (19") x 330 (S 20: 360)
