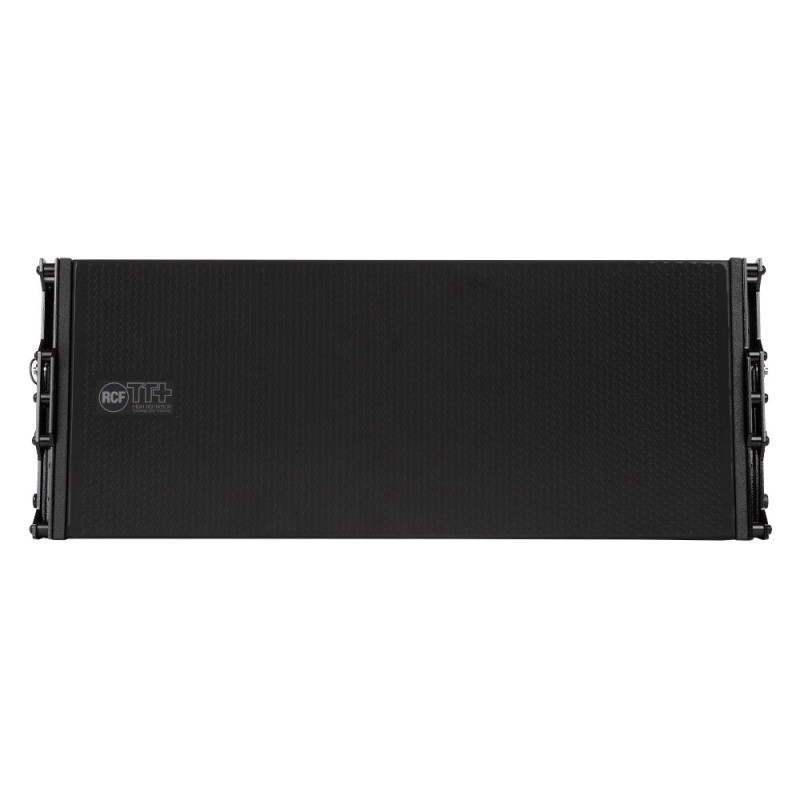

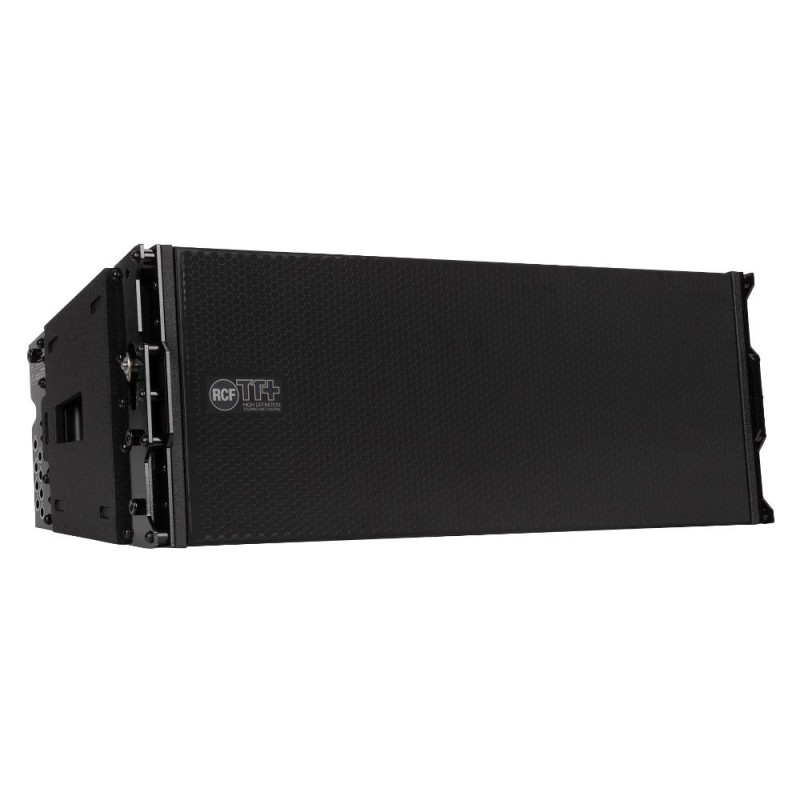

TTL 33 WP Пасивна Line Array тонколона

TTL 33 WP Пасивна Line Array тонколона

Features:

• Very compact size
• Maximum output per size available on the market
• Wide, constant directivity, horizontal coverage angle
• 6 high power neodymium transducers
• Minimum weight
• Watertight multi-pole connector IP67
• LICC (Low Impedance Compensated Crossover Network)
• Baltic birch cabinet

Specification:

Acoustical specifications

• Frequency Response (-10dB): 55 Hz - 20000 Hz
• Max SPL @ 1m: 133 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 15°
• System Sensitivity: 100 dB

Power section

• Nominal Impedance: 8 ohm
• Power Handling: 600 W
• Peak Power Handling: 2400 W PEAK
• Protections: Active mosfet compression driver
• Crossover Frequencies: 500 Hz

Transducers

• Compression Driver: 3 x 1.0'', 1.4'' v.c
• Midrange: 8'', 2.5'' v.c
• Woofer: 2 x 8'', 2.5'' v.c

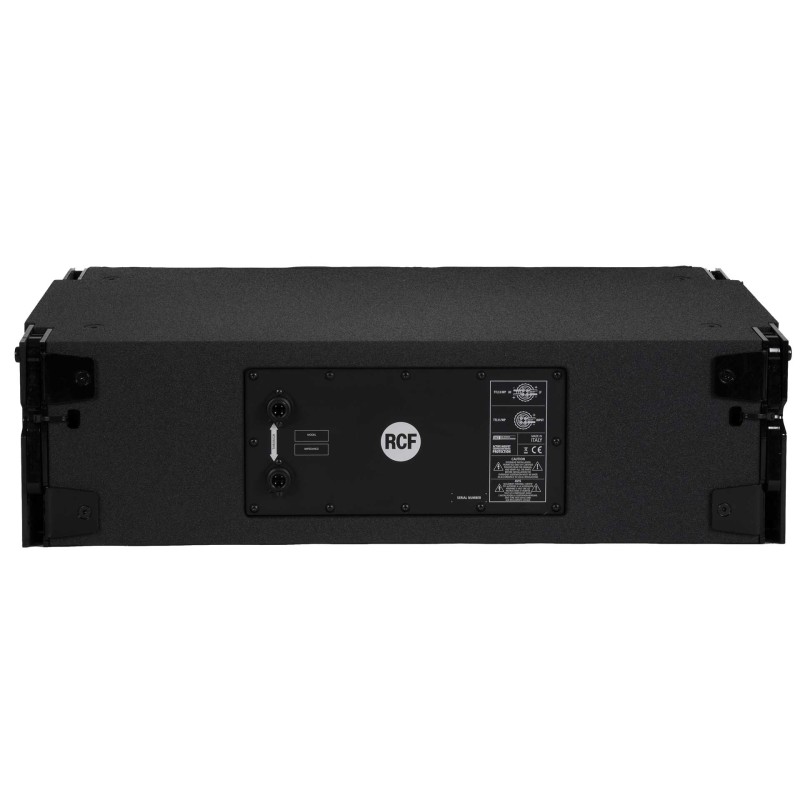

Input/Output section

• Input connectors: Amphenol eco/mat IP 67
• Output connectors: Amphenol eco/mat IP 67

Standard compliance

• Safety agency: CE compliant

Physical specifications

• Cabinet/Case Material: Baltic birch plywood

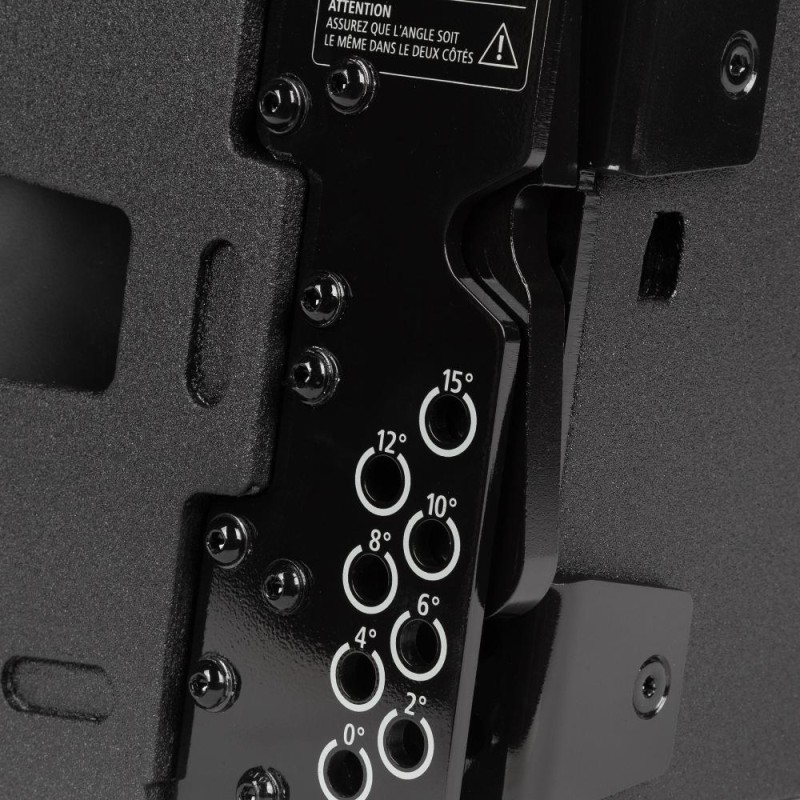

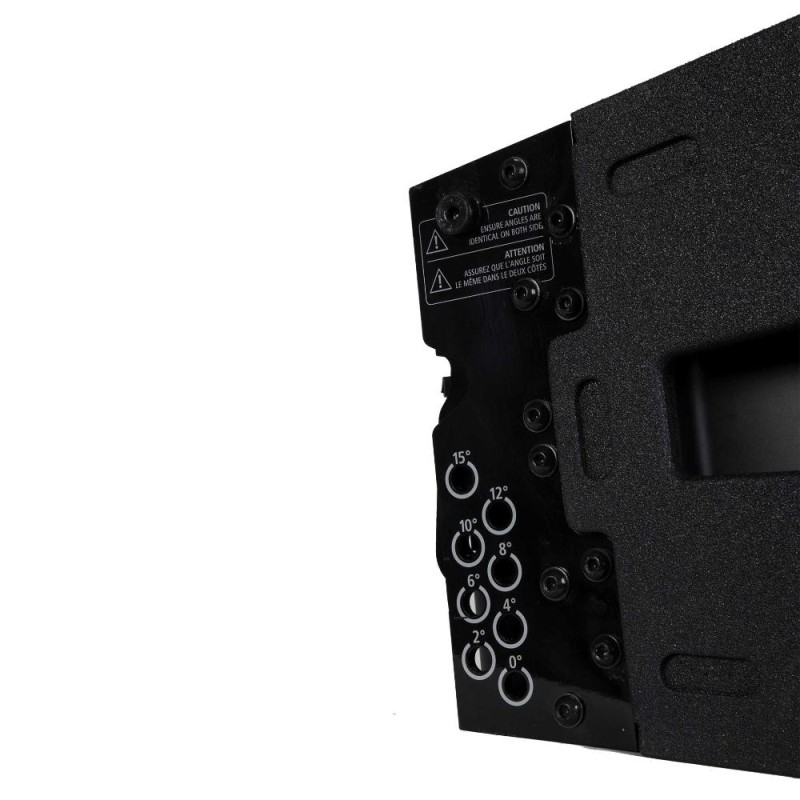

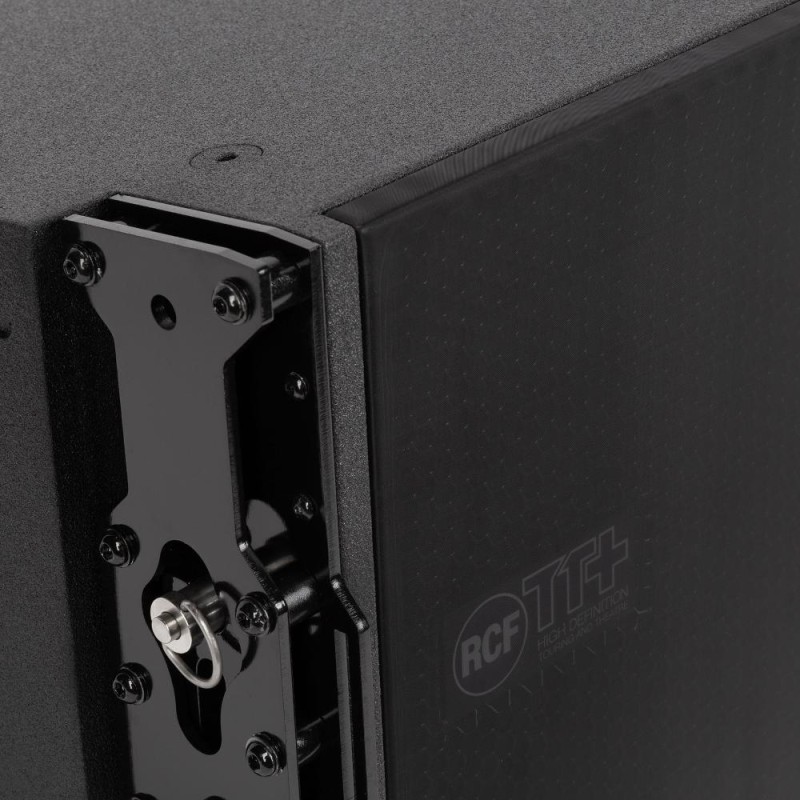

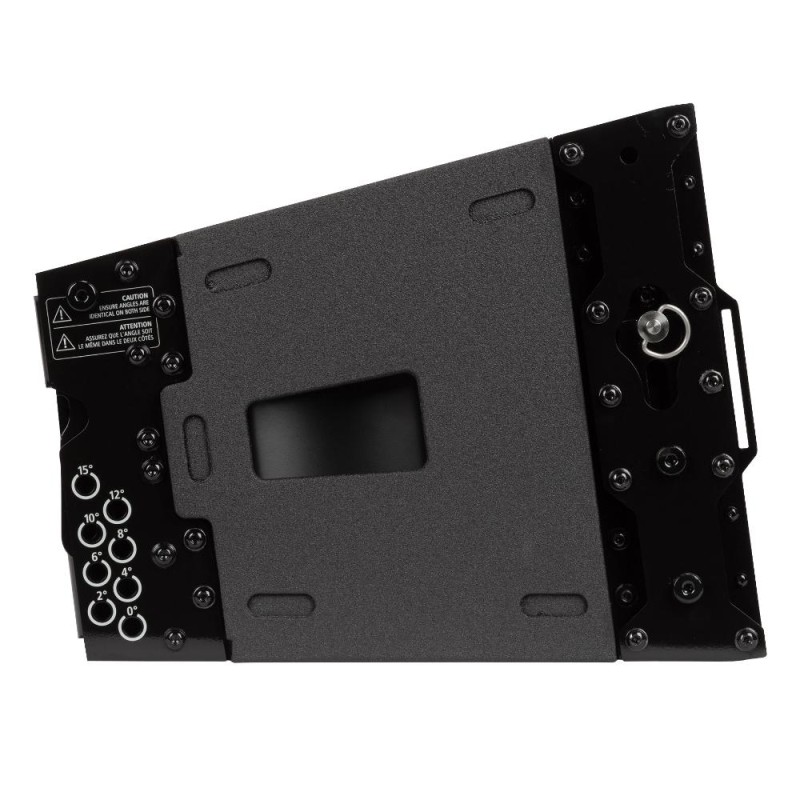

• Hardware: Array side fittings
• Handles: 2 side
• Grille: Steel grille with water-repellent protection
• Color: Black

Size / Weight

• Height: 290 mm / 11.42 inches
• Width: 760 mm / 29.92 inches
• Depth: 365 mm / 14.37 inches
• Weight: 30 kg / 66.14 lbs

Shipping information

• Package Height: 395 mm / 15.55 inches
• Package Width: 875 mm / 34.45 inches
• Package Depth: 545 mm / 21.46 inches
• Package Weight: 34 kg / 74.96 lbs
