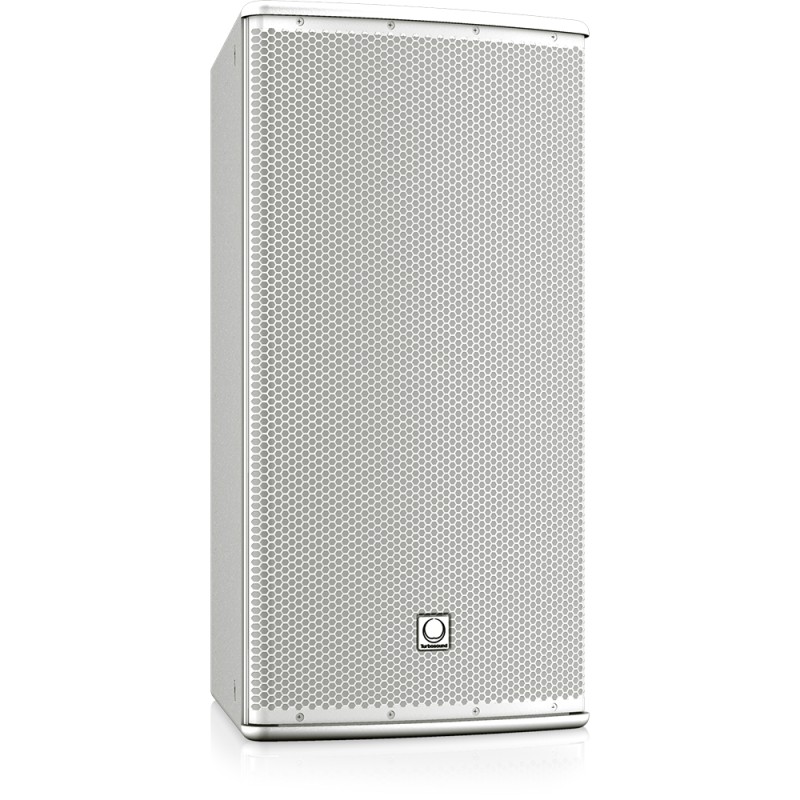

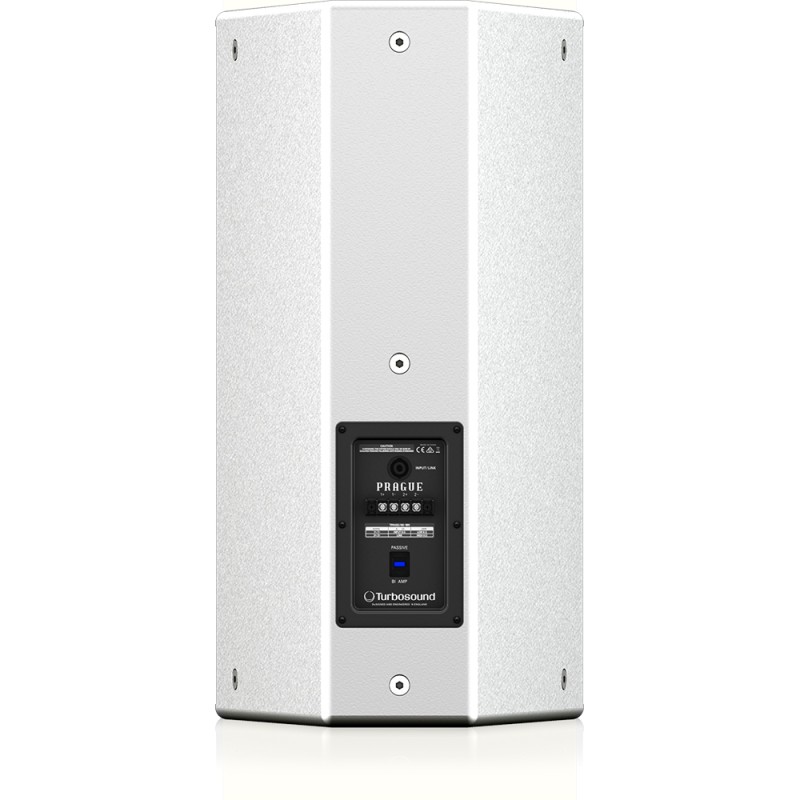

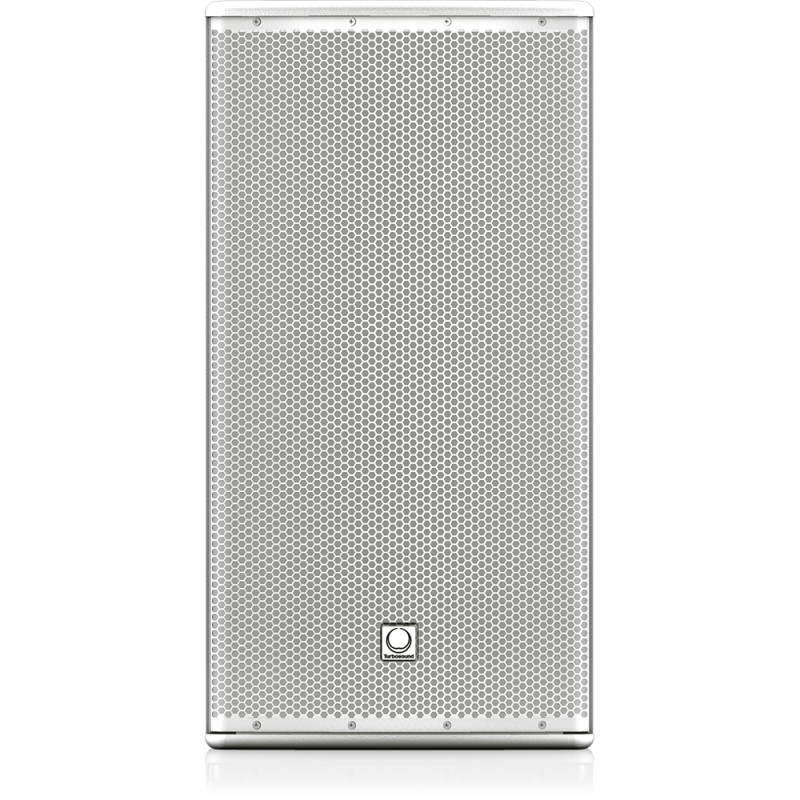

Пасивна тонколона 12" Turbosound TPA122/00-WH

Пасивна тонколона 12" Turbosound TPA122/00-WH

Features:

• Arrayable 2 way full range loudspeaker for installation applications
• Wide 100° H x 100° V dispersion waveguide
• 500 Watts continuous, 2,000 Watts peak power
• Carbon fibre loaded 12" low frequency driver with inside/outside wound coil
• Aluminium dome 1" neodymium motor compression driver
• Multiple array configurations for extended coverage
• Switchable passive/bi-amp operation for flexibility of use
• Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
• Multiple internal rigging points allow bracket mount and suspension in any orientation
• 15 mm (5/8") birch plywood enclosure with hard wearing semi matt white paint finish
• Architecturally styled powder coated perforated steel mesh grille
• Neutrik speakON NL4 and barrier strip connectors

Specification:

System

• Frequency Response: 45 Hz – 18 kHz ±3 dB, 40 Hz – 20 kHz -10 dB
• Nominal Dispersion: 100° H X 100° V @ -6 dB points
• Directivity Factor (Q): 5
• Directivity Index (DI): 7
• Power Handling (IEC)
• Sensitivity: 97 dB (1 W @ 1 m)
• Maximum SPL
• Impedance
• Crossover Type: Passive / bi-amp, switchable
• Components: 1 x 12" (316 mm) LF driver, 1 x 1" (25 mm) HF compression driver

Enclosure

• Connectors: 1 x Neutrik speakON * NL4, 1 x barrier strip terminals
• Wiring
• Dimensions (H x W x D): 711 x 368 x 458 mm (28 x 14.5 x 18")
• Net Weight: 23.2 kg (51.1 lbs)
• Construction: 15 mm (5/8") birch plywood
• Finish: Semi matt white paint
• Grille: Powder-coated perforated steel
• Flying Hardware: M10 x 15 points
