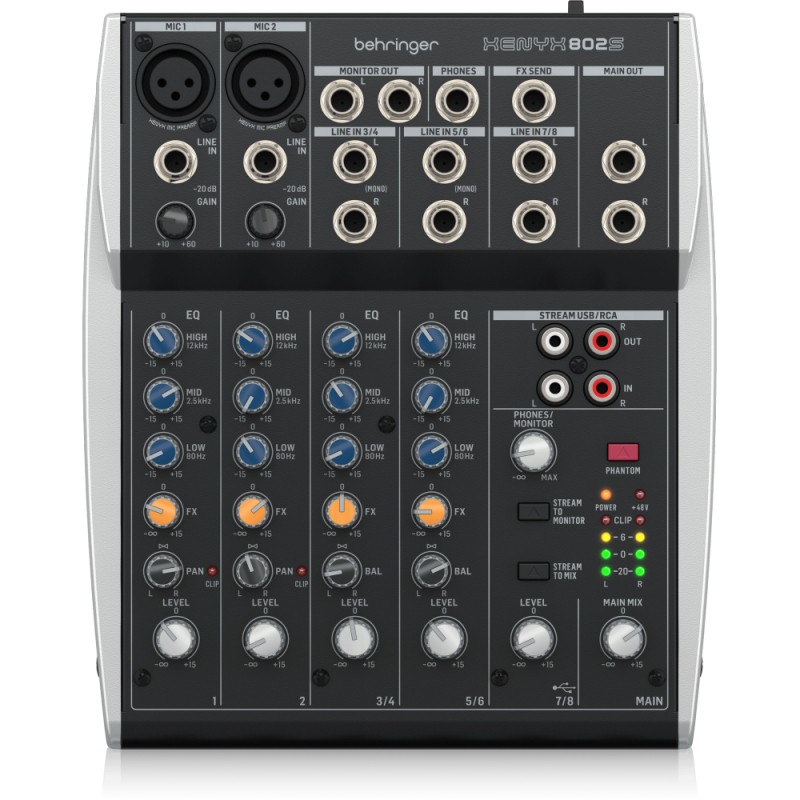

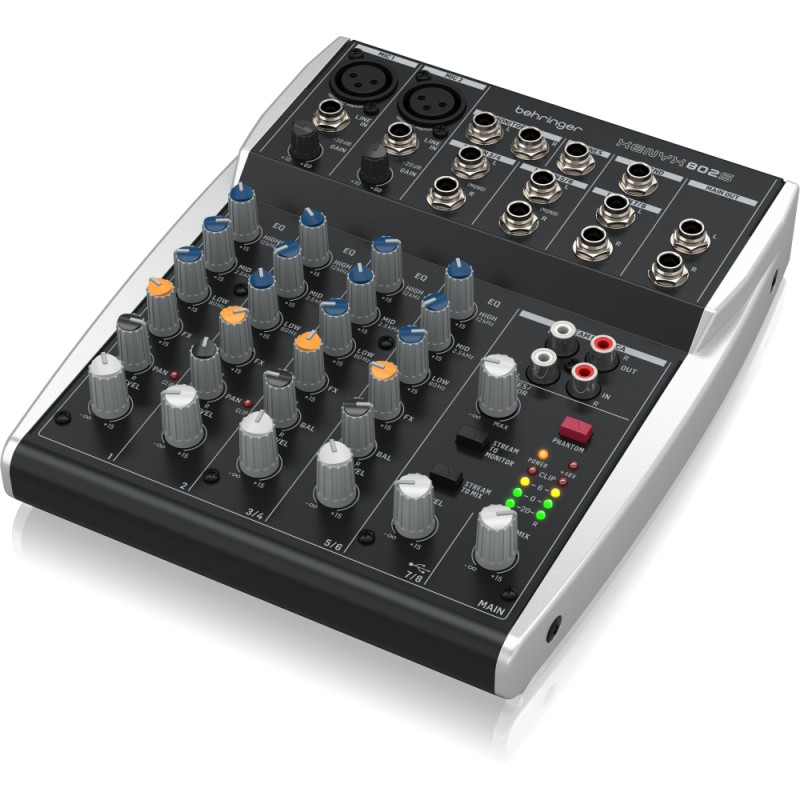

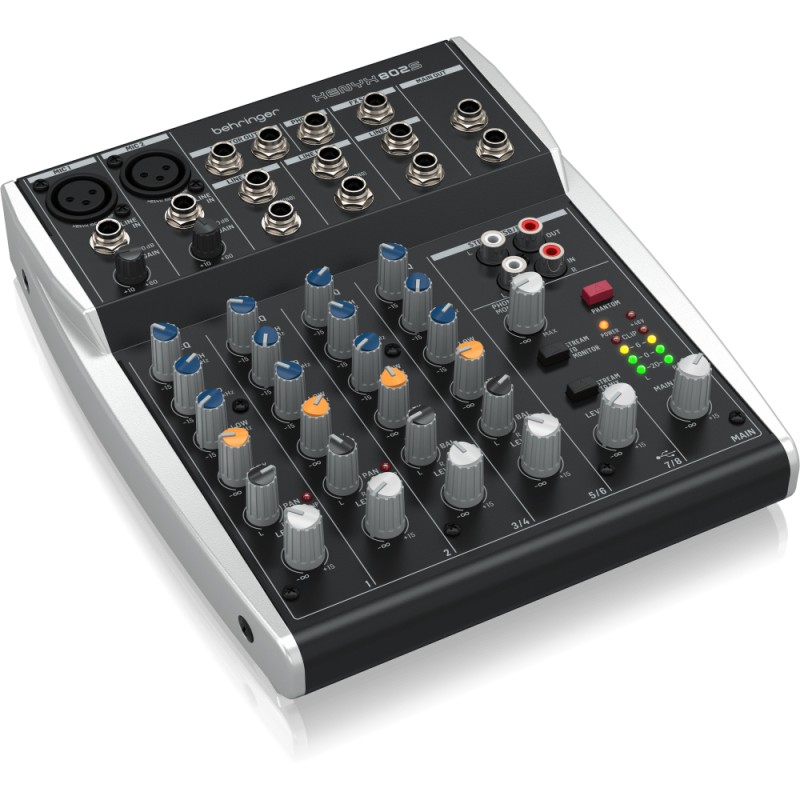

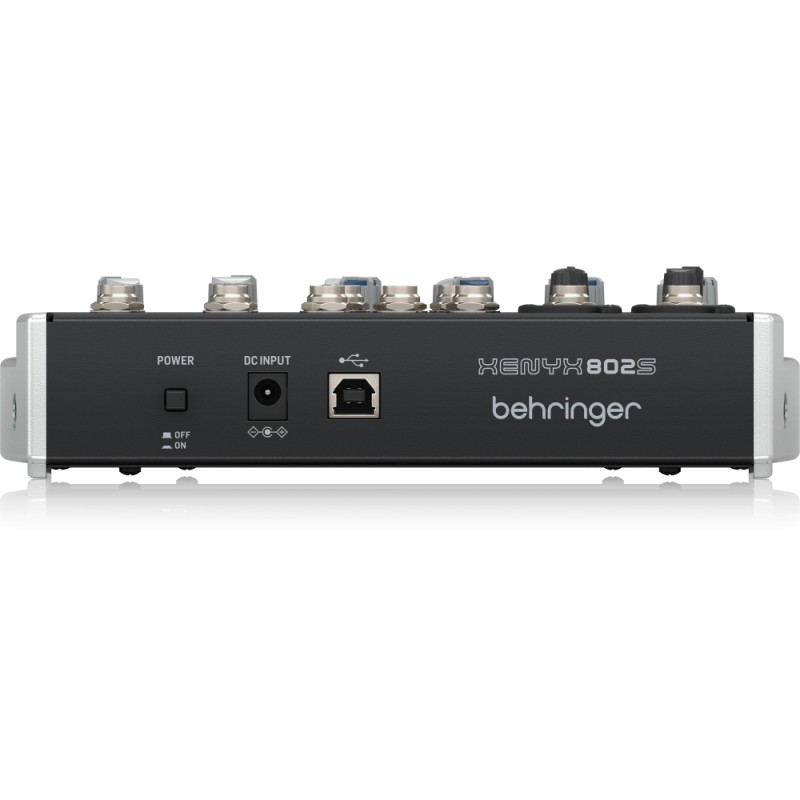

Смесителен пулт 2 моно + 2 стерео Behringer XENYX 802S

Смесителен пулт 2 моно + 2 стерео Behringer XENYX 802S

Премиум аналогов миксер с 8 входа и USB стрийминг интерфейс

• Ultra-low noise analog mixer for streaming, podcasting and recording
• 2 Award winning XENYX microphone preamps for warm and musical sound
• Stereo USB audio interface to connect your computer or mobile device
• Direct mixing of PC/gaming sounds into the streaming output
• Analog mixing and equalization for pure sound
• Versatile sub mixer for network enabled audio devices
• Stereo channel 7/8 automatically switches between TRS input and USB playback
• 3-band EQs for warm and musical sound
• FX send control per channel for external FX processor or monitoring mix
• High-quality main, monitor, phones and streaming outputs
• Stereo RCA inputs assignable to main mix or monitor/phones outputs

Specification

Mono Inputs

• Microphone Input
• Balanced XLR, discrete input circuit
• Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted
• Frequency response Gain +10 dB: 10 Hz to 150 kHz
• Frequency response Gain +60 dB: 20 Hz to 70 kHz
• Gain range: +10 dB to +60 dB
• Max input level @ +10 dB Gain: +12 dBu
• Input Impedance: 2 kΩ balanced
• Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%
• Mono Line Inputs
• 1/4" TRS connector balanced
• Impedance: 22 kΩ balanced, 10 kΩ unbalanced
• Gain range: -10 dB to +40 dB
• Max input level @ 0 dB Gain: +21 dBu

Stereo Inputs

• Stereo Line
• 1/4" TRS connector balanced
• Frequency response: 20 Hz to 200 kHz
• Impedance: 22 kΩ balanced, 10 kΩ unbalanced
• Max input level @ 0 dB Gain: +21 dBu
• STREAM Inputs (Analog)
• RCA connector unbalanced
• Impedance: 10 kΩ unbalanced
• Max input level: 10 dBu

EQUALIZER

• Low: 80 Hz/±15 dB
• Mid: 2.5 kHz/±15 dB
• High: 12 kHz/±15 dB

Main, Monitor & FX Send Outputs

• Type: 1/4" TRS connector impedance-balanced
• Impedance: 120 Ω
• Max output level: 21 dBu

Phones Out

• Type: 1/4" TRS connector unbalanced
• Impedance: 23 Ω
• Max output level: 19 dBu/150 Ω

STREAM out (Analog)

• Type: RCA connector unbalanced
• Impedance: 1 kΩ unbalanced
• Max output level: 10 dBu

Main Mix noise

• Main Mix @ -∞: -109 dBu A-weighted
• Channel @ -∞: -109 dBu A-weighted

USB

• Type: Type-B connector
• USB Audio Data: 48 kHz 16 bit
• UAC2 Class Compliant: stereo in/out

Power Supply

• Power Consumption: 12 W
• Adaptor input: 100 - 240 V~, 50/60 Hz, 0.5 A
• Adaptor output: 18 V DC 1.0 A
