Конферентен микрофон със звънци и избор на зона HMX-MIC

Конферентен микрофон със звънци и избор на зона HMX-MIC

Key Features:

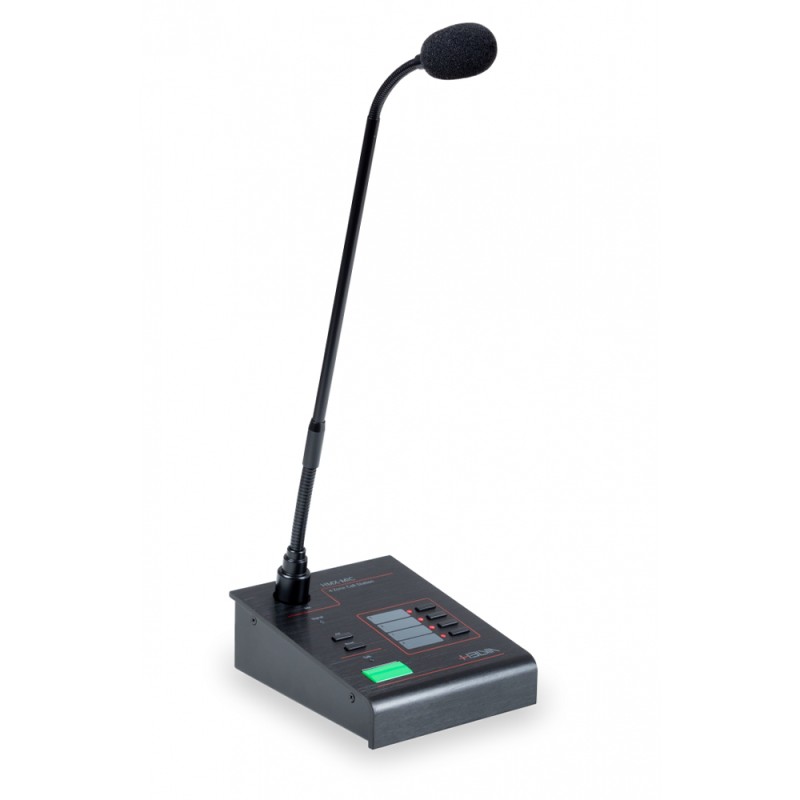

• Gooseneck microphone with level adjustment
• Independent call control on each zone
• ALL function for announcements on all zones
• Programmable chime with level adjustment
• Stereo mini-jack AUX input with level adjustment
• RJ-45 connection with power supply
• External power supply for distances over 100m

Specification:

• Power Supply: 24Vdc, 500mA from RJ45 or power adaptor (included)
• Max. connection length: 100m (CAT5 cable) or 1km with 24Vdc adaptor (included)
• Capsule: Back electret condenser
• Polar Pattern: Cardioid

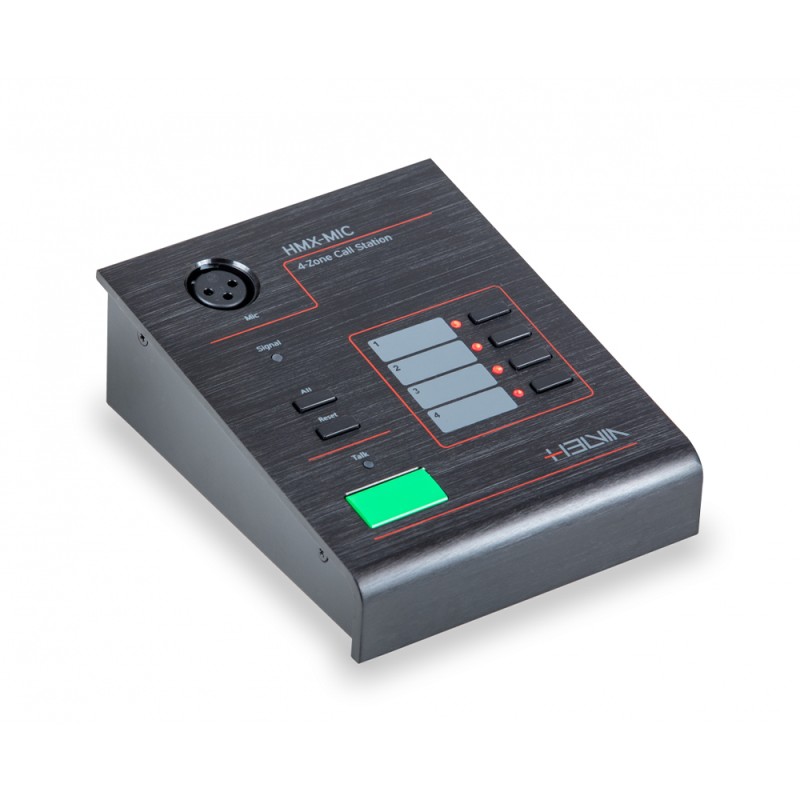

• Controls: Aux/Mic/Chime levels, chime DIP switches, zone/page buttons

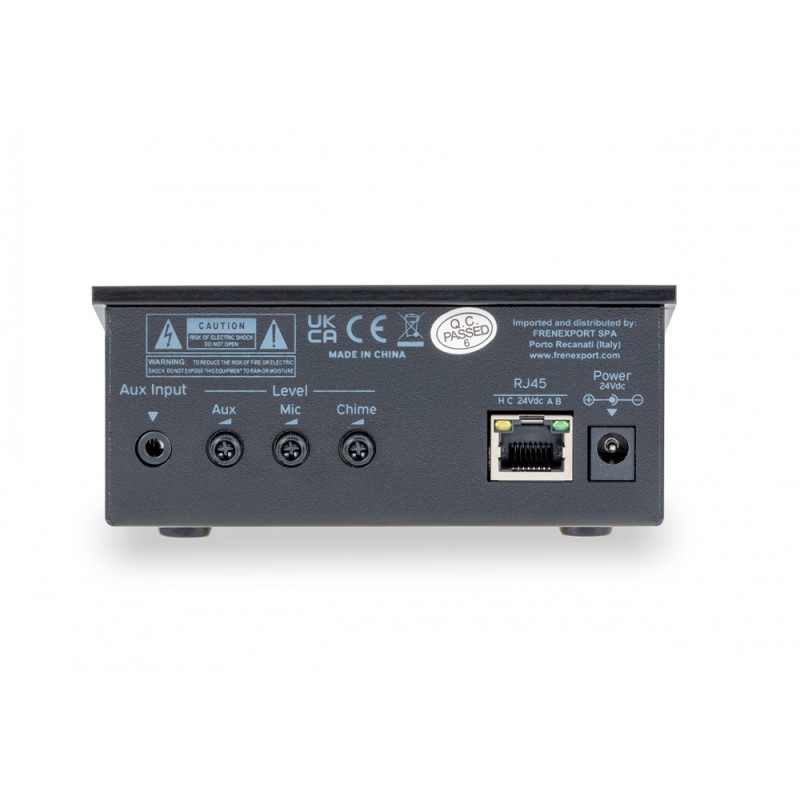

• Connectors: RJ45 to amplifier, 24Vdc power jack, Aux input
• Frequency Response (-3dB): 150Hz - 22kHz
• Input Level Mic: -46dBV, Aux
• Input Impedance Mic: 600 Ohms, Aux
• Output Level: 10dBV
• Output Impedance: balanced 600 Ohms
• S/N Ratio: -60dB (all channels selected)
• Interface RS-485 control
• Zone assign: 4 zones or all selectable
• Product Size (WxDxH): 115 x 143 x 460/53 (with Mic/without Mic) mm (4.52 x 5.63 x 18.11/2.09 in)
• Product Weight: 600 g. (1.32 lbs.)
• Packing Size (WxDxH): 430 x 235 x 65 mm (16.93 x 9.25 x 2.56 in)
• Pakcing Weight: 1.06 kg (2.34 lbs.)
