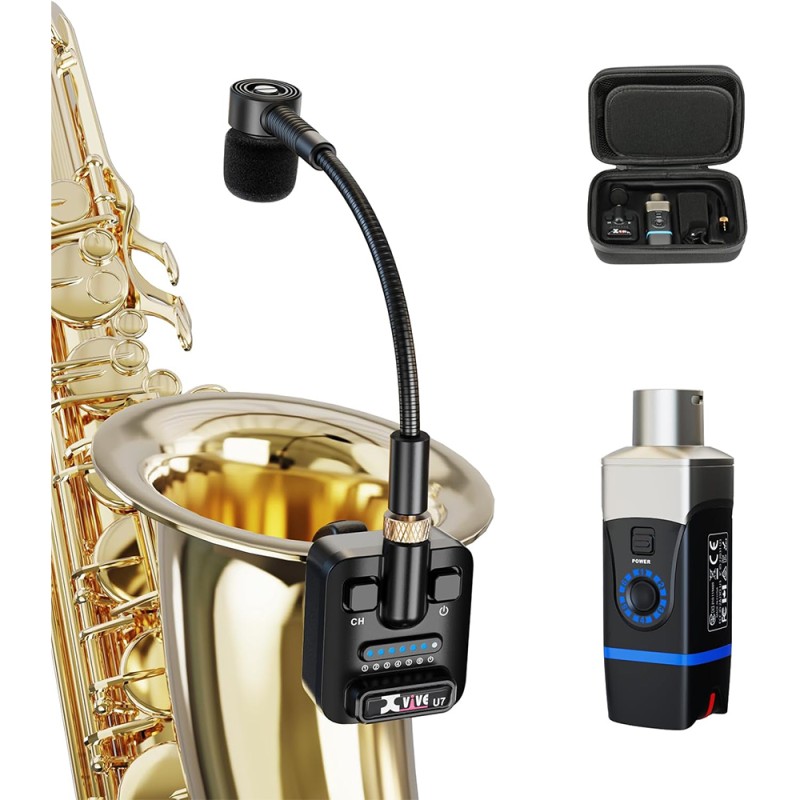

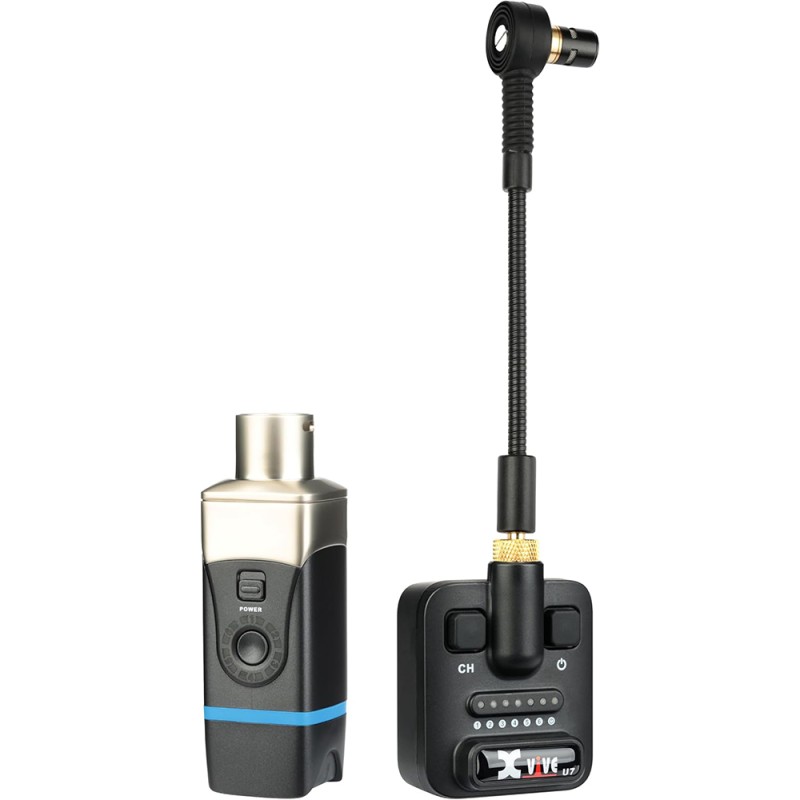

Безжичен микрофон за духови инструменти Xvive U7

Безжичен микрофон за духови инструменти Xvive U7

Features:

• 2.4 GHz wireless system with a 142 dB SPL supercardioid microphone
• High-resolution 24-bit/48 kHz audio, less than 5 ms latency
• 20 Hz – 20 kHz frequency response
• Dynamic range of 108 dB, signal-to-noise ratio of 108 dB
• Up to 5 hours of battery life
• 6 wireless channels
• Wireless range: up to 90 feet (27 m)

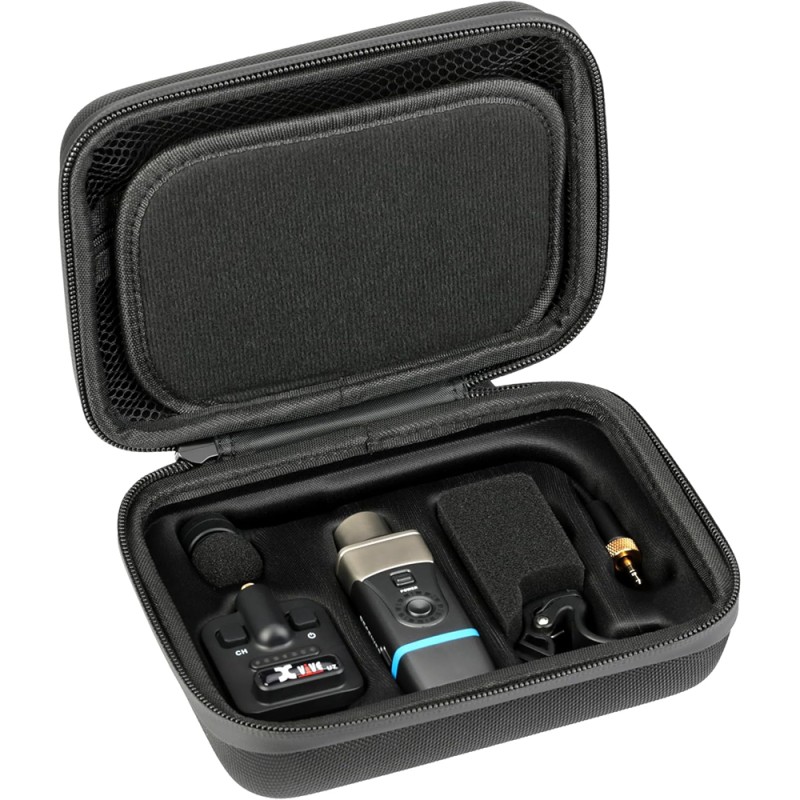

• Includes transmitter, receiver, microphone, clip, USB-C cable, foam windscreen and fur windshield, carry case

Specification:

Microphone Spec:

• MICROPHONE TYPE: Supercardioid
• DIMENSIONS: 20 mm x 28 mm x 190 mm
• WEIGHT: 35 g
• OUTPUT PLUG: 1/8” balanced male TRS (Tip = +3.3V, Ring = -3.3V, Sleeve = ground)
• SENSITIVITY: -45 dB
• MAX. SPL: 142 dB

Wireless System Spec:

• TUNING BANDWIDTH: 2400 – 2483.5 MHz
• WORKING RANGE: 90 ft (indoors)
• FREQUENCY RESPONSE: 20 Hz – 20 kHz (-3dB)
• DYNAMIC RANGE: 108 dB
• SIGNAL-TO-NOISE RATIO: 108 dB
• RF SENSITIVITY: -88 dBm
• TOTAL HARMONIC DISTORTION: 0.2%
• RF OUTPUT POWER: 10 mW E.I.R.P. max
• OPERATING TEMPERATURE RANGE: 0°C to 45°C
• CHANNEL COUNT: 6
• CHARGING VOLTAGE / CURRENT: 5V / 2A
• BIT DEPTH / SAMPLE RATE: 24-bit / 48 kHz
• LATENCY: less than 5 ms

Transmitter Spec:

• DIMENSIONS: 40 mm x 29 mm x 50 mm
• WEIGHT: 35 g
• AUDIO INPUT CONNECTOR: 1/8” balanced TRS female
• MAXIMUM INPUT LEVEL: 3.7 Vp-p
• PHANTOM POWER: ± 3.3V
• USB TYPE: USB Type-C
• ANTENNA IMPEDANCE: 50 Ω
• ANTENNA TYPE: 1/4 wave sleeve dipole, non-removable
• NUMBER OF ANTENNAS: 1

Receiver Spec:

• DIMENSIONS: 31 mm x 29 mm x 98 mm
• WEIGHT: 92 g
• OUTPUT IMPEDANCE: 470 Ω (1 kHz)
• AUDIO OUTPUT CONNECTOR: XLR balanced male
• MAXIMUM OUTPUT LEVEL: 3.6 Vp-p
• USB TYPE: USB Type-C
• ANTENNA IMPEDANCE: 50 Ω
• ANTENNA TYPE: 1/4 wave sleeve dipole, non-removable
• NUMBER OF ANTENNAS: 2
