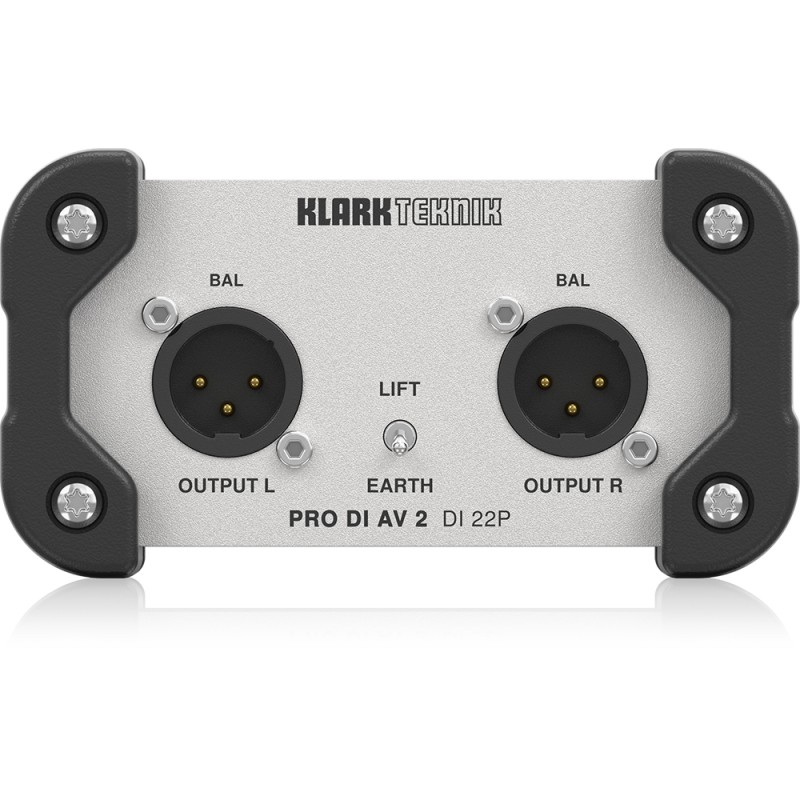

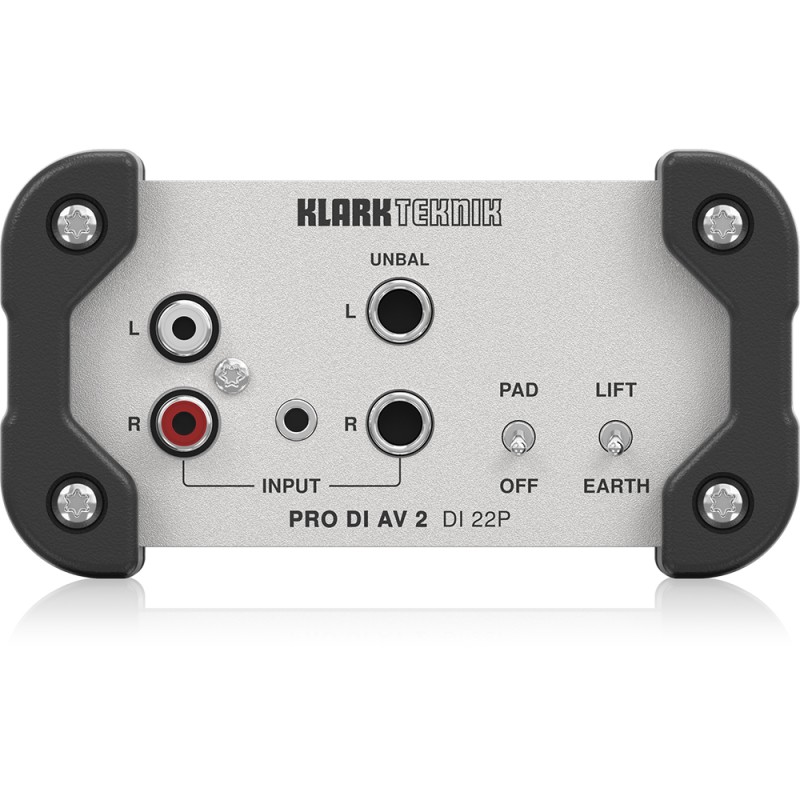

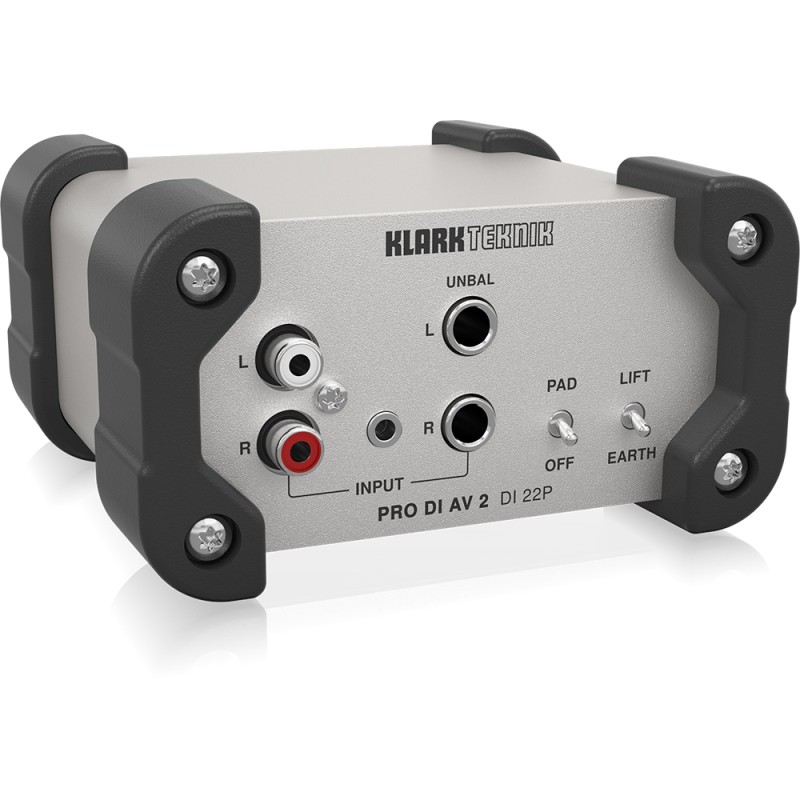

Пасивен стерео Ди ай бокс Klark Tehnik DI22P

Пасивен стерео Ди ай бокс Klark Tehnik DI22P

Features:

• Passive Stereo DI Box for general purpose and multimedia applications
• Custom-built Midas transformers for highest signal integrity
• High headroom design offers superior sound quality
• Passive design does not require any power supply
• Stereo input on 1/4", 1/8" TRS and RCA connectors
• Switchable input attenuation for guitar, line and speaker levels
• High quality Neutrik XLR connectors
• Earth Lift switches for input and output eliminate ground loop problems
• Fully transformer-isolated design ensures electrical separation
• Ultra-low noise and ultra-linear system for highest signal integrity
• Aluminium extrusion casing with protective rubber corners
• Compact and rugged design

Specification:

• Especially suited to multimedia applications
• Midas transformer
• Inputs: 2x 6.3 mm jack, 1x 3.5 mm mini-jack (stereo) and 2x RCA
• Neutrik XLR outputs
• 15 dB pad switch
• Ground lift
• Input impedance: 30 kOhm
• Output impedance: 600 Ohm
• Frequency range (±1 dB):: 20 Hz - 30 kHz
• Signal-to-noise ratio: 105 dBu
• Sturdy, compact aluminium housing with protective, hard rubber corners
• Dimensions (W x H x D): 118 x 64 x 112 mm
• Weight: 0.53 kg
