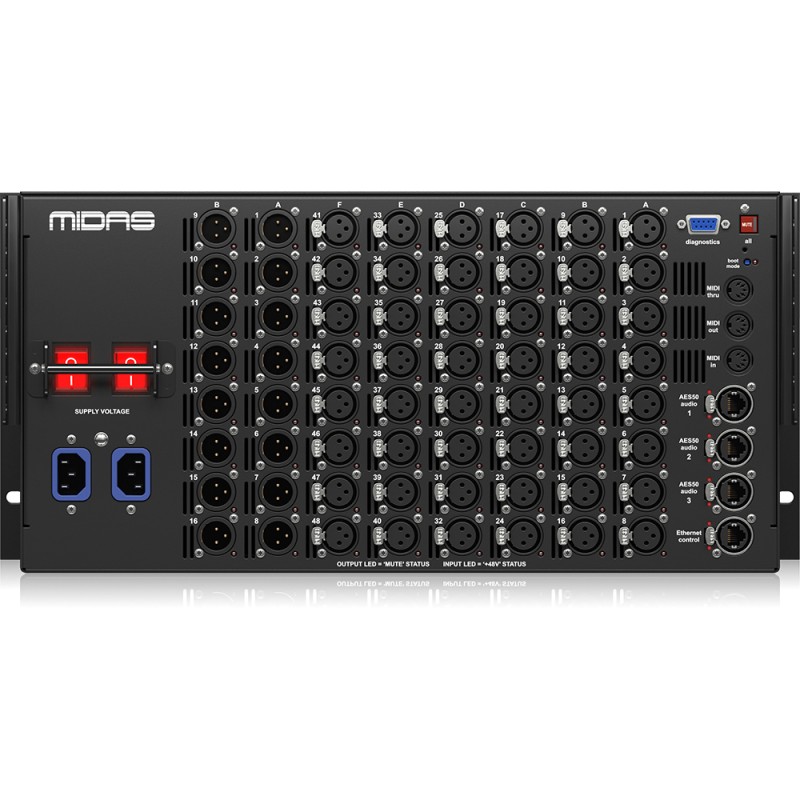

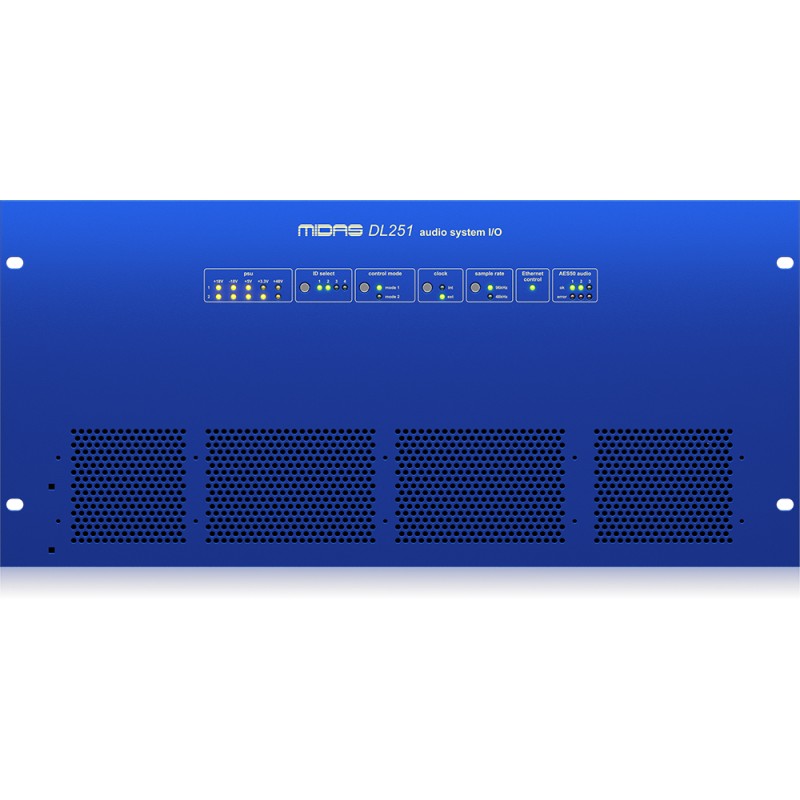

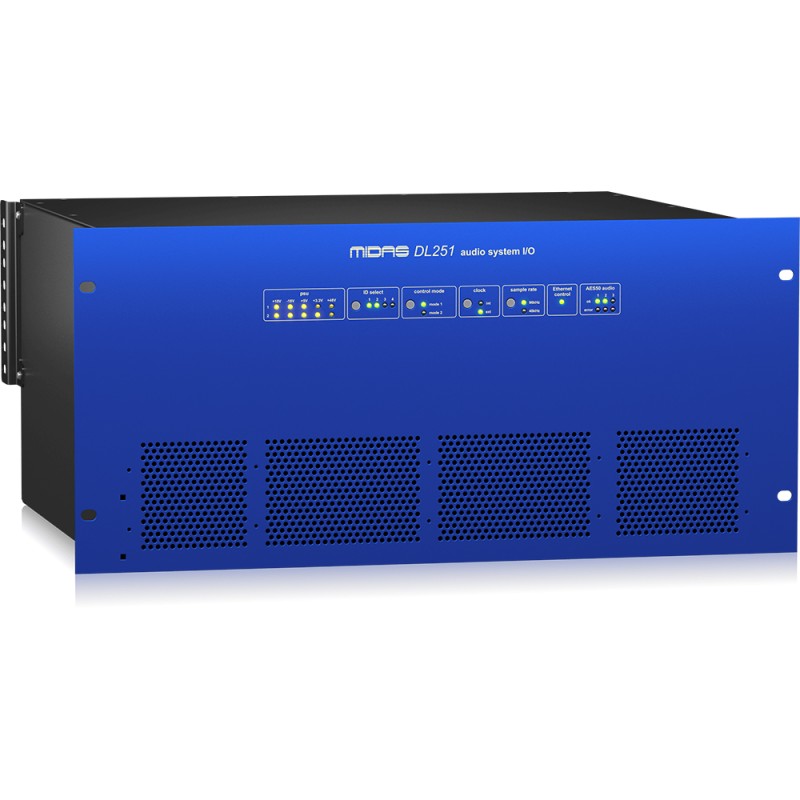

Стейдж бокс предусилвател 48 входа и 16 изхода Midas DL251

Стейдж бокс предусилвател 48 входа и 16 изхода Midas DL251

Features:

• 48 award-winning Midas microphone preamplifiers with switchable +48 V phantom power
• 16 actively balanced low impedance line level outputs
• Selectable 96 kHz or 48 kHz sample rate operation
• Remote operation up to 100 m via CAT5/5e cable
• All settings programmable from front panel controls or console
• PSU status indicator LEDs and configuration switches on front panel
• 3 AES50 network ports for redundant connections
• MIDI In, Out and Thru connectors
• Features industry standard RJ-45 AES50 network ports
• Rugged 5U rackmount chassis for durability in portable applications
• Dual redundant auto-ranging universal switch-mode power supplies

Specification:

• General Statistics: XLR connections
• Resilience: N + 1 cable redundancy and dual redundant PSUs

General Specifications

• Sampling rate: 48 kHz, 96 kHz
• Dynamic range: 107 dB, 22 Hz to 22 kHz (no pre-emphasis)
• Maximum gain: 45 dB
• Crosstalk @ 1 kHz : -100 dB physically adjacent input channels
• Crosstalk @ 10 kHz: -90 dB physically adjacent input channels
• Dimensions: 5U x 414 mm deep
• Net weight: 10 kg
• Shipping weight: 18 kg
• Power requirements: 100 to 240 VAC, 50 to 60 Hz
• Power consumption at 115 V: 1 PSU: 85 W, 85 VA 2 PSU: 110 W, 110 VA
• Power consumption at 230 V: 1 PSU: 90 W, 100 VA 2 PSU: 110 W, 135 VA
• Operating temperature range: +5°C to +40°C
• Storage temperature range: -20°C to +60°C

System Inputs and Output

• I/O box inputs
• Box analogue outputs
• MIDI
• 48 kHz I/O digital system inputs and outputs
• 96 kHz I/O digital system inputs and outputs

Input and Output Characteristics

• Analogue input characteristics
• Analogue output characteristics
• 48 kHz digital I/O characteristics
• 96 kHz digital I/O characteristics
