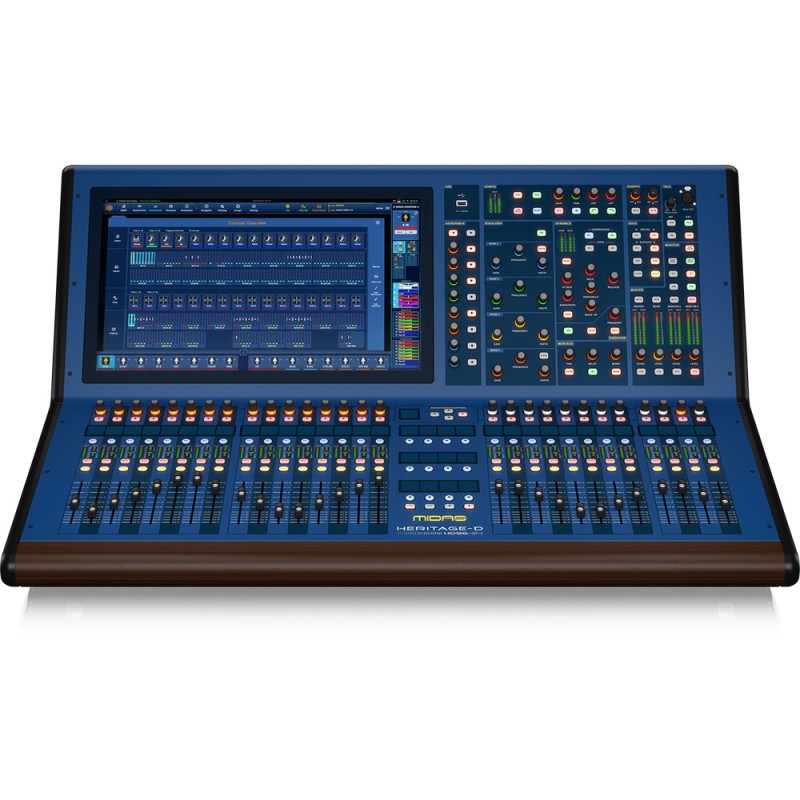

Дигитален смесителн пулт конзола Midas HD96-24-CC-TP

144 - канален дигитален смесителн пулт конзола Midas HD96-24-CC-TP

Specification:

Processing

• Input processing channels: 144 flexi channels
• Output processing channels: 96 flexi aux outputs, 24 matrices, stereo bus, mono bus
• Point-to-point routing matrix: 622 x 652
• Signal processing: 64-bit floating point
• D/A converter: 24-bit, 96 kHz and 128 times oversampling
• A/D converter: 24-bit, 96 kHz and 128 times oversampling

• Sampling frequency: 96 kHz

• I/O latency (surface input to output): 1.34 ms

Input audio processing:

• Dual-slope high and low-pass filters
• True phase filter control
• 4-band parametric EQ with 3 shelf modes
• 4-mode creative input compressors
• Input gates or ducker
• Insert point on/off with processing order change
• Direct output with adjustable level and processing pick of point
• Delay-compensated aux return mode on inputs
• 5 x tap-off points per send

Output audio processing:

• Output 4-band parametric EQ with shelving/HP/LP options
• 4-mode creative output dynamics
• Insert point on/off with processing order change
• Direct input with adjustable level and processing tap-off point

Mixing control assistance:

• 12 x talk groups
• 12 x mute groups
• 24 x surface POPulation groups
• 24 x VCA associated population groups
• Scene snapshot automation

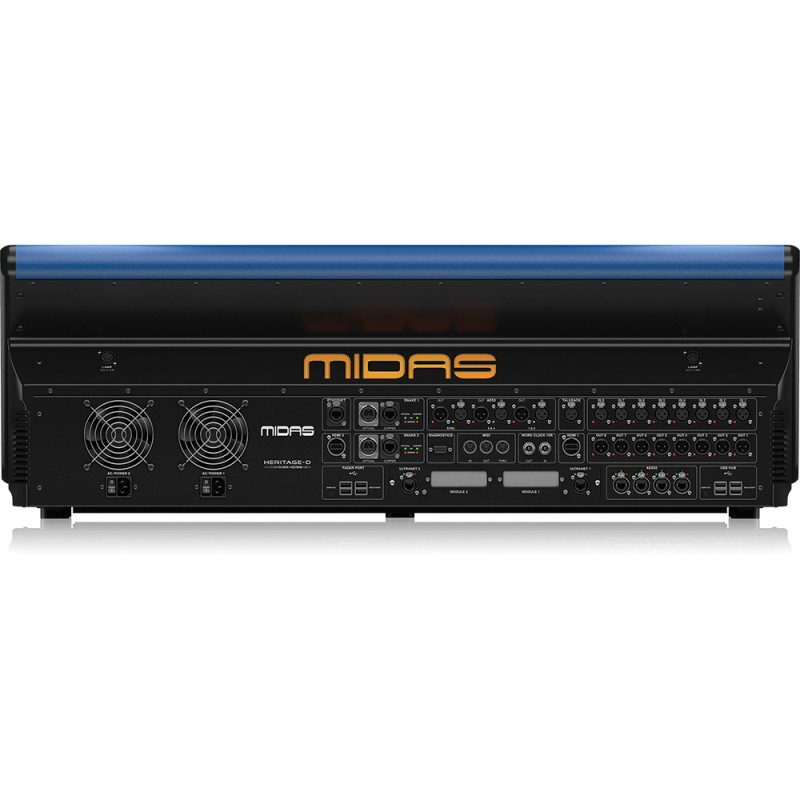

Connectors:

• Midas microphone preamplifier: 8 x XLR balanced
• Balanced outputs: 8 x XLR balanced
• Talkback connector: 1 x XLR balanced
• Talk connector: 1 x XLR balanced
• Headphone connector: 2 x 1⁄4" TRS (stereo)
• Digital AES3 input / output (XLR): 2 / 2
• AES50 ports (Klark Teknik SuperMAC, 100 Mbit/s): 4
• Snake (copper): 2 x HyperMac (192 channels of bi-directional digital audio) on Ethercon XLR
• Snake (fibre): 2 x HyperMac (192 channels of bi-directional digital audio) on Opticon XLR
• CM1 expansion slots: 2 x slots (CM1 module for AES50, DANTE, MADI and USB)
• Ultranet: 2 x Ultranet ports (up to 16 digital outputs per port)
• Word clock IN: BNC, accepts TTL level, 96 kHz square wave, impedance 75 Ohms
• Word clock OUT: BNC, provides a TTL level, 96 kHz square wave
• AES3 sync IN: 1 x 3-pin XLR
• AES3 sync OUT: 1 x 3-pin XLR
• External (Ethernet) connector: Ethercon XLR
• Monitor output: 2 x HDMI (1920 x 1080p 59.94Hz/60Hz 16:9 & 720 x 480p 59.94Hz/60Hz 16:9 supported)
• USB 3.0 type A hub: 4 x 5 V ⎓ 900 mA
• USB 3.0 type A (fader port expansion): 4 x 5 V ⎓ 900 mA
• USB 2.0 type A (front surface data): 1 x 5 V ⎓ 500 mA
• Diagnostics Port: Serial port
• MIDI: In, Out and Thru 5-pin MIDI DIN sockets
• Lamp: 2 x 12 V DC 5 W 4-pin
• IEC mains socket with power switch: 2

Input / Output Characteristics:

• Surface input impedance: 10 kΩ
• Non-clip maximum input level: +24 dBu
• Input gain: -22.5 dB to +65 dB
• Phantom power (switchable per input): +48 V
• Talk mic impedance: 5 kΩ
• Talk mic gain: +15 dB to +60 dB
• Talk mic max level: +6 dB
• Talkback impendance: 20 kΩ
• Talkback gain: ∞0 to + 10 dB
• Talkback max level: +21 dBu
• Surface output impedance: 50 Ω
• Surface output gain: 0 dB
• Surface output max level: +21 dBu
• Dynamic range: 106 dB, 22 Hz to 22 kHz, unweighted
• Maximum voltage gain: 100 dB inputs to subgroups and masters , 106 dB inputs to aux and matrix
• Crosstalk at 1 kHz: -100 dB physically adjacent input channels
• Crosstalk at 10 kHz: -90 dB physically adjacent input channels
• Fader / pan cut off at 1 kHz: -100 dB
• Fader / pan cut off at 10 kHz: -100 dB
• Headphones output impedance: 10 Ω
• Headphones maximum output level: +21 dBu

Displays:

• Display screen: 21" LCD high brightness 1920 x 1080 px, captive touchscreen,  up to 10 simultaneous touches
• LCD info displays: 41 x full colour LCD info displays, 24 mm x 24 mm (size), 240 x 240 px
• Input meters (quantity 30): 12 segment -35 dBu to +20 dBu
• Output meters (quantity 7): 20 segment -36 dBu to +21 dBu
• Channel comp meters (quantity 28): 5 segment -24 dBu to -1 dBu
• Channel gate meters (quantity 28): 5 segment -34 dBu to -5 dBu
• Comp meter (quantity 1): 12 segment -23 dBu to -1 dBu
• Gate meter (quantity 1): 12 segment -34 dBu to -1 dBu

Controls:

• 100 mm motorized faders: 8 + 8 + 8 + 4
• Touch-sensitive rotary controls: 66
• Custom controls:
• Fully assignable rotary controls: 28 + 8
• Fully assignable backlit buttons: 28 + 8 + 12
• Headphone controls: A and B, min to max
• Talk:Talk gain min to max
