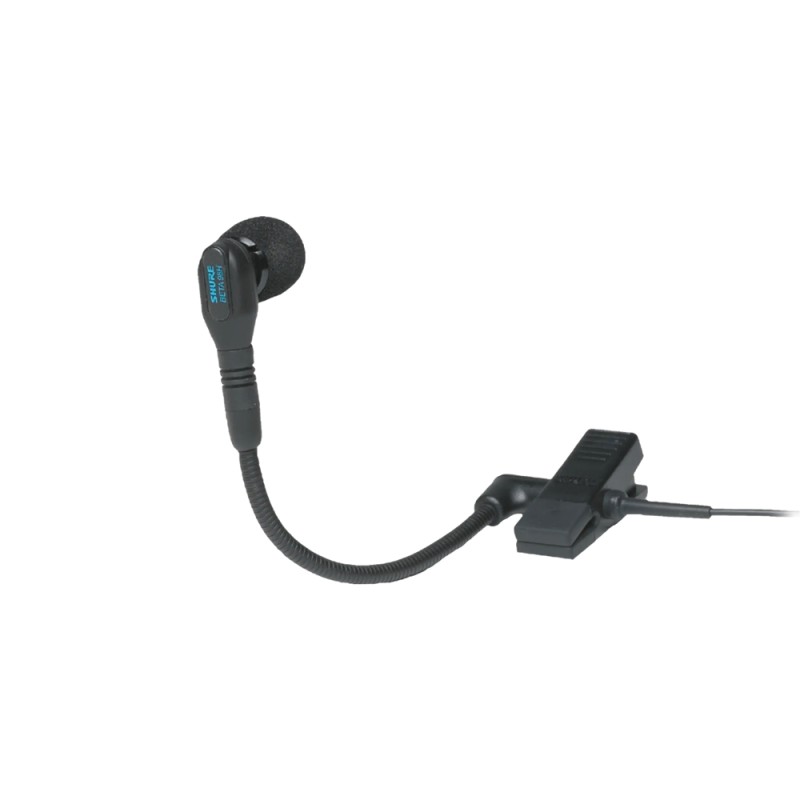

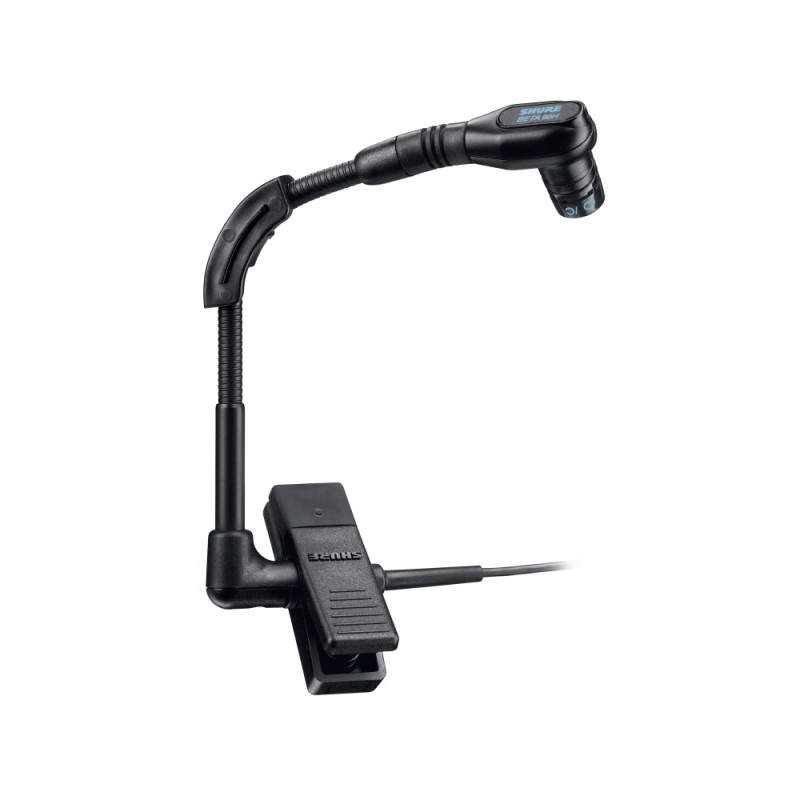

SHURE WB98H/C Инструментален микрофон за безжични системи Beta 98H/C

SHURE WB98H/C Инструментален микрофон за безжични системи Beta 98H/C

Shure WB98H/C - кондензаторен микрофон тип "щипка", подходящ за духови инструменти и перкусии. Притежава огъваща се шия за лесно позициониране.

За употреба с бодипак трансмитер / безжични системи SHURE! Конектор TA4F (TQG) (4-пинов мини канон).

• Тип преобразувател: Кондензатор
• Полярен модел: Кардиоиден
• Честотен обхват: 20 Hz - 20 kHz
• Чувствителност (1 kHz): -56 dBV/Pa/1,6 mV/Pa
• Еквивалентен автономизъм: 31 dB (A)
• Звуково налягане: 155 dB (при 1 kΩ), 163 dB (при 2,5 kΩ)
• Тегло: 65 g

Съдържа:

• 1 х Микрофон WB98H/C
• 1х Калъф за съхранение

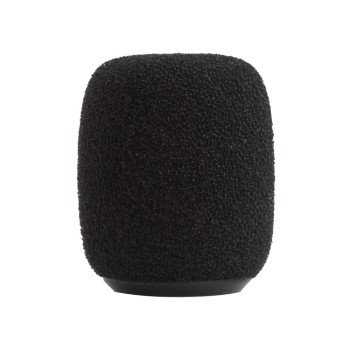

• 1х Ветробран
• 1х Кабел 1.6м

Specifications

• The WB98H/C features transformerless preamplifier circuitry, which improves linearity across the full frequency range.
• The pickup pattern of the Beta 98H/C provides high gain-before-feedback and excellent rejection of unwanted noise.
• Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments.
• Tailored frequency response for studio quality performance
• Wide dynamic range for use in high SPL environments
• Uniform cardioid pattern for high gain before feedback and superior rejection of off-axis sound
• Compact design reduces stage clutter
• Interchangeable microphone cartridges with different polar patterns are available
• Legendary Shure quality, ruggedness, and reliability

Technical

• Cartridge Type: Electret Condenser
• Frequency Response: 20 to 20,000 Hz
• Polar Pattern: Cardioid
• Output Impedance: 150 Ω
• Sensitivity (at 1 kHz, open circuit voltage): –56 dBV/Pa (1.6 mV) (1 Pascal=94 dB SPL)
• Maximum SPL (1 kHz at 1% THD, 1KΩ load): 155 dB SPL
• Equivalent Output Noise(A-weighted): 31 dB SPL (typical)
• Dynamic Range: 124 dB, (at 1 kHz, 1KΩ load) - 132 dB
• Clipping Level (1 kHz at 0.25% THD, 1KΩ load): 3 dBV (1.4 V)
• Signal-to-Noise Ratio: (Referenced at 94 DB SPL at 1 kHz) 63 dB
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Power Requirements: 11–52 VDC phantom power (IEC-61938), 1.2 mA
