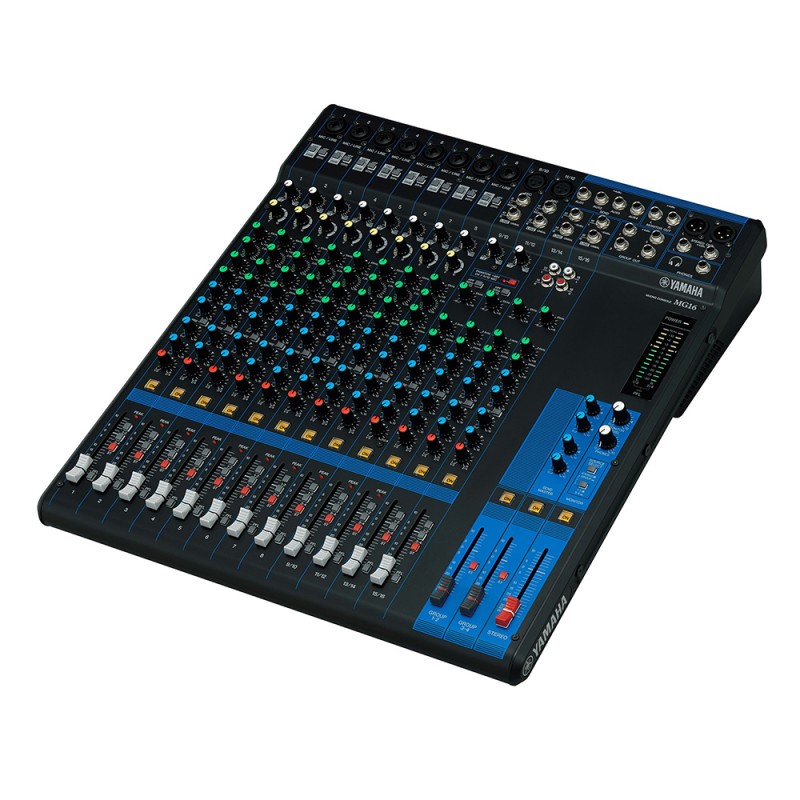

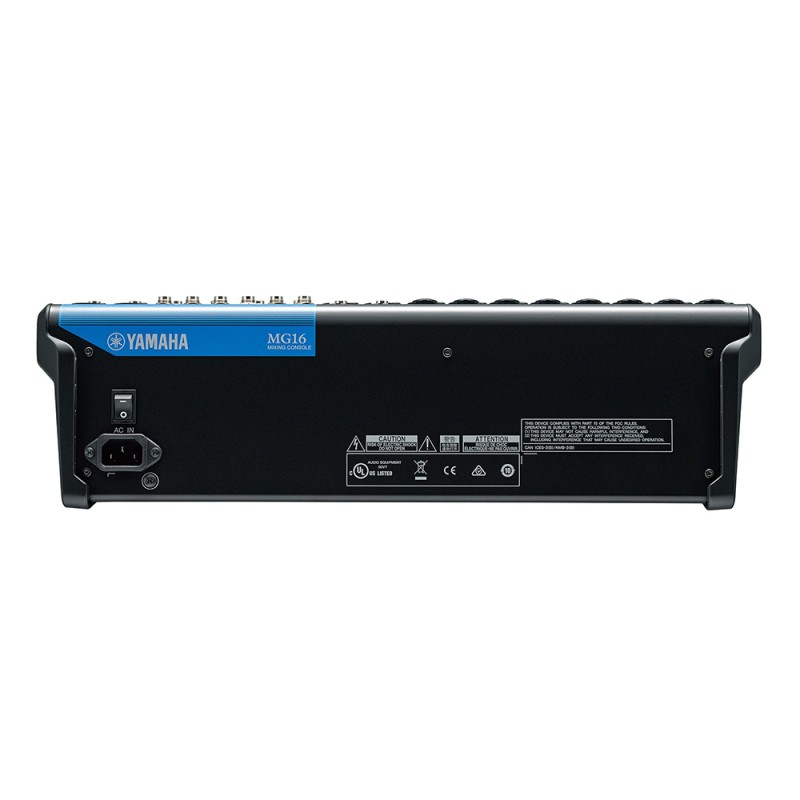

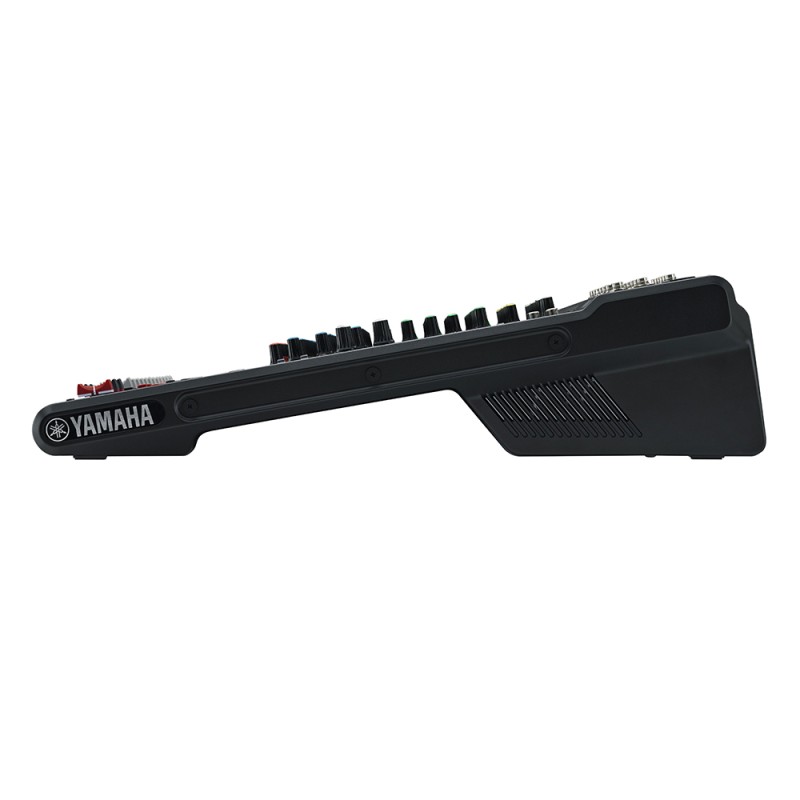

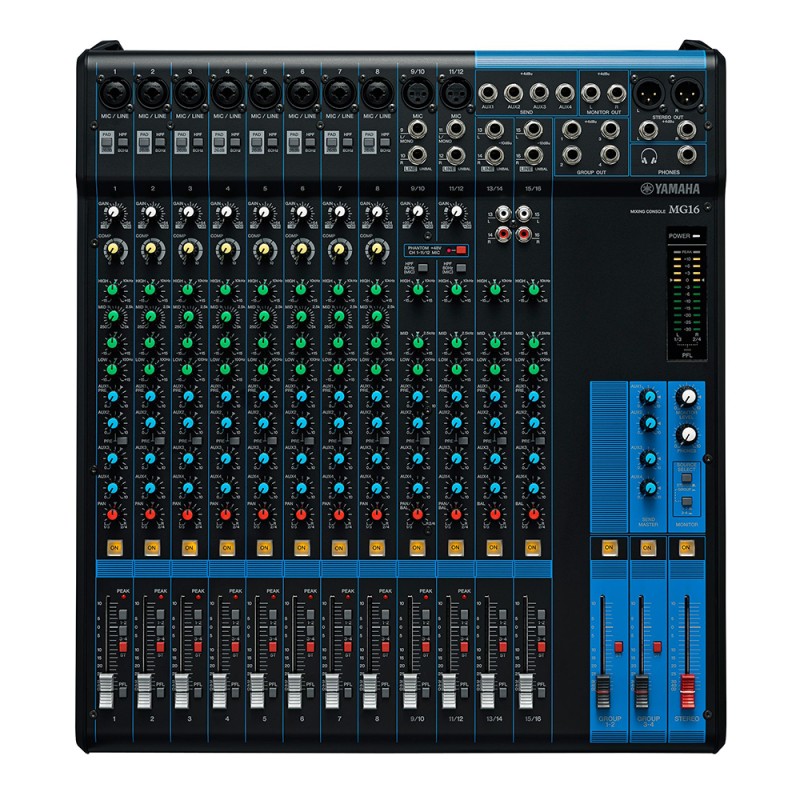

Смесителен пулт 10 моно + 4 стерео Yamaha MG16

Смесителен пулт 10 моно + 4 стерео Yamaha MG16

Features:

• 16-Channel Mixing Console
• Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
• 4 GROUP Buses + 1 Stereo Bus
• 4 AUX
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for world-wide use
• Rack Mount Kit Included
• Metal chassis
• 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
• 6.6 kg (14.6 lbs.)
• Specification:

I/O

• Phantom power: +48 V

Input Channels:

• Mono[MIC/LINE]: 8
• Mono/Stereo[MIC/LINE]: 2
• Stereo[LINE]: 2

Output Channels:

• STEREO OUT: 2
• MONITOR OUT: 1
• PHONES: 1
• AUX SEND: 4
• GROUP OUT: 4

Bus:

• Stereo: 1, GROUP: 4, AUX: 4

Input Channel Function:

• PAD: 26 dB (Mono)
• HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
• COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
• EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ MID: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking
• EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping

General specifications:

• Total harmonic distortion: 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
• Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level:

• Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
• Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
• Crosstalk: -78 dB
• Power requirements: AC 100 – 240 V, 50 / 60 Hz
• Power consumption: 30 W

Dimensions:

• W: 444 mm (17.5")
• H: 130 mm (5.1")
• D: 500 mm (19.7")
• Net weight: 6.6 kg (14.6 lbs.)

Accessories

• Included Accessory: Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit

Others

• Operating Temperature: 0 to +40˚C
