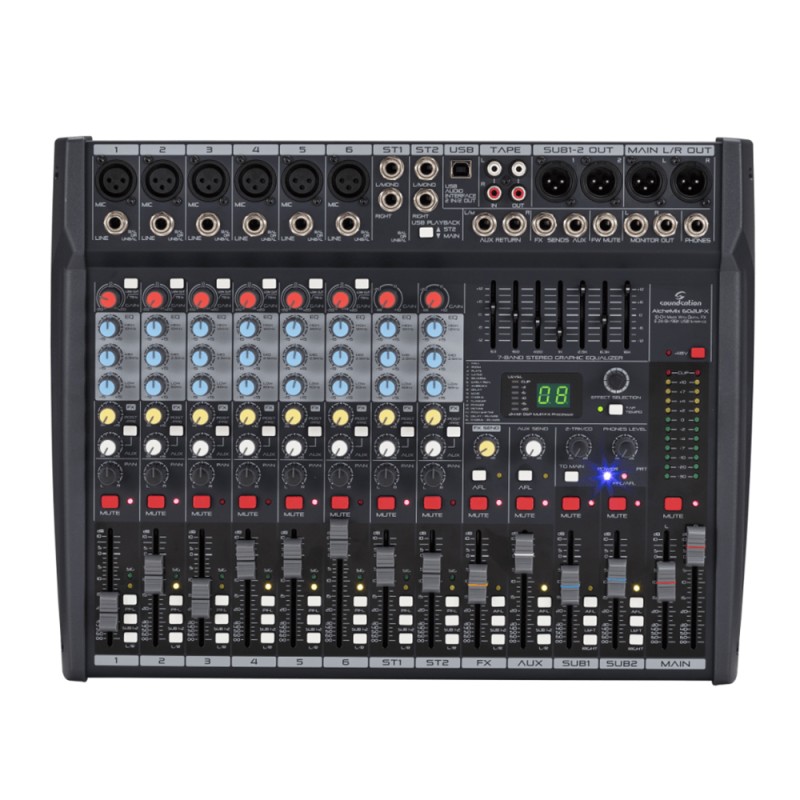

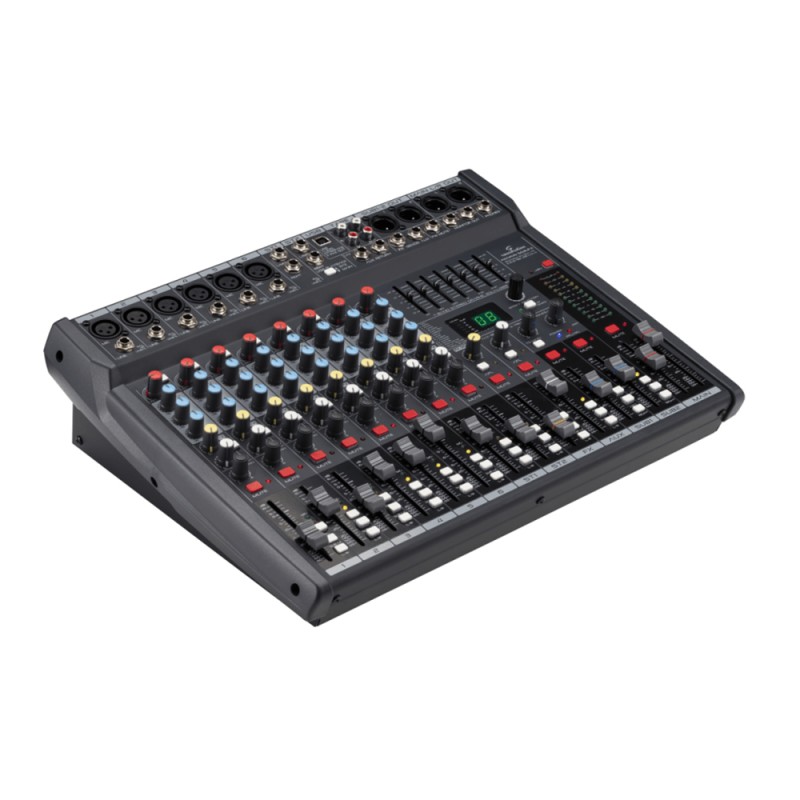

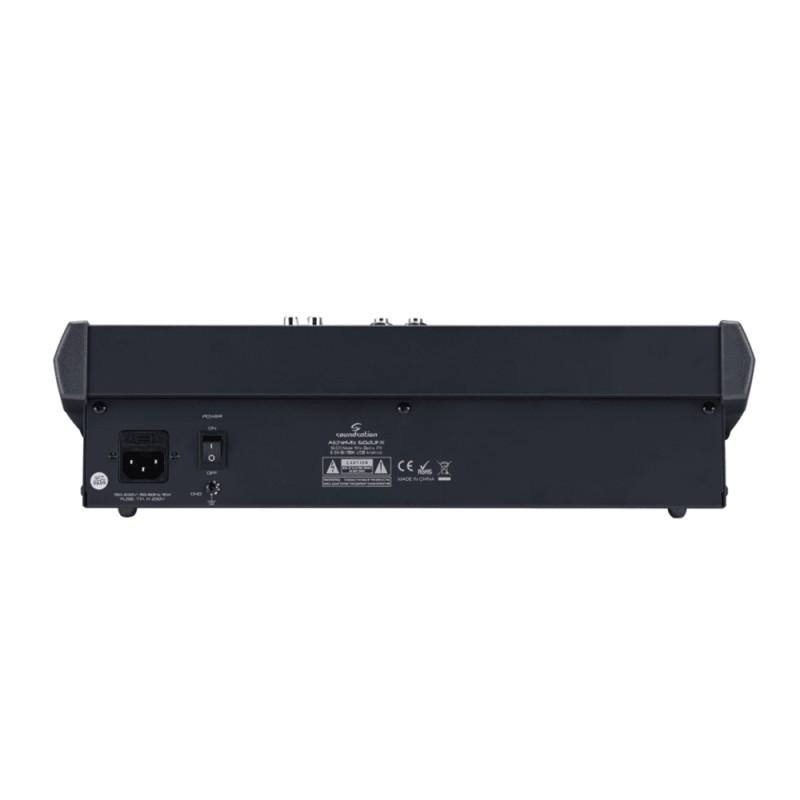

Смесителен пулт 6 моно + 2 стерео ALCHEMIX 602UFX

Смесителен пулт 6 моно + 2 стерео ALCHEMIX 602UFX

Key Features:

• 10 Total Channels
• 6 Mic/Line channels with wide-range gain noiseless preamps, XLR and balanced ¼” Jack connectors, 75Hz Low-Cut filter, +48V Phantom Power, Signal/Peak Indicator
• 2 Stereo Line Channels with balanced ¼” Jack inputs, with gain and Peak Indicator
• 3-Band EQ, Pan/Balance, Mute, PFL, Group 1-2, Main L-R, 60mm Volume Fader
• 2 AUX sends (1 with Pre/Post selection for internal DFX or AUX1 Out; 1 Pre-Fader for AUX2 Out) with channel/master level, AFL, and ¼” Jack outputs
• Effect/AUX Return control with 60mm Fader, Mute, AFL, Group1-2, L-R assignment, and balanced ¼” Jack inputs
• Group 1-2 XLR outputs with 60mm Fader, Mute, AFL, Master Left and Right assignment
• 7-Band Graphic EQ on Master Bus with precision filters
• 24-bit/48kHz 16-Preset Digital Effect with Footswitch Out, TAP-Tempo Button and up to 2 Adjustable Parameters for each Preset
• USB Stereo In/Out Sound Card with up to 96kHz/24-bit recording/playback capability
• 2-Track In/Out RCA connections and Level control
• Headphones ¼” Stereo Jack Out with Level control
• XLR Main Outputs with 60mm Fader Control and MUTE
• Stereo 12-Led VU Meter Bar for Main, PFL/AFL monitoring
• Stereo ¼” Jack Monitor Output
• Rugged and Lightweight Metal Case

Specification:

• Configuration: 6 Mic/Line + 2 Stereo
• Nominal Gain (Mic/Line/Stereo Line): 60dB, 40dB, 20dB
• Max Gain (Mic/Line/Stereo Line): 80dB, 60dB, 40dB
• Mic Input Sensitivity (Gain Min/Gain Max): -10dBu/-60dBu
• Line Input Sensitivity (Gain Min/Gain Max): +10dBu/-40dBu
• Stereo Line Input Sensitivity (Gain Min/Gain Max): +10dBu/-20dBu
• Aux Return Input Sensitivity: 0dBu / 2-Track Input Sensitivity
• Mic/Line Max Input Level: +24dB
• Stereo Line/Aux/2-Track Max Input Level: +20dB
• Mic Input Impedance: 2kohm Balanced
• Line/Aux Input Impedance: 20kohm (Balanced)/10kohm (Unbalanced)
• Tape Record Inputs Impedance: 10kohm Balanced
• Main/Group/Monitor/Aux Send Output Levels: 0dBu (0.775V RMS) Nominal/ +22dBu (10V RMS) Max
• Record Out Output Levels: -2dB (600mv RMS)/ +22dBu (10V RMS) Max
• Main/Group/Monitor/Aux Send Output Impedance: 75ohm
• Record Output Impedance: 1kohm
• Phones Output Impedance: 33ohm min
• Frequency Response: 20Hz to 20kHz (+0/-2dB)
• Total Harmonic Distortion / Signal-Noise Ratio<0.006% / < -85dB
• Mono MIC (Treble/Mid/Bass): ±15dB (12kHz HF / 2.5 kHz MF/60Hz LF)
• Stereo Line (Treble/Mid/Bass): ±15dB (12kHz HF / 2.5 KHz MF/80Hz LF)
• Effect: 16 Effects, 24-bit Sigma-Delta, 256-times oversampling, 48kHz sampling rate
• USB I/O Soundcard
• Up to 24-bit/96kHz Stereo Input/Output Streaming, USB Class-2.0 compliant
• Phantom Power: +48V
• Power Supply: 150V-240V~50Hz, 15W max
• Size (WxDxH): 376 x 316.5 x 134 mm
• Carton Size (WxDxH): 455 x 165 x 352 mm
• Net Weight: 5.0 kg
• Gross Weight: 6.0 kg
