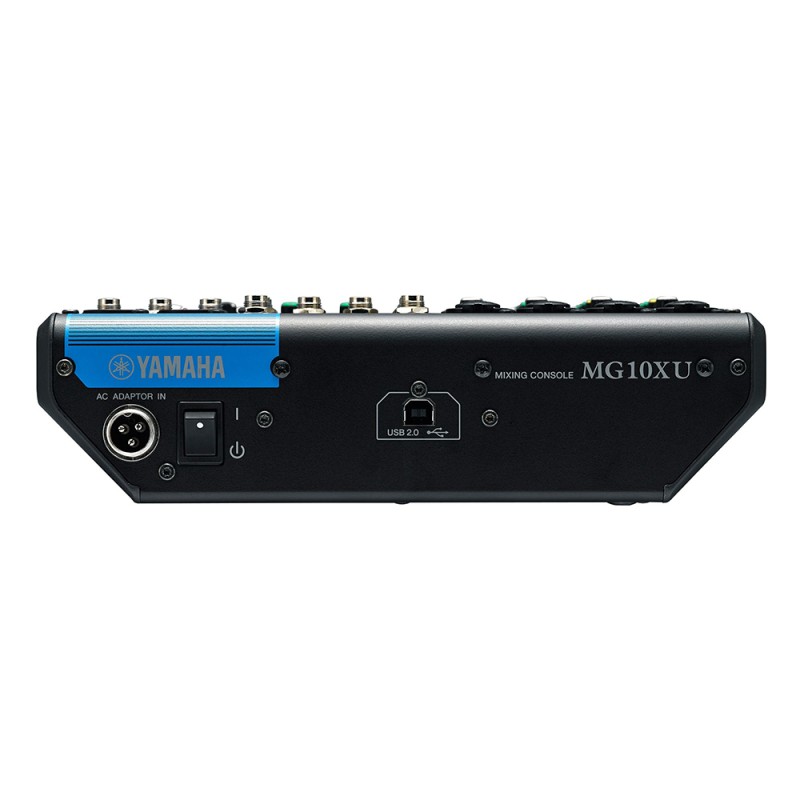

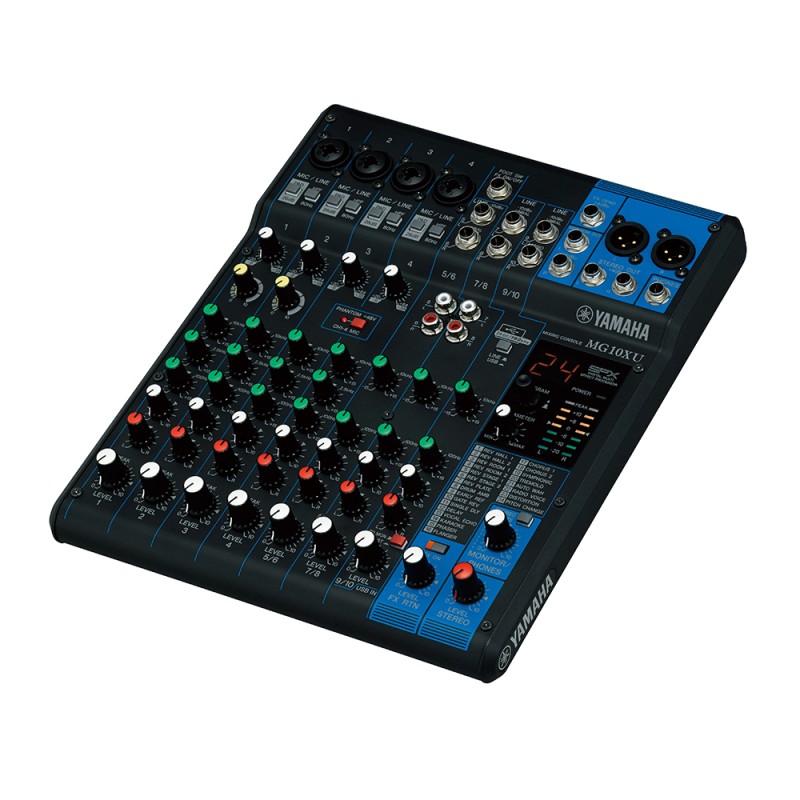

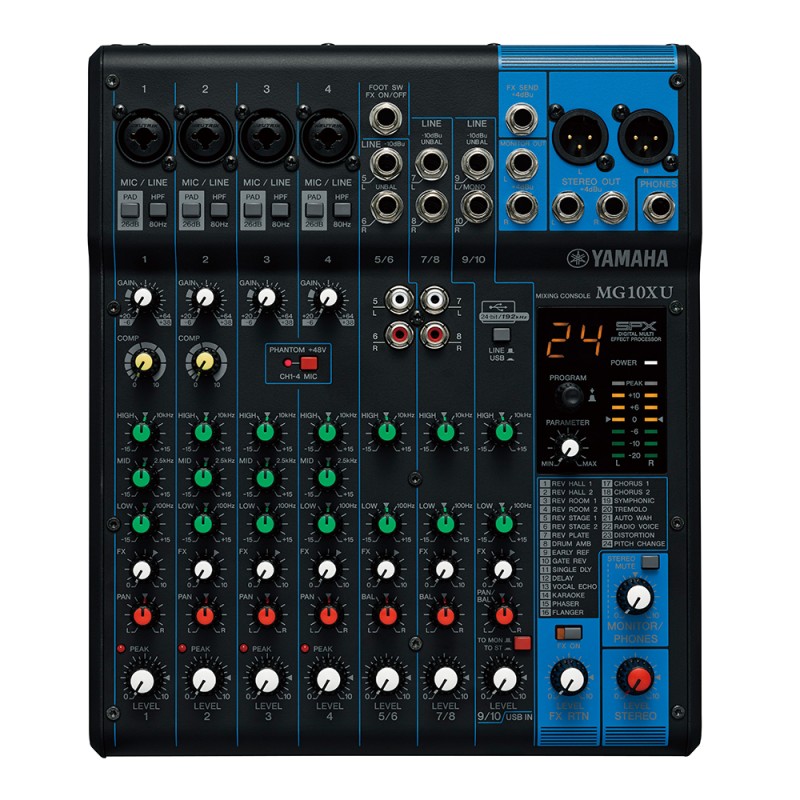

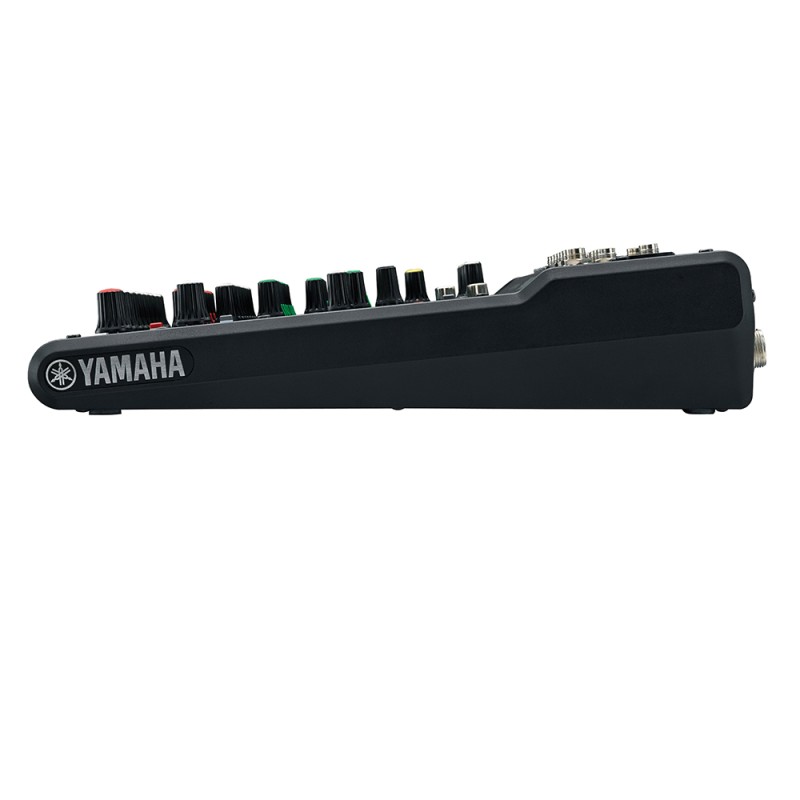

Смесителен пулт 4 моно + 3 стерео Yamaha MG10XU

Смесителен пулт 4 моно + 3 стерео Yamaha MG10XU

Features:

• 10-Channel Mixing Console
• Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
• 1 Stereo Bus
• 1 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit / 192kHz 2in / 2out USB Audio functions
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
• Includes Cubase AI DAW software download version
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Metal chassis
• Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
• Net Weight: 2.1 kg (4.63 lbs.)

Specification:

Mixing capability

• On-board processors: SPX algorithm: 24 programs

I/O

• Phantom power: +48 V
• Digital I/O: USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit

Input Channels:

• Mono[MIC/LINE]: 4
• Stereo[LINE]: 3

Output Channels:

• STEREO OUT: 2
• MONITOR OUT: 1
• PHONES: 1
• AUX SEND: 1
• GROUP OUT: -

Bus:

• Stereo: 1, AUX[FX]: 1

Input Channel Function:

• PAD: 26 dB (Mono)
• HPF: 80 Hz, 12 dB/oct (Mono)
• COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
• EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
• EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

General specifications:

• Total harmonic distortion: 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
• Frequency response: +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level:

• Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
• Residual output noise: -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
• Crosstalk: -83 dB
• Power requirements: PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
• Power consumption: 22.9 W

Dimensions:

• W: 244 mm (9.6")
• H: 71 mm (2.8")
• D: 294 mm (11.6")
• Net weight: 2.1 kg (4.63 lbs.)

Accessories

• Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5

Others

• Operating Temperature: 0 to +40˚C
