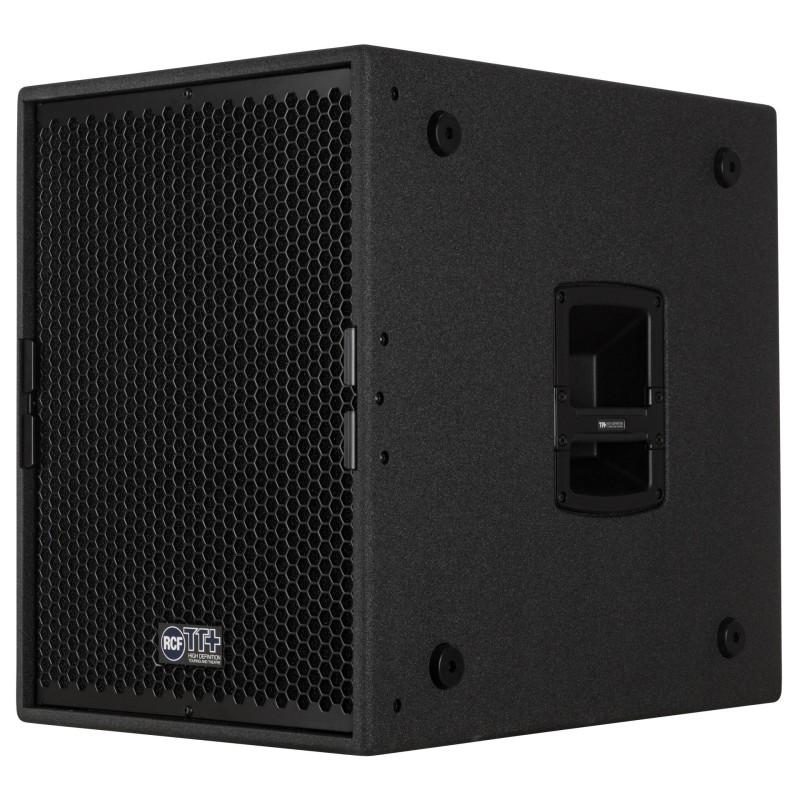

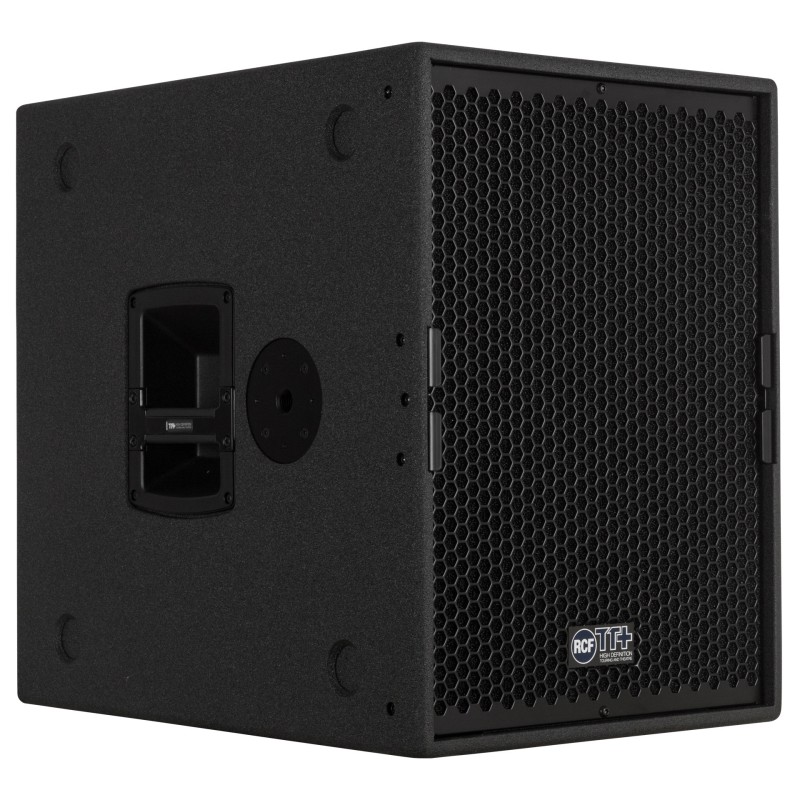

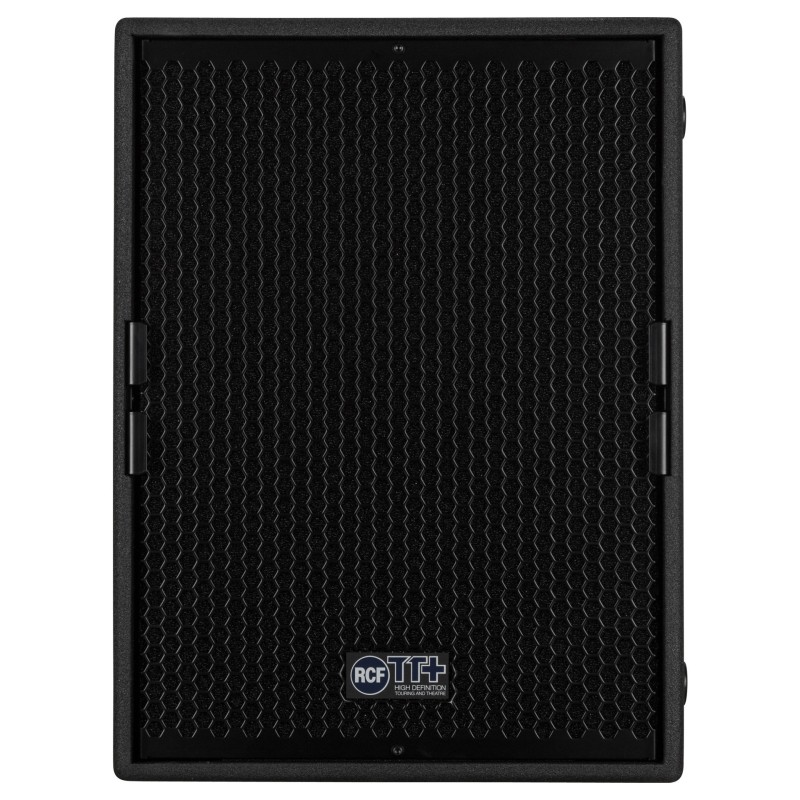

RCF TTS-15A Активна Басова Тонколона

RCF TTS-15A Активна Басова Тонколона

• 134 dB SPL Max
• 40-400 Hz Frequency Range
•  15" woofer
•  DSP Controlled Input Section with selectable presets (e.g.cardioid)
•  1100W RMS Class-D Amplifier
•  RDNet remote monitoring and control

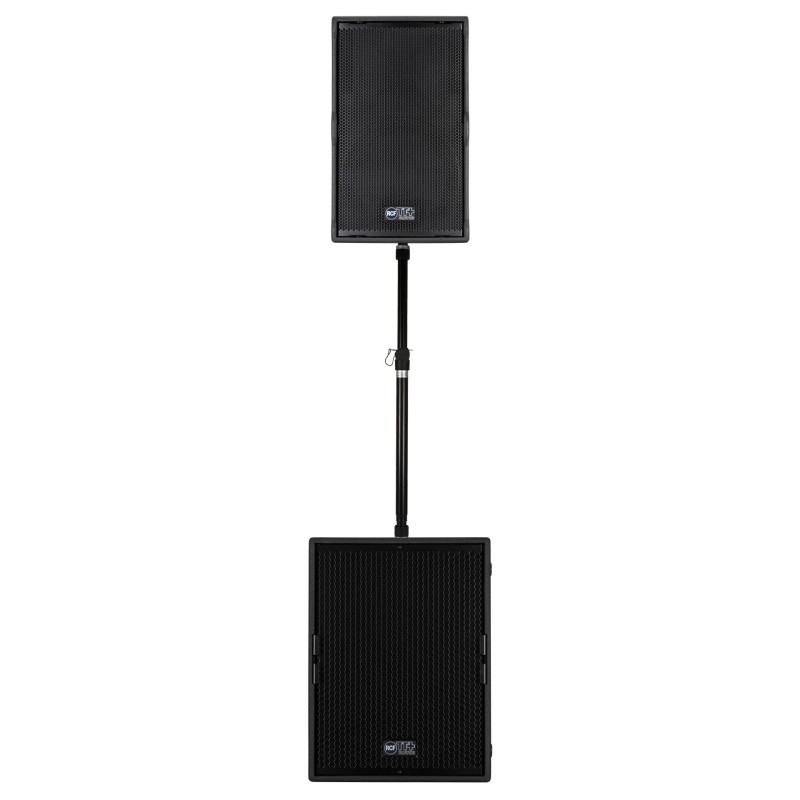

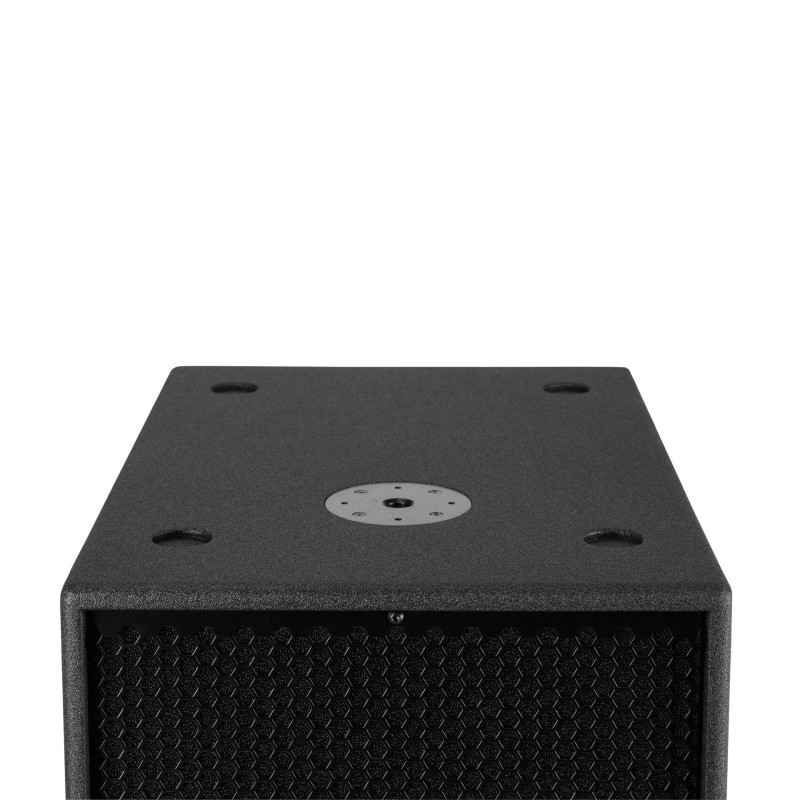

•  Vertical and horizontal placement with M20 pole receptacle on top and side

Specifications:

Acoustical Specifications

• Frequency Response: 40 Hz ÷ 400 Hz
• Max SPL @ 1m: 134 dB

Transducers

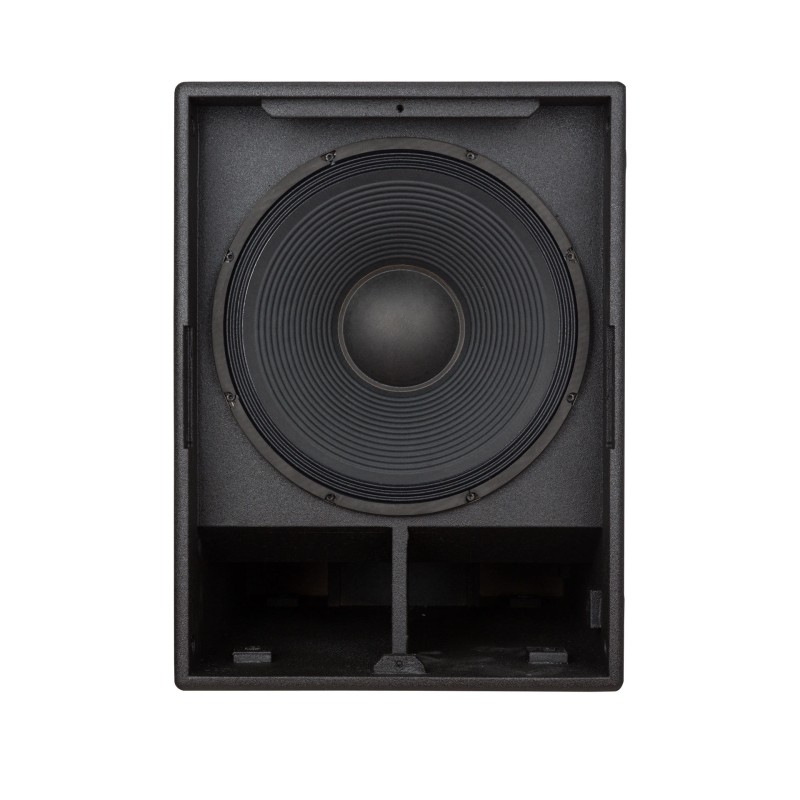

• Woofer: 15'', 3.0'' v.c

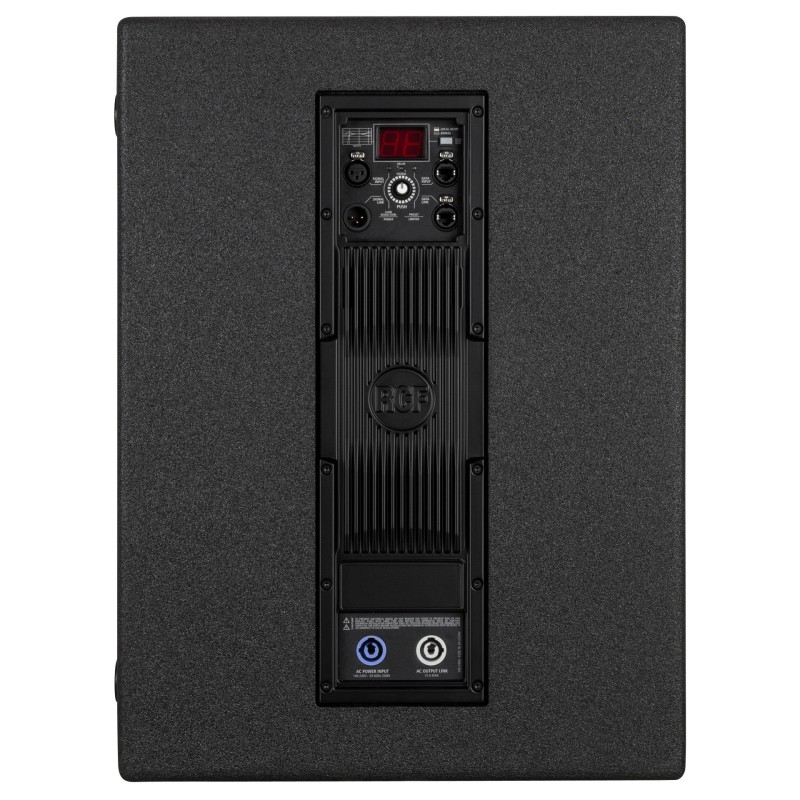

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: +4 dBu

Processor Section

• Hi-Pass Frequencies: 40 Hz, 50 Hz
• Low-Pass Frequencies: Variable from 60 Hz to 400 Hz
• Protections: Thermal, RMS
• Limiter: Fast Limiter
• Controls: Gain, Eq, Prest Switch, Out Delay
• RDNet: Yes


Power Section

• Total Power: 2200 W Peak, 1100 W RMS

• Cooling: Convection

• Connections: Powercon IN/OUT

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 2 x M20
• Handles: 2 Side
• Grille: Steel
• Colour: Black

Size

• Height: 600 mm / 23.62 inches
• Width: 445 mm / 17.52 inches
• Depth: 633 mm / 24.92 inches
• Weight: 36.5 kg / 80.47 lbs

Shipping Information

• Package Height: 670 mm / 26.38 inches
• Package Width: 705 mm / 27.76 inches
• Package Depth: 520 mm / 20.47 inches
• Package Weight: 41.3 kg / 91.05 lbs
